Scatach Q10 3000A Jump Starter and 140PSI Air Compressor User Manual

Introduction

This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your Scatach Q10 Jump Starter with integrated 140PSI Air Compressor. Please read this manual thoroughly before using the device to ensure proper function and safety.

The Scatach Q10 is a versatile device designed to jump-start 12V vehicles (up to 9.0L gasoline and 7.0L diesel engines), inflate tires, charge mobile devices, and provide emergency lighting.

Package Contents

• Scatach Q10 Jump Starter Power Bank x1
• Smart Jump Cable x1
• Safety Inflatable Line x1
• USB Type-C Charging Cable x1
• User Manual x1
• Various tire adapters (for bike, float, toy)
• Fireproof Carry Case x1

Image 1: The Scatach Q10 Jump Starter with its complete set of accessories, including the main unit, smart jump cables, inflation hose, USB-C charging cable, and various nozzles, all neatly arranged.

Safety Information

The Scatach Q10 is equipped with multiple safety protections. Always adhere to the following guidelines:

• Short Circuit Protection: Prevents damage from accidental short circuits.
• Reverse Connection Protection: Alerts and prevents operation if clamps are connected incorrectly.
• Overcharge Protection: Safeguards the internal battery from overcharging.
• Over-discharge Protection: Protects the internal battery from deep discharge.
• Voltage Regulation: Maintains stable output voltage.
• Overcurrent Protection: Prevents damage from excessive current draw.
• Overload Protection: Shuts down if the load exceeds capacity.
• Temperature Protection: Monitors and prevents overheating.
• Reverse Polarity Protection: Ensures correct connection to battery terminals.

Always wear appropriate personal protective equipment, such as safety glasses, when operating the device.

Image 2: Visual representation of the Scatach Q10 highlighting its nine types of safety protection, including overcharge, overload, reverse polarity, short circuit, and temperature protection, ensuring safe operation.

Setup and Initial Charging

Charging the Scatach Q10

1. Locate the USB Type-C input port on the Scatach Q10 unit. This port is typically marked as "Input" or with a charging icon.
2. Connect the provided USB Type-C charging cable to the input port on the device.
3. Connect the other end of the USB Type-C cable to a suitable USB wall adapter (not included) or a powered USB port.
4. The display on the Scatach Q10 will indicate the charging status and battery level. Charge the unit until it reaches 100%.
5. For optimal performance, it is recommended to fully charge the device upon first use and to check its charge level at least once a month.

Note: The unit may arrive partially charged. Full charging before first use is recommended.

Operating Instructions

1. Jump Starting a Vehicle

The Scatach Q10 can jump-start 12V vehicles with up to 9.0L gasoline or 7.0L diesel engines.

1. Ensure the Scatach Q10 is sufficiently charged (at least 50% recommended).
2. Turn off the vehicle's ignition and all accessories.
3. Connect the smart jump cable to the jump starter port on the Scatach Q10.
4. Connect the red (+) clamp to the positive (+) terminal of the vehicle's battery.
5. Connect the black (-) clamp to the negative (-) terminal of the vehicle's battery.
6. The smart jump cable will indicate a successful connection (e.g., a solid green light or audible beep). If an error is indicated (e.g., red light, flashing), check connections for reverse polarity or short circuits.
7. Start the vehicle's engine.
8. Once the vehicle starts, immediately disconnect the black (-) clamp, then the red (+) clamp from the vehicle battery.
9. Disconnect the smart jump cable from the Scatach Q10.

Image 3: A user demonstrating the jump-start function of the Scatach Q10, connecting the smart jump cables to a car battery. The digital display shows the device is ready for operation.

2. Using the Air Compressor

The built-in air compressor can inflate tires and other inflatables with a maximum pressure of 140PSI.

1. Connect the safety inflatable line to the air output port on the Scatach Q10.
2. Attach the other end of the inflatable line to the tire valve or the appropriate adapter for other inflatables.
3. Turn on the Scatach Q10. The display will show the current pressure.
4. Use the control buttons (usually '+' and '-') to set the desired target pressure (PSI, BAR, KPA, or Kg/cm²).
5. Press the inflation button (often the power button or a dedicated compressor button) to start inflation.
6. The compressor will automatically stop once the preset pressure is reached.
7. Disconnect the inflatable line from the tire/inflatable and then from the Scatach Q10.

Caution: The compressor may generate heat during prolonged use. Allow for cool-down periods as needed. Do not operate continuously for more than 5 minutes; allow 3 minutes of rest before resuming.

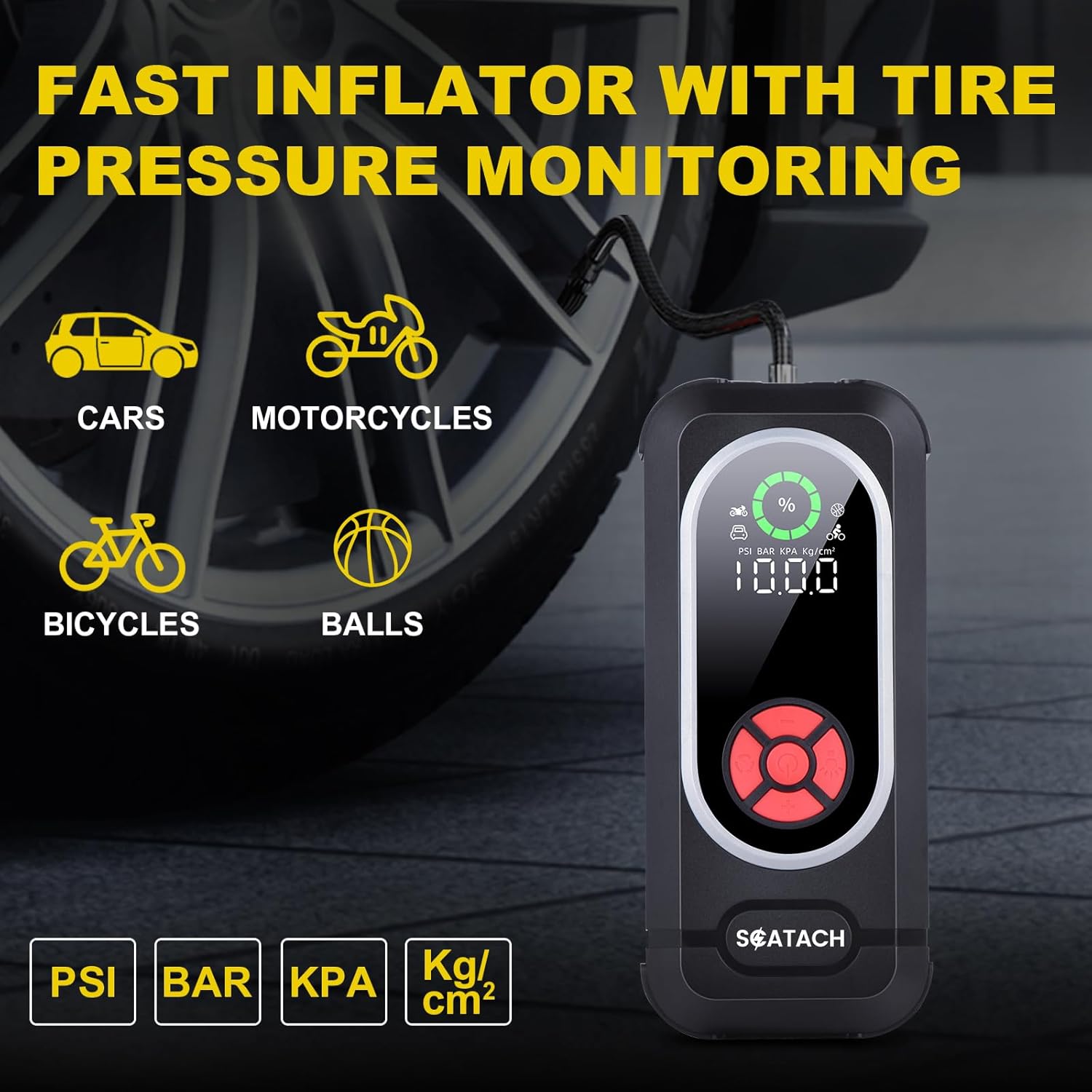

Image 4: The Scatach Q10 being used as a fast inflator, connected to a car tire. The digital display shows the tire pressure, and icons indicate its suitability for cars, motorcycles, bicycles, and balls.

3. Charging Mobile Devices (Power Bank Function)

The Scatach Q10 features USB output ports to charge smartphones, tablets, and other USB-powered devices.

1. Locate the USB output ports on the Scatach Q10 (typically marked as "Output" or with a USB icon).
2. Connect your device's USB charging cable to one of the Scatach Q10's USB output ports.
3. Connect the other end of the cable to your mobile device.
4. The Scatach Q10 will begin charging your device. The display may show charging status.

Image 5: The Scatach Q10 functioning as a power bank, with two USB output ports actively charging a smartphone and a tablet, demonstrating its capability to power external devices.

4. Using the LED Flashlight

The integrated LED flashlight offers three modes for various emergency situations.

1. Press and hold the flashlight button (refer to device diagram for exact location) to turn on the standard flashlight mode.
2. Press the button again to cycle through the modes:
   • Flashlight: Steady illumination for general use.
   • Strobe Light: Rapid flashing light for signaling or attracting attention.
   • SOS Light: International Morse code signal for distress (three short, three long, three short flashes).
3. Press and hold the button again to turn off the flashlight.

Image 6: The Scatach Q10 demonstrating its three LED light modes: standard lighting, SOS signal, and strobe light, useful for various emergency scenarios.

Maintenance

• Regular Charging: To maintain battery health, check and recharge the Scatach Q10 at least once a month, even if not in use.
• Storage: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its fireproof carry case for protection.
• Cleaning: Use a soft, dry cloth to clean the exterior of the unit. Do not use harsh chemicals or abrasive cleaners.
• Cable Inspection: Periodically inspect the smart jump cables and inflatable line for any signs of damage, wear, or corrosion. Replace if necessary.

Troubleshooting

Specifications

Warranty and Support

The Scatach Q10 Jump Starter comes with 1-year technical support. For any assistance, questions, or concerns regarding your product, please contact Scatach customer support.

Please refer to your purchase documentation or the official Scatach website for specific warranty terms and contact information.
