Chantal 1.8 QT Jupiter Electric Kettle User Manual

Product Overview

The Chantal 1.8 QT Jupiter Electric Kettle is designed for rapid water boiling with convenience and safety in mind. Constructed with food-grade stainless steel for the inner chamber and a sleek glossy exterior, this kettle offers a modern solution for heating water for various beverages and culinary needs.

Key features include a powerful 1500W heating element for quick boiling, automatic shut-off, boil-dry safety protection, and a cordless design for easy handling. A clear water level window allows for precise filling, and the cool-touch handle ensures safe operation.

Figure 1: Front view of the Chantal Jupiter Electric Kettle, showcasing its stainless steel finish and water level window.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the kettle.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or electric kettle in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Extreme caution must be used when moving an appliance containing hot water.
• The kettle is only to be used with the stand provided.

Components

The Chantal Jupiter Electric Kettle package includes the following components:

• Electric Kettle with Lid
• Removable Corded Power Base

Figure 2: Inside view of the kettle, showing the removable filter and lid mechanism.

Setup

1. Unpacking: Carefully remove all packaging materials from the kettle and its base. Retain packaging for future storage or transport if needed.
2. Initial Cleaning: Before first use, fill the kettle with fresh water to the MAX line. Boil the water, then discard it. Repeat this process 2-3 times to remove any manufacturing residues.
3. Positioning the Base: Place the power base on a dry, flat, stable, and heat-resistant surface. Ensure the power cord is not dangling where it can be pulled or tripped over.
4. Connecting to Power: Plug the power cord into a standard electrical outlet.

Operating Instructions

1. Filling the Kettle: Remove the kettle from its power base. Open the lid and fill the kettle with the desired amount of fresh water. Do not fill below the MIN line or above the MAX line indicated on the water level window. Overfilling may cause boiling water to spill out.
2. Placing on Base: Close the lid securely. Place the kettle back onto its power base. The cordless design allows for placement at any angle.
3. Starting Boil: Press the ON/OFF switch down to the "ON" position. The indicator light will illuminate, signaling that the kettle is heating.

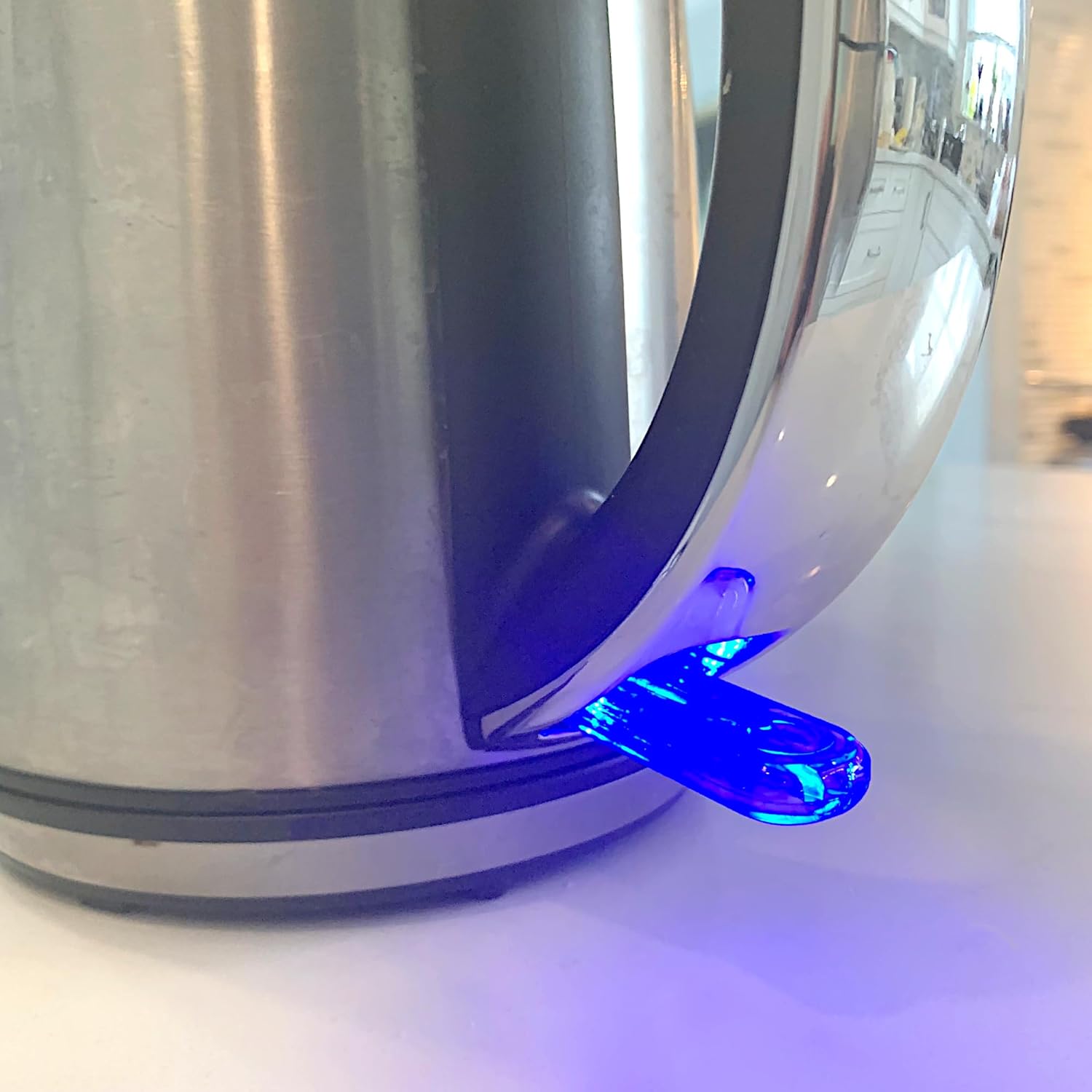

Figure 3: The kettle's indicator light illuminates when heating, providing a visual cue of operation.

4. Automatic Shut-Off: Once the water reaches a rolling boil, the kettle will automatically shut off, and the indicator light will extinguish.
5. Pouring: Carefully lift the kettle from the base using the cool-touch handle. Pour the hot water slowly and steadily. The handle is designed to remain cool during operation.


Figure 4: Demonstrating the safe and easy pouring of hot water from the kettle into a cup.

6. Re-boiling: If you need to re-boil water, wait a few moments for the internal thermostat to reset before pressing the ON/OFF switch again.

Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Chantal Electric Kettle.

Daily Cleaning

• Exterior: Unplug the kettle and allow it to cool completely. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may scratch the stainless steel finish.
• Interior: Rinse the interior of the kettle with fresh water after each use. For thorough cleaning, hand wash the interior with a mild dish soap and a soft sponge. Ensure all soap residue is rinsed away.

Descaling (Mineral Deposit Removal)

Mineral deposits (limescale) can build up inside the kettle over time, especially in areas with hard water. This can affect heating efficiency and taste. Descale your kettle regularly, depending on water hardness.

1. Vinegar Method: Fill the kettle with 2 cups of white vinegar and 2 cups of water. Let it stand for at least 30 minutes, or up to several hours for heavy buildup. Do not boil this mixture.
2. Citric Acid Method: Alternatively, dissolve 1 tablespoon of citric acid powder in 4 cups of water.
3. Rinsing: After soaking, discard the solution. Fill the kettle with fresh water and boil it. Discard this water. Repeat the boiling and discarding process 2-3 times to ensure all descaling solution is removed.

Note: Never immerse the power base, cord, or plug in water or any other liquid.

Troubleshooting

If you encounter issues with your Chantal Electric Kettle, please refer to the following common problems and solutions:

Specifications

Warranty and Support

For specific warranty information regarding your Chantal 1.8 QT Jupiter Electric Kettle, please refer to the warranty card included with your product or contact Chantal customer support directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

Chantal has a long-standing commitment to quality and innovation in kitchenware. For further assistance, product registration, or to inquire about replacement parts, please visit the official Chantal website or contact their customer service department.

Note: Protection plans offered by third-party retailers are separate from the manufacturer's warranty.
