Product Overview
The TOMOON WB03X24818 Stove Knobs are designed as direct replacements for specific G.E. range cooktop models. Crafted from durable stainless steel, these knobs offer enhanced longevity and resistance to heat and wear compared to original plastic alternatives. They feature clear markings for precise temperature control and are engineered for a secure fit.
Image: Four TOMOON WB03X24818 replacement stove knobs, showcasing their stainless steel finish and clear control markings.
Key Features:
- Material: Premium stainless steel construction for increased durability and heat resistance.
- Compatibility: Specifically designed for various G.E. gas stove models (refer to compatibility section for details).
- Design: Features clearly labeled numerical settings (OFF, Lo, 1-9, Hi, LITE) for intuitive operation.
- Installation: Tool-free, simple push-on installation.
- Enhanced Durability: Reinforced back slot designed to withstand over 50,000 rotations.
Video: An official product video demonstrating the features and installation process of the TOMOON WB03X24818 stove knobs.
Compatibility and Pre-Installation Check
Before installation, it is crucial to verify that these replacement knobs are compatible with your specific stove model and that the shaft dimensions match. Incompatible knobs may not fit correctly or function as intended.
Compatible Models:
These knobs are designed for G.E. gas stoves, replacing part numbers AP5989029 & PS11729081. Compatible models include, but are not limited to:
- JGB645EEK series
- JGB660E series
- JGB700EEJ series
- JGB700SEJ series
- JGB720EEJ series
- JGB735EP series
- JGB860EEJ series
- JGBS62REK series
- JGBS66EEK series
- JGBS86SP series
Note: Always cross-reference with your stove's specific model number.

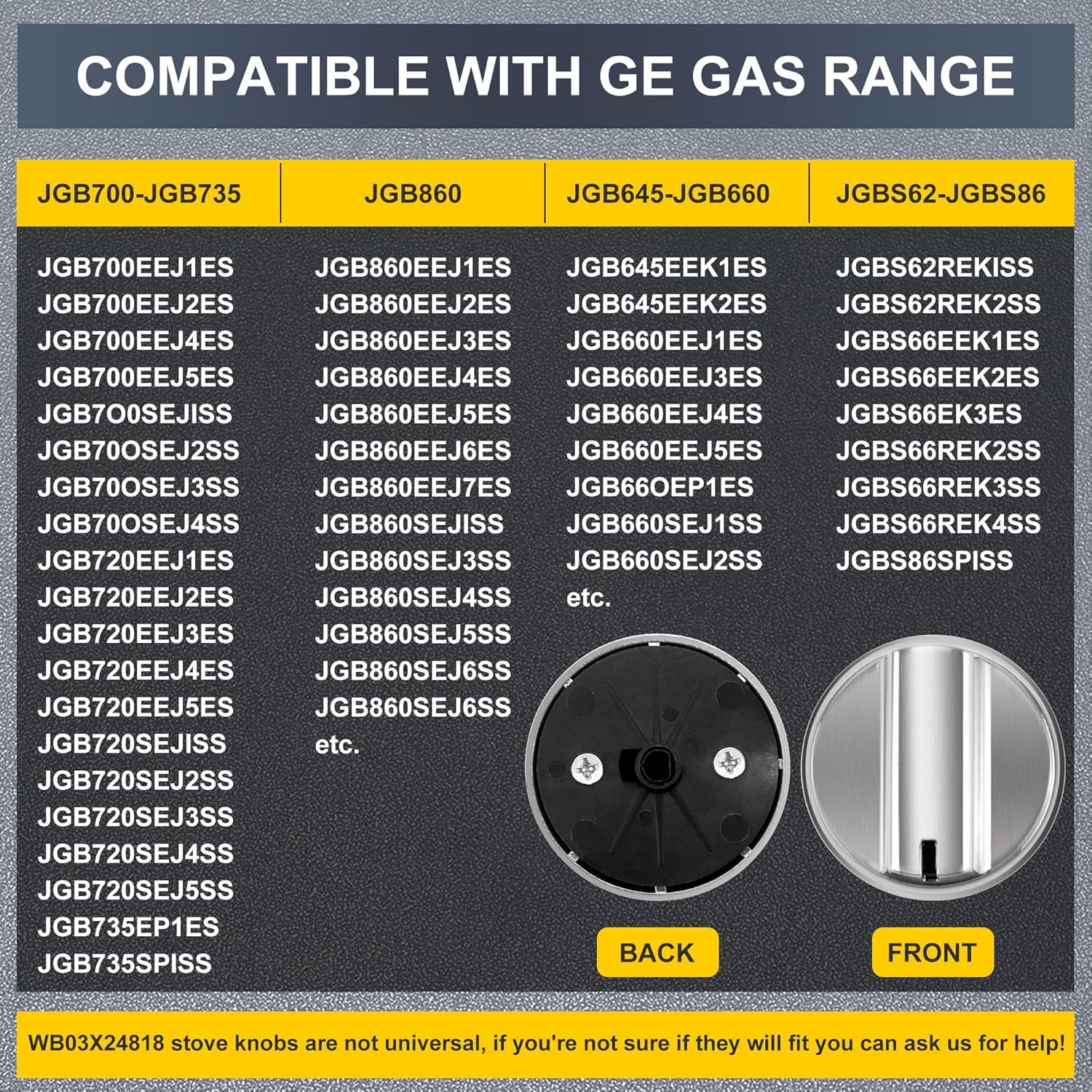

Image: A detailed compatibility chart listing various GE gas range models that are compatible with the WB03X24818 replacement knobs.
Shaft Dimension Check:
The knobs feature a D-shaped hole. Before installation, measure the depth and diameter of your stove's D-shaped shaft to ensure a proper fit. The D-shaped hole on the knob is designed for a shaft with approximately 0.31 inches width and 0.39 inches depth. The overall depth the shaft can insert into the knob is approximately 0.59 inches.
Image: A diagram illustrating the dimensions of the WB03X24818 knob and the critical D-shaft size for compatibility verification.
Installation Instructions
The TOMOON WB03X24818 stove knobs are designed for quick and easy, tool-free installation. Follow these steps to replace your old knobs:
- Remove Old Knob: Gently pull the old knob straight out from the stove's control shaft. Avoid bending or twisting the knob during removal to prevent damage to the shaft.
- Align New Knob: Align the D-shaped hole on the back of the new TOMOON knob with the D-shaped shaft on your stove. Ensure the flat side of the D-hole aligns with the flat side of the shaft.
- Install New Knob: Push the new knob firmly and straight onto the shaft until it is securely seated. Do not force the knob if it does not slide on easily; re-check alignment.
Important: Do not bend the knob up or down during installation or removal, as this can damage the stove's control shaft.
Image: Visual guide for installing the WB03X24818 stove knob, highlighting the correct D-shaped alignment and simple push-on method.
Operating Instructions
Operating your stove with the new TOMOON knobs is identical to using your original knobs. The clear markings ensure precise control over your burner settings.
- Turning On/Off: Rotate the knob to the "OFF" position to turn off the burner. Rotate to "LITE" and push down to ignite the burner, then adjust to your desired flame setting.
- Temperature Control: The knobs feature bold markings including "OFF", "Lo", numerical settings "1-9", and "Hi" for various heat levels. Turn the knob to select the appropriate heat intensity for your cooking needs.
Image: Two installed WB03X24818 knobs on a stove, demonstrating their appearance and the clear markings for operation.
Maintenance and Care
To maintain the appearance and functionality of your TOMOON stove knobs, follow these simple cleaning and care guidelines:
- Cleaning: The stainless steel surface is designed to resist fingerprints and smudges. Wipe the knobs clean with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that could damage the finish or markings.
- Drying: Ensure the knobs are completely dry before re-installing them or operating the stove.
- Regular Inspection: Periodically check the knobs for any signs of wear or damage.
Troubleshooting
If you encounter any issues with your TOMOON WB03X24818 stove knobs, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Knob does not fit or is loose. | Incorrect model compatibility or shaft dimensions. | Verify your stove model and the D-shaped shaft dimensions against the product specifications. Ensure the knob is pushed straight onto the shaft. |
| Knob spins without activating burner. | Internal mechanism damage or improper fit. | Ensure the knob is fully seated on the shaft. If the issue persists, the internal mechanism may be damaged. Contact customer support. |
| Markings (OFF, Lo, Hi, numbers) wear off. | Exposure to harsh cleaning agents or excessive heat. | Use only mild soap and water for cleaning. Avoid abrasive materials. While the knobs are designed for durability, extreme conditions can affect markings over time. |
| Knob warps or melts. | Exposure to extreme heat (e.g., from oven vent). | Ensure proper ventilation around the stove. While made of stainless steel, prolonged exposure to excessive heat can affect internal components. If warping occurs, replacement may be necessary. |
If you experience any issues not listed here, or if the suggested solutions do not resolve the problem, please contact TOMOON customer support for assistance.
Product Specifications
- Model Number: WB03X24818
- Material: Stainless Steel
- Color: Silver
- Product Dimensions: Approximately 2.23 inches (L) x 1.9 inches (W)
- Item Weight: Approximately 1.12 pounds (for the 4-pack)
- D-Shaft Hole Dimensions: The D-shaped hole on the knob is designed for a shaft with approximately 0.31 inches width and 0.39 inches depth. The overall depth the shaft can insert into the knob is approximately 0.59 inches.
- Included Components: 4 x WB03X24818 gas stove knob replacements (for the 4-pack variant)
- Special Features: Corrosion-proof, rust-proof, highly resilient, upgraded metal ring in the middle of the dial for enhanced protection.
Image: An exploded view highlighting the structural upgrades of the WB03X24818 knobs, including the D-shaped fixed shaft design, electroplated nickel, and clearly labeled settings.
Image: A comparison illustrating the benefits of metalized stainless steel construction (wear-resistant, heat-resistant, long lifespan) versus typical plastic knobs.
Warranty and Support
TOMOON stands behind the quality of its WB03X24818 stove knob replacements. Your satisfaction is important to us.
If you encounter any issues such as the knobs not fitting, arriving damaged, or if you are otherwise dissatisfied with your purchase, please contact our customer support team for a prompt resolution. We are committed to providing high-quality products and excellent service.
For support, please visit the TOMOON store on Amazon or use the contact information provided with your purchase.
Online Store: TOMOON Amazon Store
