Camper Van Bed Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Monster Shop Camper Van Bed, model 211580. Designed for versatility and comfort, this pull-out sofa bed transforms your camper van into a comfortable living and sleeping space. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and long-term enjoyment of your product.

Setup and Assembly

The Camper Van Bed is designed for assembly and typically arrives in two main sections. While the conversion mechanism is simplified, careful attention to the assembly steps is crucial for proper function and stability. It is recommended to have assistance during the assembly process.

Unpacking and Component Check

• Carefully unpack all components from the packaging.
• Verify that all parts listed in the packing list (not provided in this manual, refer to your product's included documentation) are present and undamaged.
• Lay out all components on a clean, flat surface to easily identify them.

Assembly Steps

1. Assemble the Base Units: The bed consists of two primary base units. Begin by assembling these units according to the provided hardware and pre-drilled holes. Ensure all connections are secure.


   Image: Initial assembly of the two wooden base units.



   Image: Detailed view of the base unit construction.

2. Attach Sliding Mechanism: Install the sliding mechanism that allows the bed to extend. Ensure it operates smoothly before proceeding.

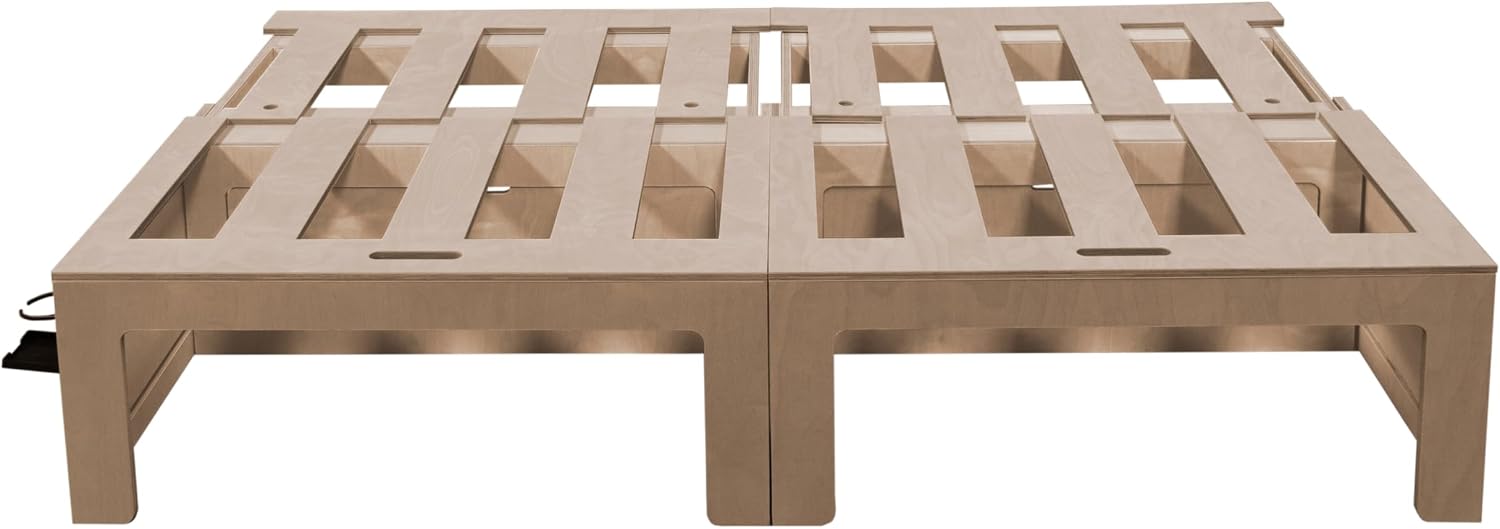

   Image: The bed frame fully extended, revealing the slatted support.

3. Install Backrest Supports: Secure the vertical supports for the backrest. These will hold the back cushions in place when in sofa mode.


   Image: Rear view illustrating the backrest support structure.

4. Place Cushions: Position the high-density foam cushions onto the assembled frame. The cushions are designed to fit snugly for both sofa and bed configurations.
5. Integrate Storage Features: Attach any additional storage features such as the flexible storage nets and foldable cup holders to the designated areas on the side of the unit.


   Image: Detail of the integrated storage net and cup holder.

For detailed diagrams and specific hardware instructions, please refer to the assembly guide included with your product packaging. Ensure all screws and fasteners are tightened securely before use.

Operating Instructions

The Monster Shop Camper Van Bed is designed for easy conversion between a comfortable sofa and a spacious bed, maximizing space efficiency in your vehicle.

Converting from Sofa to Bed

1. Clear the Area: Ensure there is sufficient clear space in front of the sofa for the bed to extend fully.
2. Remove Back Cushions: Gently lift and remove the back cushions from the sofa.
3. Extend the Bed Frame: Grasp the front edge of the seat section and pull it outwards. The integrated sliding mechanism will allow the frame to extend smoothly, revealing the additional bed surface.


   Image: Dimensions and conversion illustration from sofa to bed.



   Image: The bed in its fully extended sleeping configuration.

4. Arrange Cushions: Place the back cushions onto the newly extended frame to create a continuous sleeping surface.

Converting from Bed to Sofa

1. Remove Cushions: Lift and remove the cushions that form the extended part of the bed.
2. Retract the Bed Frame: Push the extended bed frame inwards until it fully retracts and locks into the sofa position.
3. Replace Back Cushions: Place the back cushions back onto the vertical supports to complete the sofa configuration.


   Image: The camper van bed in its sofa configuration.

Accessing Storage

The bed features convenient storage compartments located beneath the seat. To access these:

• Lift the hinged panels on the top surface of the base units. These panels provide access to the spacious storage areas.


  Image: Storage compartments beneath the seat, shown open.

• Utilize the flexible storage nets on the side for smaller items.

Maintenance

Regular maintenance will help preserve the appearance and functionality of your Camper Van Bed.

Cushion Care

• The cushion covers are made of washable linen. For cleaning, remove the covers and follow the washing instructions on the fabric label. Typically, machine wash cold on a gentle cycle and air dry to prevent shrinkage.
• Do not bleach or tumble dry the covers.
• Spot clean minor spills immediately with a damp cloth and mild detergent.

Frame Care

• The wooden frame has an unfinished surface, allowing for personalization. If you wish to protect the wood, consider applying a wood sealant, varnish, or paint suitable for interior furniture.
• Wipe the wooden surfaces with a dry or slightly damp cloth to remove dust and dirt. Avoid abrasive cleaners.
• Periodically check all screws and fasteners to ensure they remain tight. Retighten as necessary to maintain structural integrity.
• Keep the sliding mechanism free of debris to ensure smooth operation. Lubricate with a silicone-based spray if movement becomes stiff.

Troubleshooting

Specifications

Warranty and Support

Specific warranty details for the Monster Shop Camper Van Bed (Model 211580) are not provided in this manual. For information regarding product warranty, returns, or technical support, please refer to the documentation included with your purchase or contact Monster Shop directly through their official website or customer service channels.

When contacting support, please have your model number (211580) and purchase date readily available.
