1. Introduction
This manual provides essential information for the safe and efficient operation of your BPL 6.5 Kg Top Loading Fully Automatic Washing Machine, model BTW-6500SXSG. Please read this manual thoroughly before using the appliance and retain it for future reference.
Your BPL washing machine is designed for thorough cleaning with its 8 wash programs. It features Amby Dry Tech for efficient drying and Trisafe protection for enhanced safety. The Zero Pressure Inlet Valve allows the machine to operate effectively even at low water pressure, and its 5-star BEE rating signifies high energy and water efficiency.

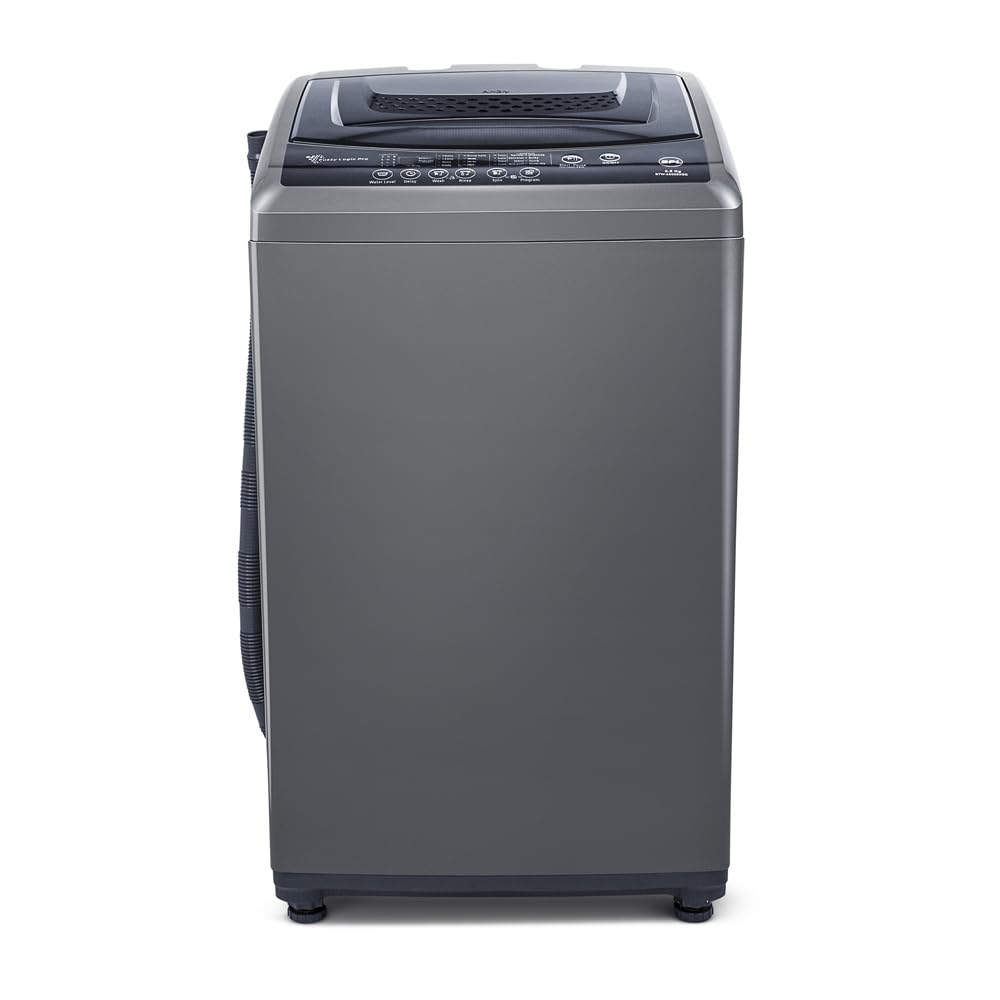

Figure 1: Front view of the BPL 6.5 Kg Top Loading Fully Automatic Washing Machine.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Ensure the washing machine is properly grounded.
- Do not operate the machine if the power cord or plug is damaged.
- Keep children and pets away from the machine during operation.
- Do not wash items that are soiled with flammable substances.
- Unplug the machine before cleaning or performing any maintenance.
- Do not attempt to repair or replace any part of the appliance unless specifically recommended in this manual.
3. Product Overview
Familiarize yourself with the main components of your washing machine.
3.1 Control Panel

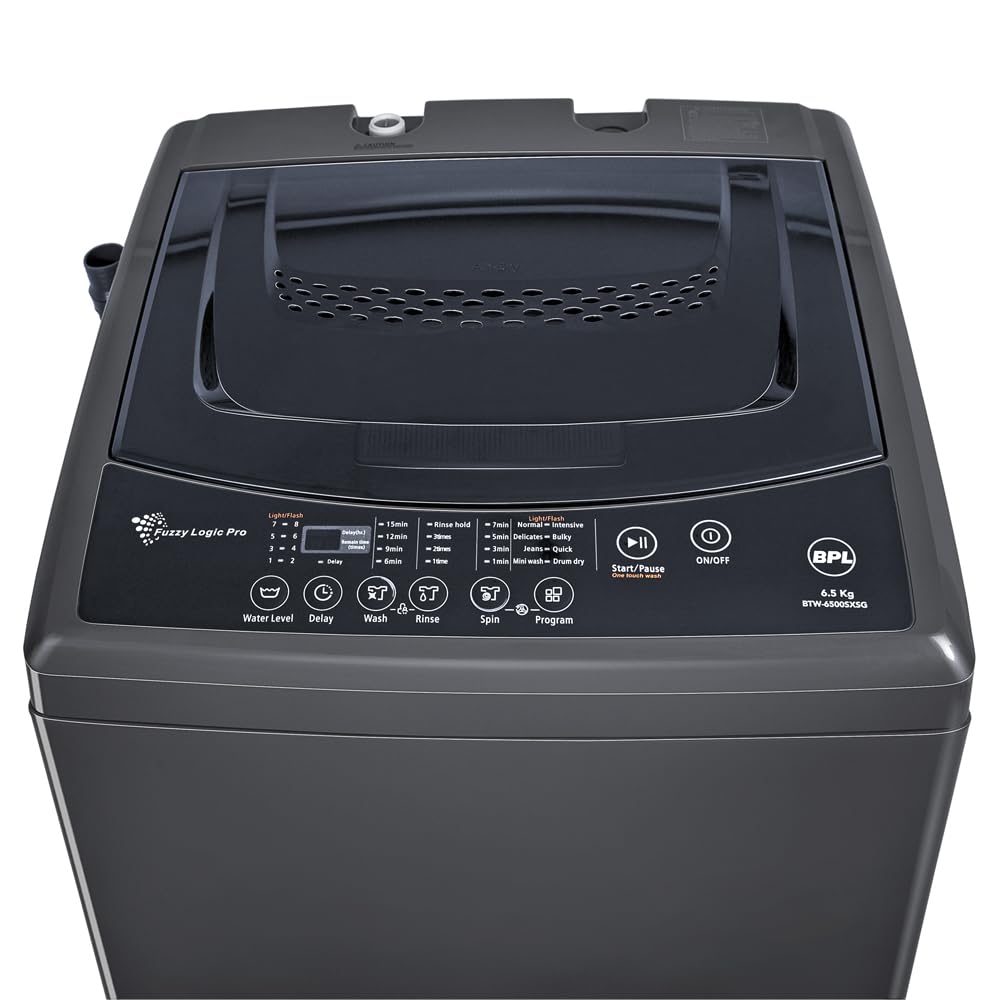

Figure 2: Detailed view of the control panel with various program selections and buttons.
The control panel features buttons for Water Level, Wash, Delay, Rinse, Spin, and Program selection, along with Start/Pause and On/Off buttons. It also displays the selected wash program and time.
3.2 Wash Drum
Figure 3: Interior of the stainless steel wash drum.
The spacious stainless steel drum is designed for effective washing and gentle care of your garments. It includes a pulsator at the bottom and a lint filter for collecting debris.
4. Setup
4.1 Unpacking
- Carefully remove all packaging materials.
- Inspect the machine for any damage incurred during transit. Contact your dealer immediately if damage is found.
- Ensure all accessories are present.
4.2 Installation
- Placement: Place the washing machine on a firm, level surface, away from direct sunlight and heat sources. Ensure adequate ventilation.
- Water Connection: Connect the inlet hose to a cold water tap. Ensure connections are tight to prevent leaks. The Zero Pressure Inlet Valve allows operation even with low water pressure.
- Drain Hose: Position the drain hose securely into a standpipe or over the edge of a sink, ensuring it is not kinked or blocked.
- Power Connection: Plug the power cord into a grounded electrical outlet.
4.3 Leveling the Machine
Adjust the leveling feet at the bottom of the machine until it is perfectly stable and level. This prevents excessive vibration and noise during operation.
5. Operating Instructions
5.1 Preparing Laundry
- Sort laundry by fabric type, color, and degree of soiling.
- Empty pockets and close zippers and hooks.
- Place laundry loosely into the drum, ensuring not to overload.
5.2 Adding Detergent
Add the appropriate amount of detergent and fabric softener to their respective dispensers. Refer to detergent packaging for recommended quantities.
5.3 Selecting a Wash Program
Turn on the machine using the 'On/Off' button. Use the 'Program' button to cycle through the 8 available wash programs (e.g., Normal, Delicate, Bulky, Quick Wash). Select the program best suited for your laundry type.
Figure 4: Control panel detail highlighting program selection.
5.4 Starting the Wash Cycle
Press the 'Start/Pause' button to begin the selected wash cycle. The machine will automatically fill with water, wash, rinse, and spin.
5.5 Special Features
- Amby Dry Tech: This feature assists in reducing drying time by optimizing the spin cycle.
- Trisafe Protection: Provides multiple layers of safety during operation.
- Drum Clean: Use this dedicated program to clean the washing machine drum periodically.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.
6.1 Cleaning the Exterior
Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
6.2 Cleaning the Drum
Use the 'Drum Clean' program regularly to prevent mold and odor buildup. You may add a washing machine cleaner if desired.
6.3 Cleaning the Lint Filter
Locate the lint filter inside the drum (usually on the side or center agitator). Remove and clean it after every few washes to ensure efficient lint removal.
6.4 Care for the Zero Pressure Inlet Valve
Periodically check the inlet hose filter for blockages, especially if you notice reduced water flow. Clean any debris to maintain optimal performance.
7. Troubleshooting
Before contacting customer service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Door not closed properly; Power outage | Check power connection; Ensure lid is fully closed; Check household circuit breaker |
| Water not filling | Water tap closed; Inlet hose kinked; Water pressure too low | Open water tap; Straighten hose; The Zero Pressure Inlet Valve should handle low pressure, but ensure some pressure is present. |
| Machine vibrates excessively | Machine not level; Laundry unevenly distributed; Shipping bolts not removed | Adjust leveling feet; Redistribute laundry; Ensure all shipping bolts are removed during installation |
| Water not draining | Drain hose kinked or blocked; Drain pump filter clogged | Check and clear drain hose; Clean drain pump filter (refer to specific location in your model) |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | BPL |
| Model Number | BTW-6500SXSG |
| Capacity | 6.5 Kilograms |
| Type | Top Load, Fully Automatic |
| Product Dimensions (LxWxH) | 54 x 54 x 84 Centimeters |
| Item Weight | 34 kg |
| Special Feature | Drum Clean, Amby Dry Tech, Trisafe protection, Zero Pressure Inlet Valve |
| Wash Programs | 8 |
| Energy Rating | 5-star BEE rating |
9. Warranty and Support
9.1 Warranty Information
This BPL washing machine comes with a 2 Year Warranty from the date of purchase. Please retain your purchase receipt as proof of warranty.
9.2 Customer Support
For any service requests, technical assistance, or warranty claims, please contact BPL customer support. Refer to your warranty card or the official BPL website for contact details.
