LoVinson Queen Size Metal Platform Bed Frame Instruction Manual

Important Safety Information

WARNING: Do not load more than 800 pounds on this bed frame. Be careful around sharp edges during assembly. Always follow assembly instructions to prevent instability or collapse. Use tools carefully during assembly.

Product Overview

The LoVinson Queen Size Metal Platform Bed Frame is designed for durability, stability, and ease of assembly. It features a heavy-duty metal construction with 9 thickened support legs and 14 slats, eliminating the need for a box spring. The frame also provides 12 inches of under-bed storage space, helping to maximize room organization. Its simple and versatile design complements various bedroom aesthetics.

• Wear-resistant and durable: Electrostatic spraying and high-temperature baking technology create a matte texture that prevents scratches and rust.
• Maximize Storage Design: 12 inches of clearance below the ground provides ample space for storage.
• Fashionable and versatile: Smooth lines and contours offer a unique craftsmanship beauty that matches any decor.
• Noiseless & Comfortable: Equipped with EVA silent strips to prevent metal friction noise. Closely spaced slats ensure optimal mattress support and breathability.
• Easy to Assemble: All necessary accessories, tools, and instructions are included for quick installation.

Package Contents

Before beginning assembly, ensure all components are present and undamaged. Refer to the included instruction manual for a detailed parts list.

• Headboard
• Footboard
• Metal Slats
• Support Legs
• Assembly Hardware (screws, nuts, washers, Allen wrench)
• Instruction Manual

Setup and Assembly

Follow these steps for a smooth assembly process. It is recommended to assemble the bed frame with at least two people.

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches. Verify all parts against the included parts list.
2. Assemble Headboard and Footboard: Attach the horizontal bars to the vertical posts of the headboard and footboard using the provided hardware. Ensure all connections are secure but do not fully tighten screws until all parts are aligned.
3. Connect Side Rails: Attach the side rails to the assembled headboard and footboard. The unique buckle design and screw fixation ensure a strong connection.
4. Install Center Support Bars: Secure the center support bars to the main frame. These provide additional stability and prevent mattress sagging.
5. Place Slats: Lay the metal slats across the frame. The closely spaced slats are designed to support your mattress directly, eliminating the need for a box spring. The slats are equipped with EVA silent strips to prevent noise.
6. Tighten All Screws: Once all components are in place and aligned, fully tighten all screws using the provided Allen wrench.
7. Attach Protective Foot Pads: Apply the non-slip foot pads to the bottom of each leg to protect your floor and further reduce noise.

Assembly Visual Guide

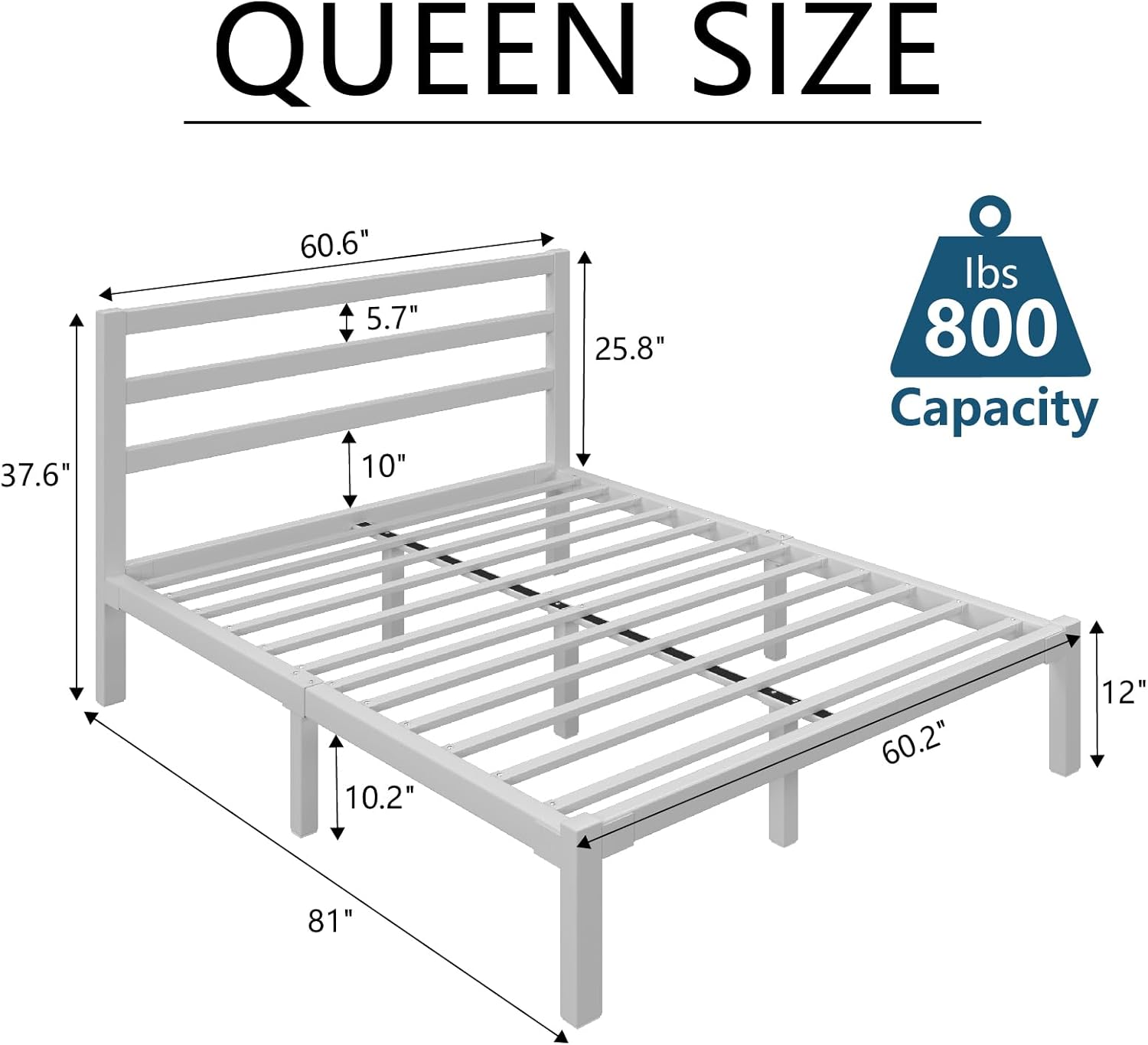

Figure 1: Queen Size Bed Frame Dimensions and 800 lbs Capacity.

Figure 2: Detail of the strong and stable buckle design for frame connections.

Figure 3: Key features including metal slats with Velcro, protective foot pads, practical headboard, and sturdy support legs.

Assembly Video

Operating Instructions

The LoVinson Queen Size Metal Platform Bed Frame is designed for straightforward use. Once assembled, simply place your queen-size mattress directly onto the metal slats. No box spring is required. The frame's sturdy construction and silent strips ensure a comfortable and quiet sleeping experience.

Under-Bed Storage

Utilize the generous 12-inch clearance beneath the bed for convenient storage. This space is ideal for storing items such as suitcases, shoes, bags, and other sundries, helping to keep your bedroom tidy and organized.

Figure 4: Illustration of the spacious 11.8-inch under-bed storage area, perfect for keeping your room tidy.

Maintenance

To ensure the longevity and appearance of your LoVinson bed frame, follow these simple maintenance guidelines:

• Cleaning: Wipe the metal frame with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the powder-coated finish.
• Regular Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent squeaking.
• Weight Limit: Adhere strictly to the maximum weight capacity of 800 pounds to prevent damage to the frame and ensure safety.

Troubleshooting

If you encounter any issues with your bed frame, refer to the following common solutions:

• Squeaking Noises:
  • Ensure all bolts and screws are securely tightened. Loose connections are a common cause of squeaking.
  • Verify that the EVA silent strips are properly placed between the metal slats and the frame. If any are missing or damaged, they may need to be replaced.
  • Check if the mattress is properly seated on the slats and not rubbing against the frame.
• Instability/Wobbling:
  • Re-check all assembly connections and tighten any loose hardware.
  • Ensure the bed frame is placed on a level surface. Adjust the position if necessary.
  • Confirm that all support legs are making firm contact with the floor.
• Difficulty Assembling:
  • Review the instruction manual carefully, paying close attention to diagrams and part numbers.
  • Ensure you are using the correct hardware for each step.
  • Do not overtighten screws until all components are loosely fitted, then tighten them progressively.

Specifications

Warranty and Support

Specific warranty information for the LoVinson Queen Size Metal Platform Bed Frame is not provided in the product details. For warranty claims, missing parts, or further support, please contact the manufacturer, LoVinson, directly through their official channels or the retailer where the product was purchased.
