VISVEIL Portable Basketball Hoop System User Manual

1. Product Overview

The VISVEIL Portable Basketball Hoop System, Model S003-21B, is designed for recreational use by kids, teenagers, and adults. It features an adjustable height mechanism, a durable 45-inch backboard, and a portable base for easy relocation. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and effective use of your basketball hoop system.

This system includes a base, pole, backboard, rim, and net. Its construction utilizes anti-rust iron for the frame and PET for the backboard surface, designed for durability and impact resistance.

2. Setup and Assembly

Assembly of the VISVEIL Portable Basketball Hoop System typically takes approximately 40 minutes with one person, or less with assistance. All necessary accessories and tools are included. Follow the detailed instructions provided in the packaging for step-by-step guidance.

2.1 Unpacking and Component Check

Carefully unpack all components and verify that all parts listed in the included parts list are present and undamaged. The main components include:

• Base
• Pole sections
• Backboard
• Rim
• Net
• Hardware (bolts, washers, nuts)

2.2 Base Filling

For stability, the base must be filled with either water or sand. The base is designed to hold approximately 110 lbs (50 kg) of water or 176 lbs (80 kg) of sand. Sand provides greater stability and is recommended for outdoor use or in windy conditions.

1. Position the base on a level surface where the hoop will be used.
2. Locate the fill cap on the base.
3. Carefully fill the base with water or sand until full. Ensure the cap is securely fastened after filling to prevent leakage.

2.3 Pole, Backboard, and Rim Assembly

Follow the provided instructions to connect the pole sections, attach the backboard to the pole, and secure the rim and net. Ensure all bolts and fasteners are tightened securely to prevent wobbling and ensure structural integrity.

3. Operating Instructions

3.1 Height Adjustment

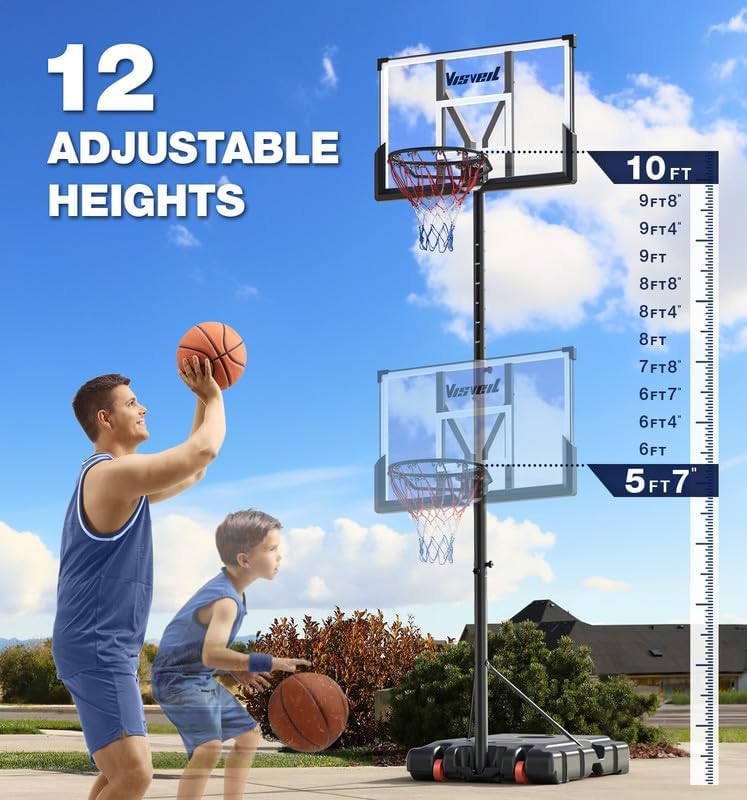

The VISVEIL basketball hoop system offers 12 adjustable height settings, ranging from 5.7 feet to 10 feet. This allows the hoop to be adapted for various ages and skill levels.

1. Locate the height adjustment mechanism on the pole.
2. Follow the instructions for releasing and securing the pole at the desired height. It is recommended to have two people for easier and safer adjustment, especially at higher settings.
3. Ensure the mechanism is fully locked before use.

3.2 Portability

The system is equipped with wear-resistant wheels on the base for easy relocation. To move the hoop:

1. Ensure the area is clear of obstacles.
2. Tilt the hoop system slightly to engage the wheels.
3. Carefully roll the system to its new desired location. Avoid dragging the base without using the wheels.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your basketball hoop system.

4.1 Base Stability

Periodically check the water or sand level in the base. Refill as necessary to maintain optimal stability. Ensure the fill cap is always securely closed.

4.2 Structural Integrity

Regularly inspect all bolts, nuts, and connections for tightness. Tighten any loose fasteners to prevent wobbling and ensure the system remains secure. Check the pole, backboard, and rim for any signs of damage, cracks, or excessive wear.

4.3 Cleaning and Protection

Clean the backboard and frame with a mild soap and water solution. Avoid abrasive cleaners that could damage the PET surface or paint. The system features anti-rust iron material and a PET backboard, designed to resist oxidation, rust, and fading. However, prolonged exposure to extreme weather conditions may still affect its appearance and structural integrity over time. Consider storing the hoop indoors or covering it during harsh weather seasons.

5. Troubleshooting

This section addresses common issues that may arise during the use of your basketball hoop system.

5.1 Instability or Wobbling

• Issue: The hoop feels unstable, especially at maximum height.
• Solution: Ensure the base is completely filled with water or sand. For enhanced stability, especially in windy conditions or during vigorous play, consider using sand instead of water, or placing additional weights (e.g., sandbags, concrete blocks) on the base. Verify all pole connections and fasteners are securely tightened.

5.2 Base Leakage

• Issue: The base is leaking water or sand.
• Solution: Check the fill cap to ensure it is tightly sealed. Inspect the base for any visible cracks or damage. If damage is present, contact customer support for assistance. Temporary repairs with waterproof tape may be attempted for minor leaks, but a permanent solution is recommended.

5.3 Difficulty Moving the Hoop

• Issue: The wheels do not roll smoothly, or the hoop is difficult to move.
• Solution: Ensure the hoop is tilted sufficiently to engage the wheels fully. Check the wheels for any obstructions or damage. Clean any debris from around the wheels. If a wheel is broken, contact customer support for replacement parts.

5.4 Rusting Components

• Issue: Metal components show signs of rust despite being rust-resistant.
• Solution: While the materials are designed to be rust-resistant, prolonged exposure to moisture and harsh weather can still lead to corrosion. Regularly clean and dry metal parts. Consider applying a rust-inhibiting spray or storing the hoop in a dry, covered area when not in use, especially during rainy or humid seasons.

6. Specifications

7. Warranty and Support

7.1 Warranty Information

The VISVEIL Portable Basketball Hoop System comes with a 24-month guarantee from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. Please retain your proof of purchase for warranty claims.

7.2 Customer Support

For any questions, concerns, or assistance with assembly, operation, or troubleshooting, please contact VISVEIL customer support. We offer 7x24 after-sales service to ensure your satisfaction.

You can typically find contact information on the product packaging or through the retailer where the product was purchased. For Amazon customers, you can often find a 'Ask a question' link on the product page to directly contact the seller.
