Introduction
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your windhike Aries Dome Tent, model Shepherd-M. Designed for 4-season use, this tent features a robust hemispherical geodesic structure, offering excellent wind and compression resistance. It is constructed from 75D polyester fabric with a 3000mm waterproof rating, ensuring protection in various weather conditions. The Shepherd-M model provides 136 sq.ft of usable area, making it suitable for car camping and general outdoor use.
Main view of the windhike Aries Dome Tent Shepherd-M, showcasing its dome shape and overall design.
1. Setup Instructions
Before beginning assembly, ensure all components are present. The tent includes: 1 tent cloth, 8 tent poles, 1 ground cloth, 1 storage bag, 19 ground nails, 10 wind ropes, and 1 transparent window shade cloth.
- Unpack Components: Lay out the tent cloth, ground cloth, poles, stakes, and ropes in a clear, flat area.
- Position Ground Cloth: Place the ground cloth where you intend to pitch the tent. This protects the tent floor.
- Spread Tent Body: Spread the tent body over the ground cloth, ensuring the doors are oriented as desired.
- Assemble Poles: Connect the sections of the 8 aluminum alloy tent poles.
- Insert Poles: Carefully slide each pole through the designated sleeves on the tent body. The geodesic structure requires poles to cross and stabilize.
- Secure Poles: Insert the ends of the poles into the grommets or attach them to the clips at the base of the tent. This will raise the tent structure.
- Stake Down Tent: Use the 19 ground nails to secure the tent corners and guy lines firmly to the ground.
- Attach Wind Ropes: Connect the 10 wind ropes to the designated attachment points on the tent and stake them out to provide additional stability against wind.
- Install Transparent Window Shade Cloth: Attach the transparent window shade cloth as needed for privacy or weather protection.
Illustration of the tent setup process, with poles being assembled and inserted.
The windhike Aries Dome Tent Shepherd-M fully erected and ready for use.
2. Operating Your Tent
The Aries Dome Tent Shepherd-M is designed for comfort and versatility in various outdoor conditions.
- Access: The tent features 4 wider doors for easy entry and exit, allowing flexible access and ventilation.
- Ventilation: Utilize the side ventilation windows and triangular transparent windows to manage airflow and reduce condensation inside the tent.
- Chimney Opening: A dedicated chimney mouth, made of fireproof cloth, is integrated for safe use with thermal equipment or cooking stoves inside the tent. Ensure proper ventilation when using any heat source.
- Snow Skirt: The widened snow skirt provides enhanced protection against wind, snow, and cold, making the tent suitable for 4-season use. Ensure the snow skirt is properly deployed and weighted down in snowy or windy conditions.
- Interior Space: The Shepherd-M model offers 136 sq.ft of usable activity area, providing ample space for occupants and gear.
Key features of the tent: firecloth chimney opening, side ventilation windows, triangular transparent window, and wider snow skirt.
The spacious interior of the Aries Dome Tent, demonstrating its capacity for occupants and equipment.
3. Maintenance
Proper maintenance will extend the lifespan of your tent and ensure its performance.
- Cleaning: The tent fabric should be hand washed only. Use mild soap and cold water. Do not machine wash or use harsh detergents, as this can damage the waterproof coating.
- Drying: Always ensure the tent is completely dry before packing it away. Packing a wet tent can lead to mildew and fabric degradation. Hang it in a shaded, well-ventilated area to dry.
- Storage: Store the tent in its original storage bag in a cool, dry place, away from direct sunlight and extreme temperatures.
- Pole Care: Inspect tent poles for any damage or bends after each use. Clean any dirt from the pole sections.
- Zipper Care: Keep zippers clean and free of dirt or sand. Lubricate them periodically with a silicone-based lubricant if they become stiff.
- Repairs: Small tears in the fabric can be repaired with a tent repair kit. For significant damage, contact the manufacturer.
4. Troubleshooting
Here are solutions to common issues you might encounter with your tent:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tent is unstable in wind. | Insufficient staking or improper use of guy lines. | Ensure all 19 ground nails are securely driven into the ground. Attach and properly tension all 10 wind ropes. Orient the tent with the narrowest profile facing the wind. |
| Water leakage. | Damaged fabric, worn waterproof coating, or improper setup. | Check for tears or punctures and repair them. Re-apply seam sealer if necessary. Ensure the ground cloth is not extending beyond the tent footprint, which can channel water underneath. |
| Condensation inside the tent. | Lack of ventilation, high humidity, or temperature difference. | Open side ventilation windows and triangular transparent windows to increase airflow. Avoid cooking inside without adequate ventilation. |
| Difficulty inserting poles. | Poles are not fully assembled or sleeves are twisted. | Ensure all pole sections are fully connected. Straighten any twisted pole sleeves before attempting to insert poles. |
5. Specifications
Detailed specifications for the windhike Aries Dome Tent Shepherd-M:
| Feature | Detail |
|---|---|
| Brand | windhike |
| Model Name | Aries Dome Tent |
| Shape | Shepherd-M |
| Usable Area (Shepherd-M) | 136 sq.ft |
| Usable Size (L x W x H) | 161.4"L x 161.4"W x 86.6"H |
| Storage Size (L x W x H) | 29.5"L x 13.4"W x 13.4"H |
| Weight (including all accessories) | 38.8 lbs (Approx. 17.6kg) |
| Occupancy | 4 Person |
| Seasons | 4 Season |
| Water Resistance Technology | 3000 millimeters |
| Material Type | 75D Polyester grid cloth, Aluminum (poles) |
| Pole Material Type | 7001 Aluminum Alloy |
| Number of Poles | 8 |
| Included Components | Tent cloth, 8 tent poles, ground cloth, storage bag, 19 ground nails, 10 wind ropes, transparent window shade cloth |
| Special Features | Portable, Sun Protection, Waterproof, Windproof, Chimney Snow Skirt, 4 Wider Doors |
The windhike Aries Dome Tent Shepherd-M packed in its carry bag with accessories.

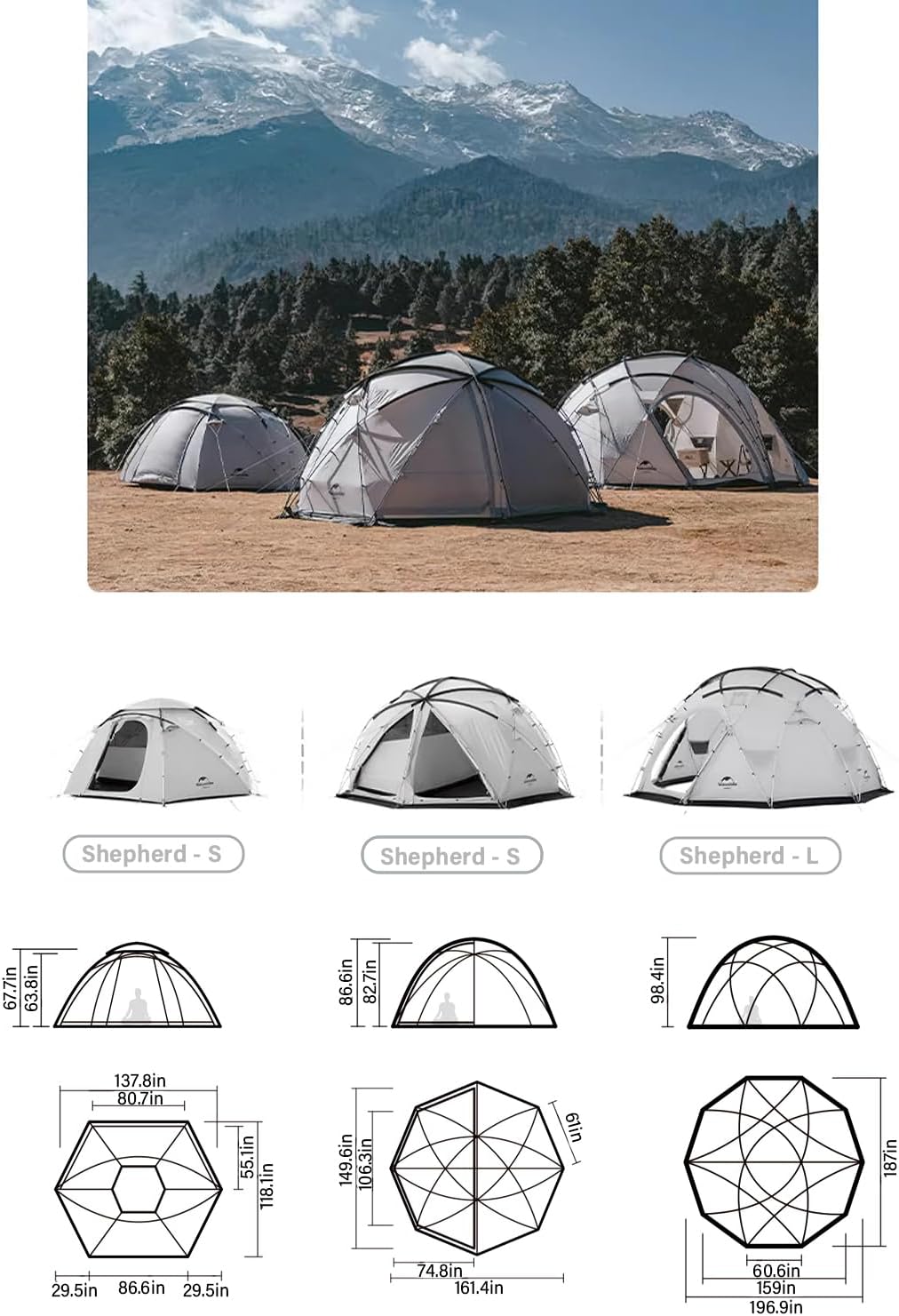

Detailed product parameters for Shepherd-S, Shepherd-M, and Shepherd-L tent models, including dimensions, weight, and accessories.
6. Warranty Information
Specific warranty details for the windhike Aries Dome Tent Shepherd-M are not provided in this manual. Please refer to the product packaging or the official windhike website for the most current warranty information. Retain your proof of purchase for any warranty claims.
7. Customer Support
For further assistance, questions, or to report any issues with your windhike Aries Dome Tent Shepherd-M, please contact windhike customer support through their official website or the retailer where the product was purchased. Have your model number (Shepherd-M) and purchase date available when contacting support.
Official Brand Store: windhike Store on Amazon
