1. Introduction
Thank you for choosing the Karl home Twin Over Twin Metal Bunk Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read these instructions thoroughly before beginning assembly and retain them for future reference.
Figure 1: The Karl home Twin Over Twin Metal Bunk Bed in white. This image shows the complete bunk bed frame without mattresses.
2. Important Safety Information
For safe use of this bunk bed, please adhere to the following guidelines:
- Ensure the bed frame is properly assembled following the provided instructions.
- Do not exceed the recommended weight limit of 400 pounds for the top bunk and 600 pounds for the bottom bunk.
- Regularly inspect the bed frame for any signs of damage or wear, especially around the welded areas and the built-in ladder.
- Keep the area around the bed free of tripping hazards.
- Be cautious of pinch points and sharp edges during assembly and use.
- Always supervise children when using the upper bunk to minimize the risk of injury.
- The top bunk is not suitable for children under 6 years of age.
- Use only mattresses that are 5-8 inches thick for both bunks.
- Ensure guardrails are always in place on the top bunk.
3. Package Contents
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
The package includes:
- Metal Bunk Bed Frame Components
- Built-in Ladder
- Safety Guardrails
- Hardware Pack (bolts, nuts, washers, etc.)
- Assembly Instructions Manual
Figure 2: Detail of the metal bed slats, which form the mattress support for both bunks.
4. Assembly Instructions
Assembly of the Karl home bunk bed requires two adults. All necessary tools and parts are included in the box. Please follow the step-by-step instructions provided in the separate assembly manual for detailed guidance.
- Preparation: Clear a spacious area for assembly. Lay out all components and hardware.
- Base Frame Assembly: Begin by assembling the base frames for both the upper and lower bunks.
- Vertical Supports: Attach the vertical support posts that connect the upper and lower bunks.
- Guardrails and Ladder: Securely attach the safety guardrails to the upper bunk and install the built-in ladder.
- Final Tightening: Once all components are in place, carefully tighten all bolts and screws. Do not overtighten.
- Inspection: Before use, thoroughly inspect the assembled bed to ensure all connections are secure and stable.
Figure 3: Example of a secure metal joint connection, crucial for the bed's stability. Ensure all connections are tightened properly during assembly.
5. Usage Guidelines
To ensure safe and comfortable use of your bunk bed:
- Only one person should occupy the top bunk at a time.
- Always use the built-in ladder for climbing to and from the top bunk. Do not use chairs or other furniture.
- Ensure mattresses fit snugly within the bed frame to prevent gaps. Recommended mattress thickness is 5-8 inches.
- Do not attach or hang items from any part of the bunk bed that are not designed for use with the bed, e.g., hooks, ropes, or swings.
- Periodically check and re-tighten all connections to maintain structural integrity.
Figure 4: The bunk bed shown with mattresses in place, demonstrating proper setup for use.
6. Care and Maintenance
Proper care will extend the life of your bunk bed:
- Cleaning: Wipe down the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Inspection: Periodically check all bolts and connections to ensure they remain tight. Re-tighten as necessary.
- Moving the Bed: When moving the bed, lift it rather than dragging it to prevent damage to the frame or floor.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed is noisy or squeaks | Loose bolts or connections. | Inspect all bolts and connections. Tighten any loose hardware. Ensure all parts are correctly aligned. |
| Bed feels unstable | Incomplete assembly or loose connections. | Review assembly instructions to ensure all steps were followed correctly. Tighten all bolts. Ensure the bed is on a flat, level surface. |
| Missing parts | Packaging error. | Contact Karl home customer support with your purchase details and a list of missing parts. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model Number | KHBB711 |
| Color | White |
| Material | Metal |
| Overall Dimensions (L x W x H) | 78" x 42" x 65" |
| Height between bunk beds | 38 inches |
| Upper Guardrail Height | 13 inches |
| Clearance from floor to bed | 10 inches |
| Recommended Mattress Thickness | 5-8 inches (not included) |
| Upper Bed Weight Capacity | 400 lbs |
| Lower Bed Weight Capacity | 600 lbs |
| Item Weight | 84.9 lbs |
| Assembly Required | Yes |
Figure 5: Dimensional diagram of the bunk bed, illustrating key measurements such as length, width, height, and guardrail height.

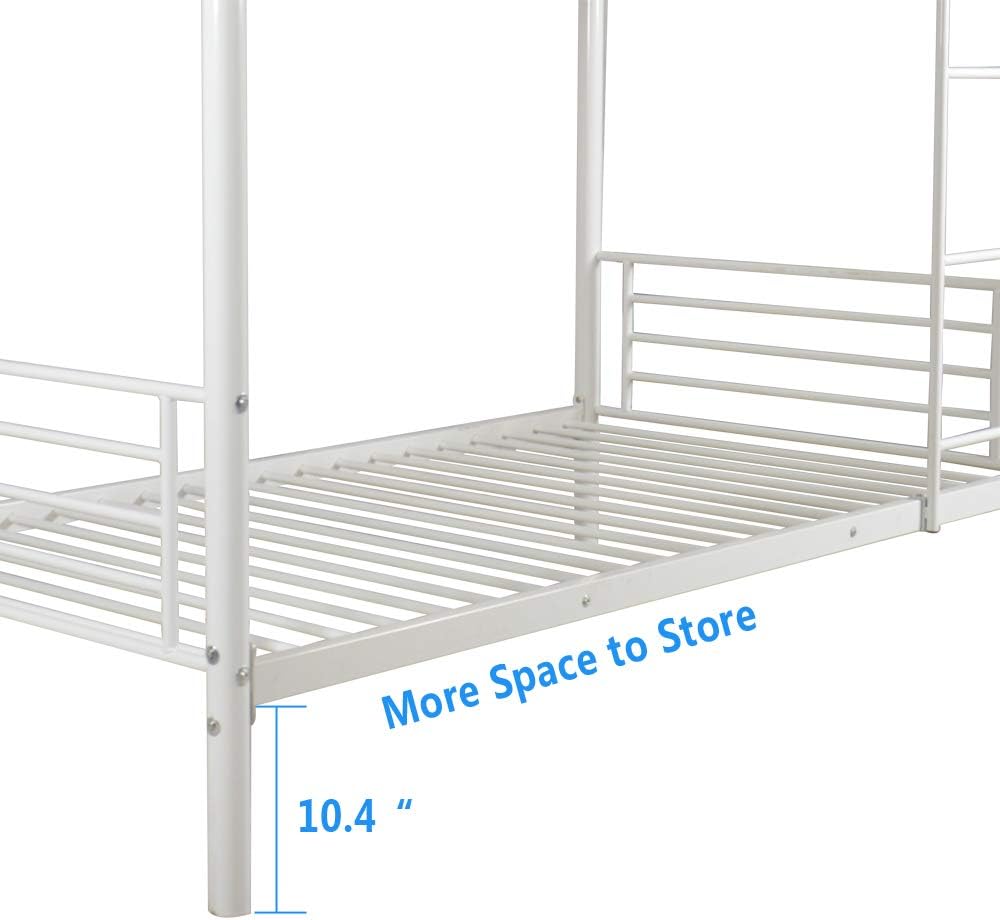

Figure 6: Illustration of the 10-inch under-bed clearance, providing space for storage.
9. Warranty and Customer Support
For warranty information, please refer to your purchase documentation or contact the retailer where the product was purchased. If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Karl home customer support.
For further assistance, you may visit the Karl home Store on Amazon.
