1. Product Overview
This NuIth car radio wiring harness is designed to facilitate the installation of an aftermarket radio or auto stereo CD player in compatible vehicles. It utilizes existing factory wiring and connectors, providing a seamless integration solution. The harness includes a 24-pin connector for power and speaker connections and an 8-pin plug with RCA inputs for connecting to a factory subwoofer.
Image 1.1: Overview of the NuIth 24+8 Pin Car Radio Wiring Harness with RCA Plug. This image displays the main components of the wiring harness, including the primary connector, individual wires, and RCA plugs, set against a car interior background.
2. Vehicle Compatibility
This wiring harness is compatible with selected Ford, Lincoln, Mercury, and Hyundai vehicles from 2003-2013. Note: Not compatible with non-amplified factory systems.
Compatible Ford Models:
- 2003-2010 Crown Victoria
- 2006-2007 Escape
- 2005 Excursion
- 2004-2014 Expedition
- 2004-2010 Explorer
- 2004-2010 F-150
- 2005-2012 F-250 / F-350
- 2005-2007 Five Hundred
- 2005-2011 Focus
- 2004-2007 Freestar
- 2005-2007 Freestyle
- 2004-2009 Mustang
- 2008-2009 Taurus X
- 2007-2010 Edge
- 2008-2009 Ford Fusion SE
Compatible Lincoln Models:
- 2006-2008 Mark LT
- 2003-2006 Navigator
- 2003-2011 Town Car
Compatible Mercury Models:
- 2003-2011 Grand Marquis
- 2003-2006 Marauder
- 2005-2007 Mariner
- 2005-2008 Montego
- 2004-2006 Monterey
- 2006-2010 Mountaineer
Compatible Hyundai Models:
- 2006-2008 Sonata
Image 2.1: Visual representation of the vehicle compatibility list for the NuIth radio wire harness adapter, showing a compatible SUV model.
3. Product Components and Features
The NuIth wiring harness is designed for ease of use and reliable performance. Key features include:
- 24-Pin Wiring Connector: For power and speaker connections to your aftermarket radio.
- 8-Pin Plug with RCA Inputs: Specifically designed for connecting to a factory subwoofer, utilizing your aftermarket radio's pre-amp outputs.
- Pre-stripped Wires: Wires are pre-stripped and feature standard color codes for quick and easy installation, eliminating the need for additional wire preparation.
- High-Quality Copper Wires: Ensures excellent conductivity and durability for long-term use.
- Durable ABS Plastic: Connectors are made from durable ABS plastic for robust construction.
Image 3.1: Detailed view of the 24-pin wiring connector for power and speaker connections, and the 8-pin plug with RCA inputs for factory subwoofer integration.
Image 3.2: Close-up of the pre-stripped, color-coded wires, highlighting their readiness for direct connection without further stripping.

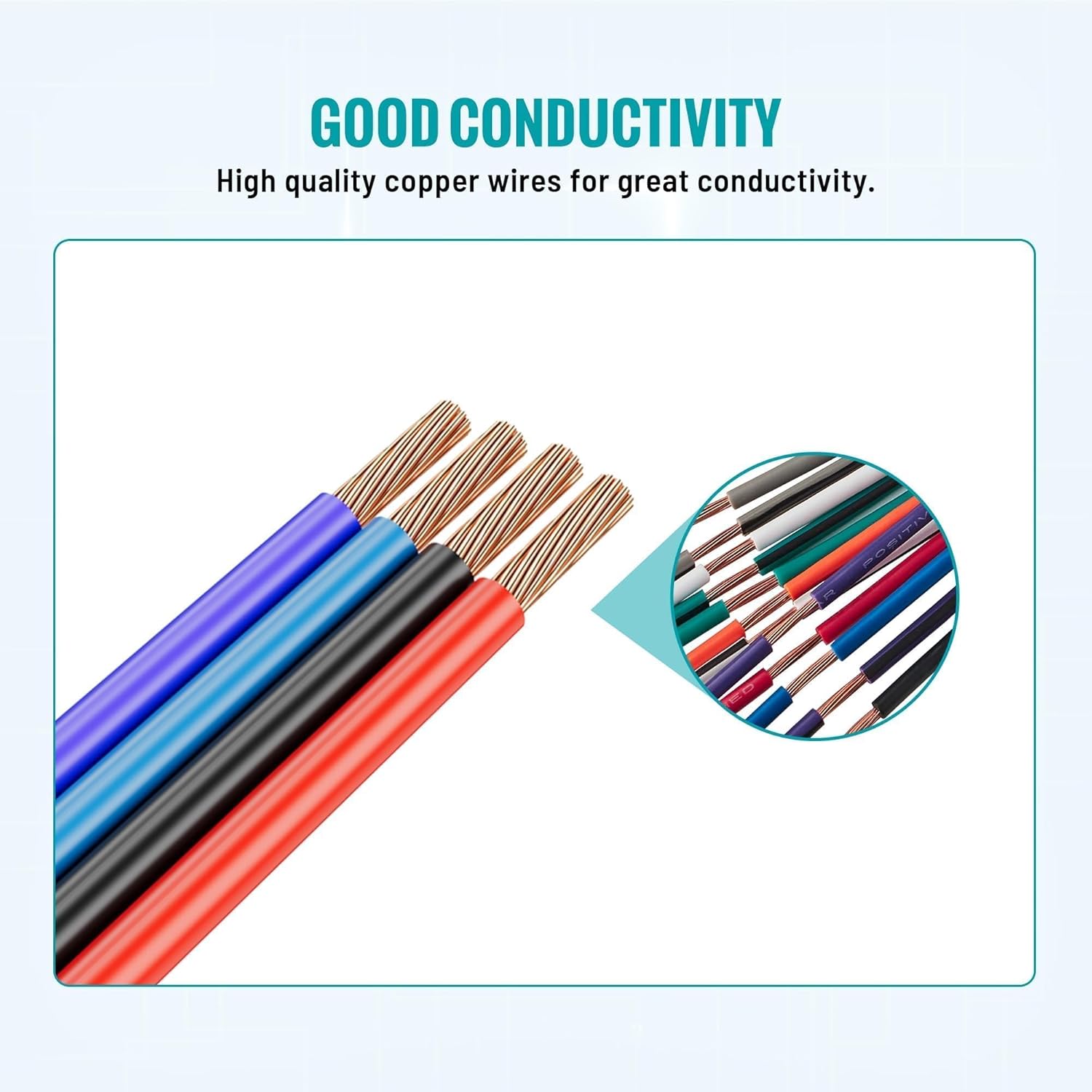

Image 3.3: Illustration demonstrating the high-quality copper wires used in the harness, ensuring optimal electrical conductivity.
4. Setup and Installation
Installation of the NuIth wiring harness involves connecting it between your new aftermarket radio and the vehicle's factory wiring. While the wires are pre-stripped and color-coded for convenience, professional installation is recommended for optimal results and to prevent damage to your vehicle's electrical system.
Installation Steps:
- Disconnect Vehicle Battery: Before beginning any electrical work, disconnect the negative terminal of your vehicle's battery to prevent short circuits.
- Remove Factory Radio: Carefully remove your vehicle's existing factory radio according to your vehicle's service manual.
- Identify Factory Wiring: Locate the factory wiring harness that was connected to your original radio.
- Match Wires: Connect the wires from the NuIth harness to the corresponding wires on your aftermarket radio's harness. The NuIth harness features standard color codes to simplify this process. Ensure all connections are secure, either by soldering and heat-shrinking or using appropriate crimp connectors.
- Connect RCA Plugs: If your vehicle has a factory subwoofer and your aftermarket radio has pre-amp outputs, connect the 8-pin plug's RCA inputs to the corresponding RCA outputs on your new radio.
- Connect Harness to Vehicle: Plug the NuIth harness into the vehicle's factory wiring harness.
- Install Aftermarket Radio: Mount your new aftermarket radio into the dashboard opening.
- Reconnect Battery: Reconnect the negative terminal of your vehicle's battery.
- Test System: Turn on the vehicle and test the new radio's functionality, including all speakers, subwoofer (if connected), and other features.
For detailed wire color code diagrams, refer to your aftermarket radio's instruction manual and your vehicle's service manual.

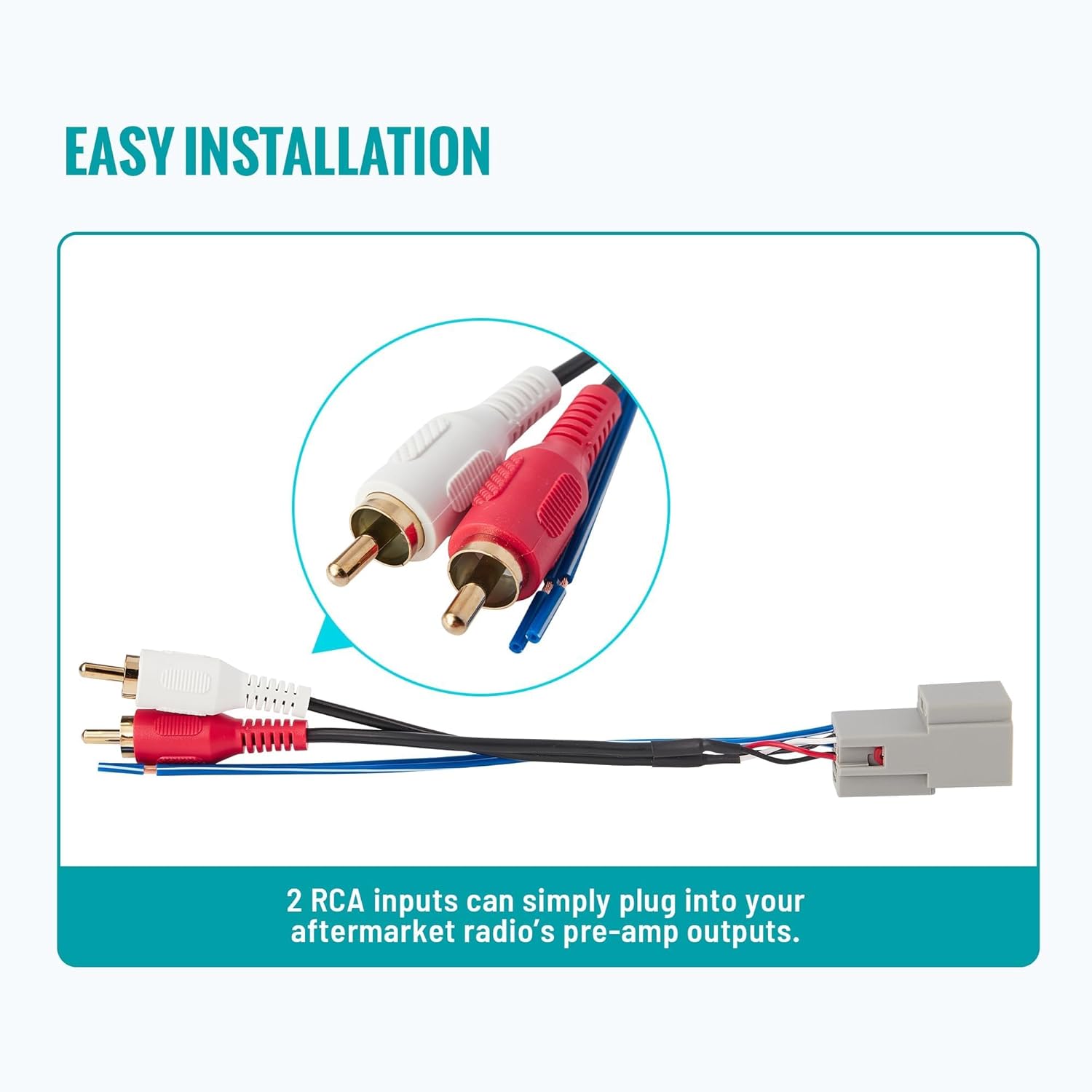

Image 4.1: Close-up of the RCA inputs, demonstrating how they connect to an aftermarket radio's pre-amp outputs for subwoofer integration.
Video 4.1: An official product video demonstrating the NuIth Car Radio Wiring Harness with RCA Plug, highlighting its components and how they connect. This video provides a visual guide to the harness for 2003-2013 Ford/Lincoln/Mercury vehicles.
5. Operating Instructions
Once the NuIth wiring harness is correctly installed, its operation is integrated with your aftermarket radio. The harness itself does not require separate operation. Ensure all connections are secure to maintain consistent audio performance.
- Audio Functionality: The harness enables all standard audio functions of your aftermarket radio, including speaker output and subwoofer signal (if connected via RCA).
- Power Supply: Provides consistent power to your aftermarket radio.
6. Maintenance
The NuIth wiring harness is designed for durability and requires minimal maintenance. Regular checks can help ensure its longevity and performance:
- Connection Checks: Periodically inspect all connections to ensure they remain tight and free from corrosion.
- Wire Integrity: Ensure wires are not pinched, frayed, or exposed, which could lead to electrical issues.
- Cleanliness: Keep the area around the harness free from excessive dust or moisture.
7. Troubleshooting
If you encounter issues after installing the wiring harness, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power to aftermarket radio | Incorrect power wire connection, blown fuse, disconnected battery. | Check all power wire connections (constant 12V, accessory 12V, ground). Verify vehicle fuses and ensure battery is reconnected. |
| No sound from speakers | Incorrect speaker wire connections, speaker wires shorted, radio settings. | Double-check all speaker wire connections for correct polarity and secure contact. Ensure radio volume is up and mute is off. |
| Subwoofer not working | Incorrect RCA connection, incompatible factory system, radio settings. | Verify RCA plugs are securely connected to the aftermarket radio's pre-amp outputs. Confirm your factory system is amplified (this harness is not for non-amplified systems). Check radio's subwoofer output settings. |
| Intermittent audio | Loose connections, damaged wiring. | Inspect all wire connections for looseness. Check for any visible damage to the harness wires. |
If issues persist, consult a professional car audio installer or contact NuIth customer support.
8. Product Specifications
| Feature | Detail |
|---|---|
| Model | 24+8 Pin RCA Wiring Harness (Replacement for 70-5521 Stereo Wiring Adapter) |
| Connector Type | 24-pin (Power/Speaker), 8-pin (RCA Subwoofer Input) |
| Material | Acrylonitrile Butadiene Styrene (ABS), Copper Wires |
| Compatibility | Selected 2003-2013 Ford, Lincoln, Mercury, and 2006-2008 Hyundai Sonata vehicles (Not for non-amplified factory systems) |
| Package Dimensions | 7.52 x 4.41 x 0.91 inches |
| Item Weight | 2.39 ounces (0.07 Kilograms) |
| Manufacturer | NuIth |
9. Warranty and Support
For information regarding warranty coverage or technical support, please contact NuIth directly through their official website or the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
Manufacturer: NuIth
Contact: Refer to the NuIth official website for customer service contact information.
