Depusheng 5-Piece Drum Microphone Set User Manual

Product Overview

The Depusheng 5-Piece Drum Microphone Set is designed for capturing the sound of drums and percussion instruments in various recording and live performance settings. This comprehensive kit includes a selection of dynamic and condenser microphones, along with essential accessories, to provide a versatile solution for drummers and audio engineers.

Image: The complete Depusheng 5-piece drum microphone set, including one large dynamic bass drum microphone, two smaller dynamic percussion microphones, two condenser microphones, and various mounting accessories, all neatly arranged with the carrying case.

Package Contents

Your Depusheng 5-Piece Drum Microphone Set includes the following components:

• 1 x Bass Drum Microphone: A dynamic microphone specifically designed for kick drums, featuring a robust metal housing and a cardioid polar pattern for focused sound capture.
• 2 x Dynamic Percussion Microphones: Smaller dynamic microphones ideal for tom-toms and snare drums, also with durable metal construction and cardioid patterns.
• 2 x Condenser Microphones: High-quality condenser microphones suitable for cymbals, overheads, or other percussion instruments, excellent for reproducing detailed sound.
• 2 x Microphone Clamps: For mounting the dynamic percussion microphones.
• 2 x Thread Inserts: For adapting microphone stands.
• 2 x Microphone Clips: For mounting the condenser microphones.
• 1 x Portable Carrying Case: A durable case with custom foam inserts for secure storage and transport of all components.

Image: The Depusheng 5-piece drum microphone set stored securely in its portable carrying case, with an illustration of the individual weights of each microphone type (bass drum mic: 0.3KG, small dynamic mic: 0.25KG, condenser mic: 0.2KG).

Component Details

Bass Drum Microphone (x1)

This dynamic microphone is engineered to capture the low-frequency impact and resonance of a bass drum. Its robust construction and cardioid polar pattern help isolate the drum's sound while minimizing bleed from other instruments.

• Frequency Response: Optimized for bass drum frequencies.
• Polar Pattern: Cardioid, effectively reducing background noise.
• Connector: Standard XLR.

Image: A detailed view of the Depusheng dynamic bass drum microphone, highlighting its internal structure and showing a polar pattern diagram indicating its cardioid pickup characteristic.

Image: Technical drawing showing the dimensions of the Depusheng bass drum microphone (85mm length, 50mm diameter) and its 180-degree adjustable mount with an XLR connector.

Dynamic Percussion Microphones (x2)

These compact dynamic microphones are ideal for close-miking tom-toms and snare drums. Their design allows for easy positioning and their cardioid pattern ensures clear, isolated sound capture.

• Application: Suitable for tom-toms and snare drums.
• Polar Pattern: Cardioid.
• Connector: Standard XLR.

Image: A detailed view of one of the Depusheng small dynamic percussion microphones, illustrating its internal components and displaying a cardioid polar pattern diagram.

Image: Technical drawing showing the dimensions of the Depusheng small dynamic percussion microphone (85mm length, 40mm diameter) and its 180-degree adjustable mount with an XLR connector.

Condenser Microphones (x2)

These condenser microphones are designed for capturing the nuanced sounds of cymbals, hi-hats, or as overhead microphones for the entire drum kit. They offer a wide frequency response for accurate sound reproduction.

• Application: Ideal for cymbals, pianos, and overhead drum miking.
• Frequency Response: Excellent for detailed sound reproduction.
• Polar Pattern: Unidirectional (Cardioid).
• Connector: Standard XLR.

Image: A detailed view of one of the Depusheng condenser microphones, showing its mesh grille and internal components, along with a cardioid polar pattern diagram.

Image: Technical drawing showing the dimensions of the Depusheng condenser microphone (135mm length, 23mm diameter) and its 180-degree adjustable mount with an XLR connector.

Setup Guide

Follow these steps to set up your Depusheng drum microphone set:

1. Unpack Components: Carefully remove all microphones and accessories from the carrying case.
2. Attach Mounts:
   • For the bass drum microphone, attach its integrated mount to a standard microphone stand.
   • For the dynamic percussion microphones, use the provided microphone clamps to attach them to the rims of your tom-toms or snare drum.
   • For the condenser microphones, attach the included microphone clips to standard microphone stands (using the 3/8" or 5/8" thread inserts if necessary).
3. Position Microphones:
   • Bass Drum: Place the bass drum microphone inside or just outside the kick drum's resonant head, aiming towards the beater for attack or towards the center for more body.
   • Tom-Toms/Snare: Position the dynamic percussion microphones close to the drum head, typically 1-2 inches from the rim, aiming towards the center of the head.
   • Cymbals/Overheads: Place the condenser microphones above the drum kit, typically 2-4 feet high, to capture the overall sound of the cymbals and the kit's ambience. Experiment with stereo configurations (e.g., A/B or X/Y) for overheads.
4. Connect Cables: Use standard XLR cables (not included) to connect each microphone to your audio mixer, audio interface, or preamplifier. Ensure secure connections for optimal signal transfer.
5. Adjust Levels: On your mixer or interface, set appropriate gain levels for each microphone. Start with low gain and gradually increase until a strong, clear signal is achieved without clipping.

Operating Instructions

Once set up, operating your Depusheng drum microphone set involves fine-tuning for optimal sound:

• Sound Check: Before recording or live performance, perform a thorough sound check. Have the drummer play each drum and cymbal individually and then the full kit.
• Monitor Levels: Listen carefully through headphones or studio monitors to identify any issues with signal levels, phase, or unwanted noise.
• Equalization (EQ): Use the EQ controls on your mixer or audio software to shape the sound of each drum. For example, you might boost low frequencies on the bass drum, or high frequencies on cymbals.
• Compression: Apply compression as needed to control dynamics and add punch to individual drums or the overall kit.
• Gate/Noise Reduction: If there is excessive bleed between microphones, consider using gates on individual drum mics to reduce unwanted sounds when the drum is not being played.
• Experiment with Placement: Even small adjustments to microphone position can significantly alter the sound. Experiment to find the "sweet spot" for each drum and cymbal.

Maintenance

Proper maintenance will ensure the longevity and performance of your microphone set:

• Cleaning: After each use, gently wipe the microphone bodies with a soft, dry, lint-free cloth to remove dust, fingerprints, and moisture. Avoid using harsh chemicals or abrasive materials.
• Grille Cleaning: If the microphone grilles become dirty, use a soft brush (like a clean toothbrush) to gently remove debris. Do not attempt to remove the grille unless specifically instructed by the manufacturer.
• Cable Care: Always coil XLR cables properly after use to prevent kinks and damage. Avoid stepping on cables or placing heavy objects on them.
• Storage: Store all microphones and accessories in the provided portable carrying case when not in use. The foam inserts are designed to protect the components from impacts and environmental factors. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• Inspection: Periodically inspect microphone cables and connectors for any signs of wear or damage. Replace damaged cables immediately.

Troubleshooting

If you encounter issues with your microphone set, refer to the following common troubleshooting steps:

Specifications

Key technical specifications for the Depusheng DM5 Drum Microphone Set:

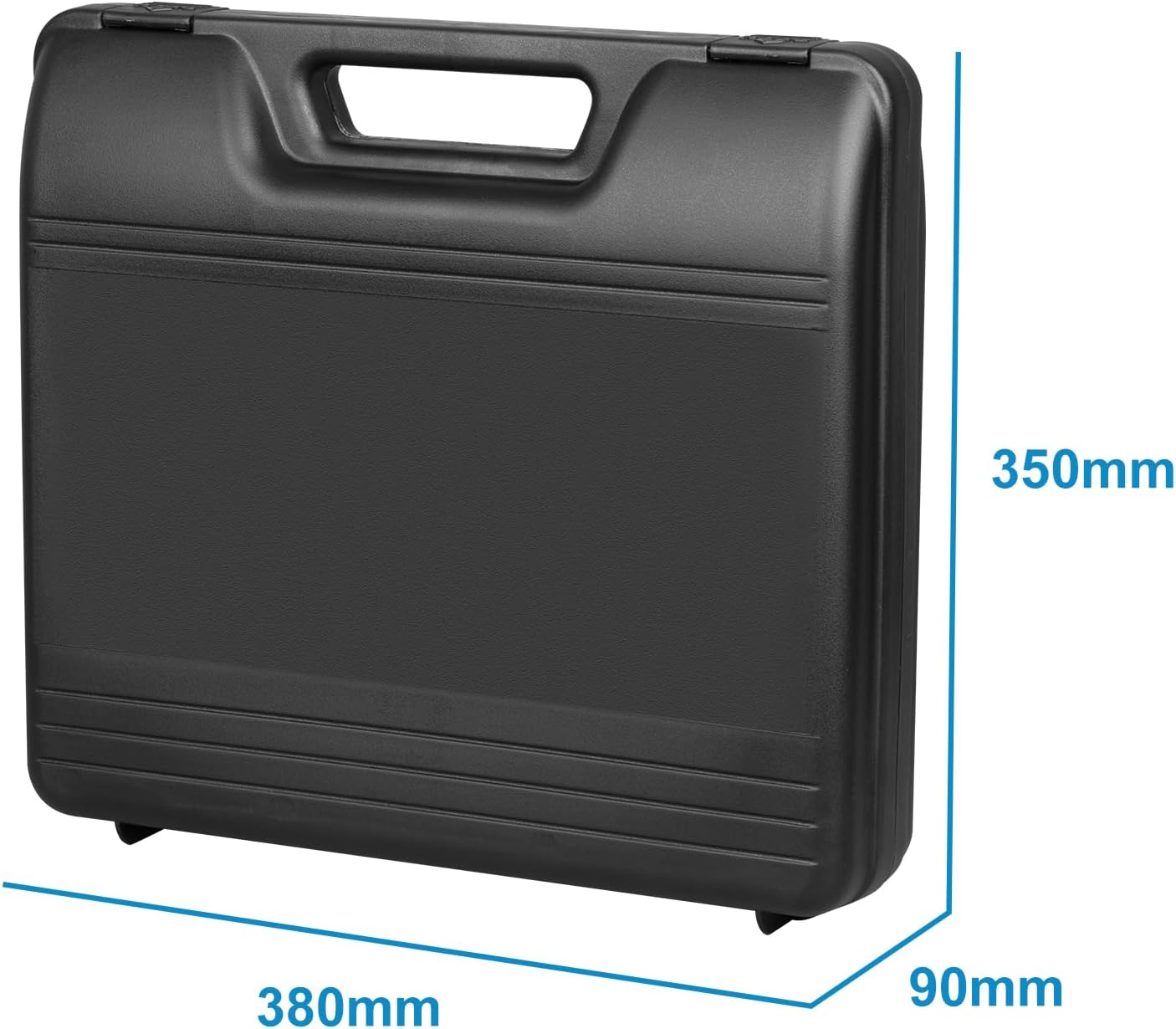

Image: Technical drawing showing the dimensions of the Depusheng microphone carrying case (380mm length, 350mm width, 90mm depth).

Warranty and Support

For information regarding product warranty, please refer to the documentation provided at the time of purchase or contact Depusheng customer support directly. Specific warranty terms and conditions may vary by region and retailer.

If you require technical assistance or have questions not covered in this manual, please contact Depusheng customer service through their official website or the retailer from whom you purchased the product.
