magicplux 2-Zone Ceramic Hob (Model MVC2T01) - User Manual

Product Overview

The magicplux 2-Zone Ceramic Hob (Model MVC2T01) is a versatile cooking appliance designed for both domestic and professional kitchens. It features two cooking zones with a total power output of 3400W, offering 9 heating levels for precise temperature control. The hob can be either built-in or placed on a countertop, providing flexibility in installation. Key features include touch controls, a child safety lock, a timer function, and multiple safety mechanisms.

Image: The magicplux 2-Zone Ceramic Hob, showcasing its sleek black ceramic surface and two cooking zones.

Safety Information

Please read all safety instructions carefully before using the appliance. Improper use can lead to injury or damage.

• Overheating Protection: The hob is equipped with an overheating protection system that automatically shuts down the unit if it detects excessive temperatures.
• Automatic Shut-off: For enhanced safety, the hob will automatically turn off after a period of inactivity.
• Child Safety Lock: Activate the child lock to prevent accidental operation by children. Refer to the operating instructions for activation/deactivation.
• Residual Heat Indicator ("H"): After use, the "H" symbol will appear on the display for each zone that is still hot, indicating residual heat. Avoid touching these surfaces to prevent burns.
• Ensure proper ventilation around the appliance during operation.
• Do not place flammable materials near the hob.
• Use only compatible cookware.

Image: A child safety lock feature is shown on the hob's control panel, emphasizing safety around children.

What's in the Box

Your magicplux 2-Zone Ceramic Hob package includes:

• magicplux 2-Zone Ceramic Hob (Model MVC2T01)
• Mounting Material
• User Guide
• Sponge Strip

Setup and Installation

The magicplux ceramic hob offers flexible installation options: it can be either built-in or used as a freestanding countertop unit. Ensure the installation area meets the specified dimensions for proper fit and ventilation.

Dimensions:

• Product Dimensions: 51 x 29.5 x 5.5 cm
• Cut-out Dimensions for Built-in Installation: 49 x 27 x 7 cm

For built-in installation, carefully follow the instructions provided with the mounting material to ensure a secure and level fit. For countertop use, place the hob on a stable, heat-resistant surface, ensuring adequate clearance around the unit for ventilation.

Image: Illustration of the ceramic hob showing both built-in and countertop installation options with key dimensions.

Image: Detailed view of the hob's dimensions for built-in installation.

Image: Detailed view of the hob's dimensions for countertop placement.

Operating Instructions

Control Panel Overview:

Image: Close-up of the hob's touch control panel, showing various function icons.

• Power On/Off: Press the power button to turn the hob on or off.
• Zone Selection: Select the desired cooking zone by pressing its corresponding button.
• Heat Level Adjustment: Use the "+" and "-" buttons to adjust the heat level from 1 to 9. The hob offers 9 levels of heating for various cooking needs, from slow simmering to high-heat frying.
• Timer Function: Press the timer button and use "+" and "-" to set the desired cooking time (1-99 minutes). The hob will automatically turn off once the timer expires.
• Child Lock: Press and hold the child lock button for 3 seconds to activate or deactivate it. This prevents accidental changes to settings.

Power Output:

• Large Zone: 2200W (200mm diameter)
• Small Zone: 1200W (165mm diameter)

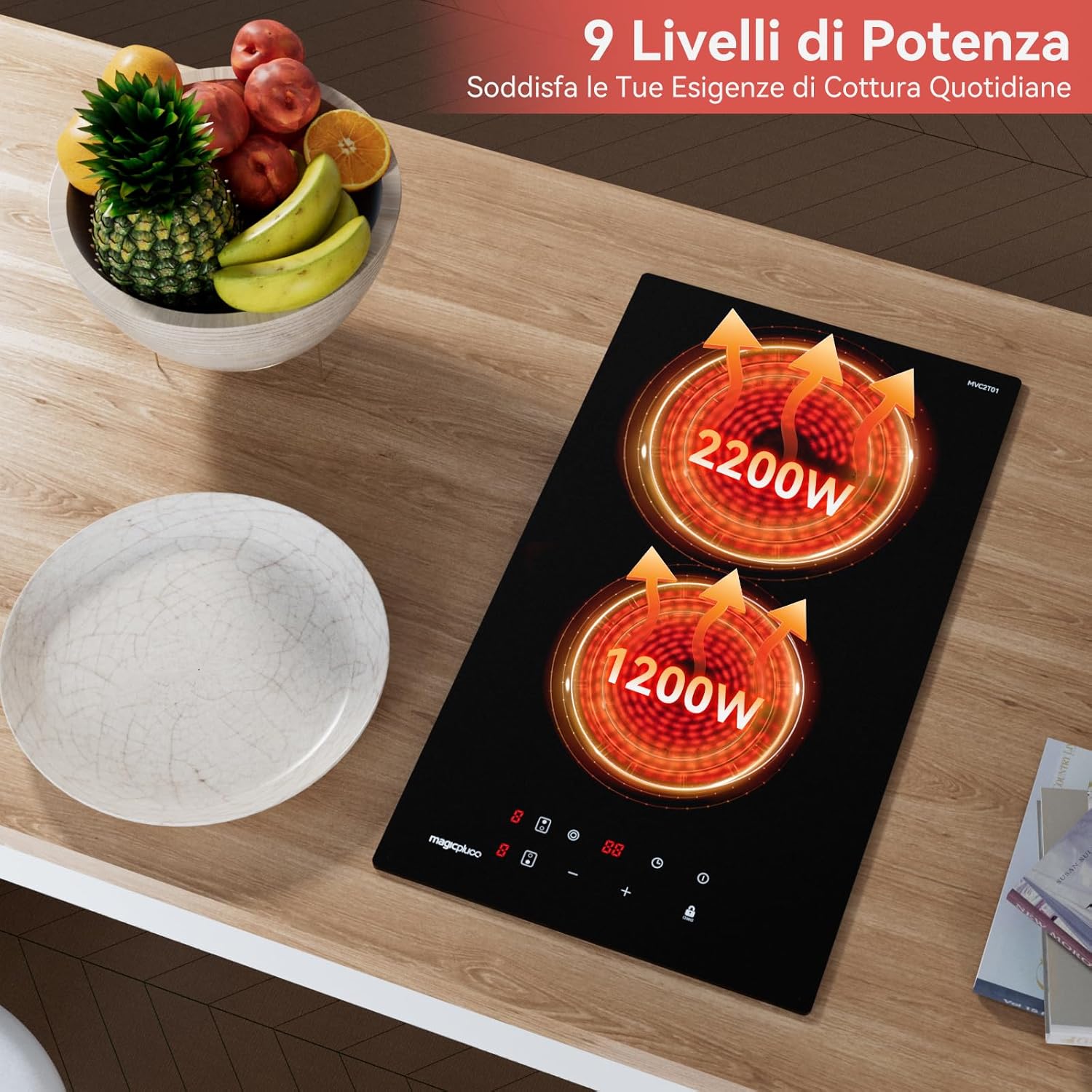

Image: Diagram illustrating the power output and diameter of each cooking zone.

Image: Visual representation of the 9 heat levels available on the hob.

Image: A hand interacting with the precise touch control panel of the ceramic hob.

Image: The timer function displayed on the hob, set for 99 minutes.

Cookware Compatibility

The magicplux ceramic hob is compatible with a wide range of cookware materials, eliminating the need to purchase new pots and pans. Compatible materials include:

• Enamel
• Copper
• Ceramic
• Stainless Steel
• Glass
• Iron

Image: Various types of pots and pans (enamel, copper, ceramic, stainless steel, glass, iron) shown as compatible with the ceramic hob.

Maintenance and Cleaning

The black crystal glass surface of the magicplux ceramic hob is smooth and seamless, making it easy to clean. Regular cleaning ensures optimal performance and extends the lifespan of your appliance.

• Always ensure the hob is cool before cleaning.
• Wipe the surface with a soft, damp cloth and mild detergent.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals that could scratch or damage the glass surface.
• For stubborn stains, use a ceramic hob scraper designed for glass surfaces.
• The hob is designed to be heat-resistant, waterproof, and scratch-resistant, but proper care is still recommended.

Image: A hand cleaning the ceramic hob surface, demonstrating its easy-to-clean and durable properties.

Troubleshooting

If you encounter any issues with your magicplux ceramic hob, please refer to the following common troubleshooting tips:

• Hob not turning on: Ensure the appliance is properly plugged into a working power outlet. Check your household's circuit breaker.
• No heat from a cooking zone: Verify that the correct cooking zone has been selected and the heat level is set above "0". Ensure compatible cookware is being used.
• Child lock activated: If the controls are unresponsive, check if the child lock is active. Deactivate it by pressing and holding the child lock button for 3 seconds.
• "H" symbol displayed: This indicates residual heat. The zone is still hot. Wait for it to cool down before cleaning or touching.
• Unusual odors or smoke: Immediately turn off the hob and unplug it. Contact customer support if the issue persists after the hob has cooled down.

For more complex issues or persistent problems, please contact magicplux customer support.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation included in your product packaging or visit the official magicplux website. Keep your purchase receipt as proof of purchase for any warranty claims.

If you require assistance with installation, operation, or troubleshooting that is not covered in this manual, please contact magicplux customer service.
