inShareplus 4.5V 0.6A 2.7W LED Class 2 Power Adapter Instruction Manual

Introduction

This manual provides essential information for the safe and effective use of your inShareplus 4.5V 0.6A 2.7W LED Class 2 Power Adapter. Please read these instructions thoroughly before installation and operation to ensure proper function and longevity of the product.

Image: The inShareplus 4.5V 0.6A 2.7W LED Class 2 Power Adapter, showing its compact design and output connector.

Safety Information and Features

Your inShareplus power adapter is designed with safety in mind and features multiple protections. It is ETL listed for both outdoor and indoor use, ensuring compliance with safety standards.

• UL Listed: Certified for safety and quality standards.
• IP44 Waterproof: Provides protection against solid objects larger than 1mm and splashing water from any direction, suitable for outdoor applications.
• Overload Protection: Prevents damage from excessive current draw.
• Overvoltage Protection: Safeguards against damage from voltage spikes.
• Overcurrent Protection: Protects the device from drawing too much current.
• Short-circuit Protection: Automatically shuts off power in case of a short circuit.

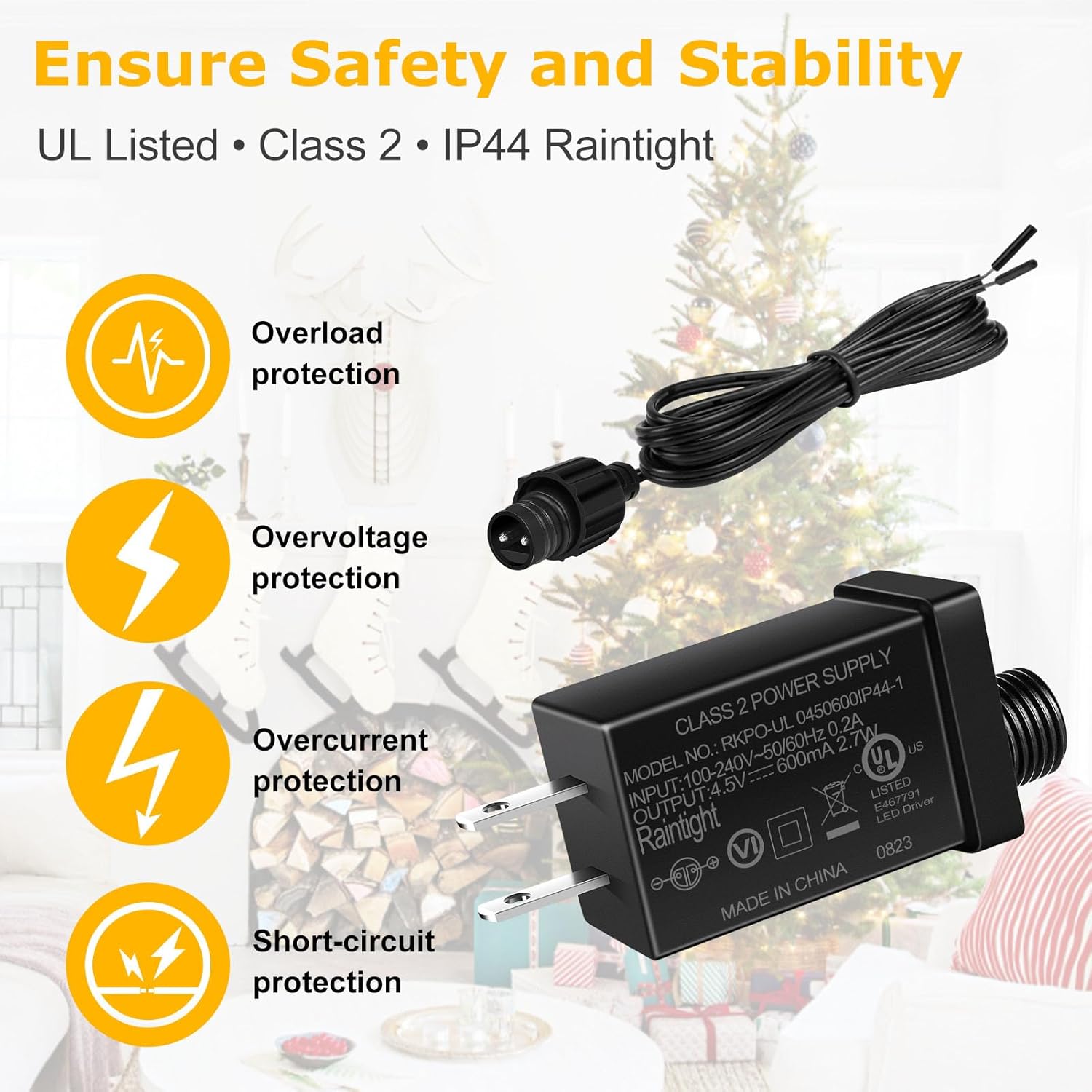

Image: Diagram illustrating the safety features including overload, overvoltage, overcurrent, and short-circuit protection.

Specifications

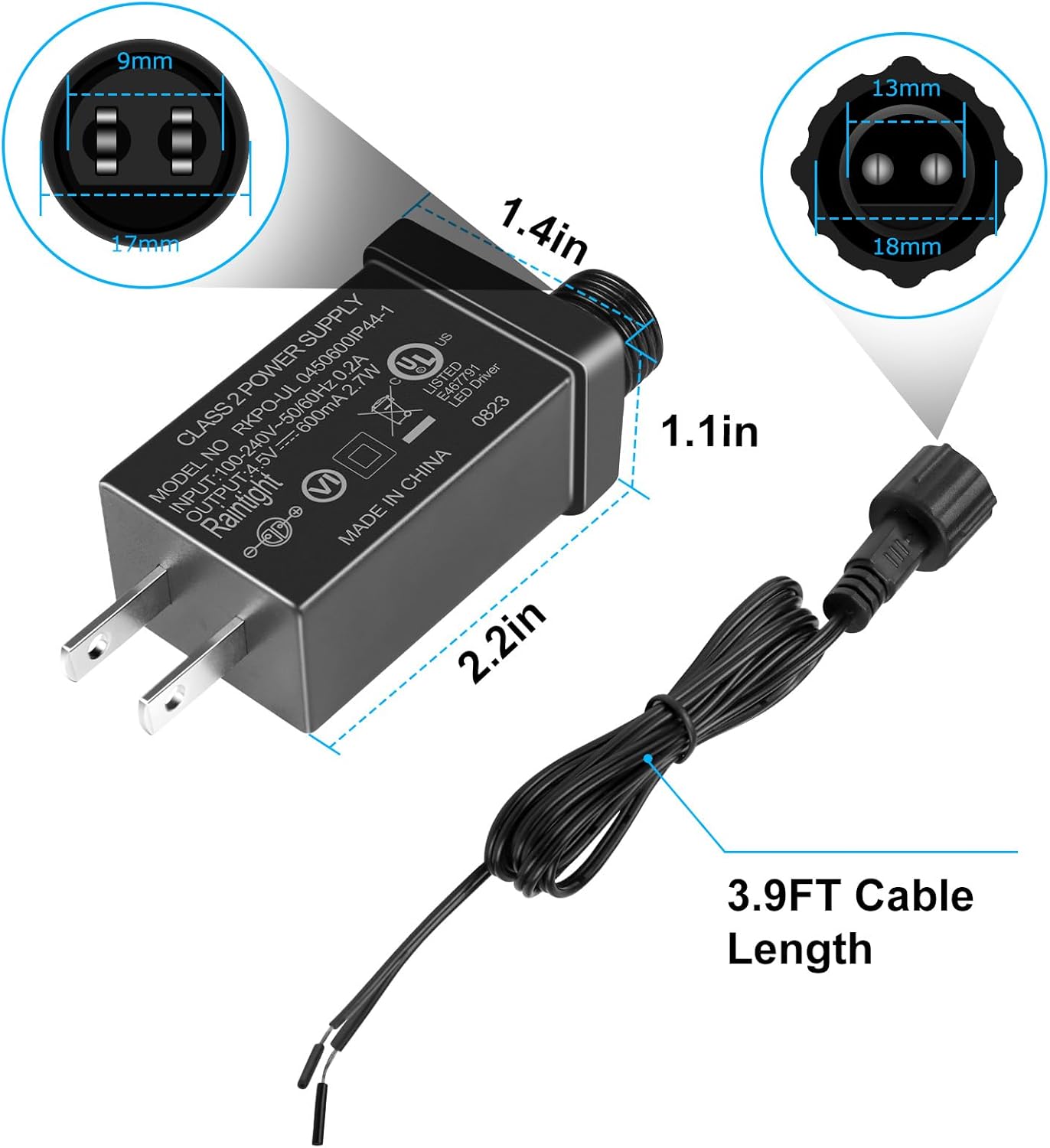

Image: Detailed measurements of the power adapter and its connectors.

Setup and Installation

1. Compatibility Check: Before connecting, ensure your device's voltage, current, and wattage requirements match the power adapter's specifications (DC 4.5V, 600mA, 2.7W). Using an incompatible adapter can damage your device.
2. Connector Matching: Verify that the 2-pin female connector of this adapter matches the male connector of your LED light or device.
3. Polarity: Identify the positive and negative wires of your device. The positive wire is typically marked with a white stripe or printed text; the negative wire is usually plain. Connect them correctly to the adapter's output wires. Incorrect polarity can cause damage.
4. Connection: Securely connect the adapter's output wires to your device's input.
5. Power On: Plug the adapter into a standard AC 100-240V wall outlet.

Image: Visual guide on checking polarity and matching specifications for proper connection.

Image: Illustration showing the female connector of the adapter and a matching male connector for an LED light, emphasizing the importance of compatibility.

Operating Instructions

This power adapter operates in a Steady On Mode. It does not support flashing or other dynamic light modes. Once connected and powered, your device will receive continuous power.

• Ensure all connections are secure before applying power.
• For continuous use, it is recommended to keep the load at or below 80% of the rated power (e.g., for a 2.7W adapter, the continuous load should not exceed approximately 2.16W). This practice helps extend the lifespan of the adapter.

Maintenance

• Cleaning: Disconnect the adapter from power before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquid cleaners or immerse the adapter in water.
• Storage: When not in use, store the adapter in a cool, dry place, away from direct sunlight and extreme temperatures.
• Inspection: Periodically inspect the adapter and its cables for any signs of damage, such as cracks, fraying, or exposed wires. If damage is found, discontinue use immediately and replace the adapter.

Troubleshooting

• Device Not Powering On:
  • Check if the adapter is securely plugged into a working power outlet.
  • Verify that the adapter's output specifications (4.5V, 0.6A, 2.7W) match your device's requirements.
  • Ensure the polarity of the connection is correct.
  • Inspect the cables and connectors for any visible damage.
• Intermittent Power:
  • Check for loose connections at both the wall outlet and the device.
  • Ensure the adapter is not overloaded; the total wattage of connected devices should not exceed 2.7W.
• Adapter Feels Hot:
  • A slight warmth is normal during operation. However, if the adapter is excessively hot to the touch, disconnect it immediately. This could indicate an overload or internal fault.
  • Ensure adequate ventilation around the adapter.

Applications

This 4.5V 0.6A 2.7W power adapter is suitable for various low-voltage LED devices, including but not limited to:

• Christmas trees and string lights
• Projector lights
• Lawn lamps and fountain lights
• Christmas inflatables
• Banner lights
• Other low-voltage LED equipment requiring 4.5V DC power up to 2.7W

Image: Collage showing the power adapter used with various outdoor holiday decorations like string lights, lawn lamps, and inflatables.

Image: The IP44 waterproof power adapter shown in an outdoor setting with holiday lights, demonstrating its suitability for various weather conditions.

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact inShareplus customer service directly. Keep your purchase receipt for warranty claims.
