LIKIMIO Queen Bed Frame (Model HK-QBF-7) Instruction Manual

1. Introduction

Thank you for purchasing the LIKIMIO Queen Bed Frame. This manual provides detailed instructions for assembly, operation, maintenance, and safety to ensure proper use and longevity of your product. Please read this manual thoroughly before beginning assembly or use.

Image 1.1: The LIKIMIO Queen Bed Frame featuring a dark gray upholstered headboard, two pull-out storage drawers, and integrated charging ports on the headboard shelf. The bed is shown with bedding in a modern bedroom.

2. Important Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Weight Limit: Do not exceed a total weight of 880 pounds on the bed frame.
• Fire Hazard: Avoid exposing the bed frame to open flames or high heat sources.
• Assembly: Follow the assembly instructions carefully to ensure stability and prevent collapse. Ensure all bolts and fasteners are securely tightened.
• Electrical Safety: When using the integrated charging outlets, ensure devices are compatible and cables are not damaged. Do not overload the outlets.
• Children and Pets: Keep small parts away from children and pets during assembly.

3. Package Contents

Before assembly, verify that all components are present and undamaged. Refer to the included parts list in your packaging. The main components include:

• Upholstered Headboard with integrated shelf and charging unit
• Bed Frame Side Rails
• Bed Frame Footboard
• Wooden Slats and Slat Holders
• Four Storage Drawers with wheels
• Assembly Hardware (bolts, screws, Allen wrench)

Image 3.1: Exploded view diagram illustrating the main components of the bed frame, including the headboard, frame structure, wooden slats, and a detailed view of a storage drawer and the power outlet unit. Dimensions are also indicated.

4. Assembly Instructions

Assembly is required for this bed frame. It is recommended to have two people for assembly, though it can be completed by one person. All necessary tools are included. Please follow the step-by-step instructions provided in the separate assembly guide included in your package.

Key Assembly Steps:

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are secure.
3. Install the center support beam and legs.
4. Place the wooden slats into the designated slots on the frame. Ensure they are evenly spaced and secured.
5. Assemble the storage drawers and insert them under the bed frame.
6. Connect the power cord for the headboard charging unit to a wall outlet.

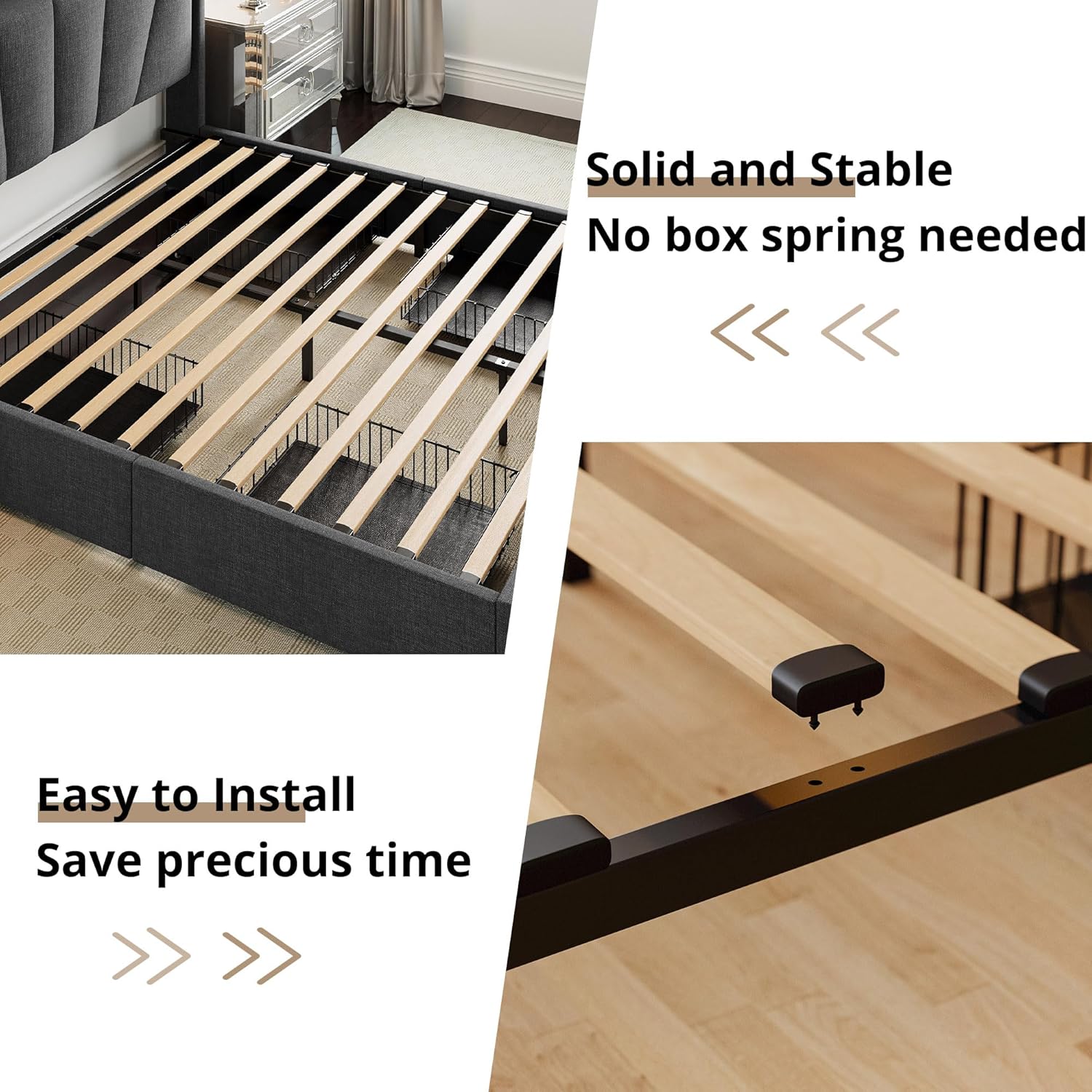

Image 4.1: Detail of the sturdy wooden slats and metal frame, designed for easy installation and mattress support without a box spring.

5. Operating Instructions

5.1. Headboard Charging Station

The upholstered headboard features an integrated shelf with two AC outlets and two USB ports for convenient device charging. To use, ensure the bed frame's power cord is plugged into a functional wall outlet.

• Plug your electronic devices into the available AC or USB ports.
• The shelf provides a convenient space for placing phones, tablets, or other small items while charging.

Image 5.1: The headboard's built-in shelf with two AC outlets and two USB ports, demonstrating its use for charging a tablet and holding small items like an alarm clock and lamp.

5.2. Storage Drawers

The bed frame includes four spacious storage drawers on wheels, designed to slide smoothly under the bed. These drawers are ideal for storing extra bedding, clothing, or other personal items.

• To access, simply pull the drawer out from under the bed.
• To close, push the drawer back into place. The drawers are designed to sit flush with the bed frame.
• The drawers are not permanently attached to the frame, allowing for flexible placement and easy cleaning underneath.

Image 5.2: The bed frame with two storage drawers partially open, showcasing their capacity for organizing various items such as folded clothes and baskets.

6. Maintenance

Regular maintenance will help preserve the appearance and functionality of your bed frame.

• Cleaning Upholstery: For the upholstered headboard and frame, spot clean with a damp cloth and mild detergent. For deeper cleaning, professional dry cleaning is recommended. Avoid harsh chemicals.
• Frame Cleaning: Wipe metal and wooden parts with a soft, dry cloth.
• Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability and prevent squeaking.
• Drawer Maintenance: Keep drawer wheels free of debris for smooth operation.

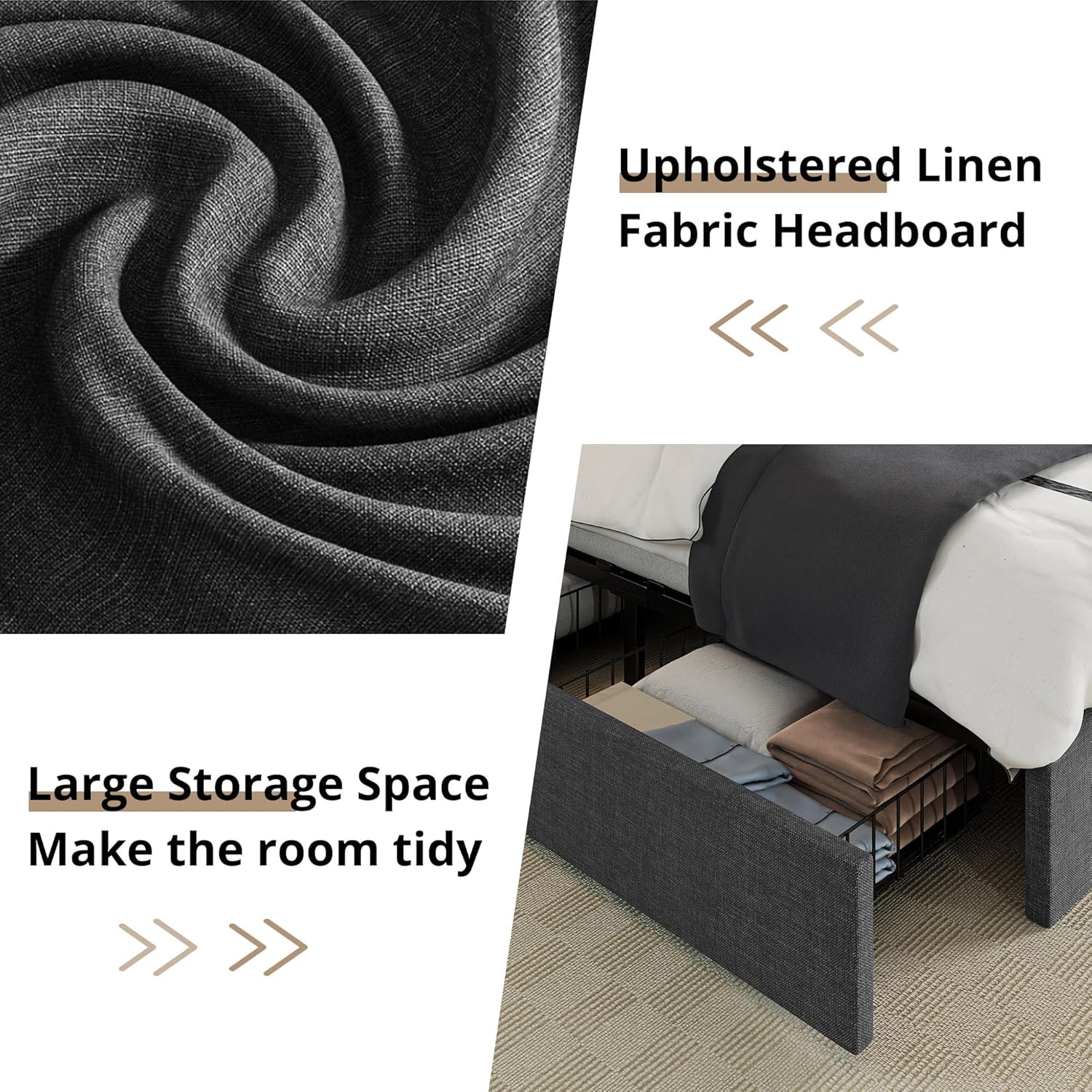

Image 6.1: A detailed view of the upholstered linen fabric, highlighting its texture and dark gray color, which requires specific cleaning care.

7. Troubleshooting

If you encounter any issues with your LIKIMIO bed frame, refer to the following common solutions:

• Squeaking Noises:
  • Ensure all bolts and screws are securely tightened.
  • Check that slats are properly seated and not rubbing against the frame.
• Unstable Frame:
  • Verify that all connections are correctly assembled according to the instructions.
  • Confirm that the center support legs are firmly on the floor.
• Charging Outlets Not Working:
  • Check if the bed frame's main power cord is securely plugged into a live wall outlet.
  • Ensure the devices you are trying to charge are functioning correctly and their cables are not damaged.
• Drawers Not Sliding Smoothly:
  • Inspect the wheels for any obstructions or debris.
  • Ensure the floor surface is clear and level.

If problems persist, please contact LIKIMIO customer support for assistance.

8. Specifications

9. Warranty and Support

LIKIMIO is committed to providing high-quality products and customer satisfaction. For specific warranty details, please refer to the warranty card included with your purchase or visit the official LIKIMIO website.

If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact our customer support team:

• Customer Support: Refer to the contact information provided in your product packaging or on the LIKIMIO official website.
• Online Resources: Visit the LIKIMIO Store on Amazon for additional product information and support.
