Generic L-Shaped Corner Shelf (1-Layer) Instruction Manual

Introduction

Thank you for purchasing the Generic L-Shaped Corner Shelf. This manual provides detailed instructions for the safe and proper installation, usage, and maintenance of your new wall-mounted shelf. Please read all instructions carefully before assembly and retain this manual for future reference.

Safety Information

• Always ensure the wall surface is suitable for mounting and can support the weight of the shelf and its contents.
• Use appropriate wall anchors for your specific wall type (e.g., drywall, concrete, wood studs). The included hardware may not be suitable for all wall types.
• Do not overload the shelf. Distribute weight evenly to prevent damage or collapse.
• Keep small parts and hardware out of reach of children during assembly.
• Ensure all screws are securely tightened before placing items on the shelf.
• Regularly check the shelf for any signs of loosening or damage.

Package Contents

Please verify that all components are present before beginning assembly:

• 1 x L-Shaped Wood Shelf Board
• 2 x Metal Mounting Brackets
• Mounting Hardware (screws, wall anchors)

Product Specifications

Note: Specific dimensions are detailed in the installation section.

Setup and Installation

Tools Required (Not Included):

• Pencil
• Measuring Tape
• Level
• Drill with appropriate drill bit for wall anchors
• Screwdriver (Phillips head recommended)
• Hammer (for wall anchors)

Installation Steps:

1. Determine Placement: Choose a suitable corner on your wall for installation. Consider the desired height and ensure there are no electrical wires or plumbing behind the wall at the drilling points.
2. Mark Bracket Positions: Hold one metal bracket against the wall in the desired position. Use a level to ensure it is straight. Mark the screw hole positions with a pencil. Repeat for the second bracket, ensuring it is level with the first and correctly spaced to support the shelf board. Refer to the dimension image below for typical bracket placement relative to the shelf.
3. Drill Pilot Holes: Using a drill bit appropriate for your wall anchors, drill pilot holes at the marked positions.
4. Insert Wall Anchors: Gently tap the wall anchors into the pilot holes with a hammer until they are flush with the wall surface.
5. Attach Brackets: Align the metal brackets with the installed wall anchors. Insert the screws through the bracket holes and tighten them securely into the anchors using a screwdriver. Do not overtighten.
6. Place Shelf Board: Carefully place the L-shaped wood shelf board onto the installed brackets. Ensure it sits firmly and is level.
7. Secure Shelf Board (Optional): If your shelf board has pre-drilled holes or if you wish for extra security, you can screw the shelf board to the brackets from underneath using small wood screws (not always included, may require self-tapping screws).
8. Final Check: Gently test the stability of the installed shelf. Ensure all connections are secure before placing any items on it.

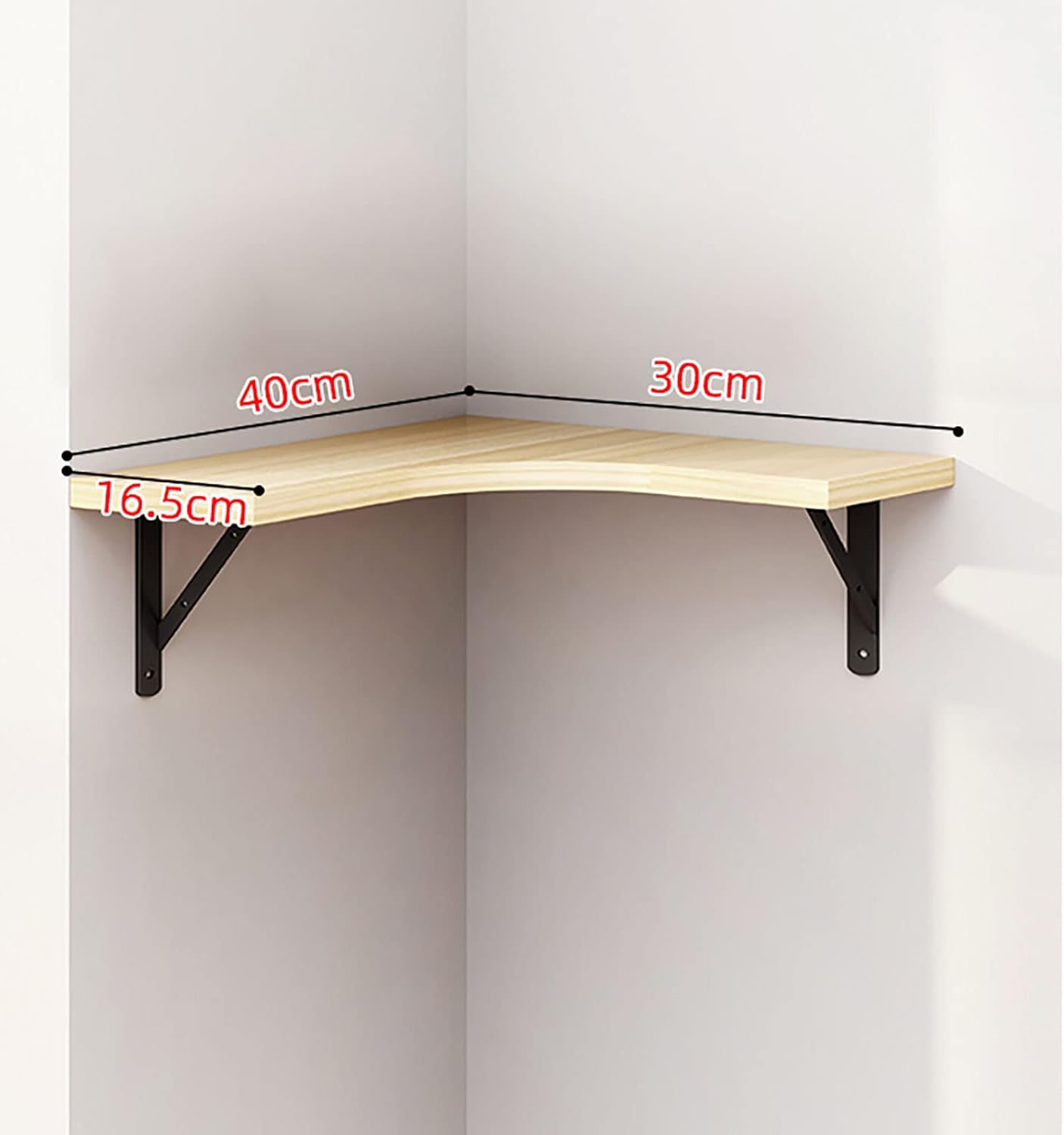

Image 1: Overview of the L-shaped corner shelf with approximate dimensions. The shelf extends 40cm along one wall and 30cm along the other, with a depth of 16.5cm from the corner to the front edge.

Image 2: Detailed dimensions of the L-shaped shelf board and a single metal mounting bracket. The shelf board has varying depths of 16cm and 15cm. The bracket measures 15cm in height, 12.5cm in depth, and 2cm in width, with a material thickness of 0.5cm.

Usage

This L-shaped corner shelf is designed for displaying lightweight decorative items, small books, plants, or organizing small essentials in various rooms such as bedrooms, living rooms, bathrooms, or kitchens. Ensure items are placed securely and do not exceed the shelf's weight capacity to maintain stability and prevent damage.

Maintenance

• Cleaning: Wipe the wood shelf with a soft, dry or slightly damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the wood finish.
• Dusting: Regularly dust the shelf to prevent buildup.
• Inspection: Periodically check all mounting screws and brackets to ensure they remain tight and secure. Retighten if necessary.
• Wood Care: As the shelf is unfinished pine, you may choose to apply a wood sealant, stain, or paint for added protection and to match your decor. Follow the instructions of your chosen wood treatment product.

Troubleshooting

• Shelf is not level: Ensure the pilot holes were drilled accurately and the brackets are installed perfectly level. Adjust bracket positions slightly if possible, or re-drill if necessary. Use a level during installation.
• Shelf feels wobbly: Check that all screws are fully tightened into the wall anchors and brackets. Ensure the wall anchors are appropriate for your wall type and are securely seated.
• Screws won't tighten: This may indicate that the wall anchors are stripped or not properly installed. Remove the anchor, repair the hole if needed, and use a new, appropriately sized anchor.
• Damage to wall during drilling: Use caution and the correct drill bit size. If damage occurs, repair the wall before proceeding with installation.

Warranty and Support

This product is manufactured to high-quality standards. For any questions regarding assembly, missing parts, or product performance, please contact your retailer or the manufacturer's customer support. Please have your purchase details and model number (RUhnJrC38) available when contacting support.
