Ohana Depot 42-inch Wicker Propane Gas Fire Pit Table User Manual

Important Safety Information

WARNING: For outdoor use only. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always keep the fire pit area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
• Do not store a spare LP-gas cylinder under or near this appliance.
• Never use charcoal or any other solid fuel in the fire pit.
• Maintain a minimum clearance of 36 inches (91 cm) from the top, sides, and back to any combustible construction.
• Ensure proper ventilation. Do not obstruct the flow of combustion and ventilation air.
• Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the area of the fire pit.
• Clothing or other flammable materials should not be hung from the appliance or placed on or near the appliance.
• Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the appliance.
• Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and circulating air passageways of the appliance be kept clean.

Package Contents

Verify that all components are present before beginning assembly. If any parts are missing or damaged, do not attempt to assemble the product. Contact customer service for assistance.

• 1 x Fire Pit Table Base (Wicker)
• 1 x Burner Pan Assembly
• 1 x Removable Lid
• 1 x Glass Wind Guard Kit
• 1 x Bag of Lava Rocks
• 1 x Protective Cover
• 1 x Pulse Ignition Device (integrated)
• 1 x Gas Hose and Regulator Assembly

Setup Instructions

1. Unpack Components: Carefully remove all items from the packaging. Place them on a soft, clean surface to prevent scratches.
2. Position the Fire Pit: Choose a level, non-combustible surface for the fire pit, ensuring adequate clearance from walls, ceilings, and other combustible materials as specified in the safety section.
3. Install Lava Rocks: Distribute the provided lava rocks evenly over the burner pan. Do not cover the igniter or burner holes.
4. Connect LP Gas Tank:
   • Ensure the gas tank valve is in the OFF position.
   • Connect the regulator hose to the LP gas tank valve. Hand-tighten firmly. Do not use tools.
   • Check for gas leaks using a soapy water solution on all connections. Bubbles indicate a leak. If a leak is detected, turn off the gas, tighten connections, and retest. Do not operate if a leak persists.
5. Assemble Wind Guard (Optional): If using the glass wind guard, carefully assemble it according to its separate instructions and place it around the burner area.

Operating Instructions

Ignition

1. Ensure the control knob on the fire pit is in the "OFF" position.
2. Slowly open the LP gas tank valve fully.
3. Push and turn the control knob to the "LOW" position.
4. Press and hold the igniter button repeatedly until the burner ignites. You should hear a clicking sound.
5. Once ignited, continue to hold the control knob in for 10-15 seconds to allow the thermocouple to heat up.
6. If the burner does not ignite within 15 seconds, turn the control knob to "OFF", wait 5 minutes for gas to dissipate, and repeat the ignition procedure.

Adjusting Flame

Once the burner is lit, you can adjust the flame height by rotating the control knob between "LOW" and "HIGH" settings.

Shutting Down

1. Turn the control knob on the fire pit to the "OFF" position.
2. Close the valve on the LP gas tank completely.
3. Allow the fire pit to cool down completely before covering or moving.

Maintenance

• Cleaning:
  • Ensure the fire pit is completely cool before cleaning.
  • Wipe exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
  • Clean the burner and lava rocks periodically to remove debris. Use a soft brush for the burner.
• Storage:

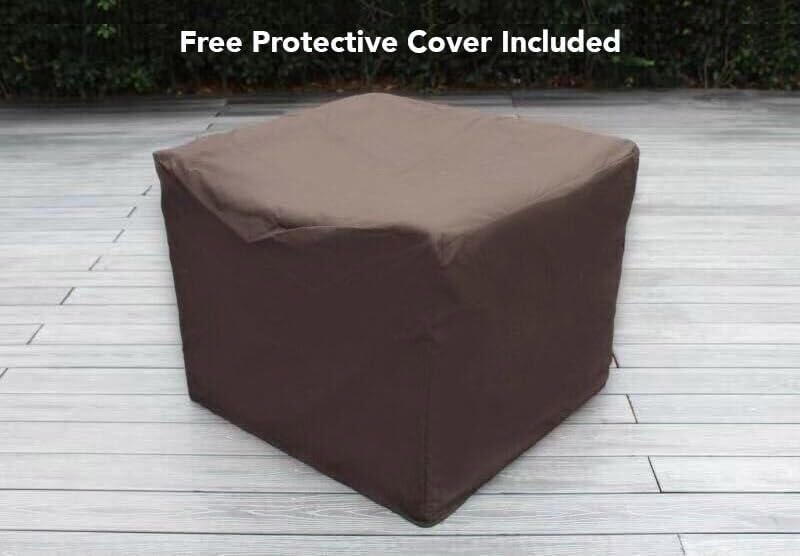

  • When not in use, especially during inclement weather or off-season, cover the fire pit with the provided protective cover.
  • Disconnect the LP gas tank and store it in a well-ventilated outdoor area, away from direct sunlight and heat sources.
• Inspection:
  • Regularly inspect the gas hose for signs of abrasion, cuts, or leaks. Replace immediately if damaged.
  • Check burner ports for obstructions (e.g., spider webs, debris). Clean as necessary.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please contact Ohana Depot customer service. Keep your purchase receipt for proof of purchase.
