1. Introduction
The SYLVANIA 9007 SilverStar zXe Gold Halogen Headlight Bulbs are designed to provide a crisp, white light for your vehicle's low and high beam headlights. Utilizing proprietary Xenon halogen gas technology and a cobalt blue coating, these bulbs aim to enhance visibility and the aesthetic of your vehicle's lighting without compromising safety. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new headlight bulbs.
2. Safety Information
- Electrical Safety: Always disconnect your vehicle's battery before performing any electrical work, including headlight bulb replacement, to prevent electrical shock or short circuits.
- Handling Precautions: When handling the bulbs, never touch the glass portion directly with bare hands. Oils from your skin can create hot spots on the bulb surface, leading to premature failure. Always use clean gloves or a lint-free cloth during installation.
- Eye Protection: Wear appropriate eye protection when working on your vehicle to guard against debris or accidental contact with chemicals.
- Heat Warning: Halogen bulbs operate at high temperatures. Allow sufficient time for old bulbs to cool down before removal. Do not touch hot bulbs.
- DOT/SAE Compliance: These SYLVANIA headlight bulbs are designed to be compliant with DOT regulations and SAE standards, ensuring they meet safety requirements and prevent excessive glare for oncoming traffic.
3. Package Contents
Your SYLVANIA 9007 SilverStar zXe Gold Halogen Headlight Bulbs package should contain the following:
- Two (2) SYLVANIA 9007 SilverStar zXe Gold Halogen Headlight Bulbs

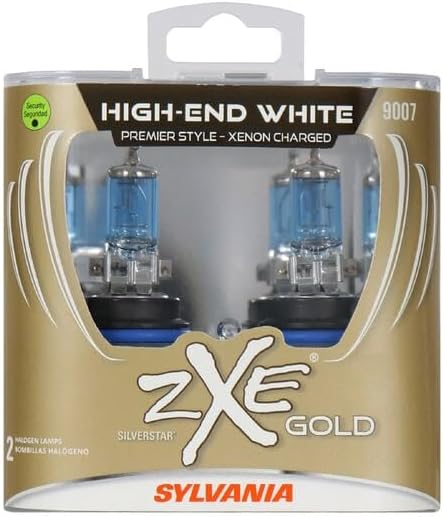

An image showing the retail packaging for the SYLVANIA 9007 SilverStar zXe Gold Halogen Headlight Bulbs. The package is gold and white, displaying two blue-tinted halogen bulbs. The text 'HIGH-END WHITE', 'PREMIER STYLE - XENON CHARGED', '9007', 'zXe GOLD', and 'SYLVANIA' are visible on the packaging.
4. Installation Instructions
The SYLVANIA 9007 SilverStar zXe Gold bulbs are designed as a direct replacement for the factory bulbs in your vehicle, requiring no modification. Always refer to your vehicle's owner's manual for specific headlight bulb replacement procedures, as steps may vary by vehicle make and model.
General Installation Steps:
- Prepare Your Vehicle: Park your vehicle on a level surface, turn off the engine, and engage the parking brake. Allow the existing bulbs to cool if they have been recently in use.
- Access the Headlight Assembly: Depending on your vehicle, you may need to open the hood and locate the back of the headlight assembly. Some vehicles may require removal of other components (e.g., air intake, battery, or fender liner) to gain access.
- Disconnect Power: Carefully disconnect the electrical connector from the back of the old bulb.
- Remove Old Bulb: Unclip or twist the retaining mechanism that holds the old bulb in place. Carefully pull the old bulb straight out from the housing.
- Install New Bulb: Wearing clean gloves, carefully insert the new SYLVANIA 9007 bulb into the headlight housing. Ensure it is seated correctly and securely. Do not force the bulb.
- Secure and Reconnect: Re-engage the retaining clip or twist the bulb to lock it into place. Reconnect the electrical connector firmly.
- Repeat for Second Bulb: It is highly recommended to replace headlight bulbs in pairs to ensure equal brightness and color output, as bulbs dim over time. Repeat the process for the other headlight.
- Test Functionality: Before reassembling any removed components, turn on your vehicle's headlights to ensure both new bulbs are functioning correctly.
- Reassemble: Reinstall any components that were removed to access the headlight assembly.
5. Operating Instructions
Once properly installed, the SYLVANIA 9007 SilverStar zXe Gold Halogen Headlight Bulbs will operate automatically with your vehicle's existing headlight system. Simply turn on your vehicle's headlights as you normally would, and the new bulbs will illuminate, providing enhanced visibility and a distinct white light.
6. Maintenance
Halogen headlight bulbs are generally maintenance-free once installed. However, consider the following for optimal performance and longevity:
- Replace in Pairs: Headlights naturally dim over time. To maintain consistent brightness and light color, always replace both headlight bulbs simultaneously, even if only one has failed.
- Avoid Touching Glass: As mentioned in the safety section, avoid touching the glass portion of the bulb with bare hands during installation or any future handling. If the glass is accidentally touched, clean it with rubbing alcohol and a lint-free cloth before installation.
- Keep Headlight Lenses Clean: Regularly clean your vehicle's headlight lenses to ensure maximum light output and clarity.
7. Troubleshooting
If you encounter issues after installing your new SYLVANIA 9007 bulbs, consider the following common troubleshooting steps:
- Bulb Not Lighting Up:
- Check the electrical connector to ensure it is fully seated and secure.
- Verify that the bulb is correctly seated in the headlight housing and the retaining clip/mechanism is engaged.
- Inspect the vehicle's fuse box for a blown headlight fuse. Replace if necessary.
- Ensure the vehicle's battery is properly connected and charged.
- Light is Dim or Flickering:
- Confirm that the electrical connector is making good contact.
- Ensure the bulb's glass was not touched during installation, as oil residue can cause hot spots and affect performance.
- If only one bulb is dim, consider replacing both bulbs as a pair to ensure consistent brightness.
- Bulb Burns Out Quickly:
- This can often be caused by touching the glass with bare hands during installation.
- Check for excessive voltage in the vehicle's electrical system (consult a professional mechanic).
If problems persist, it is recommended to consult a qualified automotive technician.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | SYLVANIA |
| Model Number | 9007SZG.PB2 |
| Light Source Type | Halogen |
| Item Package Quantity | 1 (contains 2 bulbs) |
| Auto Part Position | Right (universal fit for 9007 applications) |
| Manufacturer | SYLVANIA |
| Item Weight | 6.7 ounces |
| Product Dimensions | 4.88 x 4.8 x 1.97 inches |
| OE Part Number | 9007 |
| Date First Available | July 28, 2023 |
9. Warranty and Support
Warranty Information:
These SYLVANIA 9007 SilverStar zXe Gold Halogen Headlight Bulbs come with a 12 Month Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Customer Support:
For technical assistance, warranty claims, or further inquiries, please visit the official SYLVANIA automotive lighting website or contact their customer service department. Contact information can typically be found on the product packaging or the manufacturer's website.
You can also visit the SYLVANIA Store on Amazon for more product information and support resources.
