1. Introduction
Thank you for choosing the Havin Gold Kitchen Faucet with Pull Down Magnetic Sprayer, Model HV601. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new kitchen faucet. Please read this manual thoroughly before installation and keep it for future reference.
2. Safety Information
- Always turn off the main water supply before beginning any installation or repair work.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Ensure all connections are secure to prevent leaks. Do not overtighten.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Keep small parts away from children.
3. Package Contents
Verify that all components are present before beginning installation.
- Faucet body with integrated pull-down sprayer
- 1.8m pull-out hose
- Weight ball for sprayer retraction
- 60cm in-let hoses (hot and cold)
- Mounting fittings and hardware
- Instruction Manual

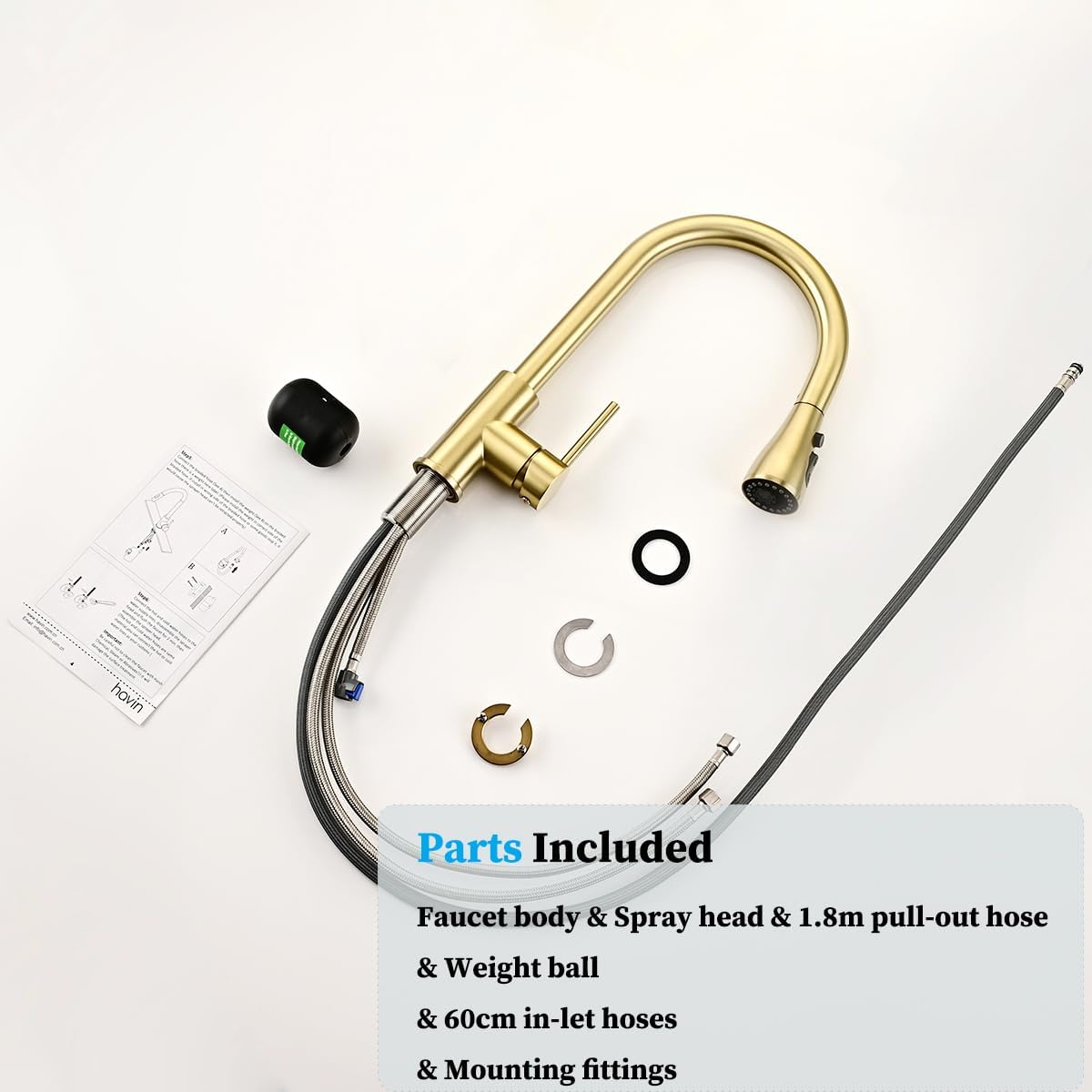

Image: All parts included in the Havin Gold Kitchen Faucet HV601 package.
Image: Detailed view of the package contents for the pull-out tap.
4. Specifications
| Feature | Description |
|---|---|
| Brand | havin |
| Model Name | HV601 |
| Material | SUS304 Stainless Steel |
| Finish Type | Brushed Gold (PVD plating) |
| Mounting Type | Deck Mount |
| Hole Count | 1 (can fit 3-hole sink with optional 10" deck plate) |
| Number of Handles | 1 (Lever Handle) |
| Spout Design | High Arc, 360° Swivel |
| Sprayer Functions | Stream, Spray, Jet |
| Cartridge Type | cUPC Ceramic Cartridge |
| Hose Length | 20" Max Flexible Pull-out Hose |
| Item Weight | 14.82 Ounces |
| Item Dimensions (D x W x H) | 17"D x 17"W x 9"H |
Image: Kitchen Faucet Dimensions for Model HV601.
5. Installation (Setup)
The Havin Gold Kitchen Faucet HV601 is designed for easy installation, typically taking 15-20 minutes. Follow these steps for a successful setup:
- Prepare the Sink: Ensure your sink has a single hole for faucet mounting. If you have a 3-hole sink, an optional 10-inch deck plate (not included) is required to cover the additional holes.
- Mount the Faucet: Insert the faucet body into the sink hole. Secure it from underneath the sink using the provided mounting hardware. Ensure the faucet is centered and stable.
- Connect Water Supply Hoses: Attach the hot and cold water inlet hoses to your existing water supply lines. The faucet includes 60cm inlet hoses. Ensure a tight, leak-free connection.
- Install Pull-Out Hose and Weight: Connect the pull-out sprayer hose to the designated connection point under the faucet. Attach the weight ball to the pull-out hose at the specified location to ensure smooth retraction of the sprayer head.
- Test for Leaks: Once all connections are made, slowly turn on the main water supply and check for any leaks. Operate the faucet to ensure proper water flow and sprayer function.
Image: Easy installation guide for the faucet.
Image: Single pull-down kitchen mixer for one-hole installation.
Image: Internal view of the faucet's hose connection point.
6. Operation
The Havin Gold Kitchen Faucet HV601 offers versatile operation for various kitchen tasks:
- Water Flow Control: The single lever handle controls both water temperature and flow volume. Move the handle left for hot water, right for cold water, and up/down for flow intensity.
- Pull-Down Sprayer: The sprayer head can be easily pulled down from the faucet spout for extended reach. The magnetic docking system ensures the sprayer retracts smoothly and securely back into place after use.
- 3-Function Sprayer: The sprayer head features three distinct spray modes, selectable via buttons on the sprayer:
- Stream Mode: Provides a steady, aerated flow for filling pots and general washing.
- Spray Mode: Delivers a wide, powerful spray for rinsing dishes and cleaning the sink.
- Jet Mode: Offers a concentrated, high-pressure stream for stubborn food residue.
- 360° Swivel Spout: The high-arc spout can swivel 360 degrees, providing complete sink access and flexibility for multi-tasking.
Image: Havin Gold Kitchen Faucet HV601 in operation, showing the pull-down sprayer.
Image: Sprayer head demonstrating Stream, Spray, and Jet modes.
Image: Magnetic docking system for the pull-down sprayer.
7. Maintenance
Proper care and maintenance will ensure the longevity and optimal performance of your Havin Gold Kitchen Faucet HV601.
- Cleaning the Finish: The faucet features a PVD brushed gold finish designed to be spot-free and easy to clean. Use a soft, damp cloth and mild soap to clean the surface. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Cleaning the Sprayer Nozzles: Mineral deposits can accumulate in the sprayer nozzles over time. Gently rub the rubber nozzles with your finger or a soft brush to dislodge any buildup. For stubborn deposits, a vinegar solution can be used.
- Ceramic Cartridge: The faucet is equipped with a durable cUPC ceramic cartridge, tested for over 600,000 open and close operations. This cartridge is designed for long-term, leak-free performance and typically requires no maintenance.
- Hose Inspection: Periodically check the pull-out hose and water supply lines for any signs of wear, kinks, or leaks. Replace any damaged hoses immediately.
Image: Faucet base showcasing solid metal construction and spot-free finish.
Image: cUPC approved ceramic cartridge for durability.
Image: High-quality ceramic disc component.
8. Troubleshooting
If you encounter any issues with your Havin Gold Kitchen Faucet HV601, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or mineral buildup in sprayer nozzles. Partially closed shut-off valves. | Unscrew the aerator and clean it. Clean sprayer nozzles. Ensure shut-off valves are fully open. |
| Leaks from Faucet Base | Loose mounting nut. Damaged O-rings. | Tighten the mounting nut under the sink. Inspect and replace O-rings if damaged. |
| Leaks from Sprayer Head | Loose connection. Damaged internal seals. | Ensure the sprayer hose connection is tight. Contact customer support for replacement parts if seals are damaged. |
| Sprayer Does Not Retract Fully | Weight ball improperly positioned or obstructed. Hose kinked. | Adjust the position of the weight ball on the pull-out hose. Clear any obstructions or kinks in the hose. |
| Water Temperature Issues | Incorrect handle position. Issues with water heater or supply lines. | Adjust the handle to the desired hot/cold position. Check your water heater and supply lines for proper function. |
9. Warranty
The Havin Gold Kitchen Faucet HV601 comes with a limited manufacturer's warranty. Please refer to the warranty card included in your package for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
10. Customer Support
If you have any questions, require assistance with installation, or need to make a warranty claim, please contact Havin Plumbing US through Amazon. We are committed to ensuring your satisfaction with our products.
For further assistance, please visit the Havin Store on Amazon.
