BESNOOW Q13 Wireless Earbuds User Manual

Introduction

Thank you for choosing the BESNOOW Q13 Wireless Earbuds. This manual provides detailed instructions on how to set up, operate, and maintain your new earbuds. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

Package Contents

Ensure all items are present in the package:

• BESNOOW Q13 Wireless Earbuds (Left and Right)
• Wireless Charging Case
• Charging Cable
• User Manual (this document)

Product Overview

Familiarize yourself with the components of your BESNOOW Q13 Wireless Earbuds.

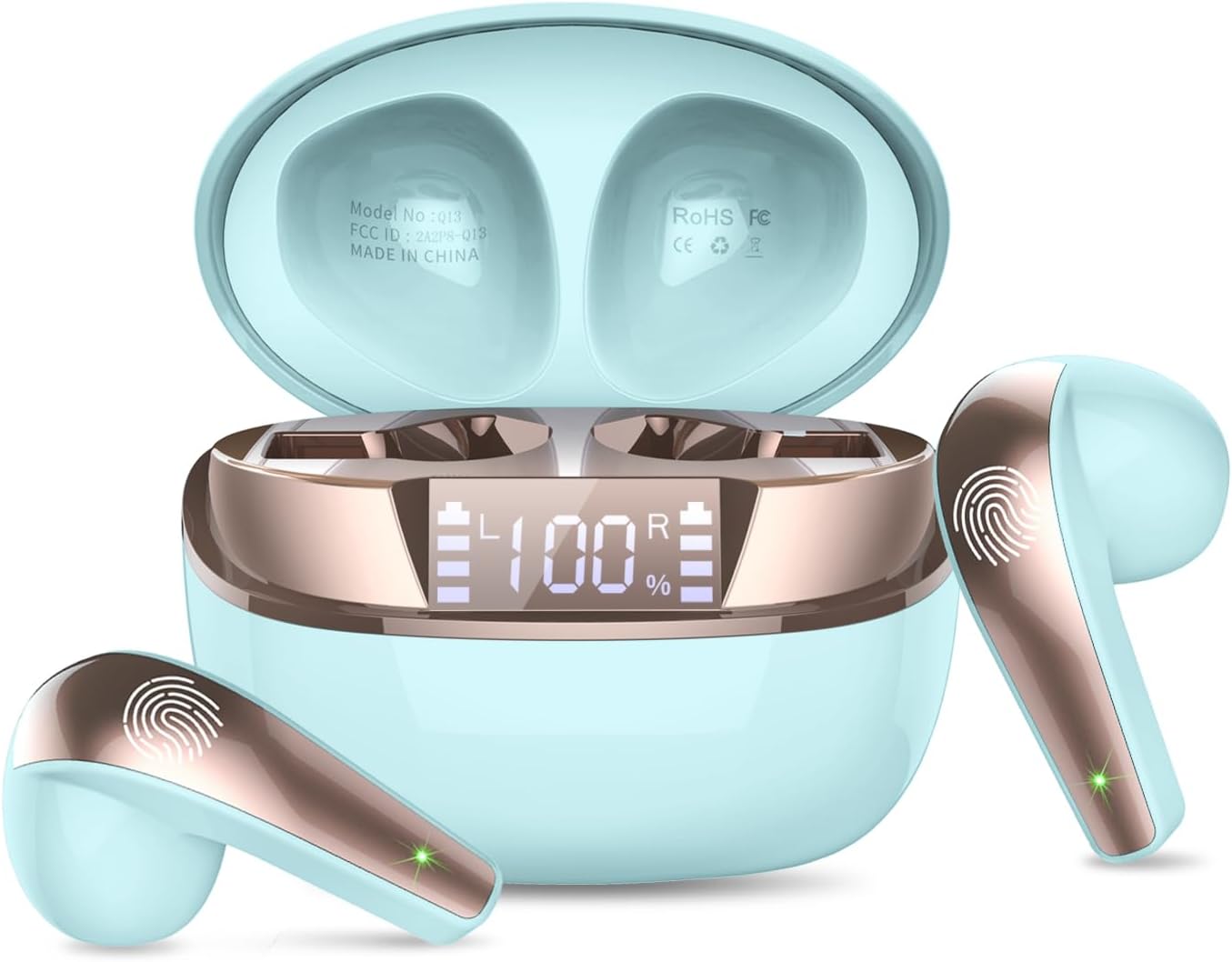

Image 1: The BESNOOW Q13 Wireless Earbuds in their open charging case, displaying the earbuds and the digital battery percentage indicator on the case. The earbuds are light blue with rose gold accents.

Image 2: The retail packaging for the BESNOOW Q13 True Wireless Earbuds, showing a line drawing of the earbuds and case, along with key features like Bluetooth 5.3, Hi-Fi, Sports, and Working.

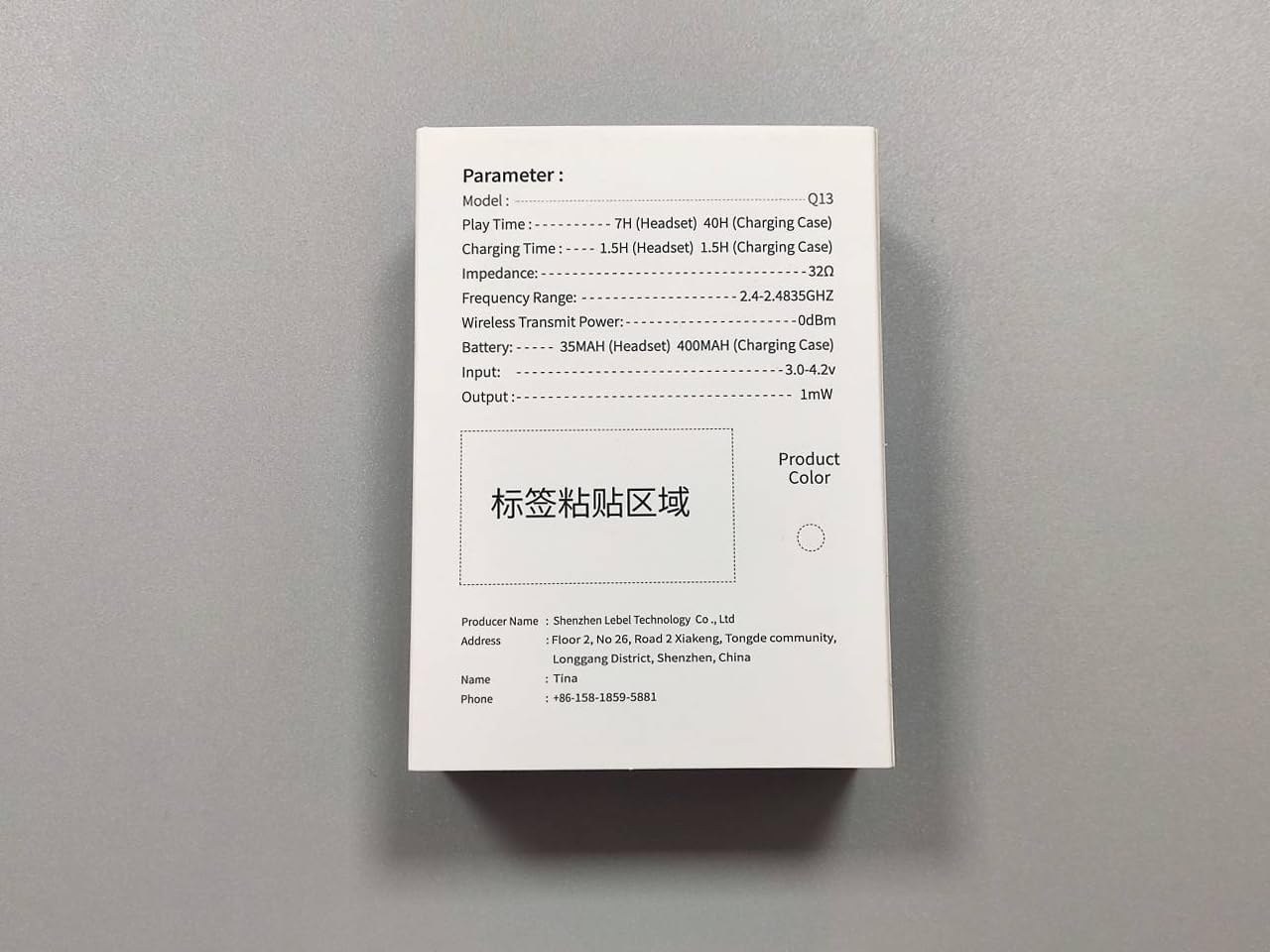

Image 3: A close-up of the product parameter label on the packaging, detailing specifications such as model (Q13), play time (7H headset, 40H charging case), charging time (1.5H headset, 1.5H charging case), impedance (32Ω), frequency range (2.4-2.4835GHz), wireless transmit power (0dBm), battery capacity (35mAh headset, 400mAh charging case), input (3.0-4.2V), and output (1mW).

Image 4: A hand holding one of the light blue BESNOOW Q13 earbuds, showcasing its design and in-ear form factor.

Image 5: The BESNOOW Q13 Wireless Earbuds charging case in a closed position, highlighting its compact and smooth design.

Setup

1. Charging the Earbuds and Case

Before first use, fully charge the earbuds and the charging case.

1. Place the earbuds into the charging case. Ensure they are correctly seated.
2. Connect the provided USB charging cable to the charging port on the case and to a USB power source (e.g., wall adapter, computer USB port).
3. The digital display on the charging case will show the battery percentage. Allow the case and earbuds to charge until the display shows 100%.
4. A full charge for the case and earbuds typically takes approximately 1.5 hours.

2. Pairing with a Bluetooth Device

The earbuds will automatically enter pairing mode when taken out of the charging case.

1. Open the charging case and remove both earbuds. They will automatically power on and attempt to pair with each other.
2. On your Bluetooth-enabled device (smartphone, tablet, computer), go to the Bluetooth settings.
3. Search for new devices. You should see "Q13" or "BESNOOW Q13" in the list of available devices.
4. Select "Q13" to connect. Once connected, you will hear a confirmation tone, and the earbuds' indicator lights may change.
5. If pairing fails, place the earbuds back into the case, close the lid, wait a few seconds, and then repeat the steps.

Operating Instructions

The BESNOOW Q13 earbuds feature touch controls for various functions.

Touch Controls

Power On/Off

• Power On: Open the charging case, and the earbuds will automatically power on. Alternatively, press and hold the touch area on both earbuds for 3 seconds.
• Power Off: Place the earbuds back into the charging case and close the lid. They will automatically power off. Alternatively, press and hold the touch area on both earbuds for 5 seconds.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your earbuds.

• Cleaning: Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth. Do not use harsh chemicals or abrasive materials.
• Charging Contacts: Ensure the charging contacts on both the earbuds and the case are clean and free of debris to maintain proper charging.
• Storage: When not in use, store the earbuds in their charging case to protect them from dust and damage.
• Water Resistance: The earbuds are waterproof, but the charging case is not. Avoid exposing the charging case to water or excessive moisture.
• Temperature: Avoid exposing the earbuds to extreme temperatures (hot or cold) as this can affect battery life and performance.

Troubleshooting

If you encounter issues, refer to the following common solutions:

Earbuds not pairing with each other:

Place both earbuds back into the charging case, close the lid, and then open it again. Remove the earbuds to allow them to re-establish connection.

Earbuds not connecting to device:

• Ensure Bluetooth is enabled on your device.
• Forget "Q13" from your device's Bluetooth list and attempt to pair again.
• Ensure the earbuds are charged.
• Try restarting your Bluetooth device.

No sound or low volume:

• Adjust the volume on both your device and the earbuds.
• Ensure the earbuds are properly seated in your ears.
• Check if the earbuds are connected to the correct device.

Charging case not charging:

• Ensure the charging cable is securely connected to both the case and the power source.
• Try a different charging cable or power adapter.
• Check for any debris in the charging port.

Specifications

Warranty Information

The BESNOOW Q13 Wireless Earbuds come with a standard manufacturer's warranty. Please refer to the product packaging or contact customer support for specific warranty terms and conditions. Keep your purchase receipt as proof of purchase.

Customer Support

For further assistance, technical support, or warranty claims, please contact BESNOOW customer service through the retailer where you purchased the product or visit the official BESNOOW website.

Online Support: Visit the BESNOOW Store on Amazon
