Product Overview
This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Garden Gate. Please read thoroughly before installation and use.

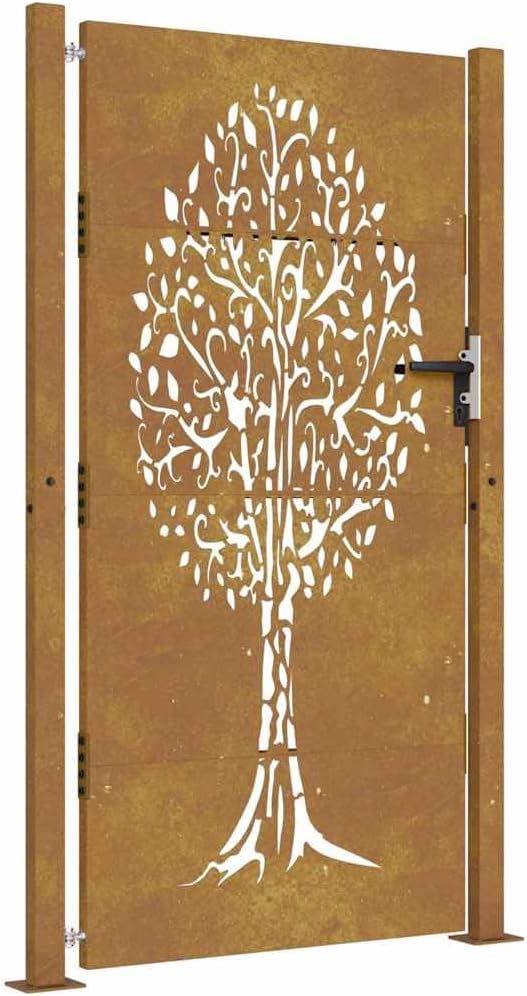

Image: The vidaXL Garden Gate, showcasing its unique Corten steel construction and intricate tree design. This is the main product view.
Key Features
- Durable Corten Steel: Constructed from weathering steel that develops a protective rusty layer, eliminating the need for painting and reducing maintenance.
- Laser-Cut Tree Design: Features an elegant laser-cut tree pattern, adding aesthetic appeal to your garden or patio.
- Lockable System: Equipped with a secure locking mechanism for enhanced property security.
- Stable Installation: Designed with four mounting holes in the base of the gate posts for secure ground fixation.
- Dimensions: Total size approximately 41.3" x 70.9" (W x H), with a gate panel size of 33.5" x 68.9" (W x H).
Setup and Assembly
The vidaXL Garden Gate requires assembly. Please ensure all components are present before beginning. Refer to the included hardware pack for fasteners.
Required Tools (Not Included)
- Wrench set
- Drill (for ground mounting)
- Level
- Measuring tape
Assembly Steps
- Unpack Components: Carefully remove all parts from the packaging. Verify against the packing list to ensure all pieces are accounted for.
- Attach Hinges to Gate Panel: Secure the hinges to the gate panel using the provided fasteners. Ensure they are aligned correctly for smooth operation.

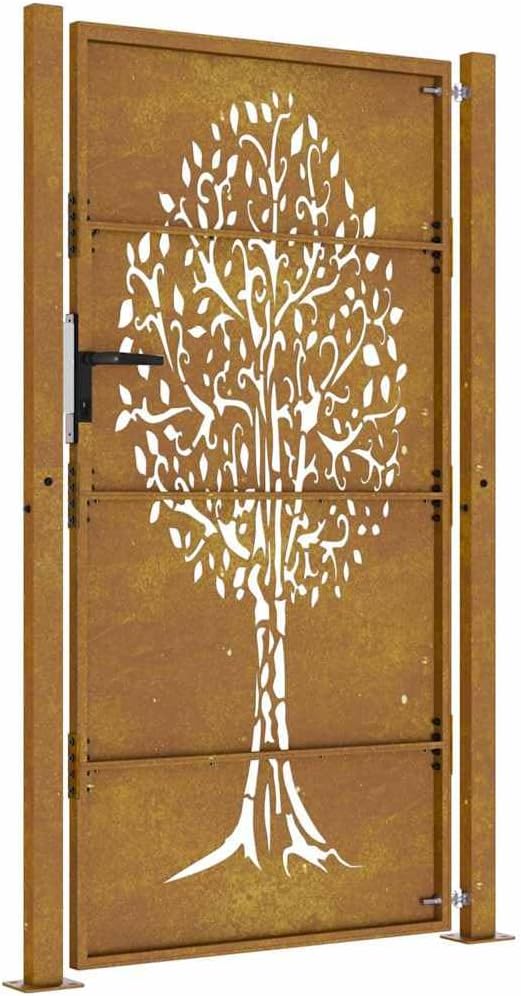

Image: A detailed view of the gate panel, showing the pre-drilled holes for hinge attachment and the integrated lock mechanism.
- Install Gate Posts: Position the gate posts in the desired location. Use a level to ensure they are perfectly vertical. Mark and drill holes for ground fixation.
Image: A side profile of one of the Corten steel gate posts, highlighting its sturdy construction and base plate for ground mounting.
- Mount Gate Panel to Posts: Attach the gate panel to the installed posts using the hinges. Ensure the gate swings freely without obstruction.
Image: An illustrative diagram demonstrating the intended swing direction of the gate, indicating proper hinge alignment for smooth operation.
- Secure to Ground: Use appropriate anchors (not included) to firmly secure the gate posts to the ground through the pre-drilled holes in the base.
- Test Operation: Open and close the gate several times to ensure smooth movement and proper latching of the lock system.

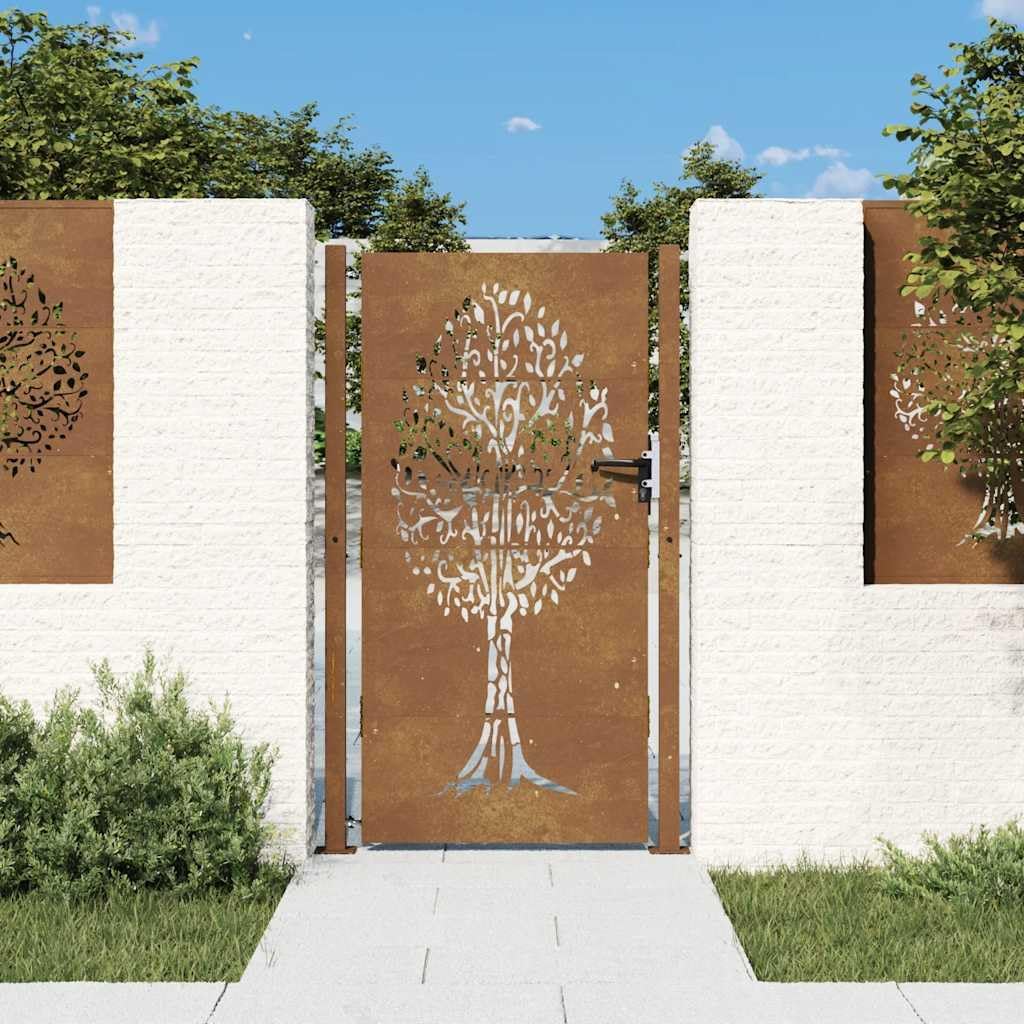

Image: The vidaXL Garden Gate fully installed, complementing a garden pathway and white wall fencing.
Operating Instructions
The vidaXL Garden Gate is designed for simple and secure operation.
Opening and Closing the Gate
- To open, disengage the latch mechanism by lifting the handle. Gently push or pull the gate in the desired direction.
- To close, guide the gate back into its frame until the latch mechanism engages automatically.
Locking the Gate
- The gate is equipped with a lockable system. Insert the key into the lock cylinder and turn to secure the gate.
- Ensure the gate is fully closed and the latch is engaged before locking.
Maintenance
The Corten steel material of your vidaXL Garden Gate is designed for low maintenance. However, periodic checks are recommended to ensure longevity and proper function.
Corten Steel Characteristics
Corten steel naturally forms a stable, rust-like appearance when exposed to weather. This protective layer eliminates the need for painting and prevents further corrosion. The color will deepen over time.
General Care
- Cleaning: Periodically wipe down the gate with a damp cloth to remove dirt or debris. Avoid harsh chemicals or abrasive cleaners.
- Hinges and Latch: Lubricate hinges and the latch mechanism annually with a silicone-based spray or light oil to ensure smooth operation and prevent squeaking.
- Fasteners: Check all bolts and screws periodically to ensure they remain tight. Re-tighten as necessary.
- Drainage: Ensure the area around the gate posts has proper drainage to prevent water accumulation at the base.
Troubleshooting
This section addresses common issues you might encounter with your garden gate.
| Problem | Possible Cause | Solution |
|---|---|---|
| Gate is difficult to open or close. |
|
|
| Latch mechanism is not engaging. |
|
|
| Gate appears wobbly or unstable. |
|
|
Specifications
Detailed technical specifications for the vidaXL Garden Gate.
| Attribute | Value |
|---|---|
| Model Number | 153218 |
| Material | Corten Steel |
| Color | Rusty (natural weathering) |
| Total Size (W x H) | 41.3" x 70.9" (105 cm x 180 cm) |
| Gate Panel Size (W x H) | 33.5" x 68.9" (85 cm x 175 cm) |
| Post Tube Size (W x D) | 2.4" x 1.6" (6 cm x 4 cm) |
| Post Height | 70.9" (180 cm) |
| Item Weight | 50.8 pounds (23.04 kg) |
| Assembly Required | Yes |
| Batteries Required | No |
Image: A technical drawing illustrating the precise dimensions of the gate panel, posts, and overall assembly.
Contact and Support
For further assistance or inquiries regarding your vidaXL Garden Gate, please contact vidaXL customer support.
