ElecSmart JR02 Wireless Earbuds User Manual
Model: JR02 | Brand: ElecSmart
Introduction
Thank you for choosing the ElecSmart JR02 Wireless Earbuds. These earbuds are designed to provide a high-quality audio experience with features tailored for sports, gaming, and everyday use. With advanced Bluetooth technology, low latency, and a comfortable over-ear design, the JR02 earbuds offer reliable performance and extended playback time. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure you get the most out of your device.
What's in the Box
- ElecSmart JR02 Wireless Earbuds
- Wireless Charging Case
- User Manual (this document)
- USB Charging Cable
- Ear Caps (3 pairs)
Image: Contents of the ElecSmart JR02 package, showing the earbuds and their charging case.
Setup
1. Initial Charging
Before first use, fully charge the earbuds and the charging case. Connect the charging case to a USB power source using the provided USB cable. The LED indicator on the charging case will display the battery level (0-100%).
Image: ElecSmart JR02 earbuds inside their charging case, showing the digital battery display.
2. Pairing with Your Device
- Ensure the earbuds are charged and inside the charging case.
- Open the charging case. The earbuds will automatically enter pairing mode, and their indicator lights will flash.
- On your device (smartphone, tablet, computer), enable Bluetooth.
- Search for available Bluetooth devices and select "JR02" from the list.
- Once connected, the earbud indicator lights will turn off or show a steady light, indicating successful pairing.
3. Wearing the Earbuds
The JR02 earbuds feature an over-ear design for a secure and comfortable fit, especially during physical activity. Gently place the earbud over your ear, ensuring the earhook rests comfortably behind your ear and the speaker part is positioned correctly in your ear canal. Adjust for optimal comfort and sound quality.

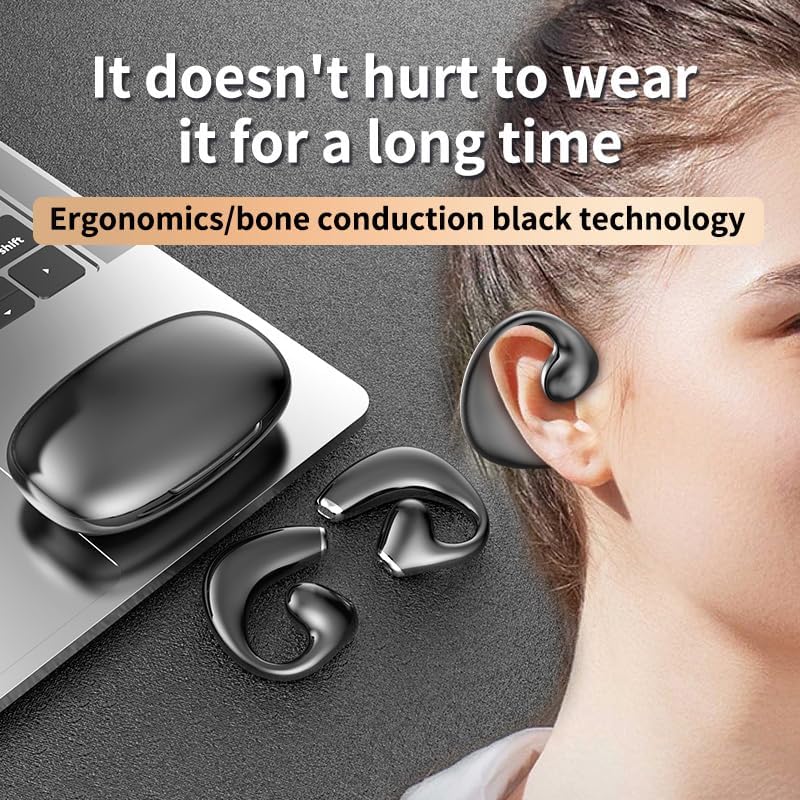

Image: A person demonstrating the comfortable and secure fit of the ElecSmart JR02 earbuds with their over-ear design.
Operating Instructions
Touch Controls
The JR02 earbuds utilize touch controls for various functions. The touch sensitive area is typically located on the outer surface of each earbud.
| Action | Function |
|---|---|
| Single Tap (Left/Right) | Play/Pause Music, Answer/End Call |
| Double Tap (Right) | Next Track |
| Double Tap (Left) | Previous Track |
| Triple Tap (Left/Right) | Activate Voice Assistant |
| Long Press (Left/Right, 2 seconds) | Reject Call |
| Long Press (Right, 3 seconds) | Increase Volume |
| Long Press (Left, 3 seconds) | Decrease Volume |
| Four Taps (Left/Right) | Toggle Gaming Mode (Low Latency) |
Power On/Off
- Power On: Open the charging case, and the earbuds will automatically power on and attempt to connect to the last paired device.
- Power Off: Place the earbuds back into the charging case and close the lid. They will automatically disconnect and power off.
Battery Status
The charging case features a digital LED display that shows the battery percentage of the case and the charging status of the individual earbuds. This allows for real-time monitoring of power levels.
Image: The ElecSmart JR02 earbuds and charging case highlighting the digital battery display and bone conduction design.
Maintenance
- Cleaning: Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents.
- Water Resistance: The earbuds are IPX4 waterproof, meaning they are resistant to splashing water from any direction. Do not submerge them in water or expose them to heavy rain. Dry them thoroughly if they get wet.
- Storage: When not in use, store the earbuds in their charging case to protect them and keep them charged. Store in a cool, dry place away from extreme temperatures.
- Battery Care: To prolong battery life, avoid fully discharging the earbuds and charging case frequently. Charge them regularly, even if not in constant use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Earbuds not pairing/connecting | Low battery; Earbuds not in pairing mode; Device Bluetooth off; Interference. | Charge earbuds and case. Ensure case lid is open for pairing. Turn device Bluetooth off and on. Move closer to device. Forget "JR02" in device Bluetooth settings and re-pair. |
| Only one earbud working | One earbud not charged; Earbuds not properly synced. | Ensure both earbuds are charged. Place both earbuds back in the case, close the lid, wait a few seconds, then open again to re-sync. |
| No sound or low volume | Device volume too low; Earbuds not properly seated; Protective film on charging contacts. | Increase volume on your device and earbuds. Adjust earbud position. Ensure any protective film on earbud charging contacts has been removed. |
| Charging case not charging | Faulty cable/adapter; Loose connection. | Try a different USB cable and power adapter. Ensure the cable is securely connected to the case and power source. |
| Poor sound quality / Static | Interference; Distance from device; Low battery. | Move closer to your device. Avoid environments with strong Wi-Fi or other Bluetooth signals. Ensure earbuds are charged. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | JR02 |
| Connectivity Technology | Wireless (Bluetooth) |
| Bluetooth Version | 5.3 |
| Bluetooth Range | 10 Meters |
| Audio Latency | 45 Milliseconds |
| Battery Life (Earbuds) | Up to 5 Hours (single charge) |
| Total Playtime (with case) | Up to 20 Hours |
| Charging Time | Approx. 1 Hour |
| Water Resistance Level | IPX4 (Splashproof) |
| Control Method | Touch |
| Earpiece Shape | In Ear (Over-Ear design for secure fit) |
| Frequency Range | 20 Hz - 20,000 Hz |
| Impedance | 40 Ohm |
| Material | Polycarbonate (PC) |
| Item Weight | 3.2 ounces |
Warranty and Support
ElecSmart products are designed for reliability and performance. For specific warranty information and support, please refer to the warranty card included with your product or visit the official ElecSmart website. If you encounter any issues not covered in this manual, please contact ElecSmart customer service for assistance.
Please retain your proof of purchase for warranty claims.
