Spatium Inflatable Kayak, 2-Person Drop Stitch Boat Set User Manual

1. Introduction

Thank you for choosing the Spatium Inflatable Kayak. This manual provides essential information for the safe and effective use, setup, maintenance, and troubleshooting of your new kayak. Please read this manual thoroughly before initial use and retain it for future reference.

2. Safety Information

Always prioritize safety when using your inflatable kayak. Failure to follow these guidelines may result in serious injury or damage to the product.

• Always wear a U.S. Coast Guard-approved personal flotation device (PFD).
• Do not exceed the maximum weight capacity of 550 LBS (250 kg) or the maximum number of occupants (2 persons).
• Never use the kayak in rough waters, strong currents, or during storms.
• Be aware of local boating regulations and hazards.
• Inform someone of your float plan (where you are going and when you expect to return).
• Avoid sharp objects that could puncture the kayak.
• Ensure all air chambers are properly inflated before use.

3. Components and Accessories

Your Spatium Inflatable Kayak package includes the following items:

Image: The Spatium Inflatable Kayak shown with all included accessories, including paddles, seats, pump, fin, and wheeled carry bag.

• Inflatable Kayak Hull (Blue+Yellow 410)
• Kayak Seat (x2)
• Kayak Double Head Paddle (x2)
• Fin (x1)
• Two-way Air Pump (x1)
• Backpack / Wheeled Bag (x1)
• Repair Kit (x1)
• Acrylic Board (x1)
• Waterproof Mobile Phone Case (x1)

Image: A closer look at the accessories provided with the Spatium Inflatable Kayak, including paddles, seats, pump, fin, repair kit, and carry bag.

4. Setup and Inflation

Follow these steps to properly set up and inflate your kayak:

1. Unpack: Remove the kayak and all accessories from the wheeled carry bag. Lay the kayak flat on a clean, smooth surface, free of sharp objects.
2. Inflate: Locate the air valves on the kayak. Use the included two-way air pump to inflate the kayak. It takes approximately 10 minutes to fully inflate. The recommended pressure is 10 PSI for all chambers. Ensure all three independent air chambers are inflated to the correct pressure for optimal rigidity and performance.

Image: A person using the included pump to inflate the Spatium Inflatable Kayak on a beach, demonstrating the ease of setup and portability.

3. Attach Fin: Securely attach the fin to the bottom of the kayak. The fin helps with tracking and stability in the water.
4. Install Seats: Position and attach the two adjustable kayak seats using the provided straps and clips. Adjust them for comfort and proper paddling posture.
5. Assemble Paddles: Connect the paddle sections to form the double-headed paddles. Ensure they are securely locked.

5. Operating Your Kayak

The Spatium Inflatable Kayak is designed for touring, fishing, drifting, and general exploration. Its streamlined, low-profile design ensures easy paddling and high performance.

Image: The Spatium Kayak being used for fishing, touring, drifting, and general exploration, highlighting its versatility.

• Entering the Kayak: Place the kayak in shallow water. Carefully step into the kayak, maintaining balance.
• Paddling: Use the double-headed paddles for propulsion. The kayak's design, including the EVA anti-slip pad and cushioned seats, provides comfort and stability for beginners and experienced users alike.
• Storage: Utilize the side storage deck mesh bag for small items and the bungee tie-downs for securing gear.
• Drainage: The independent drain valve at the rear allows for easy drainage of any water that enters the cockpit.

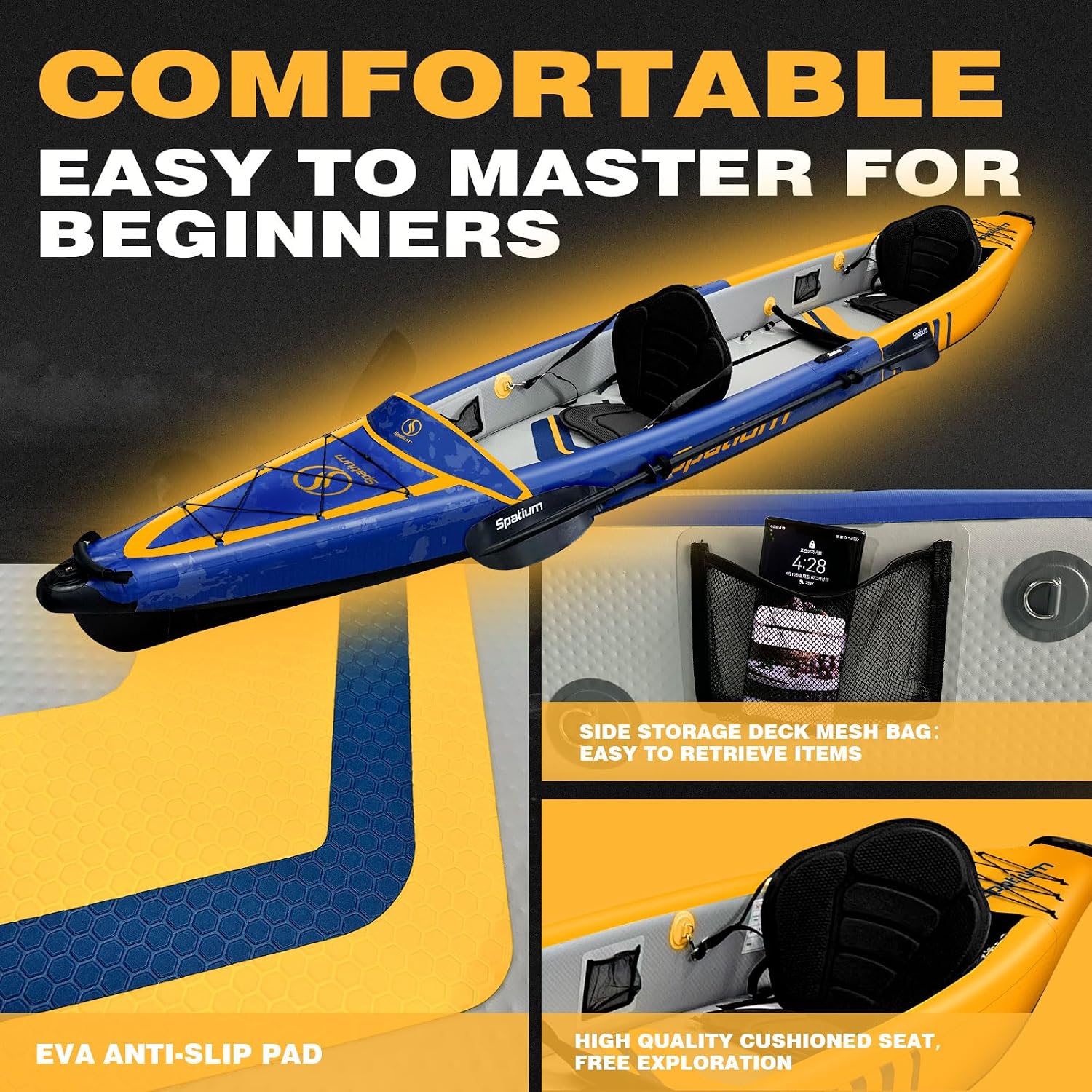

Image: A detailed view of the kayak's interior, showcasing the EVA anti-slip pad, high-quality cushioned seat, and side storage mesh bag for user comfort and convenience.

Image: An overhead view highlighting the kayak's high-performance features, including the deck shield to prevent splash, camera mount, independent air chambers, and a rear drain hole.

6. Maintenance and Storage

Proper maintenance ensures the longevity of your kayak.

• Cleaning: After each use, rinse the kayak thoroughly with fresh water to remove salt, sand, and dirt. Use mild soap if necessary.
• Drying: Ensure the kayak is completely dry before deflating and storing. This prevents mildew and material degradation.
• Deflation: Open all air valves to deflate the kayak. Roll or fold the kayak neatly to remove remaining air.
• Storage: Store the deflated and dry kayak in its wheeled carry bag in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid placing heavy objects on top of the stored kayak.
• Repair Kit: Use the included repair kit for minor punctures. For significant damage, consult a professional. Note: The repair kit typically includes patches; adhesive may need to be sourced separately if not included due to shipping restrictions. Use PVC-compatible adhesive.

7. Troubleshooting

Here are some common issues and their solutions:

• Kayak losing air: Check all air valves to ensure they are tightly closed. Inspect the kayak surface for punctures or leaks. Use soapy water to identify small leaks (bubbles will appear). Patch any identified leaks using the repair kit.
• Difficulty paddling straight: Ensure the fin is properly installed and securely attached. Check that all air chambers are inflated to the recommended pressure, as under-inflation can affect tracking.
• Seats uncomfortable: Adjust the seat straps to find a more comfortable position. Consider adding additional cushioning if needed.
• Kayak feels unstable: Verify that the kayak is inflated to the correct pressure. Ensure weight is evenly distributed within the kayak.

8. Specifications

Key specifications for the Spatium Inflatable Kayak (Model: Blue+Yellow 410):

Image: Visual representation of the 13'5" Spatium Kayak's dimensions (length, width, height, weight, and load capacity).

9. Warranty and Support

For warranty information and customer support, please refer to the product's listing page or contact the seller directly. Keep your purchase receipt as proof of purchase.

Manufacturer: YuFeng Outdoor Products Co&Ltd
