Osann Swift360 S i-Size

Osann Swift360 S i-Size 360° Swivel Car Seat Instruction Manual

Model: Swift360 S i-Size

1. Product Overview

The Osann Swift360 S i-Size is a versatile 360° swivel car seat designed to provide a safe and comfortable travel solution for children from 76 cm to 150 cm in height. This car seat complies with the latest i-Size R129 safety standard, ensuring high levels of protection.

Key Features:

  • i-Size R129 Compliance: Meets the latest European safety standards for enhanced child protection.
  • 360° Swivel Function: Allows easy placement and removal of the child, and effortless switching between rear-facing and forward-facing positions.
  • Magnetic Buckle Holders: Integrated magnets keep the harness straps out of the way when seating the child, simplifying the buckling process.
  • 12-Position Adjustable Headrest: Accommodates your child's growth up to 150 cm, with the harness system automatically adjusting.
  • 5 Recline Positions: Offers multiple comfortable seating and resting positions for your child.
  • Rear-facing (Reboarder) and Forward-facing Use: Suitable for rear-facing from 76 cm to 105 cm, and forward-facing from 76 cm to 150 cm.
Osann Swift360 S i-Size car seat in grey, shown from the front.
Figure 1: Front view of the Osann Swift360 S i-Size car seat in grey.

2. Safety Guidelines

Always read and follow all instructions in this manual carefully before installing and using the car seat. Failure to do so may result in serious injury or death to your child.

  • Ensure the car seat is correctly installed according to the vehicle's and car seat's instructions.
  • Always secure your child with the 5-point harness (up to 105 cm) or the vehicle's 3-point seatbelt (from 100 cm to 150 cm).
  • Never leave your child unattended in the car seat.
  • Do not use the car seat if it has been involved in an accident, even if there is no visible damage.
  • Regularly check that the harness straps are correctly adjusted and not twisted.
  • The car seat is designed for children from 76 cm to 150 cm. Do not use for children outside this height range.
Osann Swift360 S i-Size car seat with safety symbols and adjustable features.
Figure 2: Osann Swift360 S i-Size car seat highlighting safety features.

3. Setup and Installation

3.1 ISOFIX and Top-Tether Installation

The Osann Swift360 S i-Size car seat is installed using the ISOFIX system and a Top-Tether strap for maximum stability and safety. Ensure your vehicle is equipped with ISOFIX anchor points and a Top-Tether attachment point.

  1. Locate the ISOFIX anchor points in your vehicle's back seat.
  2. Extend the ISOFIX connectors from the car seat base by pressing the release buttons.
  3. Align the ISOFIX connectors with the vehicle's anchor points and push firmly until they click into place. Green indicators should appear, confirming correct attachment.
  4. Push the car seat firmly against the vehicle's seat back to remove any slack.
  5. Attach the Top-Tether strap hook to the designated Top-Tether anchor point in your vehicle (usually behind the seat or in the boot).
  6. Tighten the Top-Tether strap until it is taut, ensuring the car seat is securely anchored.
Illustration of ISOFIX and Top-Tether installation points on the car seat.
Figure 3: ISOFIX and Top-Tether attachment points.

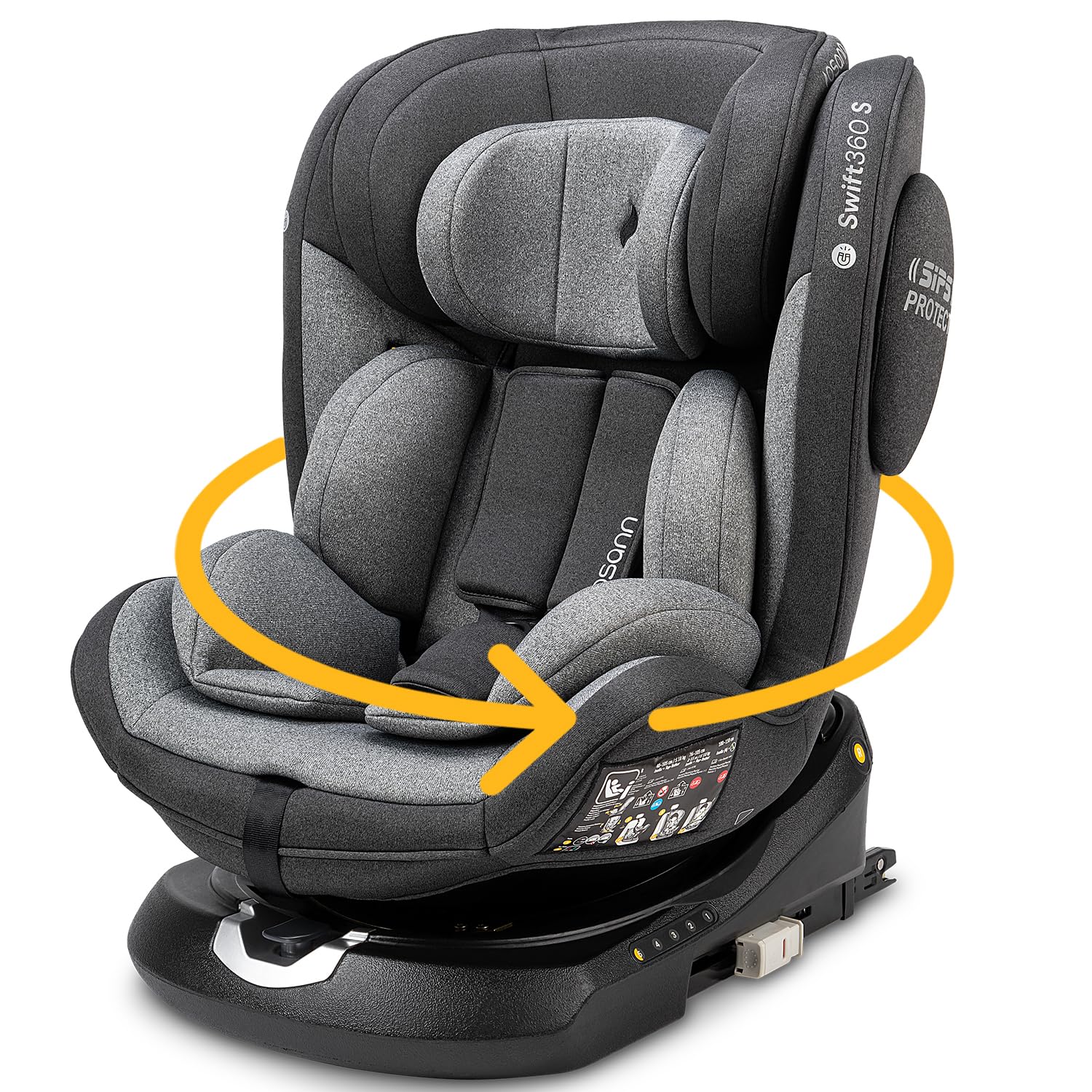

3.2 Swivel Function

The 360° swivel function allows you to rotate the car seat for easier child placement and to switch between rear-facing and forward-facing modes. To rotate the seat, locate the rotation lever (refer to the product's specific markings) and engage it while turning the seat.

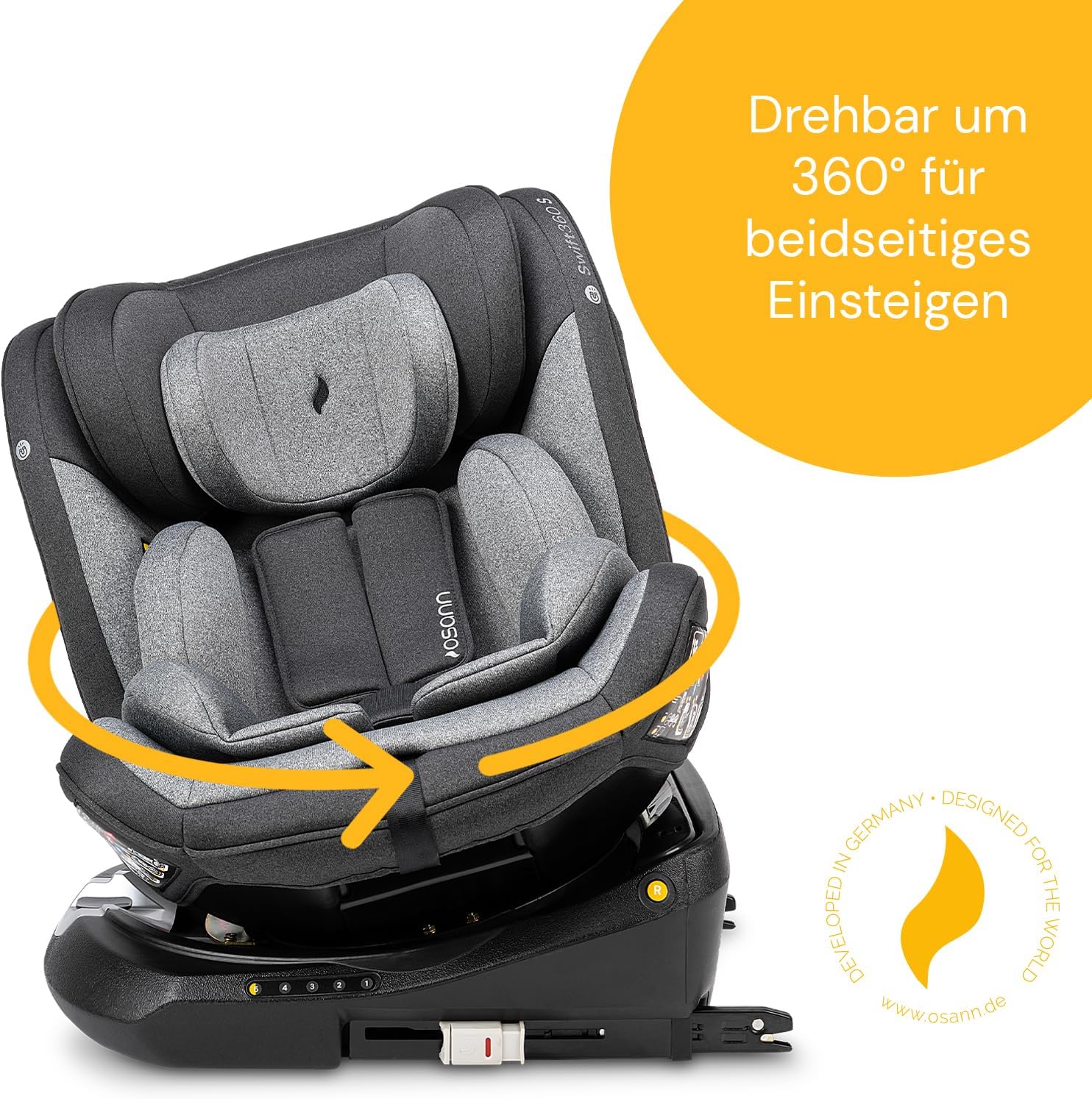

Image showing the 360-degree rotation feature of the car seat.
Figure 4: Demonstrating the 360° swivel function.

4. Operating Instructions

4.1 Securing Your Child

For children from 76 cm to 105 cm, use the integrated 5-point harness. For children from 100 cm to 150 cm, the integrated harness should be removed, and the child secured with the vehicle's 3-point seatbelt.

Using the 5-Point Harness:

  1. Rotate the car seat towards the car door for easy access.
  2. Use the magnetic buckle holders to keep the harness straps open and out of the way.
  3. Place your child in the seat.
  4. Bring the shoulder straps over your child's shoulders and connect the two buckle tongues into the central buckle until they click.
  5. Pull the adjustment strap to tighten the harness until it is snug against your child's body, ensuring no more than two fingers can fit between the strap and your child's collarbone.
Close-up of the magnetic buckle holders on the car seat harness.
Figure 5: Magnetic buckle holders for convenience.
Child in the Osann Swift360 S i-Size car seat, secured with the harness.
Figure 6: Child secured in the 5-point harness.

Using the Vehicle's 3-Point Seatbelt (for children 100-150 cm):

  1. Remove the integrated 5-point harness (refer to the full manual for detailed instructions).
  2. Place your child in the car seat.
  3. Guide the vehicle's 3-point seatbelt through the designated red belt guides on the car seat.
  4. Ensure the lap belt is low across your child's hips and the shoulder belt rests across the center of their shoulder and chest, not on their neck.
  5. Buckle the vehicle's seatbelt and pull to remove any slack.
Child seated forward-facing in the Osann Swift360 S i-Size car seat, secured with the vehicle's seatbelt.
Figure 7: Child secured with vehicle's 3-point seatbelt.

4.2 Headrest Adjustment

The headrest can be adjusted to 12 different height positions to ensure optimal protection and comfort as your child grows. To adjust, locate the headrest adjustment lever (usually at the top of the headrest or back of the seat), squeeze it, and slide the headrest up or down to the desired position. The harness system will automatically adjust with the headrest.

Image demonstrating the adjustable headrest of the car seat.
Figure 8: Headrest adjustment mechanism.

4.3 Recline Positions

The car seat offers 5 recline positions for your child's comfort. To adjust the recline, locate the recline adjustment lever (typically at the front or side of the base), engage it, and tilt the seat to the desired angle. Ensure the seat is securely locked in the chosen position before travel.

Side view of the car seat showing multiple recline positions.
Figure 9: Car seat in various recline positions.

5. Maintenance and Care

5.1 Cleaning the Cover

The car seat cover is made of 100% polyester and can be removed for cleaning. Refer to the care label on the cover for specific washing instructions. Generally, machine wash on a gentle cycle with mild detergent and air dry. Do not tumble dry or iron.

5.2 Cleaning the Shell and Harness

Wipe the plastic shell and harness straps with a damp cloth and mild soap. Do not use abrasive cleaners or solvents. Ensure all parts are completely dry before reassembling or using the car seat.

6. Troubleshooting

If you encounter any issues with your Osann Swift360 S i-Size car seat, please refer to the following general advice:

  • Installation Issues: Double-check all ISOFIX and Top-Tether connections. Ensure green indicators are visible. Re-read the installation section of this manual and your vehicle's owner's manual.
  • Harness/Buckle Problems: Ensure harness straps are not twisted and the buckle is free of debris. If the buckle is stiff, clean it thoroughly.
  • Rotation Difficulty: Ensure the car seat is not under tension from the vehicle's seatbelt (if applicable) and the rotation lever is fully engaged.
  • General Concerns: For any persistent issues or safety concerns, cease use of the car seat and contact Osann customer support or your retailer.

7. Technical Specifications

FeatureSpecification
ModelSwift360 S i-Size
BrandOsann
Safety Standardi-Size R129
Recommended Child Height76 cm - 150 cm
Minimum Recommended Weight9 kg
Maximum Supported Weight36 kg
Rear-facing Use (Height)76 cm - 105 cm
Forward-facing Use (Height)76 cm - 150 cm
Harness Type5-point (up to 105 cm)
Installation TypeISOFIX with Top-Tether
Number of Headrest Positions12
Number of Recline Positions5
Main MaterialPlastic
Cover Composition100% Polyester
Product Dimensions (L x W x H)55 x 44 x 59.5 cm
Product Weight12 kg
ColorUniverse Grey i-Size
ManufacturerOsann GmbH

8. Warranty and Support

Osann GmbH stands behind the quality of its products. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Osann website. Keep your proof of purchase for any warranty claims.

For technical support, spare parts, or any questions regarding the use and maintenance of your Osann Swift360 S i-Size car seat, please contact Osann customer service. Contact details can typically be found on the manufacturer's website or in the packaging materials.

Manufacturer: Osann GmbH

Website: www.osann.de
