Introduction
Thank you for choosing the Yaheetech Metal Platform Bed Frame. This manual provides comprehensive instructions for assembly, operation, maintenance, and troubleshooting to ensure a safe and satisfying experience with your new bed frame. This Queen size bed frame in antique gold features a diamond pattern headboard and footboard, heavy-duty steel slat support, and ample under-bed storage, eliminating the need for a box spring.
Image: The Yaheetech Metal Platform Bed Frame in antique gold, assembled in a bedroom setting.
Important Safety Information
Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Weight Capacity: Do not exceed the maximum weight capacity of 800 pounds (363 kg).
- Sharp Edges: Be cautious of sharp edges on metal components during assembly and handling.
- Assembly: Always follow the assembly instructions carefully. Improper assembly can lead to instability or collapse.
- Secure Connections: Ensure all bolts and connections are securely tightened before use and periodically check for any loosening.
- Children: Keep children away from the assembly area. Small parts may pose a choking hazard.
Parts List
All necessary components and handy tools for assembly are included in the packaging. Please verify all parts are present and undamaged before beginning assembly. Refer to the included diagram for component identification.
Setup & Assembly
The Yaheetech Metal Platform Bed Frame is designed for quick and intuitive assembly, typically taking less than an hour with the provided tools and instructions.
Before You Begin:
- Clear an open space for assembly.
- Unpack all components and lay them out, identifying each part according to the diagram.
- Ensure all hardware (screws, bolts, washers) is accounted for.
Assembly Steps:
- Attach the side rails to the headboard and footboard using the provided hardware. Ensure all connections are firm.
- Install the central support beam and its legs, ensuring they are properly aligned and secured.
- Insert the metal slats into their designated slots on the side rails. For secure installation, aim the iron pipe at the notch, then press hard and fix.
- Fasten any L-shaped plates for extra stability as indicated in the diagram.
- Double-check all connections to ensure they are tight and the frame is stable.
Image: Visual guide illustrating the process of assembling the bed frame, including aiming the iron pipe at the notch and pressing to fix.
Features & Operation
This bed frame is designed for optimal support and convenience:
- Sturdy Foundation: Equipped with strong side and center rails, along with multiple support legs, providing excellent load-bearing capacity up to 800 lbs. The 12 inserted metal slats offer dependable support for your mattress.
- No Box Spring Needed: The robust slat system supports your mattress directly, eliminating the need for a box spring. Slats are spaced 5.3-5.5 inches apart.
- Ample Under-Bed Storage: With 13 inches of clearance from the ground to the item, the frame offers significant space for storing boxes, shoes, and other items, helping to maximize bedroom organization.
- Secure Mattress Placement: The side rails are designed to be higher than the inserted slats, and a higher foot end helps to keep your mattress securely in place, preventing unwanted movement.
- Protective Foot Pads: The bed frame includes bottom rubber caps on the legs to protect your floor from scratches and damage.
Image: A collage highlighting key features: vintage diamond pattern headboard, premium metal tubes for durability, 13 inches of under-bed storage, and protective rubber caps on the feet.
Image: Detail showing the built-in slats and side rails designed to prevent the mattress from sliding.

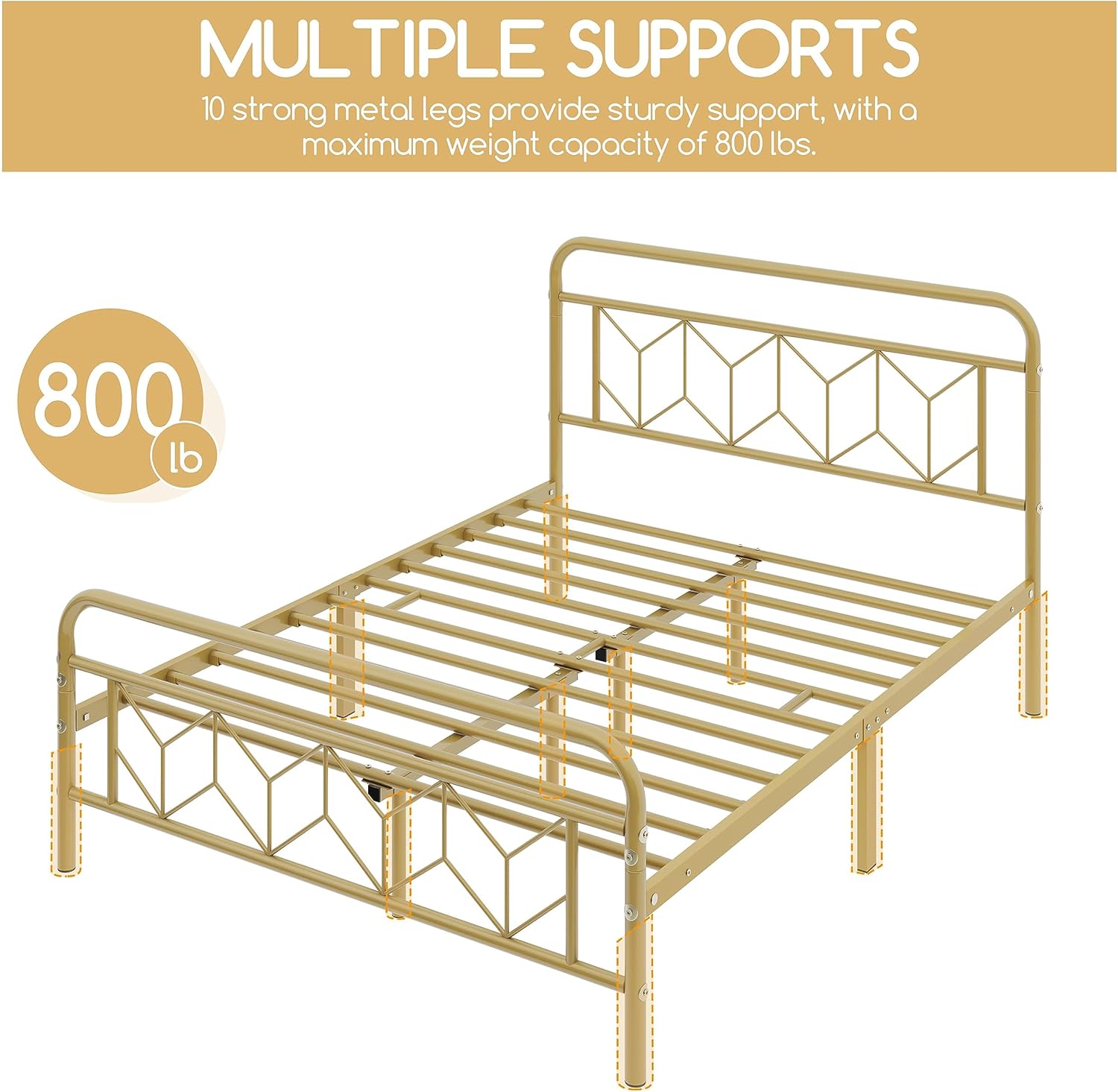

Image: An illustration demonstrating the multiple strong metal legs that provide sturdy support, indicating a maximum weight capacity of 800 lbs.
Maintenance
To maintain the appearance and longevity of your Yaheetech Metal Platform Bed Frame, simply wipe it clean with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish.
Troubleshooting
- Instability/Wobbling: Ensure all bolts and screws are fully tightened. Periodically check and re-tighten connections to maintain stability.
- Squeaking Noises: Check all connection points and ensure they are securely fastened. Lubricating joints with a silicone-based spray can also help reduce noise.
- Mattress Sliding: Verify that the mattress is properly seated within the frame's raised side rails and against the footboard. The design includes features to minimize sliding.
- Missing/Damaged Parts: If you find any parts are missing or damaged upon arrival, please contact Yaheetech customer support immediately for assistance.
Specifications
| Feature | Detail |
|---|---|
| Standard Size | Queen |
| Material | Iron |
| Weight Capacity | 800 lb (363 kg) |
| Applicable Mattress Size | 80'' L × 60'' W |
| Assembly Required | Yes |
| Overall Dimensions (L x W x H) | 83" x 62.5" x 41.5" |
| Ground Clearance | 13 Inches |
| Item Weight | 47.8 pounds |
| Color | Antique Gold |
| Finish Type | Powder Coated |

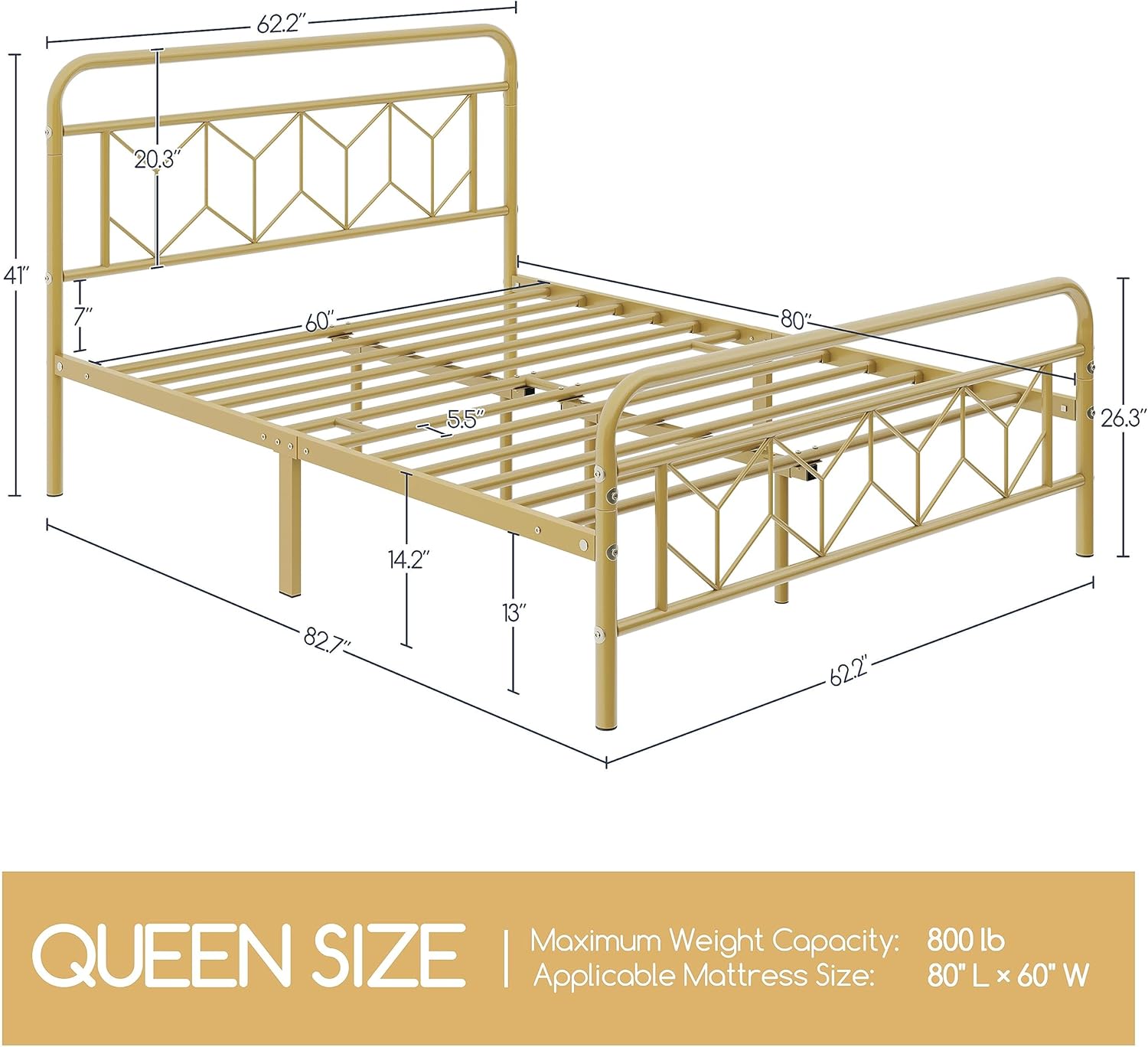

Image: A detailed diagram illustrating the dimensions of the Queen size bed frame, including length, width, height, and under-bed clearance.
Warranty and Support
For any questions, concerns, or warranty claims regarding your Yaheetech Metal Platform Bed Frame, please contact Yaheetech customer support. Refer to your purchase documentation for specific warranty terms and contact information.
Thank you for choosing Yaheetech.
