Bolpetizo Pet Fountain C7 Instruction Manual

Introduction

Thank you for choosing the Bolpetizo Pet Fountain C7. This automatic pet water dispenser is designed to provide fresh, filtered water for your cats, dogs, and multiple pets, encouraging healthy hydration habits. Featuring smart modes, a 5-stage filtration system, and a quiet pump, this fountain ensures a clean and appealing water source for your companions.

Image: The Bolpetizo Pet Fountain C7, a sleek black and white unit with a stainless steel top and visible water flow.

Safety Information

• Ensure the fountain is placed on a stable, level surface.
• Do not immerse the main unit (base with electronic components) in water. Only the stainless steel tray and filter components are designed for water contact.
• Keep out of reach of children and pets when performing maintenance or refilling.
• Use only the provided power adapter and cable.
• Regularly inspect the power cable for any damage. Discontinue use if damaged.
• This product is intended for indoor use only.
• Unplug the fountain before cleaning or performing any maintenance.

Package Contents

Please check the package to ensure all items are present:

• Pet Water Dispenser (Main Unit)
• Stainless Steel Drinking Tray
• Water Pump Assembly
• Filter Cartridges (2 included)
• USB Charging Cable (Type-C)
• Instruction Manual (this document)

Product Overview

The Bolpetizo Pet Fountain C7 consists of several key components working together to provide fresh water.

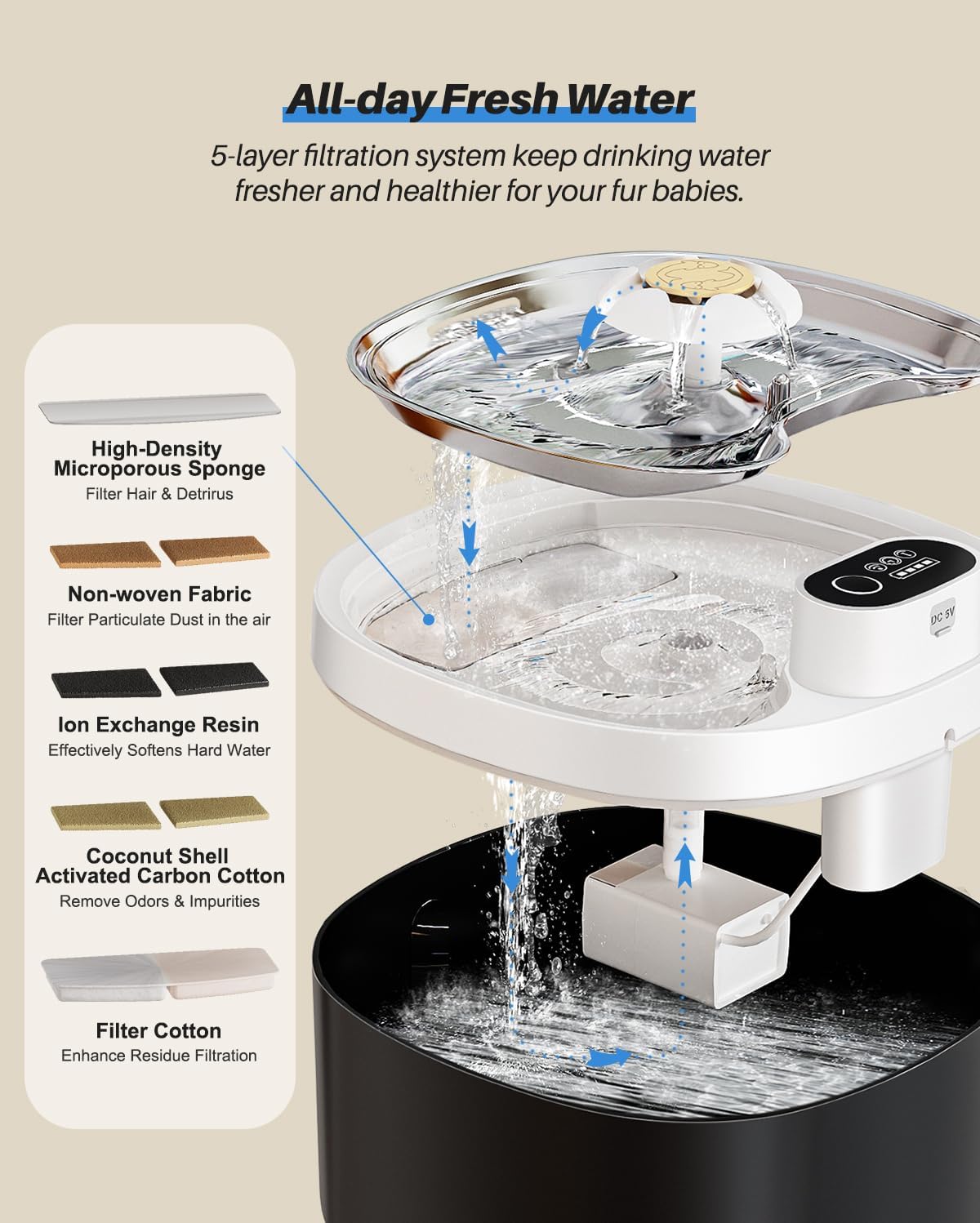

Image: An exploded diagram illustrating the 5-stage filtration system components, including high-density microporous sponge, non-woven fabric, ion exchange resin, coconut shell activated carbon, and filter cotton.

Key Features:

• Smart Wireless Design: Allows flexible placement without power cord limitations.
• 88oz/2.6L Capacity: Large reservoir reduces refill frequency.
• 5-Stage Filtration System: Ensures clean, fresh, and better-tasting water.
• Multiple Flow Designs: Offers flower waterfall and gentle stream options to entice pets.
• Ultra-Quiet Pump: Operates at a low noise level (approx. 25dB).
• LED Light Feature: Illuminates water level and attracts pets.
• Three Operating Modes: Sensor, Timing, and Continuous.

Setup Instructions

1. Initial Cleaning: Before first use, thoroughly clean all parts of the fountain (except the main unit with electronics) with water and a mild detergent. Rinse well.
2. Filter Preparation: Rinse the new filter cartridge under running water for a few minutes to remove any loose carbon dust.
3. Assemble Pump and Filter: Insert the pump assembly into its designated slot in the top cover. Place the rinsed filter cartridge into the filter tray.
4. Fill with Water: Fill the main reservoir with clean water up to the MAX line indicated on the side. Do not overfill.
5. Assemble Fountain: Carefully place the top cover with the pump and filter onto the main reservoir, ensuring it is securely seated.
6. Power On: Press the power button on the control panel to turn on the fountain.
7. Charging: The fountain is wireless and battery-operated. Ensure it is fully charged before initial use. Connect the USB-C cable to the charging port and a suitable power adapter (not included).

Image: A cat drinking from the Bolpetizo Pet Fountain placed wirelessly on a rug in a living room, highlighting its portable design.

Operating Instructions

The Bolpetizo Pet Fountain offers three operating modes:

Image: A cat approaching the fountain, illustrating the three work modes: Sensor Mode, Intermittent Mode, and Continuous Mode.

1. Power On/Off: Press the main button on the control panel to turn the fountain on or off.
2. Mode Selection: Press the mode button to cycle through the following modes:
   • Sensor Mode: The fountain activates for 15 seconds when a pet is detected within 4-6 feet (120° angle). This conserves battery and encourages drinking.
   • Timing Mode: The fountain operates for 30 seconds every 20 minutes.
   • Continuous Mode: The fountain runs continuously for one hour, then automatically switches to Sensor Mode.
3. LED Light: The integrated blue LED light illuminates the water level window, making it easier to monitor water levels and attracting pets. This light can be turned on or off via a dedicated button on the control panel.
4. Water Flow Designs: The fountain offers various water flow options to suit pet preferences. These include a flower waterfall, a leaf waterfall, and a bubbling fountain, which can be achieved by adjusting the top nozzle components.

Image: Three examples of water flow designs: a flower waterfall, a leaf waterfall, and a bubbling fountain, demonstrating the versatility of the water output.

The fountain is equipped with a 2200mAh battery, providing approximately 30-35 days of operation on a full charge, depending on usage mode.

Image: A close-up of the fountain's control panel showing battery indicators and a USB-C charging port, emphasizing its long battery life.

Maintenance

Regular cleaning and filter replacement are crucial for the longevity of your fountain and the health of your pets.

1. Weekly Cleaning:
   • Unplug the fountain and disassemble all removable parts (stainless steel tray, pump, filter).
   • Wash the stainless steel tray and other plastic components (excluding the main unit with electronics) with warm water and a mild, pet-safe detergent.
   • Rinse thoroughly to remove all soap residue.
2. Pump Cleaning (Every 2-3 Weeks):
   • Disassemble the pump by removing the filter cartridge and the pump cover.
   • Carefully remove the impeller (propeller) from the pump housing.
   • Clean the impeller and the inside of the pump housing with a small brush (like a toothbrush or cotton swab) to remove any hair, debris, or mineral buildup.
   • Rinse all pump parts thoroughly and reassemble.


   Image: Hands cleaning the internal components of the pet fountain, with a clear warning not to submerge the electronic base in water.

3. Filter Replacement (Every 2-3 Weeks):
   • Replace the filter cartridge every 2-3 weeks, or more frequently if you have multiple pets or notice reduced water flow.
   • Always rinse the new filter thoroughly before placing it in the fountain.

Troubleshooting

Image: A cat sleeping peacefully next to the Bolpetizo Pet Fountain, illustrating its ultra-quiet operation at approximately 25dB.

Specifications

• Model: C7
• Capacity: 2.6 Liters (88oz)
• Material: ABS, Stainless Steel
• Rated Power: 0.5W
• Operation Voltage: 5V DC, 1A
• Battery Capacity: 2200mAh (Lithium Ion)
• Working Time (Battery): Approximately 30-60 days (depending on mode)
• Induction Range (Sensor Mode): Angle 120°, 1.2M (4-6 feet)
• Product Size: 190 x 190 x 139mm (7.48 x 7.48 x 5.47 inches)
• Product Weight: 0.7 KG (1.54 lbs)
• Item Weight: 1.83 Pounds (packaged)
• Working Environment: Indoor
• Target Audience: Cats, Dogs, Multiple Pets

Warranty

Warranty information is not explicitly detailed in the product specifications. Please refer to the retailer's return policy or contact Bolpetizo customer support for specific warranty terms.

Customer Support

For further assistance, questions, or concerns regarding your Bolpetizo Pet Fountain C7, please contact Bolpetizo customer support through the retailer's platform or visit the official Bolpetizo store page.

You can visit the Bolpetizo Store on Amazon for more information.
