1. Product Overview
The LUCKWIND 48-inch Bathroom Vanity with Sink, Model LW-22, is a modern storage solution designed for bathrooms. It features a durable construction, ample storage, and an integrated resin basin top. This vanity is designed to provide both functionality and aesthetic appeal to your bathroom space.

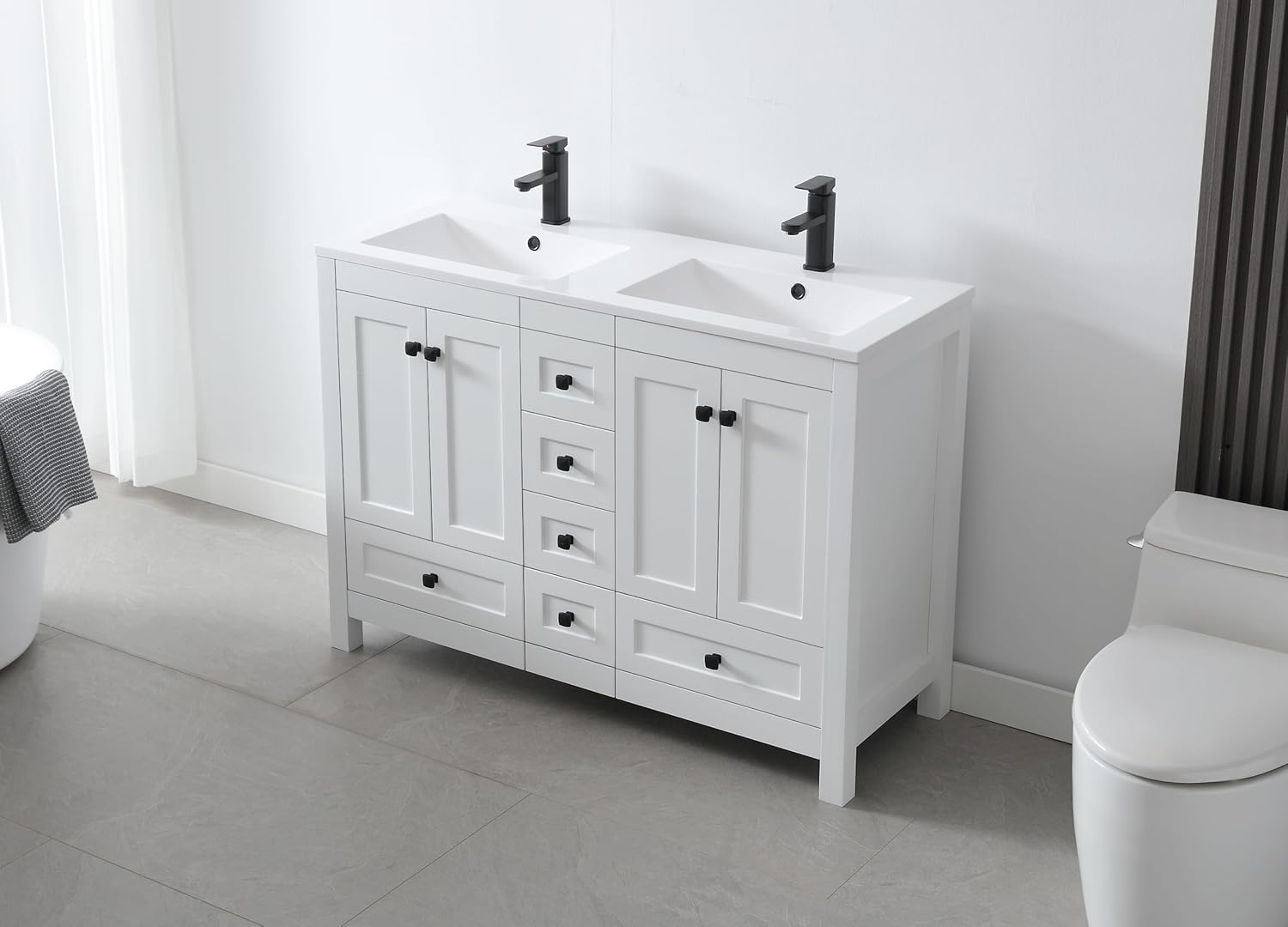

Figure 1: LUCKWIND 48-inch White Bathroom Vanity with two matte black faucets and double resin sinks.
Key Features:
- Multiple Choices: Available in various colors and sizes to suit different bathroom aesthetics and dimensions.
- High Quality Construction: Made from Eco MDF, ensuring sturdiness and durability. The painted surface is waterproof and fade-resistant. Features stainless steel hinges for enhanced stability.
- Large Storage Space: Designed with spacious cabinets and drawers for toiletries and other bathroom essentials. The 48-inch model includes four additional small drawers.
- Integrated Sink Top: Features a double resin sink top that is resistant to pressure and deformation, designed for easy cleaning.
- Matte Black Faucet: Includes an 8-inch height matte black faucet.
2. Important Safety Information
Please read and understand all safety instructions before beginning assembly or installation. Failure to follow these instructions may result in injury or damage to the product.
- Always follow the assembly instructions provided in the packaging.
- Use appropriate safety gear, such as gloves and eye protection, when handling and assembling components.
- Exercise caution when lifting and moving the cabinet due to its weight (approximately 205 pounds). It is recommended to have at least two people for lifting.
- Keep hands and fingers clear of pinch points during assembly and when operating drawers and doors.
- Do not exceed the load limit of the cabinet shelves or drawers. Distribute weight evenly.
- Ensure the vanity is securely anchored to the wall to prevent tipping, especially in households with children or pets.
- For plumbing connections, it is advisable to consult a qualified plumber to ensure proper installation and prevent leaks.
3. Setup and Assembly
Full assembly of the LUCKWIND 48-inch Bathroom Vanity is required. Please ensure all parts are present before starting. Refer to the detailed instructions included in your product packaging for step-by-step guidance. The following provides a general overview of the assembly process.
3.1 Unpacking and Parts Identification
- The vanity is shipped in multiple boxes (typically 3). You may receive them on different dates.
- Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Verify all parts against the hardware list and diagrams in your instruction manual. Each piece is typically numbered.
Figure 2: Packaging details for the LUCKWIND Bathroom Vanity, indicating contents of each box.
3.2 Cabinet Assembly
- Assemble the main cabinet frame using the provided screws and dowels. Ensure all connections are tight and secure.
- Attach the drawer slides to the designated cabinet panels.
- Install the soft-close hinges onto the cabinet doors. These hinges are fully adjustable.

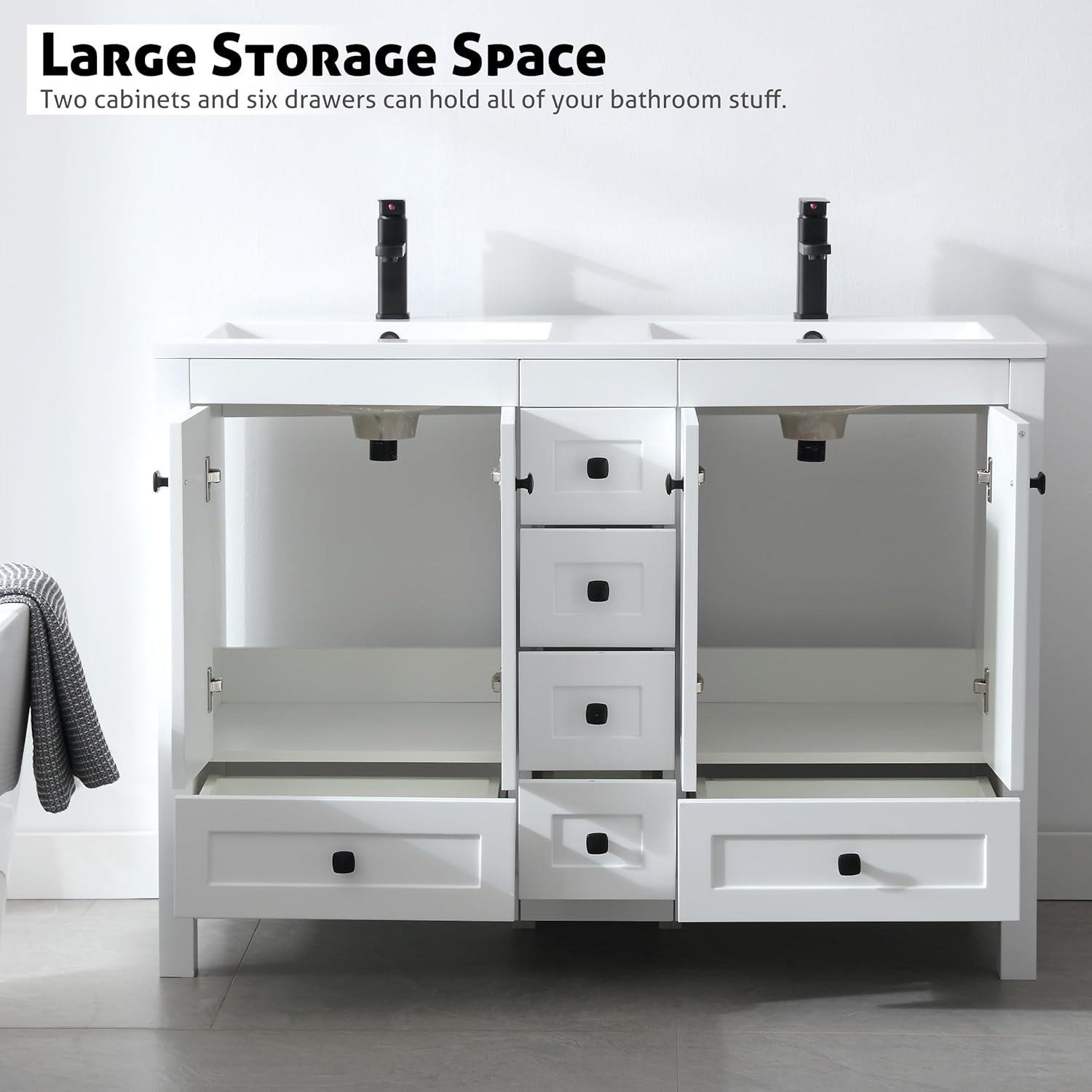

Figure 3: Interior view of the LUCKWIND 48-inch Vanity, showing open cabinets and drawers for storage.
3.3 Drawer Assembly
- Construct the drawer boxes according to the manual's diagrams.
- Attach the corresponding drawer slides to the assembled drawer boxes.
- Install the matte black knobs onto the drawer fronts.
3.4 Sink Top Installation
- Once the cabinet is in its final position, apply a bead of silicone sealant along the top edges of the cabinet where the sink top will rest.
- Carefully place the resin sink top onto the cabinet, aligning it properly. Press down gently to ensure good adhesion with the silicone.
- Allow the silicone to cure as per the manufacturer's instructions before making plumbing connections.

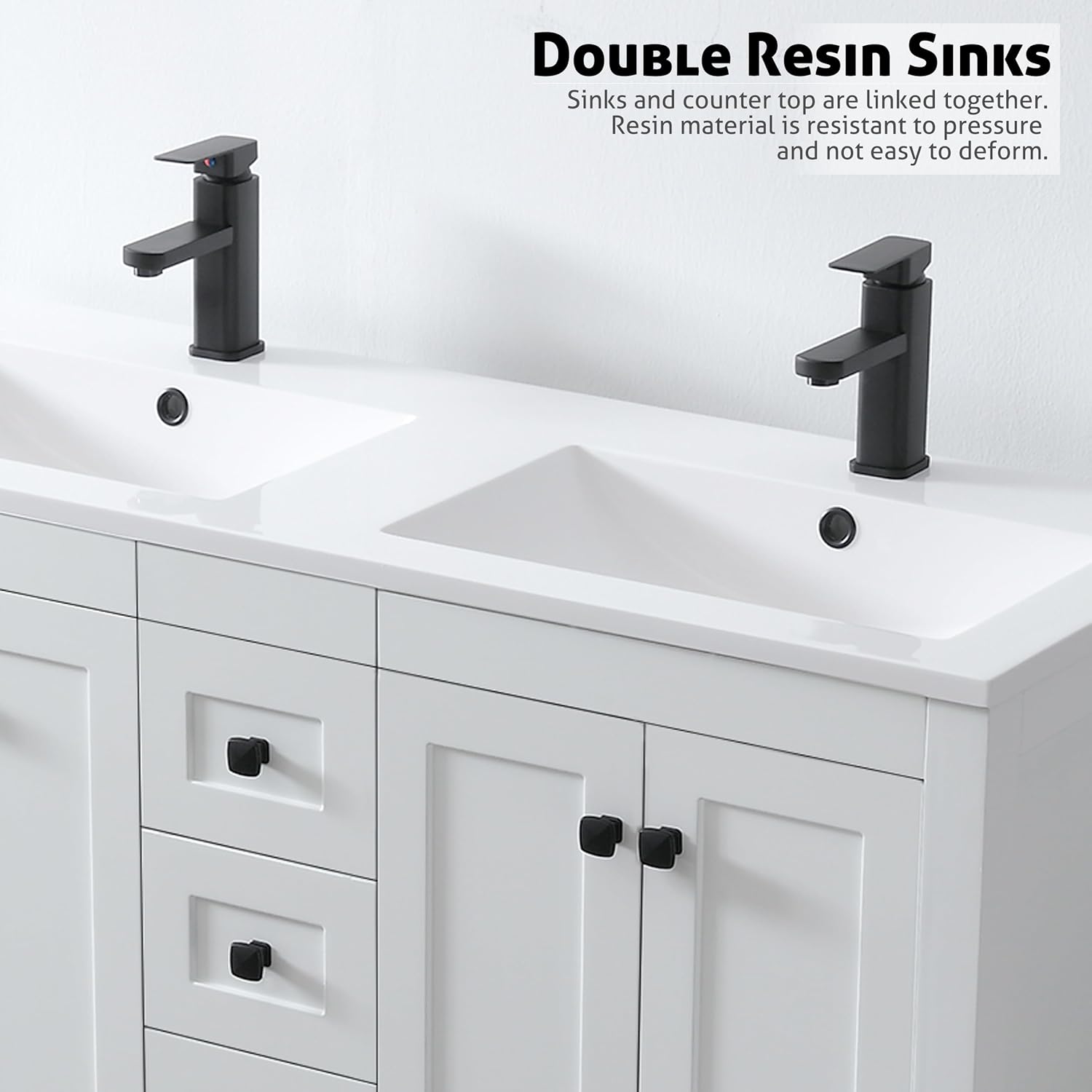

Figure 4: Detail of the double resin sinks and included matte black faucets.
3.5 Plumbing and Faucet Installation
- Install the included matte black faucets and drains according to their respective instructions.
- Connect the water supply lines and drain pipes. Ensure all connections are watertight.
- Test for leaks before fully closing the cabinet doors and drawers.
4. Operation
The LUCKWIND Bathroom Vanity is designed for straightforward operation, providing convenient access to storage and water.
4.1 Doors and Drawers
- The cabinet doors are equipped with soft-close hinges, allowing them to close gently and quietly.
- The drawers operate on smooth slides, providing full extension for easy access to contents.
- To open, gently pull the matte black knobs. To close, push the doors/drawers until the soft-close mechanism engages.
Figure 5: Detailed view of the vanity's soft-close hinges, metal knobs, and faucet.
4.2 Faucet and Sink
- Operate the matte black faucet by lifting and turning the handle to control water flow and temperature.
- The double resin sinks are designed for daily use and are easy to clean.
5. Maintenance
Regular maintenance will help preserve the appearance and functionality of your LUCKWIND Bathroom Vanity.
5.1 Cleaning the Cabinet
- Wipe down the painted surfaces with a soft, damp cloth.
- For stubborn stains, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, as these can damage the finish.
- Dry surfaces immediately after cleaning to prevent water spots or moisture damage.
5.2 Cleaning the Sink Top and Faucet
- Clean the resin sink top with a soft cloth and a mild, non-abrasive bathroom cleaner.
- For the matte black faucet, use a soft cloth and warm water. Avoid abrasive cleaners or sponges that can scratch the finish.
- Rinse thoroughly and dry to prevent water spots.
5.3 General Care
- Periodically check all screws and hardware for tightness and re-tighten as needed.
- Avoid placing excessively hot items directly on the sink top or cabinet surfaces.
- Address any leaks promptly to prevent water damage to the cabinet or surrounding areas.
6. Troubleshooting
This section addresses common issues you might encounter with your vanity.
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not slide smoothly or are misaligned. | Incorrect installation of drawer slides or loose screws. | Check the alignment of the drawer slides on both the drawer box and the cabinet. Ensure all screws are tightened. Refer to assembly instructions for correct slide orientation. |
| Cabinet doors do not close properly or are misaligned. | Hinges are not properly adjusted or loose. | Adjust the soft-close hinges using a screwdriver. Most hinges have multiple adjustment screws for horizontal, vertical, and depth alignment. Tighten any loose hinge screws. |
| Water leaks from faucet or drain. | Loose plumbing connections or improper sealant application. | Check all plumbing connections for tightness. Ensure plumber's tape or sealant was properly applied during installation. If issues persist, consult a qualified plumber. |
| Cabinet feels unstable or wobbly. | Not securely anchored to the wall or loose assembly screws. | Ensure the cabinet is securely fastened to wall studs. Check and tighten all assembly screws within the cabinet frame. |
7. Product Specifications
| Feature | Detail |
|---|---|
| Brand | LUCKWIND |
| Model Number | LW-22 |
| Color | White |
| Product Dimensions | 17.7"D x 47"W x 33.4"H |
| Countertop Dimensions | 47"W x 17.7"D |
| Faucet Height | 8" |
| Material | Engineered Wood (Eco MDF), Resin (Sink Top) |
| Finish Type | Painted |
| Mounting Type | Floor Mount |
| Included Components | Vanity Cabinet, Double Resin Sinks, Faucets, Drains, Hardware |
| Storage Options | 4 doors, 6 drawers |
| Hardware Color | Matte Black |
| Item Weight | Approximately 205 Pounds |
| Assembly Required | Yes |
Figure 6: Key dimensions of the LUCKWIND 48-inch Bathroom Vanity.
8. Warranty and Support
8.1 Warranty Information
Specific warranty details for the LUCKWIND 48-inch Bathroom Vanity (Model LW-22) are not provided in this manual. Please refer to the warranty card included with your product packaging or contact the seller directly for comprehensive warranty terms and conditions.
8.2 Customer Support
If you have any questions regarding assembly, installation, operation, maintenance, or require assistance with your LUCKWIND Bathroom Vanity, please do not hesitate to contact the seller or manufacturer's customer support. Contact information is typically found in the product packaging or on the seller's official website.
