Introduction
The Seentech W10131825 Oven Temperature Sensor is a replacement component designed to accurately measure the temperature inside an oven. This sensor plays a critical role in maintaining the correct internal temperature for proper cooking and baking. A malfunctioning temperature sensor can lead to issues such as uneven heating, insufficient heating, or the oven failing to start.
This manual provides essential information regarding the specifications, compatibility, installation, operation, maintenance, and troubleshooting of the W10131825 Oven Temperature Sensor.

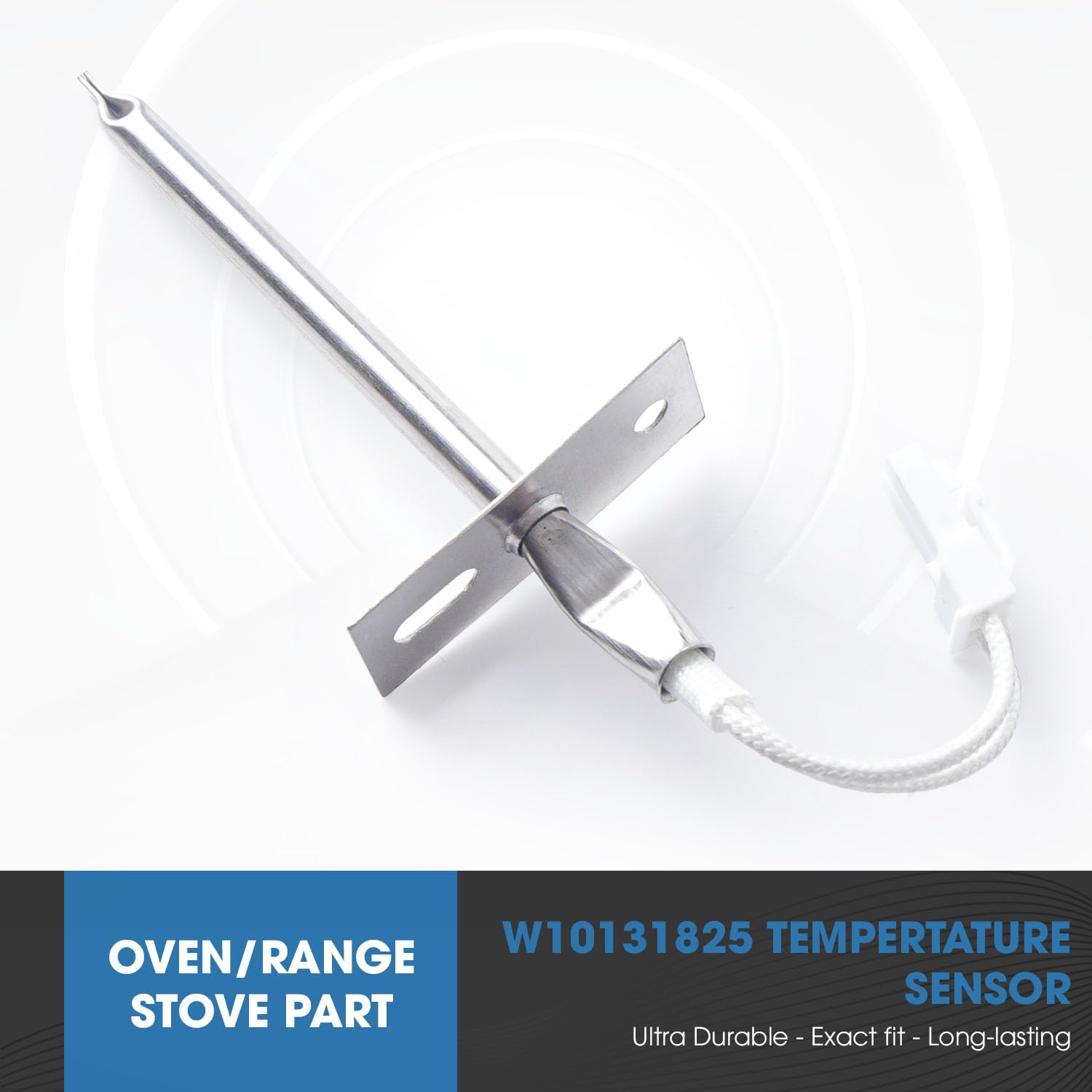

Image Description: The W10131825 oven temperature sensor with text overlay indicating it is an oven/range stove part, ultra durable, exact fit, and long-lasting.
Image Description: An image highlighting the benefits of the Seentech sensor, including saving time and money, easy installation, premium quality, and long-lasting performance.
Video Description: An introductory video from Seentech, highlighting their commitment to providing DIY appliance parts for various home appliances like refrigerators, microwaves, ranges, dishwashers, dryers, and washers. It emphasizes the quality and ease of use of their replacement parts.
Specifications
- Model Number: W10131825
- Product Dimensions: 0.5 x 2.8 x 3.6 inches
- Item Weight: 0.32 ounces
- Material: Stainless Steel (Outer Material)
- Color: Silver
- Special Feature: High Accuracy
- Included Components: W10131825 Oven Temperature Sensor (1 Pack)
- Replaces Part Numbers: 4455636, WPW10131825, WPW10131825VP, PS11748765, AP6015486
Image Description: A close-up view of the W10131825 oven temperature sensor, showing its metallic probe and white electrical connector. This is the main product image.
Compatibility
The W10131825 Oven Temperature Sensor is designed for wide compatibility with various oven models from major brands. It is made to fit exactly for most top name brands, including but not limited to:
- Kitchen-Aid
- Whirlpool
- Jenn-Air
- May-tag
Specific compatible models include: KEBC208KSS04, KEMS308SSS, RMC305PVS01, KEBS207SSS00, KDRP407HSS10, KEMS308SSSS05, KEBS208SSS04, KEBS107SSS04, GBS307PRS00, KEBS277SSS04, KESK901SSS06, KESS907SSS02, KEMS308SSS05, KEMS308SSS04, KERS807SSS00, RBS305PRB00, and others.
Important: Always verify compatibility with your specific appliance model number before ordering to ensure proper fit and function.
Image Description: An image illustrating the wide compatibility of the sensor, listing KitchenAid, Jenn-Air, Whirlpool, and Maytag as compatible brands. The sensor is shown in the foreground.
Installation / Setup
The W10131825 Oven Temperature Sensor is designed for straightforward installation, often allowing for a do-it-yourself repair. While specific steps may vary by oven model, the general process involves:
- Safety First: Always disconnect power to the oven by unplugging it or turning off the circuit breaker before beginning any repair.
- Accessing the Sensor: Locate the existing temperature sensor inside the oven cavity. It is typically found at the top rear or side of the oven.
- Removal: Carefully remove any screws or clips securing the old sensor. Gently pull the sensor out, being mindful of the wiring. Disconnect the electrical connector.
- Installation of New Sensor: Connect the new W10131825 sensor to the electrical connector. Insert the new sensor into its mounting hole and secure it with the screws or clips previously removed.
- Testing: Restore power to the oven and test its operation to ensure the new sensor is functioning correctly.
It is recommended to consult your specific oven's service manual or a qualified technician if you are unsure about any step of the installation process.
Image Description: An overhead view of a technician working on an oven, with the Seentech temperature sensor highlighted in the foreground, illustrating the DIY repair aspect.
Operating Principle
The W10131825 Oven Temperature Sensor operates by measuring the resistance of a thermistor or similar component, which changes with temperature. This resistance value is then sent to the oven's control board. The control board interprets this signal to determine the current temperature inside the oven cavity. Based on this information, the control board regulates the heating elements to maintain the desired temperature set by the user.
A properly functioning sensor ensures accurate temperature readings, which is crucial for consistent cooking results and energy efficiency.
Maintenance
The W10131825 Oven Temperature Sensor is designed for durability and requires minimal maintenance. To ensure its longevity and accurate performance:
- Regular Cleaning: As part of routine oven cleaning, gently wipe the exterior of the sensor with a soft, damp cloth to remove any food residue or grease buildup. Ensure the oven is cool and disconnected from power before cleaning.
- Avoid Harsh Chemicals: Do not use abrasive cleaners or harsh chemicals directly on the sensor, as this could damage its components or coating.
- Physical Inspection: Periodically inspect the sensor and its wiring for any visible signs of damage, such as bends, cracks, or frayed wires. If damage is observed, the sensor should be replaced.
Refer to your oven's user manual for specific cleaning and maintenance recommendations.
Troubleshooting
A faulty oven temperature sensor can manifest in several ways, impacting your oven's performance. The W10131825 sensor is designed to address common issues related to temperature regulation. Consider replacing your sensor if you experience any of the following symptoms:
- The oven is not heating up properly or at all.
- The oven is overheating, leading to burnt food.
- The oven is baking food unevenly, with some parts undercooked and others overcooked.
- The oven is not turning off when it is supposed to, continuing to heat past the set temperature.
- Error codes related to temperature sensor failure appear on your oven's display.
Before replacing the sensor, ensure that the issue is not related to other components, such as the heating elements or the control board. A multimeter can be used to test the resistance of the sensor at room temperature and compare it to the manufacturer's specifications (if available) to confirm its functionality.
Image Description: An image showing the W10131825 sensor and its components, alongside a list of symptoms it can fix, such as the oven not heating properly, overheating, baking unevenly, or not turning off.
What's in the Box
Each package of the Seentech W10131825 Oven Temperature Sensor includes:
- 1 x W10131825 Oven Temperature Sensor
Warranty and Support
Seentech offers a money-back guarantee for the W10131825 Oven Temperature Sensor. If you are not satisfied with your purchase for any reason, you can request a replacement or a return within 30 days of purchase.
For further assistance, compatibility inquiries, or troubleshooting support, please contact Seentech customer service. When contacting support, please have your appliance's model number readily available.
Please note that specific warranty terms and conditions may apply. Refer to your purchase documentation for complete details.
