VOOMY Universal Travel Adapter Y30 35W Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and efficient use of your VOOMY Universal Travel Adapter Y30 35W. Please read this manual thoroughly before using the product and retain it for future reference.

The VOOMY Universal Travel Adapter Y30 35W provides power to multiple devices simultaneously, featuring 2 USB-C ports, 1 universal AC outlet, and 3 USB-A ports, with 35W fast charging capability.

2. Safety Information

To ensure safe operation, observe the following safety guidelines:

• The universal plug is protected against spontaneous overvoltages, such as those caused by lightning or short circuits.
• The plug is constructed from ABS + PC flame-retardant materials for fire protection.
• The plug is protected against water to prevent short circuits.
• Features integrated child safety mechanisms.
• USB ports are equipped with overvoltage and overload protection.
• Do not expose the adapter to extreme temperatures or humidity.
• Do not attempt to disassemble or modify the adapter.
• Ensure the total power consumption of connected devices does not exceed the adapter's maximum rating.

The adapter allows simultaneous charging of up to 6 devices. It comes with a 3-year warranty and incorporates an auto-resetting fuse for enhanced safety, protecting against short circuits, lightning strikes, overloads, and overvoltage.

3. Package Contents

Verify that all items are present in the package:

• VOOMY Universal Travel Adapter Y30 35W
• User Manual

The product package includes the VOOMY Travel Y30 Universal Travel Adapter, a user manual, and the retail packaging.

4. Product Features

• Universal Compatibility: Designed for use in over 170 countries, adapting to various international plug types (UK, USA, AU, EU/Asia).
• Fast Charging: Equipped with 35W Power Delivery (PD) technology, allowing rapid charging for compatible devices, including some MacBooks via USB-C.
• Multiple Charging Ports: Features 1 universal AC outlet, 3 USB-A ports, and 2 USB-C ports, enabling simultaneous charging of up to 6 devices.
• Compact and Portable: Foldable design for easy storage and transport in bags or luggage.
• Enhanced Safety: Built-in protections against overvoltage, short-circuit, overload, and fire, along with child safety features.

The adapter features a compact and portable design, weighing 156g, with dimensions of 7.3 x 5.5 x 5 cm, making it easy to carry for travel. It also shows the slide mechanism for plug selection.

The VOOMY 35W adapter offers significantly faster charging, achieving 50% battery charge in 30 minutes, compared to a standard 5W adapter which only reaches 20% in the same timeframe.

5. Setup

To prepare your VOOMY Universal Travel Adapter for use:

1. Identify the Correct Plug: Locate the slider corresponding to the region you are in (e.g., UK, USA, AU, EU/Asia).
2. Extend the Plug: Press and slide the appropriate slider to extend the required plug pins. Ensure the pins are fully extended and locked into place before inserting into a wall socket.
3. Insert into Wall Socket: Carefully insert the extended plug into the wall socket.

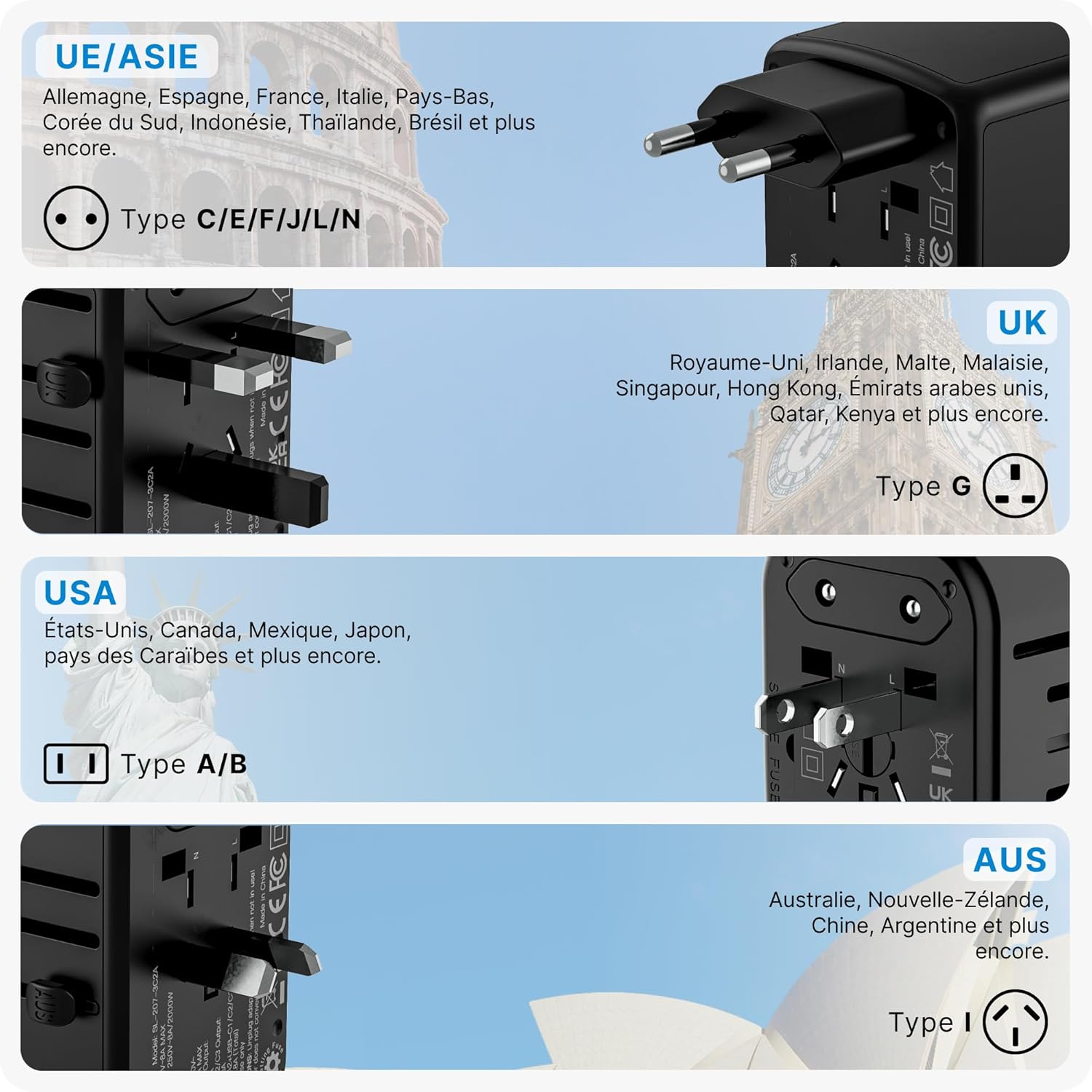

This image illustrates the four main plug configurations available on the adapter, covering over 170 countries. Users can select the appropriate plug for regions like Europe, Asia, the United Kingdom, the United States, and Australia.

6. Operating Instructions

Once the adapter is securely plugged into a wall socket:

1. Connect Devices: Plug your electronic devices into the universal AC outlet or any of the 3 USB-A or 2 USB-C ports.
2. Charging: The adapter will automatically detect and deliver the appropriate charging current to your devices. For fast charging, ensure your device and cable support Power Delivery (PD) and are connected to a USB-C port.
3. Retract Plugs: When finished, unplug the adapter from the wall socket. Press and slide the sliders back to retract the plug pins for safe storage.

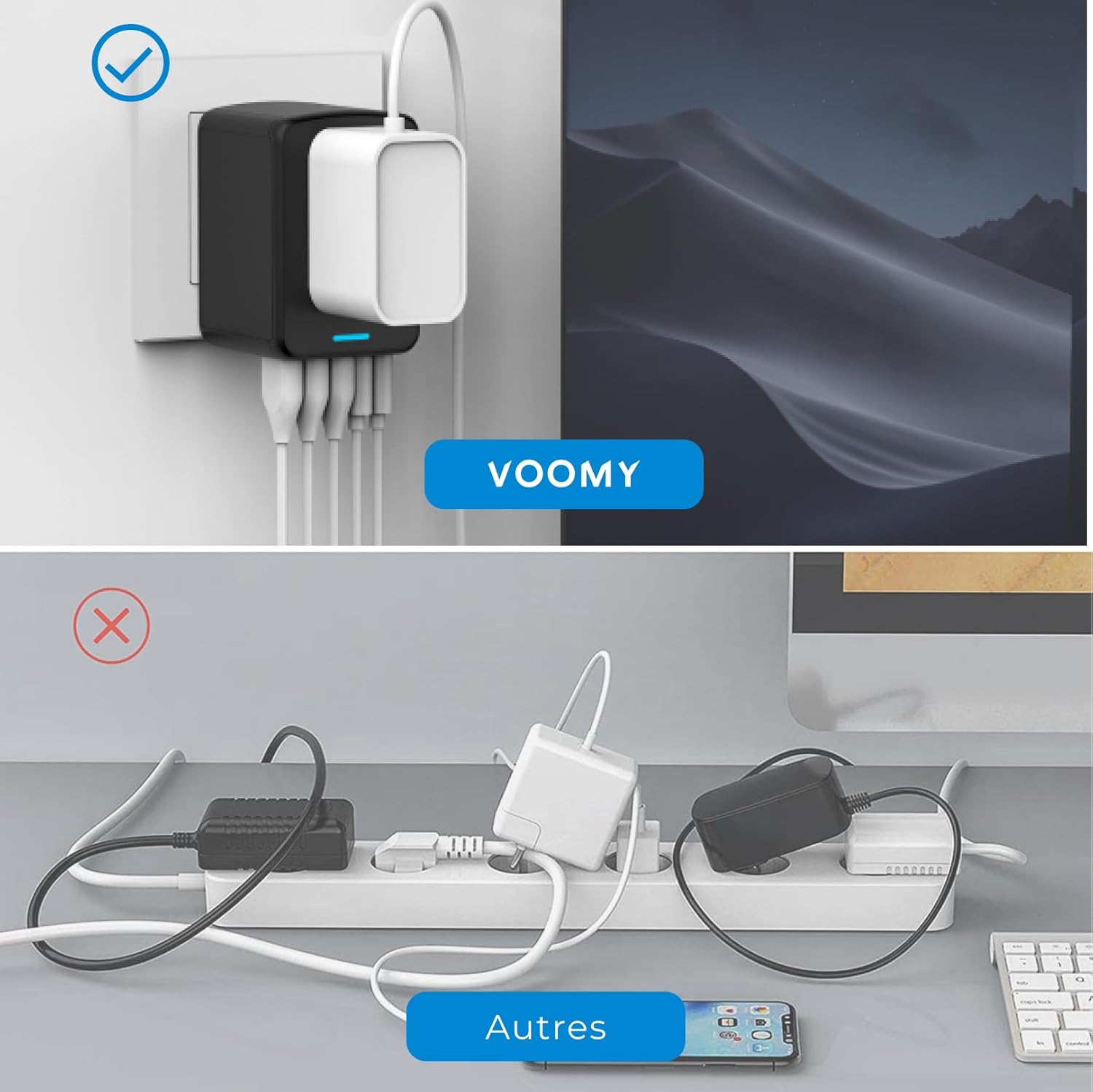

The compact design of the VOOMY adapter helps maintain an organized charging area by plugging directly into a wall outlet, avoiding the clutter often associated with multiple individual adapters and power strips.

7. Maintenance

• Keep the adapter clean and dry. Use a soft, dry cloth to wipe the surface.
• Avoid dropping the adapter or subjecting it to strong impacts.
• Store the adapter in a cool, dry place when not in use.

8. Troubleshooting

Adapter is not providing power:

Ensure the adapter is fully inserted into the wall socket and the correct plug type is extended. Check if the wall socket is active. The adapter features an auto-resetting fuse; if an overload occurs, disconnect all devices and the adapter from the wall, wait a few minutes, then reconnect.

Devices are charging slowly:

Verify that your device and charging cable support fast charging (Power Delivery for USB-C). Ensure you are using the USB-C ports for PD-compatible devices. The total power output is shared among all connected devices; charging multiple devices simultaneously may reduce individual charging speeds.

Adapter feels warm during use:

It is normal for the adapter to become slightly warm during operation, especially when charging multiple devices or using fast charging. If it becomes excessively hot, disconnect it immediately and contact support.

9. Specifications

10. Warranty and Support

Warranty: The VOOMY Universal Travel Adapter Y30 35W comes with a 3-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

Support: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Voomy customer support through the retailer where the product was purchased or visit the official Voomy website for contact information.
