Rotary Steering Wheel Knob User Manual

1. Product Overview

The mimzemamz Rotary Steering Wheel Knob is designed to enhance driving comfort and safety by providing smoother steering control. This power spinner knob is ideal for various maneuvers such as U-turns, quick stops, and navigating tight spaces. It is universally compatible with most standard steering wheels found in cars, trucks, forklifts, mowers, boats, and golf carts.

Constructed from high-quality metal alloy and elastic ABS material, with a silicone grip, the knob offers maximum strength, durability, and a non-slip surface. It facilitates one-handed driving and can significantly reduce discomfort during prolonged driving periods, making it particularly beneficial for beginners or individuals with mobility challenges like arthritis or carpal tunnel syndrome.

Figure 1.1: The mimzemamz Rotary Steering Wheel Knob, showing its design and how it is held during use.

2. Product Specifications

Figure 2.1: Approximate dimensions of the product.

3. Setup and Installation

The mimzemamz Rotary Steering Wheel Knob is designed for convenient and quick installation. While the initial snap-in process does not require complex tools, a hex key is provided for securing the knob firmly to the steering wheel.

1. Prepare the Knob: Separate the two parts of the power ball mechanism.
2. Position on Steering Wheel: Place the knob onto the desired location on your steering wheel. Ensure it snaps securely into place around the wheel's rim.
3. Secure with Screws: Use the provided hex key to tighten the screws, reinforcing the knob's attachment to the steering wheel. Ensure it is firmly secured and does not wobble.
4. Verify Installation: Gently test the knob's stability before driving. It should be tightly affixed and allow for smooth rotation.

Figure 3.1: Step-by-step guide for convenient installation.

Figure 3.2: Securing the knob with the provided hex key.

Recommended Installation Locations

The optimal placement of the steering wheel knob can vary based on driver preference and physical characteristics. Consider the following common positions:

• Position 1 (Left Side, Upper Quadrant): Suitable for drivers with longer arms.
• Position 2 (Right Side, Upper Quadrant): Based on personal habit installation.
• Position 3 (Left Side, Lower Quadrant): A general recommended installation location.
• Position 4 (Right Side, Lower Quadrant): A secondary installation position.

Figure 3.3: Recommended installation locations and proper usage method.

4. Operating Instructions

The Rotary Steering Wheel Knob is designed for intuitive operation, allowing for smooth and effortless steering, especially during turns and parking maneuvers. Its 360-degree rotation mechanism, supported by metal steel balls and a high-strength bearing, ensures fluid movement without jamming.

Proper Usage

To maximize the benefits of the knob and ensure safe operation, hold the knob firmly but comfortably. The silicone material provides a quality, non-slip grip. Avoid gripping the knob too tightly or using excessive force, as the design allows for light, controlled steering.

Figure 4.1: Demonstrating smooth 360-degree rotation without jamming.

Figure 4.2: Internal mechanism of the spin ball, metal steel balls, and bearing for smooth rotation.

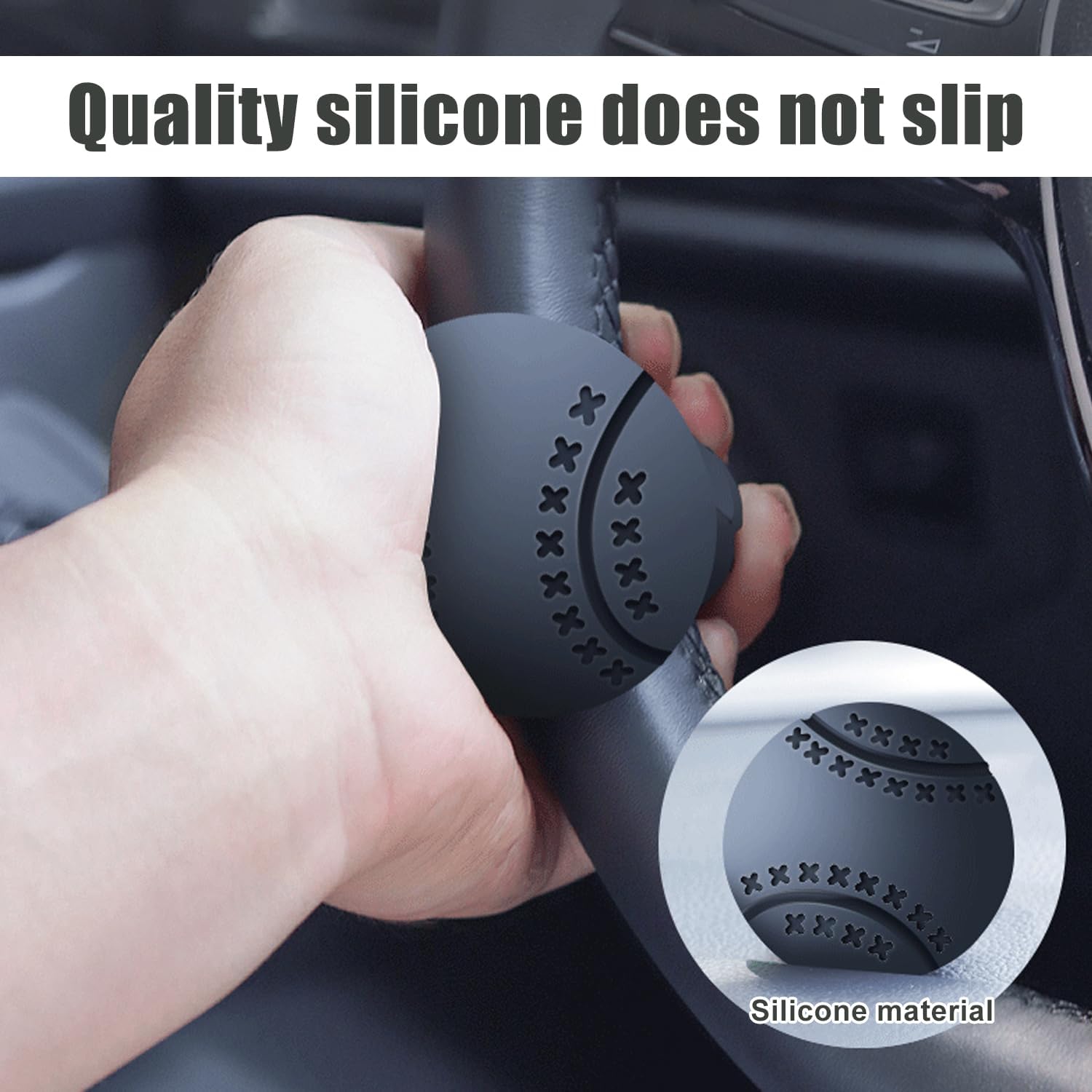

Figure 4.3: The silicone material ensures a non-slip grip.

Benefits in Driving

Using the steering wheel knob can significantly improve your driving experience by addressing common challenges:

• Smoother Turns: Facilitates easier and quicker steering, especially for U-turns and sharp corners.
• Reduced Effort: Increases the torque of the steering wheel, allowing for one-handed operation and reducing physical strain during long drives or complex maneuvers.
• Improved Maneuverability: Helps in navigating tight spaces and parking with greater ease.

Figure 4.4: The knob helps alleviate issues like slow shifting and difficult backing maneuvers, leading to smoother driving.

5. Maintenance

The mimzemamz Rotary Steering Wheel Knob is designed for durability and requires minimal maintenance. To ensure its longevity and optimal performance:

• Cleaning: Wipe the knob periodically with a soft, damp cloth to remove dust and grime. Avoid using harsh chemicals or abrasive cleaners, which could damage the material.
• Inspection: Regularly check the attachment screws to ensure they remain tight. If the knob feels loose, re-tighten the screws using the hex key.
• Storage: If removing the knob for extended periods, store it in a clean, dry place away from extreme temperatures.

6. Troubleshooting

This section addresses common concerns you might encounter with your Rotary Steering Wheel Knob. The product is designed for simplicity and reliability, so most issues can be resolved with basic checks.

• Knob feels loose or wobbly:
  • Ensure the knob is correctly snapped onto the steering wheel.
  • Re-tighten the securing screws using the provided hex key. Over time, vibrations can cause screws to loosen slightly.
• Rotation is not smooth or jams:
  • Check for any debris or foreign objects that might be obstructing the rotation mechanism.
  • Ensure the knob is not overtightened, which could impede the internal bearing's movement. Loosen the screws slightly and re-test.
  • Clean the knob and the area where it attaches to the steering wheel to remove any accumulated dust or dirt.
• Knob slips on the steering wheel:
  • Verify that the knob is installed on a clean, dry section of the steering wheel. Any oils or residues can reduce grip.
  • Ensure the screws are tightened sufficiently to create a firm grip on the steering wheel.

If you continue to experience issues, please refer to the Support section for further assistance.

7. Warranty and Support

Return Policy

This product is subject to a 30-day return policy for refund or replacement, as per the retailer's terms and conditions. Please refer to your purchase receipt or the retailer's website for specific details regarding returns.

Customer Support

For any questions, concerns, or assistance with your mimzemamz Rotary Steering Wheel Knob, please contact the seller directly through the platform where you made your purchase. You can also visit the official mimzemamz brand store for more information and contact options:

Visit the mimzemamz Brand Store
