Introduction
Thank you for choosing the Relaxdays Freestanding Toilet Paper Holder. This versatile bathroom cabinet is designed to provide convenient storage for toilet paper and other bathroom essentials, optimizing space in smaller bathrooms. Please read this manual carefully before assembly and use to ensure proper installation and safe operation.
Image: The Relaxdays Freestanding Toilet Paper Holder, showcasing its top toilet paper dispenser, small drawer, and lower storage cabinet with an open door revealing two compartments. A small decorative plant is placed on top.
Safety Information
- Keep all small parts and packaging materials away from children to prevent choking hazards.
- Ensure all screws and fasteners are securely tightened during assembly. Periodically check for tightness.
- Do not overload the cabinet or shelves. The maximum weight capacity is 5 kg.
- Place the unit on a flat, stable surface to prevent tipping.
- Avoid exposing the product to excessive moisture or direct water contact to prevent material damage.
Package Contents
Before beginning assembly, please verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Side Panels (2)
- Top Panel (1)
- Bottom Panel (1)
- Back Panel (1)
- Internal Shelf (1)
- Drawer Components (Front, Back, Sides, Bottom)
- Drawer Handle (1)
- Door Panel (1)
- Door Handle (1)
- Toilet Paper Rod (1)
- Magnetic Door Catch (1)
- Hinges (2)
- Assembly Hardware (Screws, dowels, cam locks, etc.)
- Instruction Manual (1)
Assembly Instructions
Assembly typically requires a Phillips head screwdriver. Follow these steps carefully.
Image: A diagram illustrating the dimensions of the toilet paper holder: 87.5 cm height, 22 cm width, and 17.5 cm depth.
Step 1: Prepare Components
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Identify each part using the provided parts list.
Step 2: Assemble the Main Frame
- Attach the bottom panel to the side panels using the designated screws and dowels. Ensure the pre-drilled holes align.
- Slide the back panel into the grooves on the side panels.
- Secure the top panel to the side panels, similar to the bottom panel.
Step 3: Install Shelves and Drawer
- Insert the internal shelf into the pre-drilled holes at the desired height.
- Assemble the drawer by connecting the front, back, and side panels, then slide in the bottom panel. Secure with screws.
- Attach the drawer handle to the drawer front using the provided screw.
- Slide the assembled drawer into its designated slot in the cabinet frame.
Image: A close-up view of an internal shelf, demonstrating its placement within the cabinet structure.
Step 4: Attach Door and Handle
- Attach the hinges to the door panel and the cabinet frame using the provided screws.
- Install the magnetic door catch on the inside of the cabinet and the corresponding plate on the door.
- Attach the door handle to the door panel.
Image: A detailed view of the silver-colored, bar-style handle attached to the white cabinet door.

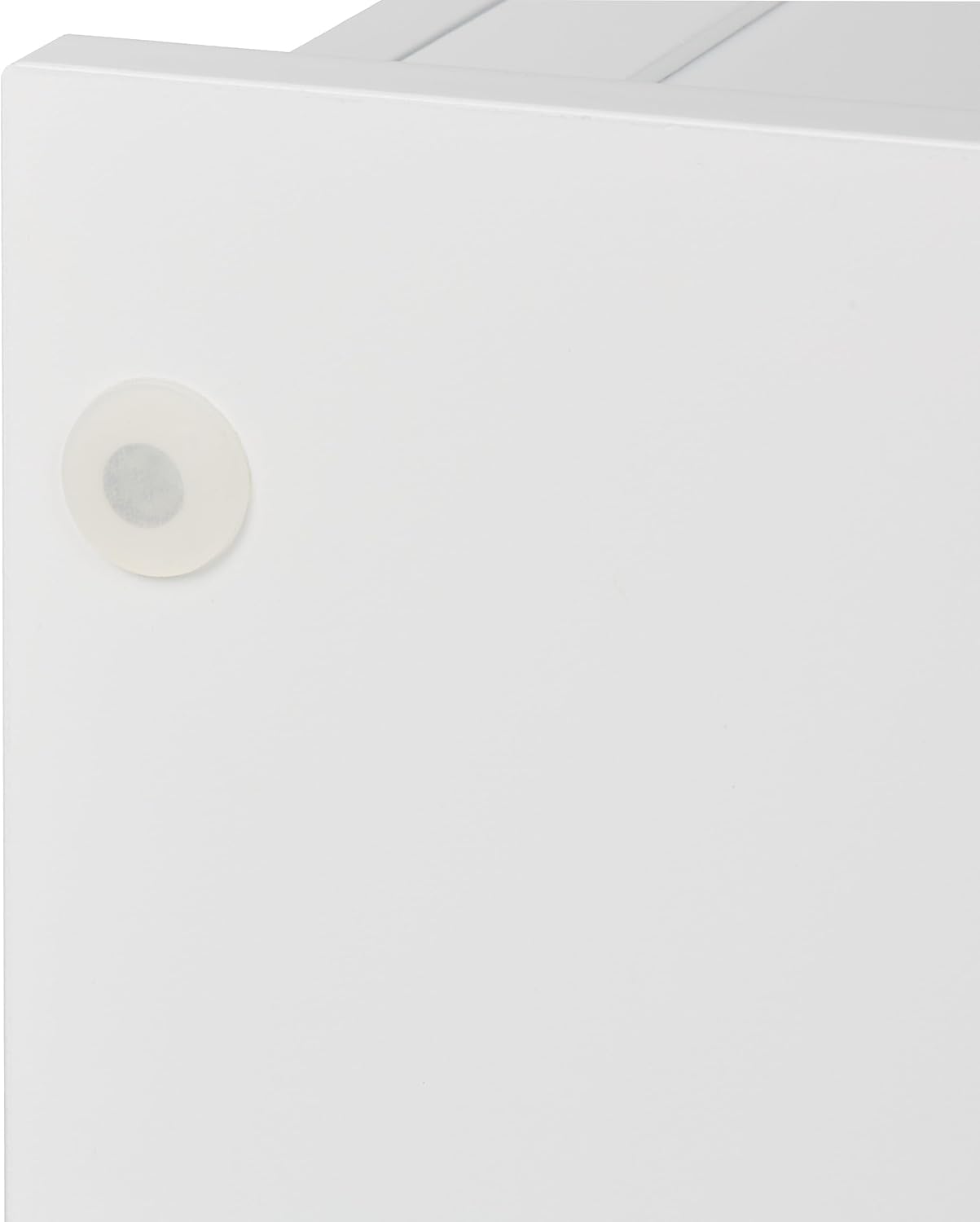

Image: A close-up of the circular magnetic catch installed on the inside of the cabinet, designed to keep the door securely closed.
Step 5: Final Touches
- Insert the toilet paper rod into its designated slots at the top compartment.

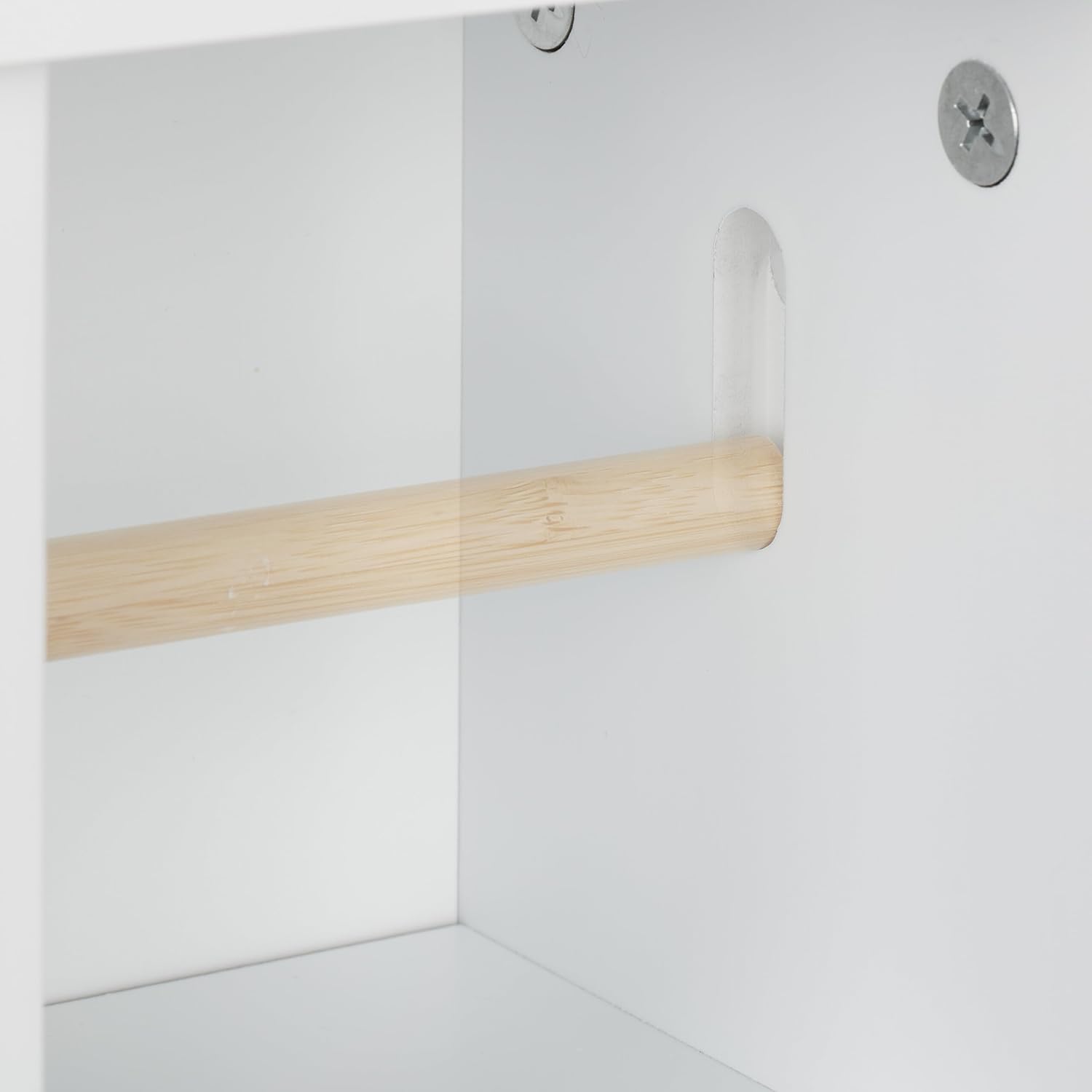

Image: A close-up view of the bamboo rod designed to hold a toilet paper roll, positioned within the upper compartment of the cabinet.
Operating Instructions
This freestanding cabinet offers multiple storage options:
- Top Compartment: Designed to hold one standard toilet paper roll for immediate use. Simply slide the roll onto the bamboo rod.
- Drawer: The small pull-out drawer is suitable for storing small bathroom accessories such as cotton swabs, dental floss, or hair ties.
- Lower Cabinet: The main cabinet section, accessible via the hinged door, provides space for storing spare toilet paper rolls, cleaning supplies, or other hygiene products. The internal shelf can be adjusted or removed to accommodate items of various heights.
Image: The Relaxdays toilet paper holder positioned in a modern bathroom, next to a toilet, demonstrating its compact size and utility in a typical bathroom environment.
Maintenance
- Cleaning: Wipe the surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Spills: Immediately wipe up any spills to prevent water damage or staining to the fiberboard material.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Cabinet is wobbly | Uneven floor; loose screws | Ensure placement on a flat surface. Check and tighten all assembly screws. |
| Drawer does not slide smoothly | Misaligned runners; obstruction | Verify drawer runners are correctly installed and free of debris. Reassemble if necessary. |
| Door does not close properly | Misaligned hinges; magnetic catch issue | Adjust hinge screws. Ensure the magnetic catch and its plate are aligned and securely attached. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Relaxdays |
| Model Number | 10046274 |
| Color | White/Silver |
| Dimensions (H x W x D) | 87.5 x 22 x 17.5 cm (34.4 x 8.7 x 6.9 inches) |
| Weight | 5.24 kg (11.55 lbs) |
| Material | Fiberboard, Bamboo, Stainless Steel |
| Maximum Weight Capacity | 5 kg (11 lbs) |
| Mounting Type | Floor Mount |
Warranty and Support
This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact Relaxdays customer support. If you encounter any issues or have questions regarding your product, please reach out to the retailer or manufacturer for assistance.
