LG FHD0905SWM
LG Front Load Washer Dryer User Manual
Model: FHD0905SWM | Capacity: 9 Kg (Wash) / 5 Kg (Dry)
1. Product Overview
The LG FHD0905SWM is a fully automatic front load washer dryer designed to provide intelligent and convenient fabric care. Featuring AI Direct Drive Technology, Steam, TurboWash, and Wi-Fi connectivity, this appliance offers efficient washing and drying performance suitable for large families.
Key Features
- Washer Dryer: Premium washing machine with integrated drying functionality.
- Capacity: 9 KG for washing and 5 KG for drying, ideal for large households.
- Artificial Intelligence Direct Drive (AI DD): Detects fabric weight and softness to optimize wash motions.
- High Spin Speed: 1200 RPM for faster drying.
- Space Saving: Combines washing and drying in one unit.
- Wash Programs: 14 diverse programs including Cotton, TurboWash 59, Allergy Care, and Baby Steam Care.
- Stainless Steel Drum: Ensures durability and hygiene.
- Wi-Fi Connectivity: Control and monitor the appliance remotely via LG ThinQ App.
- TurboWash 59: Thorough cleaning in 59 minutes with fabric protection.
- Smart Diagnosis: Self-diagnosis feature for easy troubleshooting.
- Child Lock: Enhances safety by preventing unintended operation.
Figure 1.1: Front view of the LG 9 Kg Washer Dryer (FHD0905SWM).

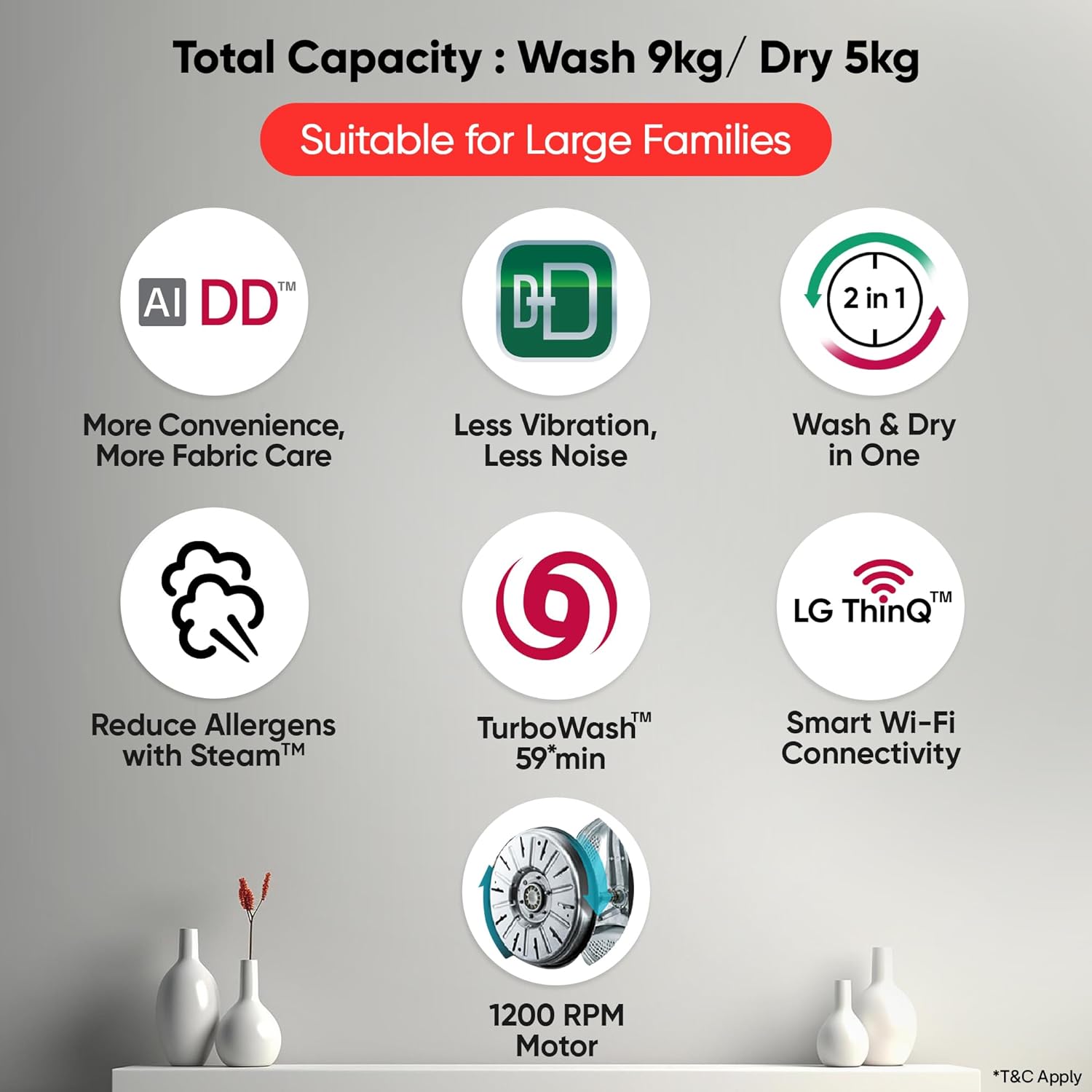

Figure 1.2: Diagram illustrating key features such as AI DD, TurboWash, and Wi-Fi connectivity.
2. Setup and Installation
2.1 Unpacking
Carefully remove the washer dryer from its packaging. Ensure all packing materials, including the transit bolts at the rear of the machine, are removed before installation. Retain packaging for future transport if needed.
2.2 Included Components
Verify that all the following components are included in the box:
- 1 Washer Dryer Unit
- Inlet Hose
- Owner's Manual
- Spanner
- Cover Anti-Rat
Figure 2.1: Illustration of included components: Cold Supply Hose and Spanner.
2.3 Placement
Place the washer dryer on a firm, level surface to minimize vibration and noise during operation. Ensure there is adequate space around the unit for ventilation and maintenance. The product dimensions are 47.5D x 60W x 85H Centimeters.

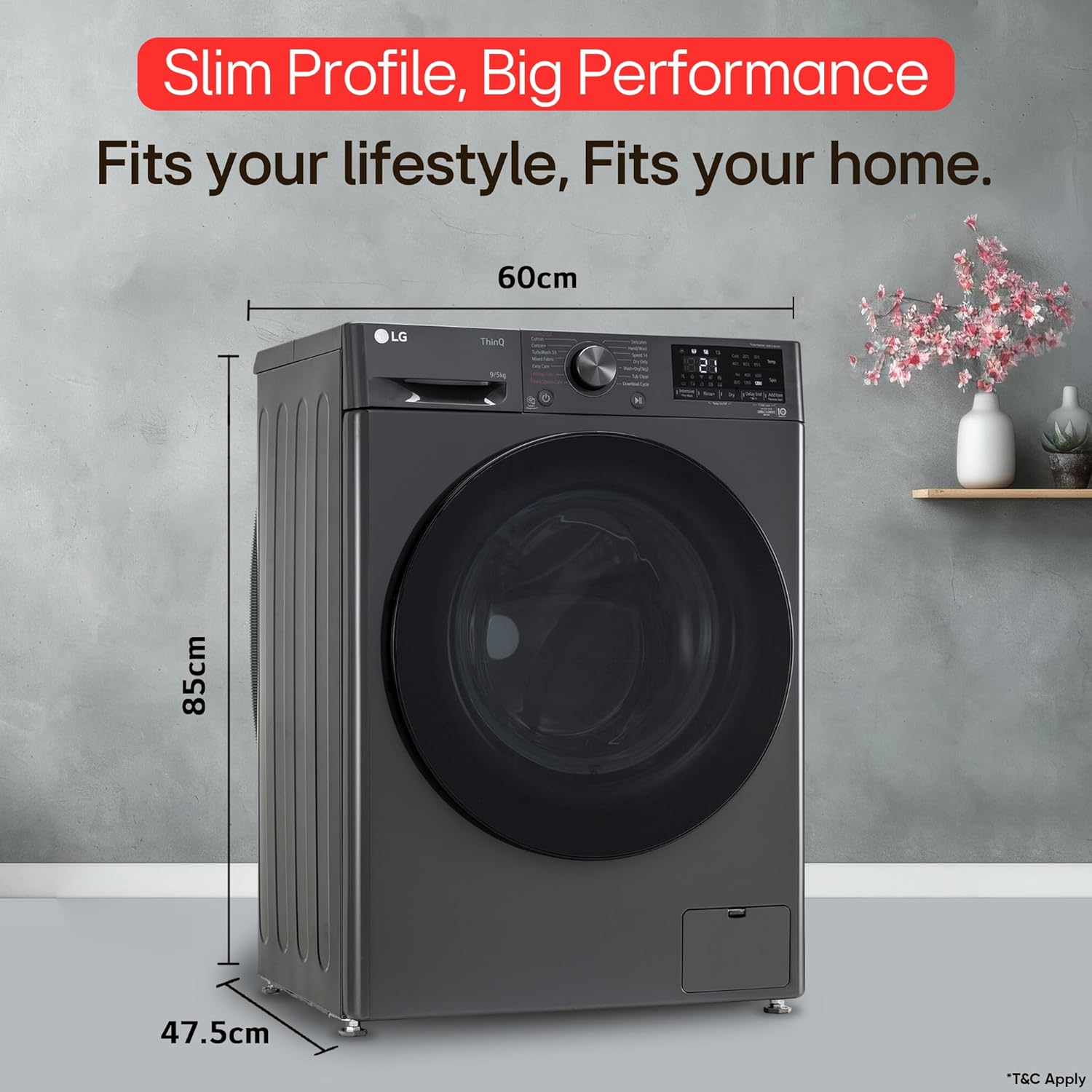

Figure 2.2: Product dimensions for proper placement.
2.4 Water and Power Connection
Connect the inlet hose to a cold water supply with a minimum pressure of 14.5 PSI (50 kPa). Ensure the drain hose is properly installed to allow for water discharge. Plug the appliance into a grounded 230 Volts AC power outlet. The unit operates at 2100 Watts.
3. Operating Instructions
3.1 Control Panel Overview
The control panel features an LED display, a program knob, power on/off button, start/pause button, and additional options. Use the jog dial to select desired wash programs and the touch panel for various settings.
Figure 3.1: Detailed view of the control panel with labeled components.
3.2 Wash Programs
The washer dryer offers 14 wash programs tailored for different fabric types and cleaning needs. Select the appropriate program using the program knob.
| Program | Description |
|---|---|
| Cotton | For cotton fabrics, normal soiled laundry. |
| Cotton+ | Optimized for larger loads of cotton. |
| TurboWash 59 | Quick wash cycle for lightly soiled clothes in 59 minutes. |
| Mixed Fabric | For a mix of different fabric types. |
| Easy Care | For synthetic fabrics, minimizes wrinkles. |
| Allergy Care | Uses steam to reduce allergens. |
| Baby Steam Care | Gentle wash with steam for baby clothes. |
| Delicates | For delicate items requiring gentle handling. |
| Hand/Wool | For hand-washable or wool items. |
| Speed 14 | Very quick wash for small, lightly soiled loads. |
| Dry Only | Drying cycle without a preceding wash. |
| Wash+Dry (5 Kg) | Combined wash and dry cycle for up to 5 Kg. |
| Tub Clean | Self-cleaning cycle for the drum. |
| Download Cycle | Additional cycles downloadable via LG ThinQ app. |
Figure 3.2: Visual representation of the various expert wash programs available.
3.3 Drying Functions
The appliance offers integrated drying capabilities, allowing you to wash and dry clothes in a single cycle. This eliminates the need to transfer clothes between machines, saving time and effort.
Figure 3.3: Illustration of the combined washer and dryer functionality.
3.4 Smart Features (LG ThinQ)
Connect your washer dryer to Wi-Fi and control it remotely using the LG ThinQ app. You can start/stop cycles, monitor progress, and download additional wash programs from anywhere.
Figure 3.4: Controlling the LG Washer Dryer via the LG ThinQ mobile application.
3.5 AI Direct Drive Technology
The AI DD system intelligently detects the weight and softness of your fabric. Based on this analysis, it automatically selects the optimal wash motions to provide superior fabric care and reduce damage.
Figure 3.5: The AI Direct Drive system ensures intelligent fabric care.
Figure 3.6: Illustration of the 6 Motion Direct Drive for enhanced wash performance.
3.6 Steam Technology
The integrated Steam™ technology helps reduce 99.9% of viruses and allergens from your clothes, providing a more hygienic wash. This feature is particularly beneficial for allergy sufferers and baby clothes.
Figure 3.7: Steam technology effectively reduces allergens and viruses.
3.7 TurboWash 59
The TurboWash 59 program allows you to achieve a thorough wash in just 59 minutes, saving significant time while maintaining excellent cleaning performance and fabric care.
Figure 3.8: TurboWash 59 provides a full wash in less time with great fabric care.
4. Maintenance and Care
4.1 Tub Clean
Regularly run the Tub Clean cycle to maintain the hygiene of the drum and prevent odor buildup. Refer to the control panel section for how to select and start this program.
4.2 Cleaning the Dispenser Drawer
Periodically remove and clean the detergent and fabric softener dispenser drawer to prevent residue buildup. Rinse with warm water and dry thoroughly before reinserting.
4.3 Cleaning the Drain Filter
The drain filter should be cleaned regularly to ensure proper drainage and prevent blockages. Locate the filter at the bottom front of the machine, twist to open, remove debris, and rinse. Close securely after cleaning.
4.4 Exterior Care
Wipe the exterior of the washer dryer with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the finish. The black steel finish is designed for durability and easy cleaning.
Figure 4.1: The stainless steel drum ensures long-lasting durability and hygiene.
5. Troubleshooting
5.1 Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, door not closed, child lock active. | Check power, ensure door is latched, deactivate child lock. |
| No water supply | Water tap closed, inlet hose kinked, water pressure too low. | Open water tap, straighten hose, check household water pressure. |
| Excessive vibration/noise | Transit bolts not removed, machine not level, unbalanced load. | Remove transit bolts, adjust leveling feet, redistribute laundry. |
| Clothes not drying completely | Overloaded dryer, lint filter clogged, incorrect drying program. | Reduce load size, clean lint filter, select appropriate drying program. |
| Error code displayed | Specific malfunction detected by the machine. | Refer to the Smart Diagnosis section or contact customer support. |
5.2 Smart Diagnosis™
The Smart Diagnosis feature allows you to quickly troubleshoot issues with your appliance using your smartphone. Follow the instructions in the LG ThinQ app to receive diagnostic information and potential solutions.
Figure 5.1: Using the Smart Diagnosis feature for quick troubleshooting.
5.3 Child Lock
To prevent accidental operation by children, activate the Child Lock function. This will disable the control panel buttons. Refer to your control panel for specific instructions on how to activate and deactivate this feature (usually by pressing and holding a combination of buttons).
Figure 5.2: The Child Lock feature ensures family safety.
6. Technical Specifications
| Specification | Value |
|---|---|
| Model | FHD0905SWM |
| Wash Capacity | 9 Kilograms |
| Dry Capacity | 5 Kilograms |
| Item Weight | 63 kg |
| Product Dimensions (LxWxH) | 47.5 x 60 x 85 Centimeters |
| Maximum Rotational Speed | 1200 RPM |
| Voltage | 230 Volts |
| Wattage | 2100 Watts |
| Noise Level | 54 dB |
| Drum Material | Stainless Steel |
| Controller Type | Fully Automatic |
| Special Features | Inverter, Child Lock, Hygiene Steam, Smart Connectivity, LED Display |
| Country of Origin | India |
7. Warranty and Customer Support
7.1 Warranty Information
The LG FHD0905SWM Washer Dryer comes with a 2 Years Comprehensive Warranty on the Product and a 10 Years Warranty on the Motor (Terms & Conditions apply). Please retain your purchase receipt for warranty claims.
7.2 Contact Information
For service, support, or inquiries, please contact LG Electronics India Pvt. Ltd.:
- Email: serviceindia@lge.com
- Phone: 08069379999
- WhatsApp: 9711709999
- Manufacturer Address: Plot no. A-5, MIDC, Ranjangaon, Tal-Shirur Udyog Vihar, Pune (Maharashtra) PIN- 412220
You can also visit the official LG Store on Amazon for more information: LG Store
