1. Introduction
The Linshang LS116 light transmittance tester is a professional instrument designed for accurately measuring the light transmittance of various uniform light-transmitting materials. Its advanced parallel light path design allows for precise measurements, even on materials with significant thickness. This device is engineered to meet stringent metrology standards, ensuring reliable and accurate results for applications involving glass, solar film, laminated glass, PC plastic, and other optical products.

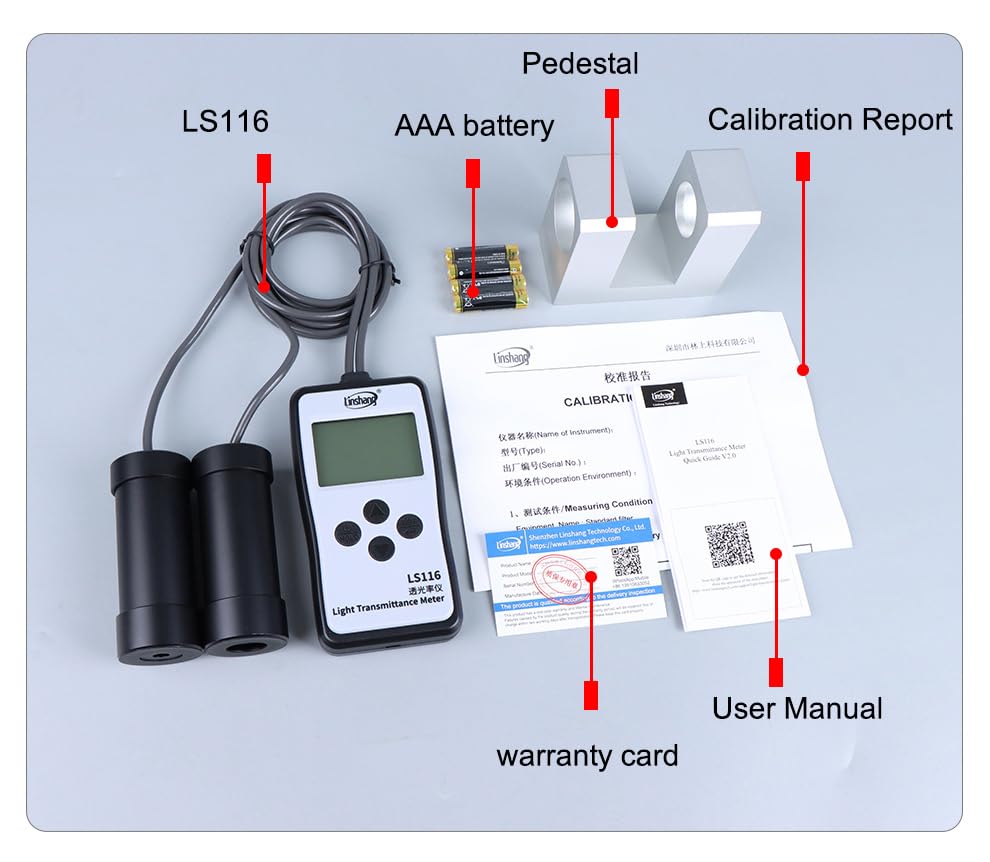

2. What's in the Box
Upon opening the package, please verify that all components are present and in good condition:
- LS116 Meter
- Probe
- User Manual
- Warranty Card
- Holder
- Four AAA batteries
3. Setup
Before first use, install the four AAA batteries into the battery compartment located on the back of the LS116 meter. Ensure correct polarity. Once batteries are installed, connect the probe to the main meter unit via the cable. The device is now ready for initial power-on.
4. Operating Instructions
The LS116 offers versatile measurement capabilities for various light-transmitting materials.
4.1 Power On and Warm-up
Press the power button to turn on the device. The meter will display a "WARM-UP" message and a percentage. Allow the device to complete its warm-up cycle until it displays 100.00% or a stable reading, indicating it is ready for measurement.
4.2 Measurement Methods
The LS116 supports two primary measurement methods:
- Fixed-Point Measurement: Use the provided holder for stable, precise measurements in a fixed laboratory or factory setting.

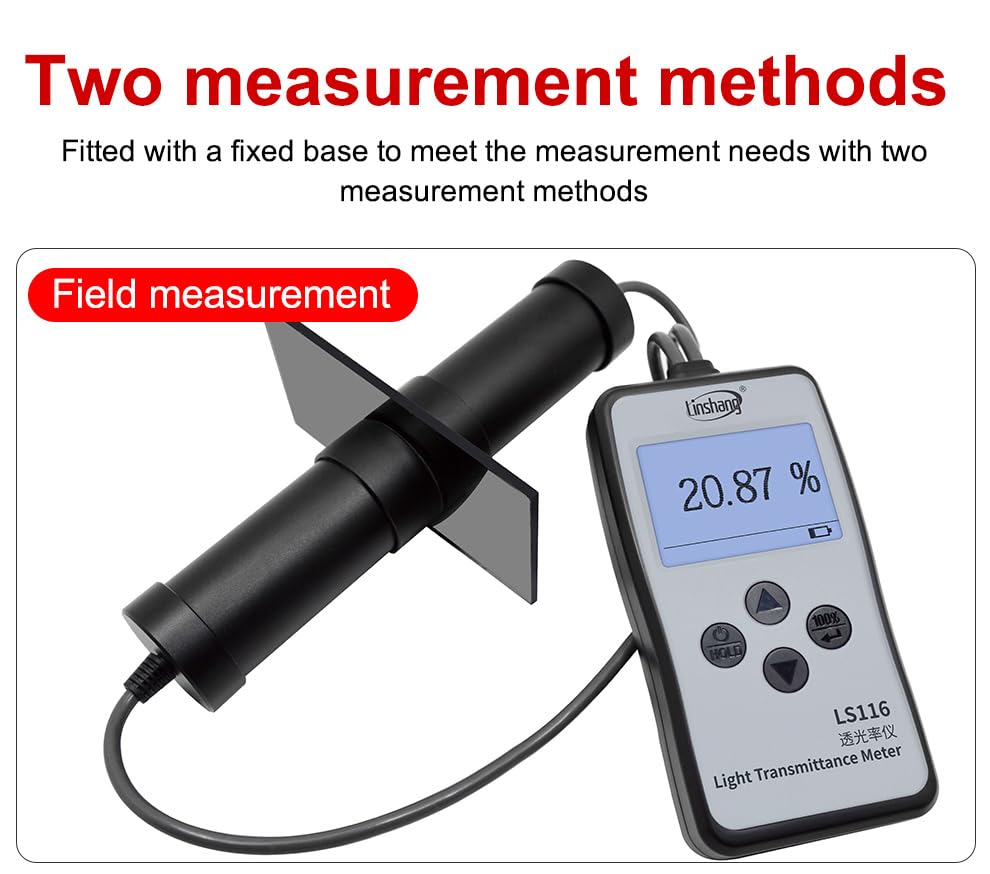

- Field Measurement: The compact design allows for on-site measurements, such as testing automotive front glass or other installed materials.
4.3 Testing Transmittance
Place the material to be tested between the light source and the receiver of the probe. Ensure the material completely covers the light path. The measurement will be displayed instantly on the meter's screen.
4.4 High and Low Transmittance Materials

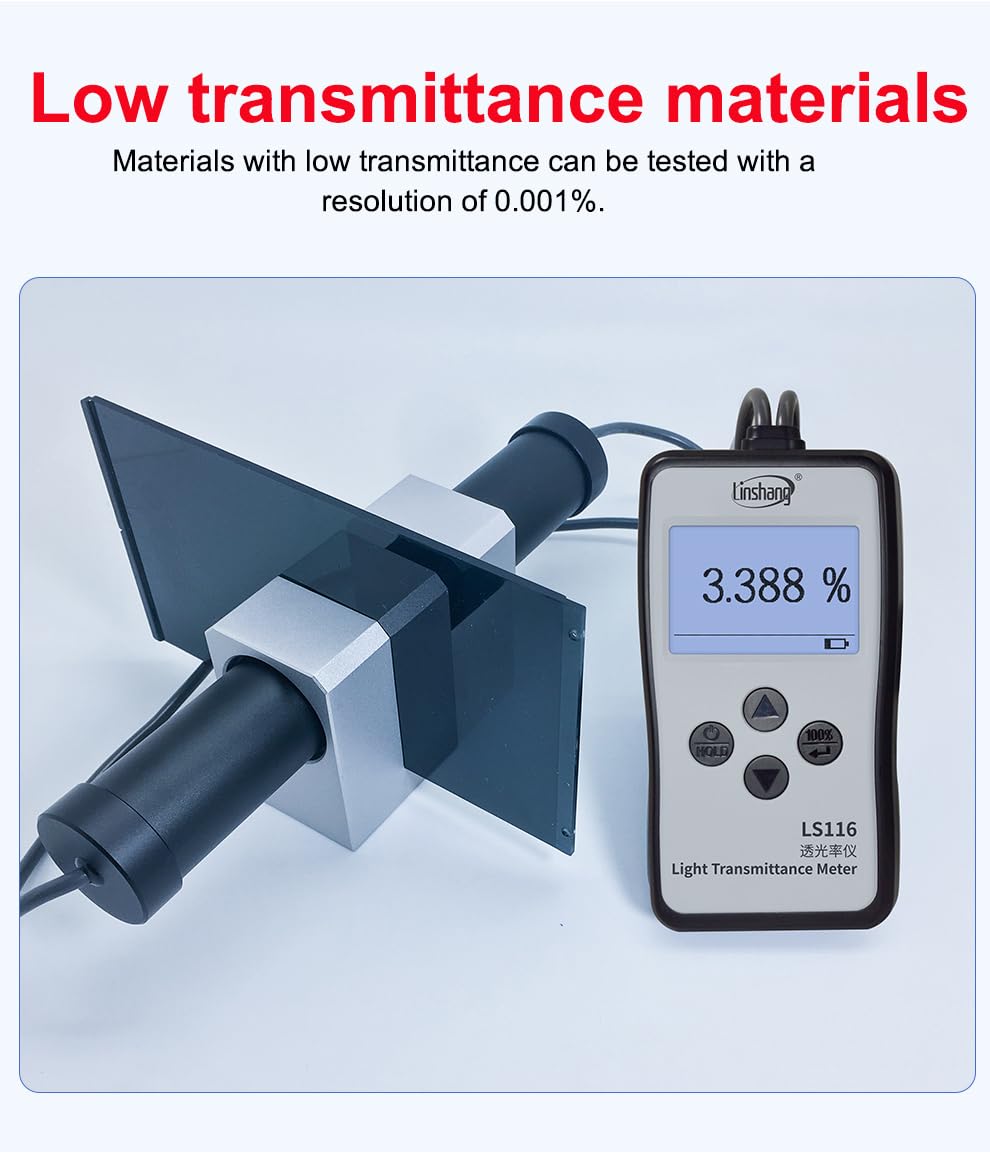

The LS116 is capable of testing a wide range of materials, from highly transparent to very low transmittance. It can measure high-transmittance samples up to 99.8% and low-transmittance materials with a resolution of 0.001%.
4.5 Large Thickness Materials
Thanks to its parallel light path and receiver spotlight design, the LS116 can effectively measure large thickness materials, up to 100mm thick, without compromising accuracy.
4.6 Diverse Material Testing
The LS116 is suitable for testing the transmittance of various uniform light-transmitting materials, including but not limited to:
- Transparent glass
- Laminated glass
- Insulated glazing
- Solar film
- Coated materials
- Organic material panels
4.7 Accuracy and Certification
The LS116 boasts an accuracy of ±1%, ensuring reliable and precise measurements. This accuracy is verified through testing by metrology institutes, providing confidence in its performance.
4.8 Instructional Video
For a visual demonstration of the LS116's operation and capabilities, please watch the official product video below:
5. Maintenance
To ensure the longevity and accuracy of your LS116 tester, follow these maintenance guidelines:
- Keep the device clean and free from dust and debris. Use a soft, dry cloth for cleaning.
- Avoid exposing the device to extreme temperatures, humidity, or direct sunlight.
- Store the device in its original packaging or a protective case when not in use.
- Remove batteries if the device will not be used for an extended period to prevent leakage.
- Handle the probe and meter with care to prevent physical damage.
6. Troubleshooting
If you encounter issues with your LS116 tester, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on | Dead or incorrectly installed batteries | Replace batteries with new AAA batteries, ensuring correct polarity. |
| Inaccurate readings | Dirty probe lenses; improper material placement; device not warmed up | Clean probe lenses with a soft, lint-free cloth. Ensure material is flat and fully covers the light path. Allow device to complete warm-up. |
| "WARM-UP" message persists | Insufficient warm-up time; environmental conditions | Allow more time for warm-up. Ensure device is in a stable temperature environment. |
If the problem persists after attempting these solutions, please contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | PROBON |
| Model | LS116 |
| Manufacturer | Linshang |
| Transmittance Measurement Range | 0.001% - 99.8% |
| Accuracy | ±1% |
| Resolution | 0.001% (for low transmittance) |
| Light Path Design | Parallel light path with receiver spotlight |
| Max. Material Thickness | Up to 100mm |
| Power Source | Four AAA batteries |
| ASIN | B0CC2F46HW |
| UPC | 746559888897 |
8. Warranty and Support
This PROBON product is covered by a standard manufacturer's warranty. Please refer to the included Warranty Card for specific terms and conditions regarding coverage and duration.
For technical support, service, or inquiries about your Linshang LS116 Optical Transmission VLT Tester, please contact the seller, huaming instruments, through the Amazon platform or refer to the contact information provided on your warranty card.
