ZonQoonz AL-01104X4 4-Pack Wireless Rechargeable RGB 36 LED Stage Par Light User Manual

1. Product Overview

The ZonQoonz AL-01104X4 is a versatile wireless rechargeable RGB LED stage par light designed for various event lighting needs. It features 36 individual 1W LEDs (12 Red, 12 Green, 12 Blue) and offers multiple control modes including DMX512, Master-slave, Sound Activation, and Automatic operation. Its integrated 6000mAh lithium battery provides extended usage times, making it ideal for mobile setups.

2. Package Contents

Verify that all items are present in the package:

• 4 x LED Par Projectors
• 4 x Remote Controls (one spare battery included per remote)
• 4 x Power Cords
• 8 x Brackets and Screws
• 4 x User Manuals

3. Setup

3.1 Initial Charging

Before first use, fully charge the product for up to 7 hours to ensure optimal battery performance.

3.2 Physical Installation

The light can be placed directly on the floor using its adjustable 360° bracket or mounted on a truss. Use the provided screws and brackets for secure installation.

4. Operating Instructions

4.1 Controls and Connections

The rear panel of the light provides access to all control interfaces and connections.

4.2 Control Modes

The light supports various control modes:

• DMX512: For professional lighting control via a DMX controller. Connect DMX IN and DMX OUT ports to your DMX chain.
• Master-slave: Link multiple lights together. One light acts as the master, controlling the others.
• Sound Activation: The light reacts to ambient sound or music.
• Automatic: Pre-programmed light shows run automatically.
• Remote Control: Use the included IR remote for convenient operation.

4.3 Remote Control Functions

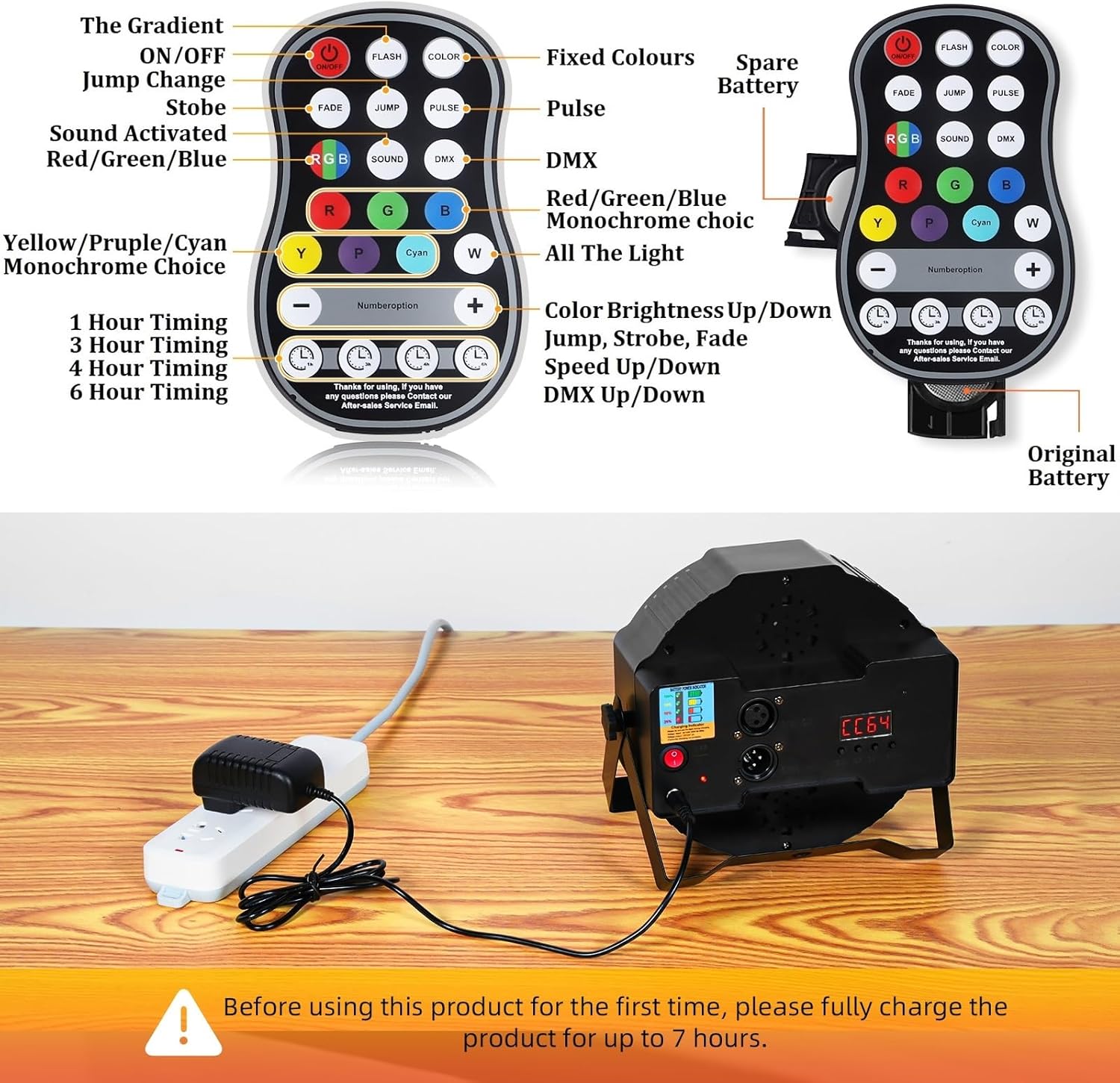

The remote control allows for easy adjustment of various settings:

• FLASH: Strobe effect.
• COLOR: Fixed color selection (Red, Green, Blue, Yellow, Purple, Cyan, White).
• FADE: Smooth color transitions.
• JUMP: Abrupt color changes.
• PULSE: Pulsating color effect.
• RGB: Activates RGB mixing mode.
• SOUND: Activates sound-controlled mode.
• DMX: Activates DMX control mode.
• +/-: Adjusts brightness, speed, or DMX values.
• Timing: Sets automatic shutdown after 1, 3, 4, or 6 hours.

4.4 Timing Function

To conserve battery and protect the LED par light, you can set a timer for automatic shutdown. Options include 1, 3, 4, or 6 hours.

4.5 Color Modes and Effects

The light can produce a wide range of colors and effects:

• Static Colors: Select individual Red, Green, Blue, or mixed colors.
• Dynamic Effects: Flash, Fade, Jump, Pulse, and Gradient modes.

5. Maintenance

5.1 Cleaning

Regularly clean the exterior of the light with a soft, dry cloth. Ensure the cooling fan vents are free from dust and debris to maintain optimal performance.

5.2 Battery Care

To prolong battery life, avoid fully discharging the unit frequently. If storing for extended periods, charge the battery to approximately 50% and recharge every 3-6 months.

6. Troubleshooting

• Light not turning on: Ensure the unit is charged or connected to power. Check the ON/OFF switch.
• Remote control not working: Check the remote's battery. Ensure there are no obstructions between the remote and the light's IR receiver.
• DMX issues: Verify DMX cable connections and DMX address settings on the light and controller.
• Short battery life: Ensure the unit is fully charged. Battery performance can degrade over time.

7. Specifications

8. Warranty and Support

ZonQoonz products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official ZonQoonz website.
