SOBOUR Battery Replacement for Eureka i5 User Manual

1. Introduction

Thank you for choosing the SOBOUR Battery Replacement for Eureka i5. This manual provides essential information for the safe and effective use, installation, and maintenance of your new battery. Please read this manual thoroughly before using the product and retain it for future reference.

This battery is designed as a direct replacement for the Eureka i5 vacuum cleaner, offering reliable power and performance. It features a Lithium-Ion composition with a capacity of 3400mAh / 50.32Wh and operates at 14.8V.

2. Safety Information

Your safety is paramount. Please observe the following warnings and precautions to prevent injury or damage to the product.

• DO NOT ATTEMPT TO DISASSEMBLE, OPEN OR SERVICE THE BATTERY PACK. This can lead to electric shock, fire, or exposure to hazardous materials.
• REPLACE ONLY WITH THE BATTERY PACK DESIGNED FOR THIS PRODUCT. Using an incompatible battery may cause damage or safety hazards.
• DO NOT CRUSH, PUNCTURE, SHORT EXTERNAL CONTACTS OR DISPOSE OF IN FIRE OR WATER. Such actions can cause explosions, fire, or leakage of corrosive substances.
• DO NOT STORE ABOVE 60°C (140°F). High temperatures can degrade battery performance and pose a fire risk.
• WARRANTY VOID IF LABEL IS REMOVED. The product label contains important identification and safety information.
• Keep the battery away from children and pets.
• If the battery shows signs of damage, swelling, or leakage, discontinue use immediately and dispose of it properly.
• Always consult the original vacuum cleaner's manual for specific battery replacement instructions and safety guidelines.

3. Product Overview

The SOBOUR CS-SMR510VX is a high-quality Lithium-Ion replacement battery designed for the Eureka i5 vacuum cleaner. It provides consistent power for effective cleaning.

Figure 3.1: Overview of the SOBOUR Battery Replacement for Eureka i5. This image displays the battery pack with its black casing and exposed multi-colored wires leading to the connector.

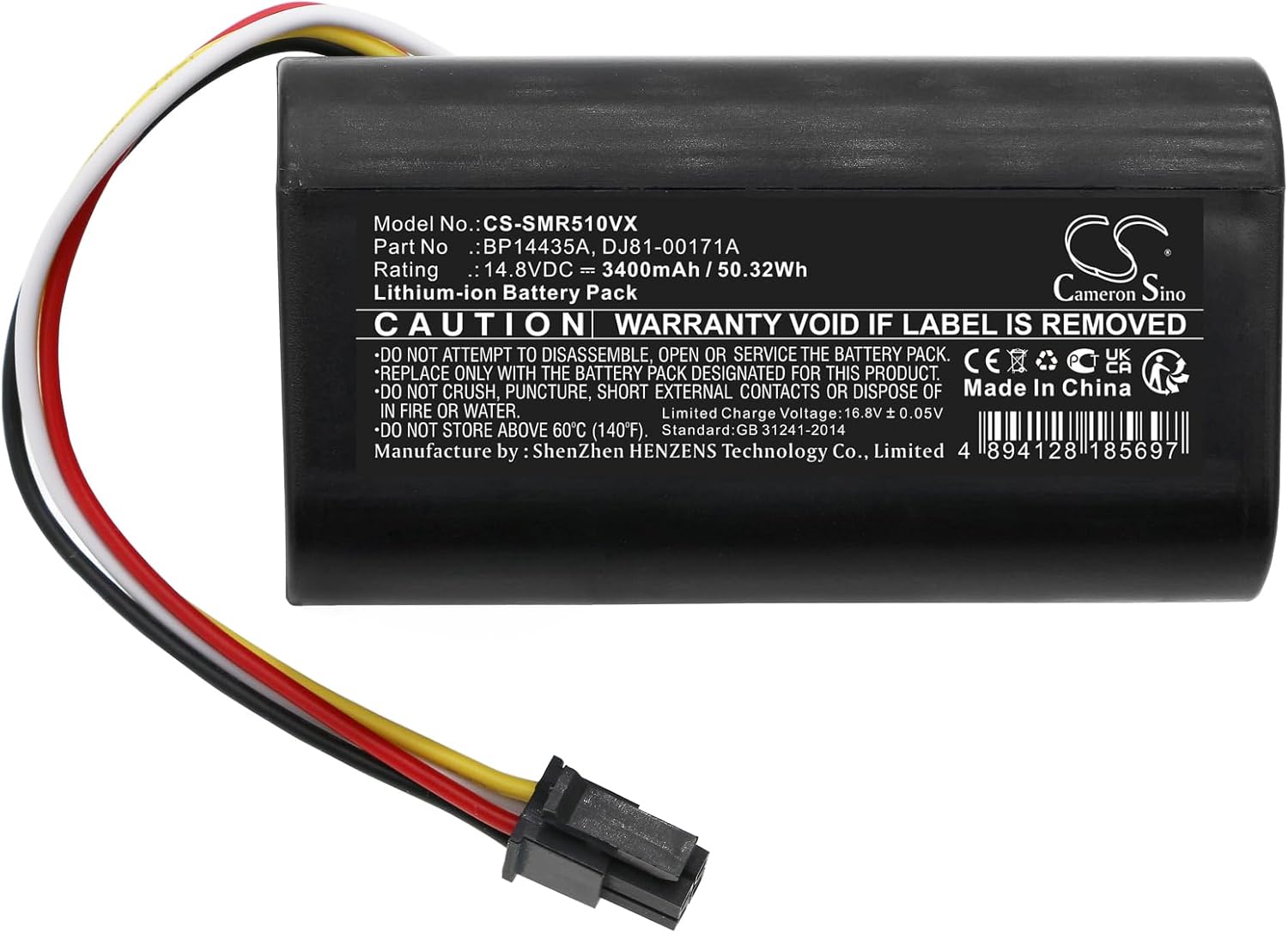

Figure 3.2: Close-up view of the battery label. The label details the model number (CS-SMR510VX), part number, rating (14.8VDC, 3400mAh / 50.32Wh), battery type (Lithium-Ion), and important safety warnings regarding disassembly, replacement, crushing, puncturing, and storage temperature.

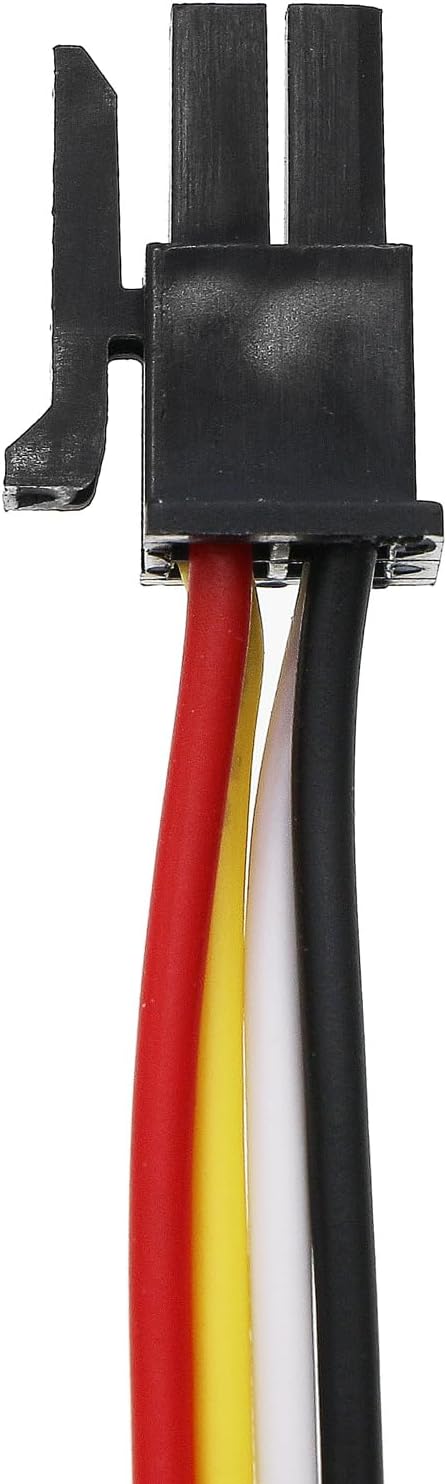

Figure 3.3: Detailed view of the battery's electrical connector. This image shows the black plastic connector with four pins, attached to red, yellow, white, and black wires, designed for secure connection to the vacuum cleaner.

4. Setup and Installation

Before attempting to replace the battery, ensure the Eureka i5 vacuum cleaner is turned off and unplugged from any power source. Refer to your Eureka i5 vacuum cleaner's original instruction manual for specific battery compartment location and removal procedures.

1. Power Off: Ensure the vacuum cleaner is completely powered off and disconnected from its charging base or power outlet.
2. Locate Battery Compartment: Identify the battery compartment on your Eureka i5 vacuum. This is typically secured with screws or latches.
3. Remove Old Battery: Carefully open the compartment and disconnect the old battery's connector. Remove the old battery.
4. Install New Battery: Connect the SOBOUR replacement battery's connector to the vacuum's port, ensuring it clicks securely into place. Gently place the new battery into the compartment.
5. Secure Compartment: Close and secure the battery compartment.
6. Initial Charge: Place the vacuum cleaner on its charging base or connect it to the charger to initiate the first charge cycle. It is recommended to fully charge the battery before its first use.

5. Operating Instructions

Once installed and fully charged, the SOBOUR replacement battery operates seamlessly with your Eureka i5 vacuum cleaner.

• Charging: Always use the original Eureka i5 charger and charging base. The battery is designed to be recharged within the vacuum cleaner.
• Usage: Operate your vacuum cleaner as per its original instructions. The battery will provide power until it requires recharging.
• Battery Indicator: Monitor the battery level indicator on your vacuum cleaner to determine when recharging is necessary.

6. Maintenance

Proper maintenance can extend the life and performance of your battery.

• Storage: If the vacuum cleaner or battery will not be used for an extended period, store the battery in a cool, dry place, ideally at room temperature (below 60°C / 140°F). Avoid extreme temperatures.
• Partial Charge for Storage: For long-term storage, it is advisable to store the battery with a partial charge (around 50%) rather than fully charged or completely depleted.
• Regular Use: For optimal battery health, use and recharge the battery regularly.
• Cleaning: Keep the battery contacts clean and free from dust or debris. Use a dry cloth to wipe the exterior of the battery if necessary.

7. Troubleshooting

If you encounter issues with your SOBOUR replacement battery, consider the following troubleshooting steps:

• Battery Not Charging:
  • Ensure the vacuum cleaner is properly seated on the charging base or the charger is securely connected.
  • Verify that the power outlet is functional.
  • Check the battery connector for any loose connections or damage.
• Short Run Time:
  • Ensure the battery has been fully charged before use.
  • Over time, all rechargeable batteries experience capacity degradation. If the run time is significantly reduced after many charge cycles, the battery may be nearing the end of its lifespan.
• Vacuum Not Turning On:
  • Confirm the battery is correctly installed and fully charged.
  • Consult your vacuum cleaner's manual for general power-on troubleshooting.

If problems persist after attempting these steps, please refer to the Warranty and Support section.

8. Specifications

9. Warranty and Support

The SOBOUR Battery Replacement for Eureka i5 comes with a FULL ONE YEAR WARRANTY from the date of purchase. This warranty covers manufacturing defects and ensures the battery meets its stated specifications under normal use.

The warranty is void if the product label is removed, or if the battery has been disassembled, opened, serviced, or subjected to misuse, abuse, or unauthorized modifications.

For warranty claims, technical support, or any questions regarding your SOBOUR battery, please contact your retailer or the SOBOUR customer service department through the contact information provided at the point of purchase. Please have your purchase receipt and product model number (CS-SMR510VX) available when contacting support.
