1. Product Overview
The 7PJE607 Washer Drive Belt is a high-quality replacement component designed to restore the efficient operation of your washing machine. Manufactured from premium rubber, this belt offers exceptional durability, anti-fracture, and anti-aging properties, ensuring stable and reliable performance over time.
Image: The 7PJE607 Washer Drive Belt, a black multi-ribbed belt, coiled on a white background.
Key Features:
- Premium Rubber Material: Ensures durability, anti-fracture, and anti-aging properties.
- Stable Performance: Designed for consistent and reliable power transmission.
- Direct Replacement: Engineered to fit specific washer models for easy installation.
Compatible Models:
This washer drive belt is compatible with a range of washing machine models. Please verify your appliance's model number for exact fitment.
- Frigidaire FFTW4120SW1
- Insignia NS-TWM41WH8A, NS-TWM45W1
- Midea MLV41N1AWW, MLV45N3BWW, MLV45N1BWW, CTW41N1AW, MLV41N1AWWC, MLV45N1BWWC, CLAWI47W
Image: Graphic illustrating the compatibility of the belt with various Frigidaire, Insignia, and Midea washer models.
Replacement Part Numbers:
This belt serves as a direct replacement for the following part numbers:
- 5304516132
- 4839724
- AP6339955
- PS12585162
- EAP12585162
Image: The washer drive belt displayed in front of a laundry room setting, highlighting the replacement part numbers.
2. Setup / Installation
Replacing a washer drive belt typically involves accessing the rear or bottom of the washing machine. Always ensure the appliance is unplugged and disconnected from power before beginning any repair work.
Before You Begin:
- Safety First: Disconnect the washer from its power source by unplugging it from the wall outlet. Turn off the water supply valves.
- Tools Needed: You may need a screwdriver (Phillips or flathead), a socket wrench set, and possibly pliers, depending on your washer model.
- Access: Depending on your washer's design, you may need to remove the back panel or tilt the machine to access the motor and drum assembly.
Installation Steps:
- Locate the Old Belt: Once the access panel is removed, locate the motor and the large pulley connected to the drum. The old belt will be stretched around these components.
- Remove the Old Belt: Carefully pry the old belt off the pulleys. It may be tight, so gentle force or a lever might be needed. Inspect the pulleys for any damage or debris.
- Install the New Belt: Place the new belt around the smaller motor pulley first. Then, stretch it over the larger drum pulley. This often requires holding the belt on the motor pulley with one hand while rotating the drum pulley with the other to guide the belt into place. Ensure the belt is seated correctly in all grooves.
- Verify Tension: Once installed, the belt should be taut but allow for a small amount of flex. Rotate the drum by hand a few times to ensure the belt tracks properly and does not slip.
- Reassemble: Reattach any panels or covers that were removed. Reconnect the power and water supply.

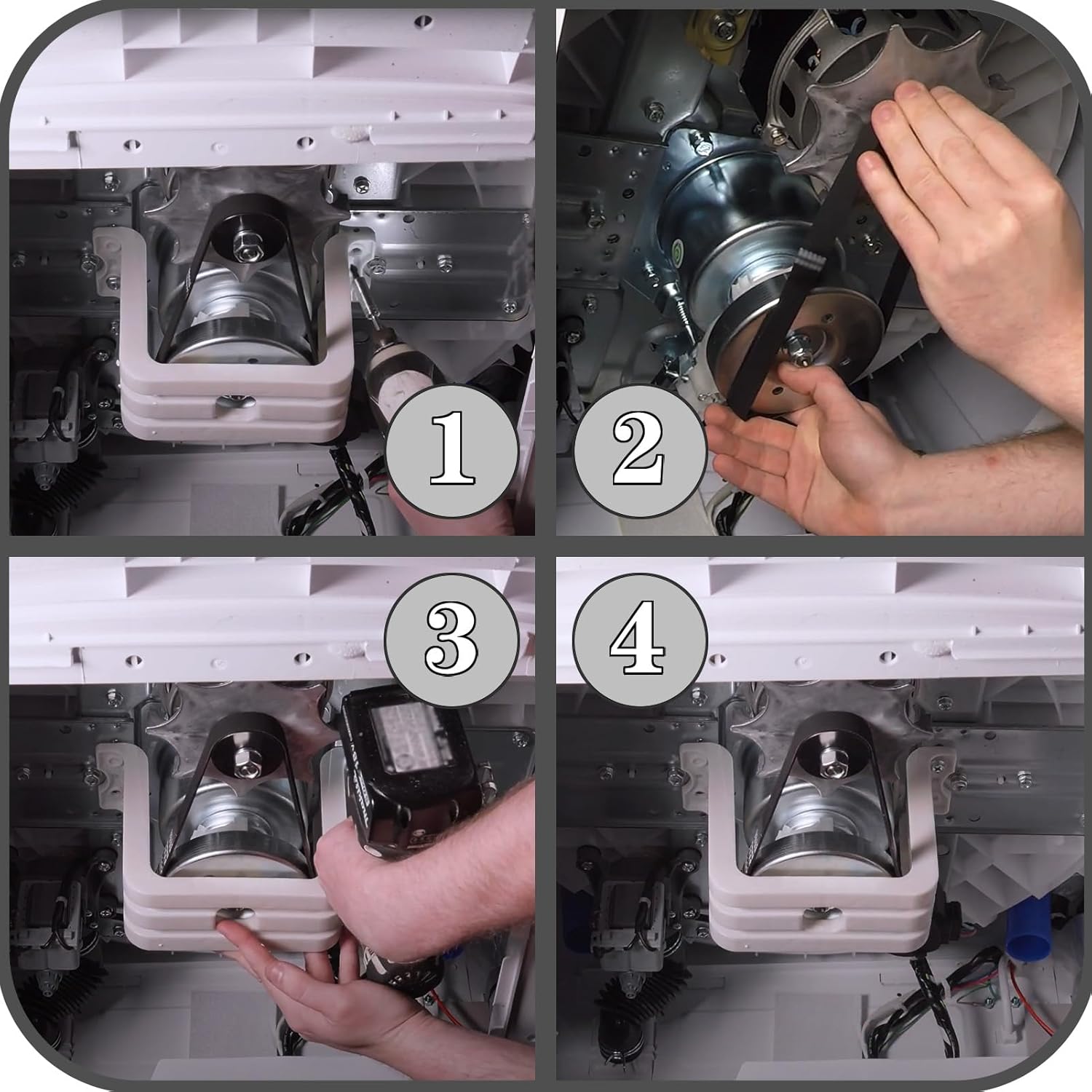

Image: A four-panel graphic demonstrating the steps for installing a washer drive belt, including removing the old belt and fitting the new one onto the pulleys.
3. Operating Instructions
The washer drive belt is an integral component of your washing machine's drive system. Once correctly installed, it transmits power from the motor to the wash drum, enabling the drum to agitate and spin during wash cycles. No specific user operation is required for the belt itself; its function is automatic once the washer is in use.
Ensure that the washer is not overloaded, as excessive weight can put undue strain on the drive belt and other internal components, potentially leading to premature wear or failure.
4. Maintenance
Regular inspection and timely replacement are crucial for maintaining the optimal performance of your washer drive belt and preventing larger appliance issues.
- Periodic Inspection: It is recommended to periodically inspect the drive belt for signs of wear, such as cracks, fraying, stretching, or glazing. This can be done during other routine washer maintenance or if you notice unusual noises or performance issues.
- Cleanliness: Keep the area around the motor and pulleys free from lint, debris, or foreign objects that could interfere with the belt's operation or cause damage.
- Timely Replacement: Over time, due to usage and wear, the washer drive belt may become loose, damaged, or worn out. If any signs of wear are observed, or if the washer is experiencing issues related to drum movement, the belt should be replaced promptly to avoid further damage to the appliance.
5. Troubleshooting
If your washing machine is not functioning correctly, the drive belt could be a contributing factor. Here are some common issues and potential solutions related to the drive belt:
| Problem | Possible Cause | Solution |
|---|---|---|
| Drum not spinning or agitating | Broken, stretched, or slipped drive belt | Inspect the belt. If broken or severely stretched, replace it. If slipped, re-seat it correctly. |
| Loud squealing or grinding noise during operation | Worn, glazed, or misaligned belt; worn pulleys | Check the belt for wear and proper alignment. Replace the belt if worn. Inspect pulleys for damage. |
| Burning smell | Friction from a slipping or misaligned belt | Immediately stop the washer. Inspect the belt for proper tension and alignment. Replace if damaged or worn. |
| Washer stops mid-cycle | Belt slipping or breaking under load | Inspect the belt for damage or excessive stretch. Replace if necessary. Avoid overloading the washer. |
Note: Always unplug the washer before performing any inspection or repair work.
6. Specifications
Detailed specifications for the 7PJE607 Washer Drive Belt:
| Attribute | Value |
|---|---|
| Model Number | 7PJE607 (Replacement for 5304516132) |
| Material | Premium Rubber |
| Belt Style | Flat Belt, Multi-ribbed (7 Ribs, 6 Grooves) |
| Length | Approximately 23.89 inches |
| Width | Approximately 0.66 inches |
| Item Weight | 0.18 Kilograms (approx. 6.38 ounces) |
| Manufacturer | GYUPTRK |
Image: Graphic detailing the product dimensions, showing a length of 23.89 inches, width of 0.66 inches, and indicating 7 ribs with 6 grooves.
7. Warranty and Support
GYUPTRK is committed to providing high-quality replacement parts. While specific warranty details are not provided in this manual, we stand behind the quality and durability of our products. For any questions regarding installation, compatibility, or product performance, please contact your retailer or the manufacturer directly.
For further assistance, please refer to the contact information provided with your purchase or visit the GYUPTRK brand page on Amazon.
