1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your HOWHY 47-inch Concealed Sliding Barn Door Hardware and Track system. This innovative hardware set is designed to create a floating door effect with a hidden track and features a double soft-closing mechanism for smooth and quiet operation. Please read these instructions carefully before beginning installation to ensure proper function and safety.

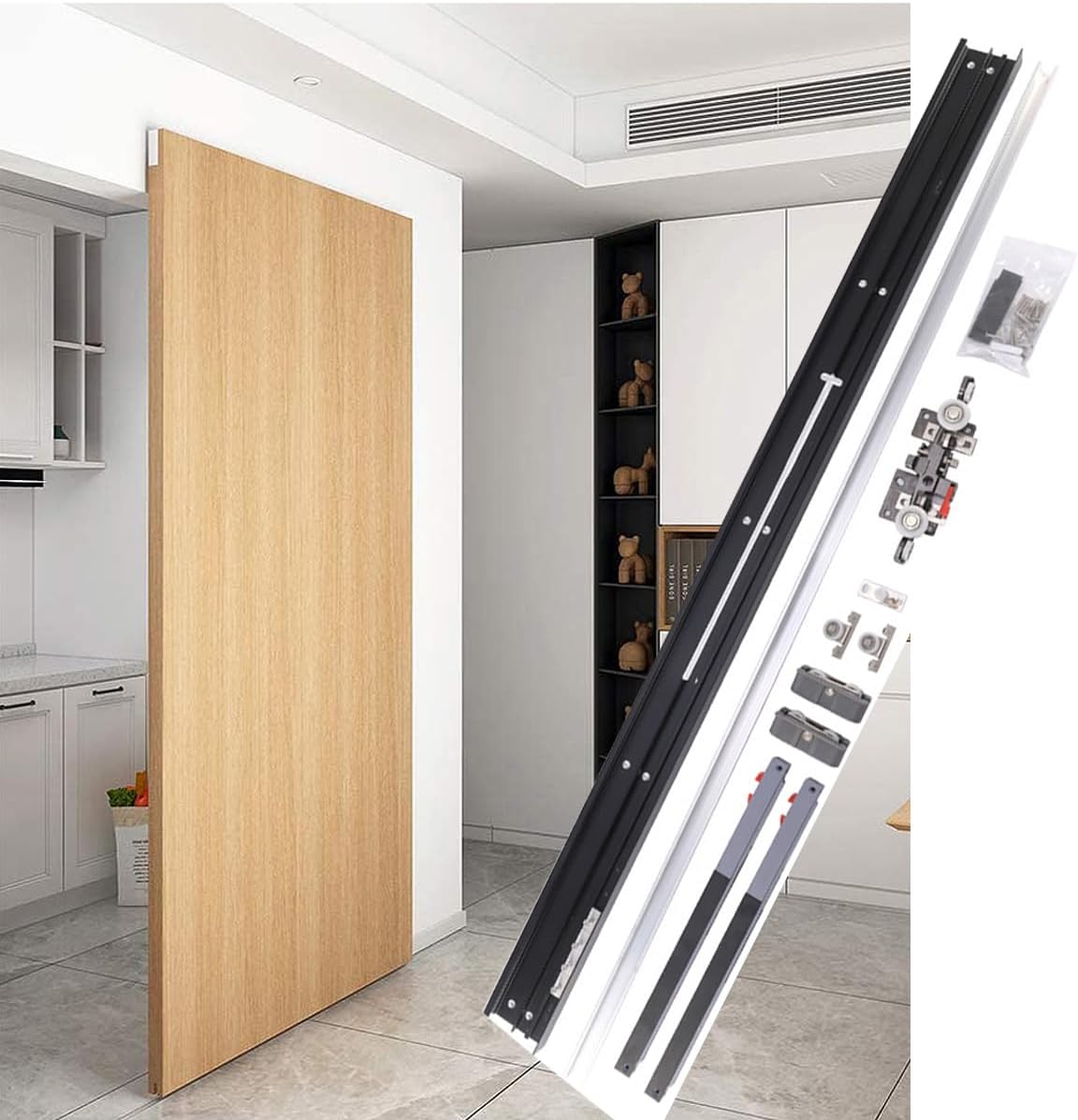

Image 1: Overview of the HOWHY concealed sliding barn door hardware and an example of an installed door.
2. Product Features
- Concealed Design: The unique track wall-hanging design ensures all hardware accessories are hidden, creating a modern, floating door aesthetic.
- Soft Closing Mechanism: Equipped with a double soft-close system for smooth, quiet, and controlled opening and closing of the door.
- Durable Construction: Made from thickened aluminum alloy and zinc alloy for enhanced durability and stability.
- Adjustable Runners: Features upgraded runners with high-hardness steel and durable nylon pulleys, allowing for forward and backward, and up and down adjustments for precise installation.
- High Load Capacity: Supports door panels weighing up to 80 kg (176 lbs).
- Versatile Installation: Supports two doorway installation modes: completely open or partially blocked by the door.
Image 2: Illustration of how the hardware is concealed within the door and wall, creating a floating appearance.
Image 3: Close-up of key components including the aluminum track, silent bottom wheels, bidirectional soft-close mechanism, and upgraded runners.
Image 4: Summary of product features including material composition, quiet design, adjustability, and load capacity.
3. Components List
Please verify that all components listed below are present in your package before beginning installation.
Image 5: Detailed diagram of all included hardware components with their respective dimensions.
- Top Track (1200mm / 47.24")
- Bottom Track (1002mm / 39.37")
- Upper Runner Assembly
- Soft Close Mechanism (2 units)
- Bottom Wheels (2 units)
- Decorative Lids (2 units)
- Side Wheels (2 units)
- M4*38 Screws
- M5*34 Screws
- M4*25 Screws
- Screw Anchors
- Hexagonal Wrench
- Bottom Locator
4. Setup and Installation
Careful planning and precise measurements are crucial for successful installation. It is recommended to have two people for installation. If you are unfamiliar with this type of installation, consider consulting a professional.
4.1 Pre-Installation Requirements
- Door Thickness: Suitable for wood door thickness between 1.57" (40mm) and 1.96" (50mm).
- Door Width: Maximum 47.24" (1200mm). The track can be cut to fit narrower door widths.
- Maximum Door Weight: 176 lbs (80 kg).
- Door Panel Height: The door panel needs to be 3" (76mm) higher than the door opening.
- Ceiling Clearance: A minimum of 2" (50mm) space allowance is required from the door opening to the ceiling.
- Door to Wall Gap: Approximately 0.4" to 0.5" (10-13mm) gap between the door and the wall.
- Baseboard Thickness: Baseboard thickness should be less than 0.4" (10mm).
Image 6: Critical installation size requirements and clearances for the door and surrounding structure.
4.2 Installation Steps (General Overview)
- Prepare the Door and Wall: Ensure the door panel meets the thickness and weight requirements. Prepare the wall surface where the track will be mounted.
- Mount the Top Track: Securely install the top track to the wall, ensuring it is level and at the correct height based on your door dimensions and ceiling clearance.
- Install Runners and Soft Close: Attach the upper runners and soft-close mechanisms to the top edge of your door panel. The runners are designed to snap easily into the track.
- Install Bottom Track and Wheels: Recess the bottom track into the bottom edge of the door. Install the bottom wheels and side wheels as per the diagram to prevent the door from rubbing against the wall.
- Hang the Door: Carefully lift and place the door panel onto the top track, ensuring the runners engage correctly.
- Adjust and Fine-tune: Use the adjustable features of the runners to fine-tune the door's position (up/down, left/right) and ensure smooth operation. Adjust the anti-skidding parts to prevent door disengagement.
- Install Bottom Locator: Secure the bottom locator to the floor to guide the door's movement.

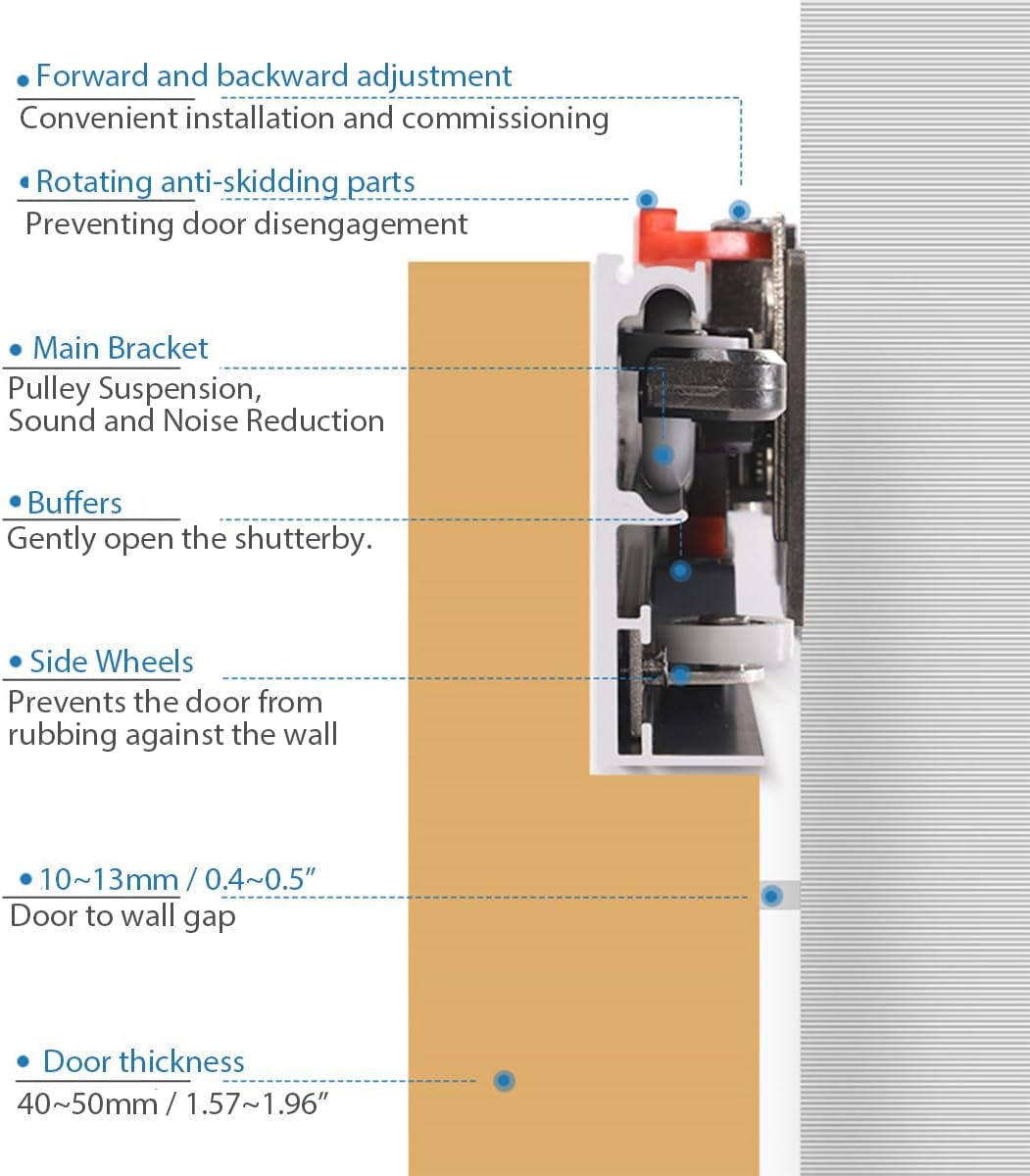

Image 7: Illustration of the adjustable runner components, including forward/backward adjustment, anti-skidding parts, main bracket, buffers, and side wheels, along with door thickness and gap specifications.
Image 8: Details on the adjustable runner, how tracks can be cut to size, and mechanisms to prevent door derailment.
5. Operating Instructions
The HOWHY concealed sliding barn door system is designed for effortless operation. Simply push or pull the door panel to open or close it. The integrated soft-close mechanism will engage automatically towards the end of the door's travel in both directions, gently bringing the door to a stop without slamming. This bidirectional buffering ensures quiet and smooth movement.
6. Maintenance
To ensure the longevity and smooth operation of your HOWHY sliding barn door hardware, follow these simple maintenance guidelines:
- Regular Cleaning: Wipe down the visible parts of the track and door hardware with a soft, damp cloth to remove dust and debris. Avoid abrasive cleaners.
- Check Fasteners: Periodically inspect all screws and fasteners to ensure they are tight. Re-tighten if necessary.
- Lubrication: If you notice any stiffness or noise, a small amount of silicone-based lubricant can be applied to the rollers and track. Avoid oil-based lubricants as they can attract dust.
- Inspect Rollers: Check the rollers for any signs of wear or damage. Replace components if they are significantly worn.
7. Troubleshooting
If you encounter any issues with your HOWHY sliding barn door hardware, refer to the following common troubleshooting tips:
- Door is difficult to slide:
- Check if the track is clean and free of obstructions.
- Ensure the rollers are clean and lubricated.
- Verify that the door is properly aligned on the track and not rubbing against the wall or floor. Adjust side wheels if necessary.
- Door is noisy during operation:
- Lubricate the rollers and track.
- Check for loose fasteners on the runners or track.
- Soft-close mechanism not engaging or working properly:
- Ensure the soft-close units are correctly positioned and securely attached.
- Verify that the door's speed is appropriate for the soft-close to engage.
- Door panel appears uneven or misaligned:
- Use the adjustable features of the runners to correct the door's height and horizontal alignment.
- Confirm that the top track is perfectly level.
If these steps do not resolve the issue, please contact HOWHY customer support for further assistance.
8. Specifications
| Attribute | Specification |
|---|---|
| Brand | HOWHY |
| Model Number | HW YCM-01 |
| Size | 47 inches (Track Length) |
| Color | Black |
| Material | Aluminum, Zinc Alloy |
| Style | Modern |
| Assembly Required | Yes |
| Item Weight | 7.48 pounds |
| Product Dimensions | 2 x 49 x 8.6 inches |
| Suitable Door Thickness | 1.57"~1.96" (40mm~50mm) |
| Maximum Door Weight | 176 lbs (80 kg) |
| Included Components | Sliding Barn Door Hardware and Track set |
9. Warranty and Support
HOWHY products are designed for quality and durability. For specific warranty information, please refer to the product packaging or contact HOWHY customer service directly. If you require assistance with installation, troubleshooting, or have any questions regarding your product, please reach out to HOWHY customer support through their official channels.
You can often find support and additional resources by visiting the HOWHY store page on Amazon or their official website.
