SCNBAORE MY-S08 Carbon Monoxide Detector User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your SCNBAORE MY-S08 Carbon Monoxide (CO) Detector. Carbon monoxide is a colorless, odorless, and tasteless gas that can be fatal. This detector is designed to monitor CO levels and alert you to dangerous concentrations, helping to protect your home and family. Please read this manual thoroughly before use and retain it for future reference.

2. Product Overview

The SCNBAORE MY-S08 Carbon Monoxide Detector is a high-accuracy device featuring an advanced electrochemical sensor, a digital LCD display, and an 85dB audible alarm. It is designed for reliable CO detection in various environments.

Key Features:

• High Sensitivity Electrochemical Sensor: Provides accurate and reliable CO detection.
• LCD Digital Display: Shows real-time CO concentration in parts per million (PPM).
• Loud Audible Alarm: Emits an 85dB warning sound upon detection of dangerous CO levels.
• Visual Alarm Indicators: Green, yellow, and red LED lights indicate operational status and alarm conditions.
• Test/Reset Button: Allows for easy testing of the alarm function and resetting after an alarm.
• Compact Design: Sleek and low-profile, suitable for various room decors.
• Battery Powered: Operates on 3 AAA batteries (not included) for flexible placement.

Components:

The detector consists of a main unit with an LCD screen, LED indicators, a test/reset button, and a battery compartment on the rear.

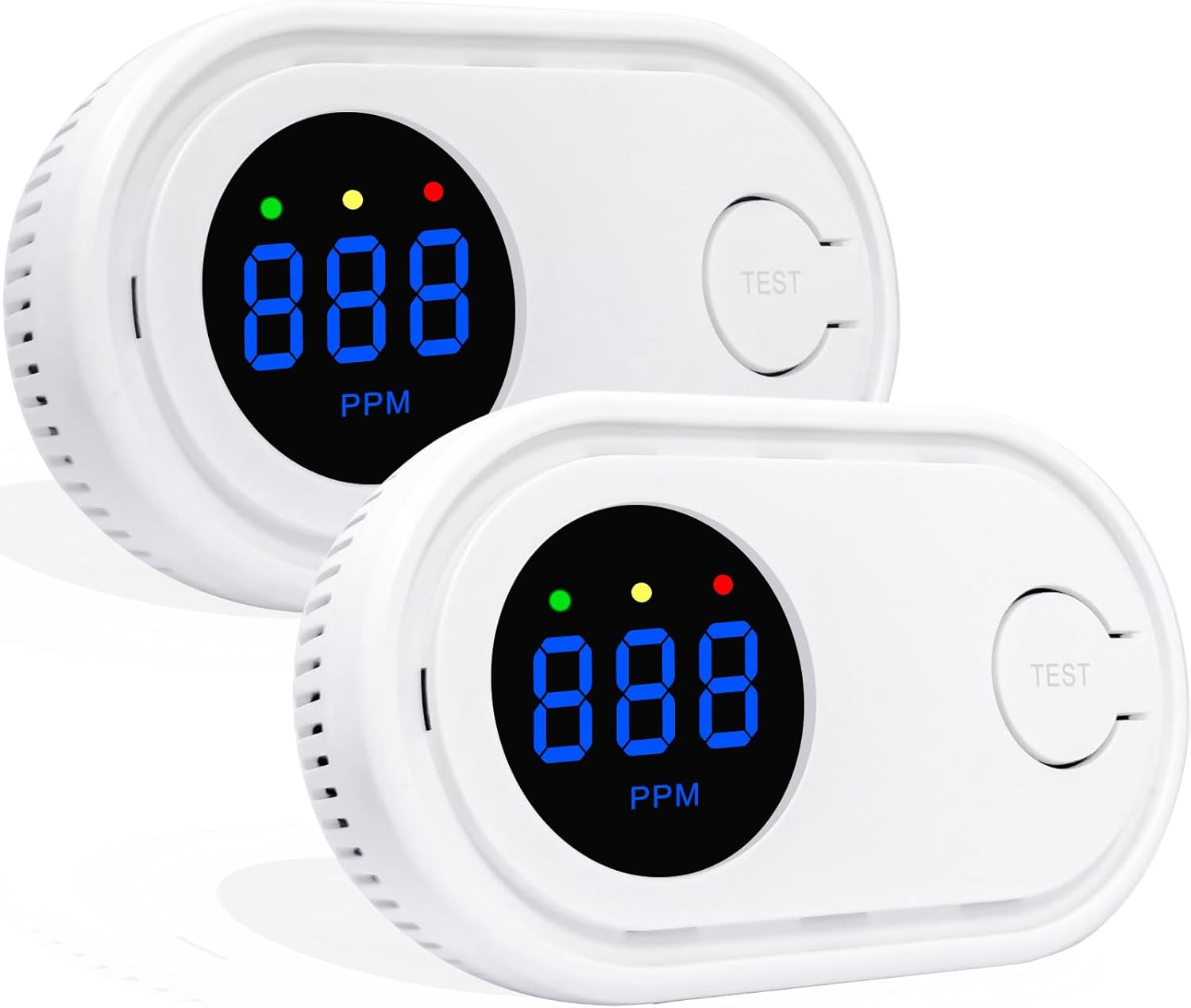

Image: Two SCNBAORE MY-S08 Carbon Monoxide Detectors, showing the front face with LCD display and test button.

Image: Detailed view of the detector's compact design, including dimensions (4.92in x 2.95in x 0.98in) and an explanation of the LED indicators: Green for normal operation, Yellow for fault self-check, Red for alarm/low battery.

Image: Visual representation of key features: High Sensitivity Electrochemical Sensor, LCD Digital Display, >85dB Voice Alarm, Test/Reset Button, Alarm Indicator, and Easy to install.

3. Setup and Installation

3.1 Battery Installation

1. Open the battery compartment cover on the back of the detector.
2. Insert three (3) AAA batteries (not included), ensuring correct polarity (+ and -).
3. Close the battery compartment cover securely.
4. Upon battery insertion, the detector will perform a self-test, indicated by a sequence of LED lights and a countdown on the LCD display.

Note: For optimal performance and safety, use high-quality, non-rechargeable alkaline batteries.

3.2 Mounting Instructions

Proper placement of your CO detector is crucial for effective monitoring. Carbon monoxide is slightly lighter than air and mixes readily with it. For best results, install detectors:

• On every level of your home, including basements.
• Near sleeping areas and in rooms where fuel-burning appliances are used.
• At least 5 feet (1.5 meters) from fuel-burning appliances to avoid false alarms during startup.
• On a wall, approximately 5 feet (1.5 meters) from the floor, or on the ceiling.
• Avoid placing near windows, doors, or vents where drafts could affect readings.

Installation Steps:

1. Choose a suitable location according to the guidelines above.
2. Use the provided mounting hardware (screws and anchors) or adhesive pads.
3. If using screws, mark the drill points, drill holes, insert anchors, and secure the mounting bracket.
4. Attach the detector to the mounting bracket. Ensure the display is oriented correctly for easy viewing.
5. After installation, press the "TEST" button to confirm proper operation.

Image: Examples of suitable installation locations for the CO detector, including bedrooms, living rooms, offices, and kitchens.

4. Operating Instructions

4.1 Normal Operation

Once batteries are installed and the self-test is complete, the detector enters normal monitoring mode. The green LED indicator will blink periodically (approximately every 20-30 seconds) to confirm proper operation. The LCD display will typically show "0 PPM" or remain blank until CO is detected.

4.2 Alarm Conditions

When carbon monoxide is detected at dangerous levels, the detector will activate its alarm:

• The red LED indicator will flash rapidly.
• The audible alarm will sound loudly (85dB).
• The LCD display will show the detected CO concentration in PPM.

The alarm thresholds are based on the EN 50291 standard:

• 30 PPM: Alarm within 120 minutes.
• 50 PPM: Alarm between 60 to 90 minutes.
• 100 PPM: Alarm between 10 to 40 minutes.
• 300 PPM: Alarm within 3 minutes.

Image: Diagram illustrating the CO detection thresholds and corresponding alarm activation times: 30 PPM (within 120 min), 50 PPM (60-90 min), 100 PPM (10-40 min), 300 PPM (within 3 min).

4.3 What to Do When the Alarm Sounds

1. Immediately move to fresh air outdoors or open all doors and windows to ventilate the area.
2. Do a head count to check that all persons are accounted for.
3. Do not re-enter the premises until the CO source has been identified and corrected, and the area has been thoroughly ventilated.
4. Call your emergency services, fire department, or gas supplier from a fresh air location.
5. Press the "TEST/RESET" button to silence the alarm. If the alarm continues, it indicates CO is still present.

4.4 Test Function

Press and hold the "TEST" button for a few seconds. The detector will emit a series of beeps and flash its LEDs, and the LCD will show a test reading (e.g., "000 PPM" or a test sequence). This confirms the alarm's electronic circuitry, sensor, and horn are working correctly. Test your detector weekly.

5. Maintenance

5.1 Battery Replacement

When the batteries are low, the detector will typically indicate this with a specific low-battery warning (e.g., a yellow LED flash, a chirp, or a low battery icon on the LCD). Replace all three AAA batteries immediately with new, high-quality alkaline batteries. Refer to Section 3.1 for battery installation steps.

5.2 Cleaning Your Detector

Clean your CO detector regularly to prevent dust and debris from accumulating and affecting its performance. Use a soft, damp cloth to wipe the exterior. Do not use cleaning solvents or waxes. Do not paint the detector.

6. Troubleshooting

7. Specifications

• Model: MY-S08
• Sensor Type: Electrochemical
• Power Source: 3 x AAA batteries (DC 4.5V)
• Alarm Loudness: ≥85dB at 1 meter
• Operating Temperature: 40°F to 100°F (4.4°C to 37.8°C)
• Operating Humidity: 10% to 95% RH (non-condensing)
• CO Sensitivity/Alarm Time: Conforms to EN 50291 Standard
• Dimensions: Approximately 4.92 x 2.95 x 0.98 inches (12.5 x 7.5 x 2.5 cm)
• Weight: Approximately 7 ounces (198 grams)

8. Safety Information and Warnings

• This CO detector is designed for general residential and vehicle use. It is not intended to protect commercial or industrial premises.
• This device is not suitable for use in hazardous locations as defined in the National Electrical Code.
• This CO detector is not a substitute for smoke detectors. Install both smoke and CO detectors for comprehensive safety.
• Do not block or cover the detector's vents.
• Do not paint the detector. Paint can clog the sensor openings and interfere with the detector's ability to detect CO.
• Test the detector weekly to ensure proper operation.
• Do not attempt to repair this unit yourself. Refer all servicing to qualified personnel.

9. Warranty and Support

SCNBAORE provides a limited warranty for this product against defects in materials and workmanship under normal use. For specific warranty details, technical support, or to report any issues, please contact SCNBAORE customer service through your purchase platform or the contact information provided with your product packaging. Please have your model number (MY-S08) and purchase date available when contacting support.
