1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Likaci 5KW-8KW 12V/24V Diesel Air Parking Heater. Please read this manual thoroughly before using the product to ensure proper function and longevity.
The Likaci Diesel Air Parking Heater is designed to provide efficient heating for various applications, including cars, RVs, trucks, yachts, caravans, homes, garages, shops, and tents. Its compact size, light weight, and fast heating capabilities make it a versatile heating solution.
Figure 1.1: The Likaci Diesel Air Parking Heater is suitable for a wide range of applications, providing warmth in diverse environments such as recreational vehicles, trucks, residential spaces, garages, tents, boats, and car trailers.
2. Safety Information and Warnings
Adherence to the following safety guidelines is crucial to prevent injury, damage to the heater, or property damage.
- During operation, do not stop the heater by directly cutting off the power. To extend the service life of the machine, always turn off the heater using its designated switch and allow it to complete its cooling cycle before disconnecting power or leaving.
- Heaters must not be used in areas where flammable vapors or dust may be present, or in close proximity to flammable objects. Ensure adequate ventilation and clearance from combustible materials.
- The surface of the exhaust pipe becomes very hot during operation. Maintain a sufficient distance from heat-sensitive components, including but not limited to fuel pipes, electrical wires, rubber parts, combustible gases, and brake hoses.
- Properly distinguish between the air inlet and the exhaust air outlet during installation. The pipe connected to the air inlet is typically black, while the pipe connected to the exhaust air outlet is made of stainless steel. Incorrect connection can lead to hazardous conditions.
3. Product Overview
3.1 Components
The Likaci Diesel Air Parking Heater comes with a comprehensive set of components for installation and operation. Familiarize yourself with each part before proceeding with setup.
Figure 3.1: Overview of the main components included with the Likaci Diesel Air Parking Heater.
3.2 Key Features
- Efficient Heating: The combustion chamber is constructed from high-quality aluminum alloy, ensuring rapid heating, excellent heat dissipation, minimal carbon deposition, and extended service life. A reliable ceramic glow plug facilitates quick ignition and thorough fuel combustion.
- Low Noise Operation: Equipped with a silent fan and a low-frequency vibration oil pump, the heater operates quietly, contributing to a comfortable and peaceful environment.
- Upgraded Bluetooth Functionality: The integrated Bluetooth module allows convenient control of the heater via a dedicated mobile application (APP). The APP offers automatic mode, manual mode, and manual refueling mode to suit various needs.
- Convenient Remote Control: The included remote control provides access to temperature mode and level mode, allowing you to adjust settings from a distance.
- Premium Oil Pipe: Features a durable nylon oil pipe with a smaller diameter and improved flexibility, enhancing oil pumping speed and significantly reducing the risk of bending or blockage in the oil circuit.
- Upgraded LCD Switch Display: The 6-button LCD switch controller offers a clear display and includes a new manual refueling mode for precise fuel control.
Figure 3.2: The heater's low noise design ensures a quiet environment.
Figure 3.3: Internal structure of the diesel heater, highlighting key functional components.
4. Setup and Installation Guide
Proper installation is critical for the safe and effective operation of your diesel heater. Refer to the diagram below for a general overview of the installation process.
Figure 4.1: General installation diagram for the diesel heater.
4.1 Key Installation Considerations
- Mounting: Securely mount the main engine using the provided mounting plate. Ensure the mounting surface is stable and can support the heater's weight.
- Exhaust System: Connect the exhaust pipe muffler to the exhaust outlet. Ensure the exhaust is routed safely away from the heated space and any combustible materials. Avoid excessive bends in the exhaust pipe to prevent soot buildup and ensure proper flow.
- Air Intake: Connect the intake pipe air filter to the air inlet. Ensure the air intake is clear of obstructions and draws clean air.
- Fuel System: Install the fuel tank oil extractor and connect it to the oil pump, then to the heater using the provided oil pipe. The upgraded nylon oil pipe offers better flexibility and improved fuel delivery.

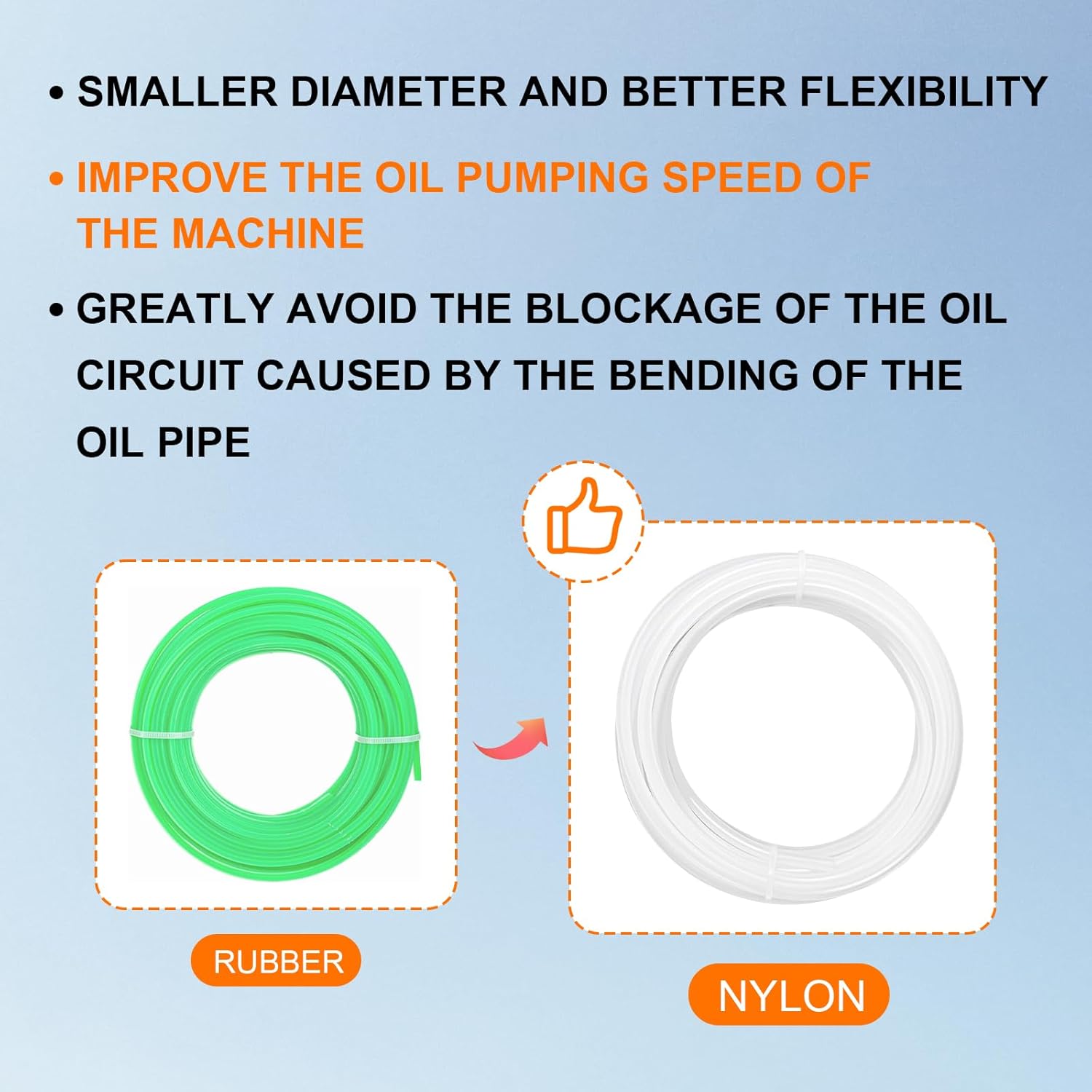

Figure 4.2: The improved nylon oil pipe enhances performance and reliability.
- Electrical Connections: Connect the wiring harness to the heater and your power source (12V or 24V, depending on your model). Ensure all connections are secure and insulated.
- Ducting: Attach the air outlet ducting and outlet vents as needed to direct heated air into your desired space.
4.2 Clearance and Dimensions
Maintain adequate clearance around the heater for proper ventilation and safety. The heater dimensions are approximately 15 inches (length) x 5.5 inches (width) x 5.5 inches (height).
Figure 4.3: Heater dimensions and important safety considerations for placement.
5. Operating Instructions
Your Likaci Diesel Air Parking Heater offers multiple operating modes for flexible control.
Figure 5.1: LCD Switch Display and Remote Control with key functions.
5.1 Control Methods
- LCD Switch Display: The upgraded 6-button LCD switch allows direct control. Use the adjusting knob to navigate and select settings. The 'ON/OFF' key powers the unit, and the 'Setting Key' accesses various parameters. A 'Pump Oil Key' is available for manual refueling.
- Remote Control: The included remote control (with battery) allows you to operate the heater from a distance of 30-40 meters. It supports both Temperature Mode and Level Mode.
- Bluetooth APP Control: Download the dedicated Likaci APP to your mobile device. Connect via Bluetooth to access automatic mode, manual mode, and manual refueling mode, providing convenient control from your smartphone.
5.2 Operating Modes
- Temperature Mode: Set a desired temperature, and the heater will automatically adjust its output to maintain that temperature.
- Level Mode: Manually adjust the heater's output power (level) from minimum to maximum, providing continuous heating at a set intensity.
- APP Mode: Utilize the mobile application for advanced control, including automatic temperature regulation, manual power adjustment, and the unique manual refueling function.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Likaci Diesel Air Parking Heater.
- Cleaning: Periodically clean the exterior of the heater. Ensure air inlets and outlets are free from dust and debris.
- Fuel System: Inspect fuel lines for any signs of leaks or damage. Ensure the fuel filter is clean and replace it if necessary to prevent blockages.
- Exhaust System: Check the exhaust pipe and muffler for any blockages, damage, or excessive carbon buildup. Clear any obstructions to ensure proper exhaust flow.
- Electrical Connections: Verify that all electrical connections are secure and free from corrosion.
- Glow Plug: While the heater uses a reliable ceramic glow plug designed for thorough combustion and minimal carbon, periodic inspection by a qualified technician is recommended if performance issues arise.
7. Troubleshooting
This section addresses common issues you might encounter with your diesel heater. For problems not listed here, or if solutions do not resolve the issue, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not start / "Startup Failure" error |
|
|
| Heater runs but produces little heat |
|
|
| Excessive smoke or unusual odor |
|
|
| Remote control or APP not responding |
|
|
8. Specifications
| Attribute | Value |
|---|---|
| Brand | Likaci |
| Model Number | APEX03011-US |
| Power Output | 5KW-8KW |
| Voltage | 12V / 24V (model dependent) |
| Fuel Type | Diesel |
| Color | White |
| Product Dimensions | Approx. 20"D x 6"W x 20"H (Overall packaging/shipping dimensions, actual unit is smaller) |
| Item Weight | Approx. 10.83 pounds |
| Special Features | Fast Heating, Bluetooth APP Control, Upgraded LCD Switch Display, Remote Control, Low Noise Operation |
| Mounting Type | Floor Mount (typically) |
| Indoor/Outdoor Usage | Indoor (within enclosed spaces like vehicles, garages, tents) |
9. Warranty and Support
For information regarding warranty coverage, claims, or technical support, please contact the seller or manufacturer directly. Refer to your purchase documentation or the product packaging for specific contact details.
It is recommended to retain your proof of purchase for any warranty-related inquiries.
