YITAHOME Outdoor Grill Cart Instruction Manual

Important Safety Information

Do not exceed the weight capacity of 220 lbs on the tabletop and 40 lbs on each shelf. Use caution when moving on uneven surfaces; make sure to lock the two lockable wheels to prevent tipping.

1. Setup and Assembly

This section provides step-by-step instructions for assembling your YITAHOME Outdoor Grill Cart. Please ensure all parts are present before beginning assembly.

1.1 Unboxing and Part Identification

Carefully unbox all components and lay them out on a clean, flat surface. Refer to the included parts list to identify each component.

Figure 1: Unboxed components of the YITAHOME Outdoor Grill Cart, including the main frame, mesh shelves, and hardware.

The main components include the stainless steel tabletop, iron frame pieces, two mesh shelves, and a box containing hardware and wheels. An instruction manual is also included.

1.2 Assembly Steps

1. Attach the Legs: Securely attach the four leg pieces to the main frame using the provided screws and Allen wrench. Ensure all connections are tight.
2. Install Shelves: Slide the two mesh shelves into their designated slots on the frame. The grid design allows for easy cleaning.
3. Attach Wheels: Screw the four swivel wheels into the bottom of the leg frames. Two of these wheels are lockable for stability.
4. Mount Handle and Hooks: Attach the handle to one side of the cart. Install the 6 detachable hook places and 3 hooks as desired for hanging utensils or towels.
5. Place Tabletop: Carefully place the stainless steel tabletop onto the top of the assembled frame.

Assembly is designed to be straightforward, typically taking around 10 minutes. If you encounter any issues with parts alignment, ensure all screws are loosely fitted before tightening them completely.

2. Operating Your Grill Cart

The YITAHOME Outdoor Grill Cart is designed for versatile use, both indoors and outdoors. Its robust construction and thoughtful features make it ideal for various tasks.

2.1 Versatile Applications

• Outdoor Cooking Station: Use the stainless steel tabletop as a sturdy surface for your grill, pizza oven, or other outdoor cooking appliances.
• Food Preparation Area: The spacious tabletop provides ample room for food preparation, cutting, and plating.
• Serving Cart: Easily transport food, drinks, and utensils from your kitchen to your patio or dining area using the smooth-rolling wheels.
• Storage Unit: The two mesh shelves offer convenient storage for cooking essentials, firewood, or other items.
• Indoor Kitchen Island: Its compact design allows it to function as an additional kitchen island or workstation indoors.

Figure 2: The grill cart serving as an outdoor food preparation station.

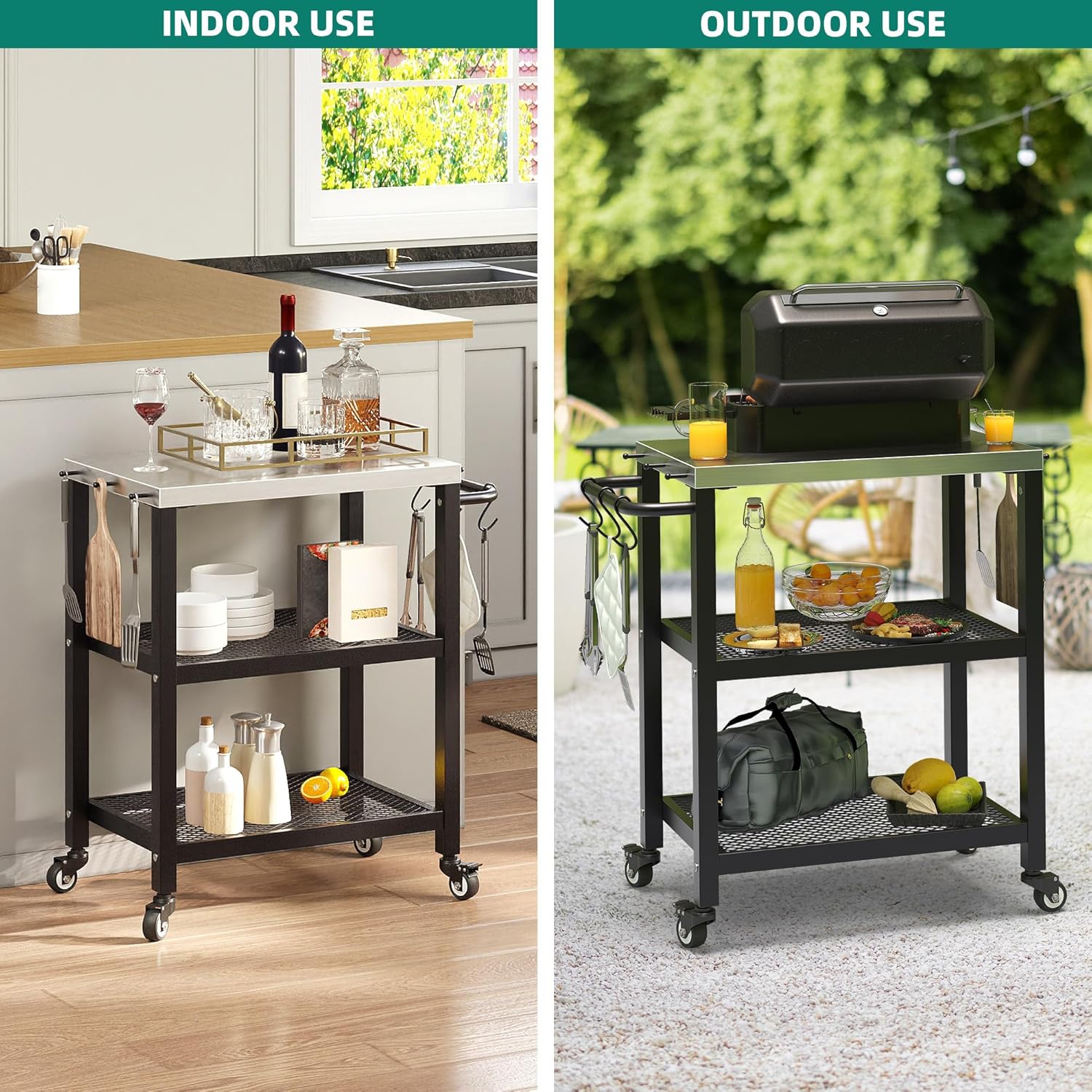

Figure 3: Demonstrating the grill cart's suitability for both indoor and outdoor environments.

2.2 Mobility and Stability

The cart features 360° freely swiveling wheels for easy maneuverability. Two of these wheels are lockable, allowing you to secure the cart in place when needed, preventing accidental movement.

Figure 4: The cart's design for effortless movement and secure locking.

3. Maintenance and Care

Proper maintenance will ensure the longevity and optimal performance of your YITAHOME Outdoor Grill Cart.

3.1 Cleaning Instructions

• Tabletop: The stainless steel tabletop is corrosion-resistant and easy to clean. Wipe with a dry cloth after each use to remove food residues and spills. For stubborn stains, use a mild detergent and a soft cloth, then dry thoroughly.
• Mesh Shelves: The grid design of the shelves minimizes dust and water buildup. Clean with a damp cloth and mild soap as needed. Ensure they are dry before storing items.
• Frame: Wipe the iron frame with a dry cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.

Figure 5: The corrosion-resistant stainless steel top is designed for easy cleaning.

3.2 General Care

• Regularly check all screws and connections to ensure they remain tight.
• While designed for outdoor use, prolonged exposure to extreme weather conditions may affect the finish. Consider covering the cart when not in use for extended periods.
• Do not exceed the stated weight capacities to prevent damage to the cart.

4. Troubleshooting

This section addresses common issues you might encounter with your YITAHOME Outdoor Grill Cart and provides solutions.

4.1 Assembly Difficulties

• Parts Not Lining Up: If components do not align easily during assembly, ensure all screws are only loosely inserted before tightening any. This allows for minor adjustments. Apply gentle, even pressure to align parts.
• Missing Thread Inserts/Screws: In rare cases, a thread insert might be missing or screws may not fit as designed. If this occurs, please contact customer support for assistance. Do not attempt to force screws into misaligned or missing threads as this can damage the product.
• Tightening Screws: Some screw locations may have limited space for an Allen wrench. Turn the wrench incrementally. Using an Allen wrench with a ball end can provide more flexibility.

4.2 Stability Issues

• Cart Feels Unsteady/Rocks: Ensure all screws are fully tightened. Verify that the cart is placed on a flat, even surface. If using outdoors, avoid very uneven ground.
• Wheels Not Locking: Check that the locking mechanism on the two lockable wheels is fully engaged. Ensure no debris is obstructing the wheel or brake.

4.3 Cosmetic Issues

• Scratches/Chips on Finish: Minor cosmetic imperfections can occur during shipping or handling. For significant damage upon arrival, contact customer support. To prevent future scratches, handle components carefully during assembly and use.
• Rusting: While the frame is corrosion-resistant, prolonged exposure to moisture or damage to the powder coating can lead to rust. Clean and dry the cart regularly. Consider using a rust-inhibiting spray or touch-up paint if the coating is chipped.

5. Product Specifications

Figure 6: Detailed dimensions and weight capacities of the grill cart.

6. Warranty and Support

For warranty information, product support, or to report any issues, please contact YITAHOME customer service. Keep your purchase receipt handy for any warranty claims.

• Customer Service: Refer to the contact information provided in your product packaging or visit the official YITAHOME website.
• Online Resources: Additional support and FAQs may be available on the YITAHOME brand store page on Amazon: YITAHOME Store.
