1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Energetic BR30 LED Recessed Light Bulbs. Please read these instructions thoroughly before use and retain them for future reference.
The Energetic BR30 LED bulb is designed for indoor recessed lighting applications, offering dimmable warm white light (3000K) with high energy efficiency and a long lifespan.

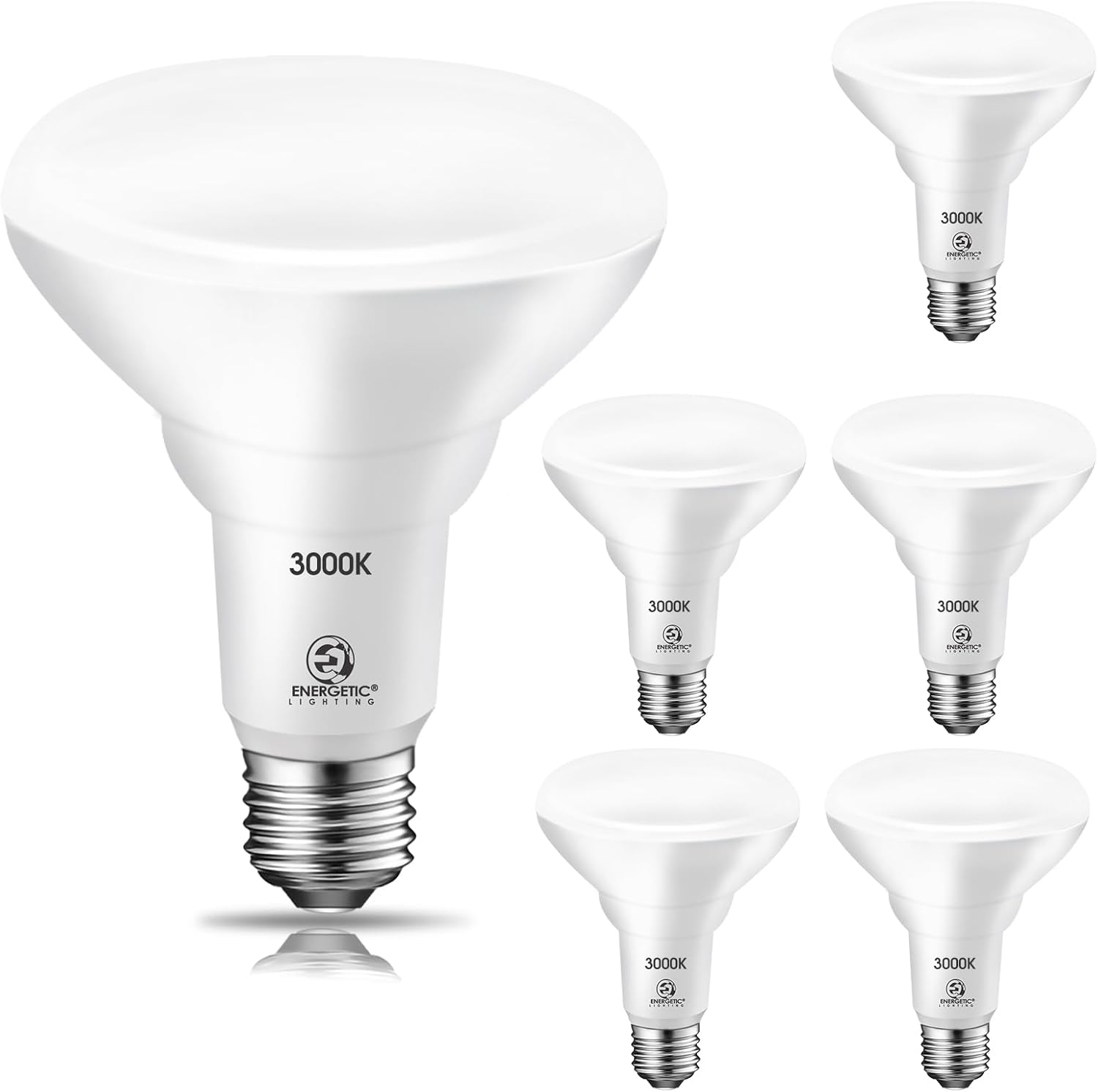

Image 1.1: Energetic BR30 LED Recessed Light Bulbs (6-pack) in Warm White 3000K.
2. Safety Information
WARNING: Risk of electric shock. Disconnect power before installation.
- Ensure the power supply is turned off at the circuit breaker before installing or replacing any light bulb.
- This product is designed for indoor use only and damp locations. Do not use in areas exposed to direct water or extreme humidity unless specifically rated for such conditions.
- Do not disassemble or modify the bulb. There are no user-serviceable parts inside.
- Do not use with incompatible dimmers. Refer to the dimmer compatibility list or consult a qualified electrician.
- Avoid looking directly into the LED light source when illuminated, as it may cause eye strain.
- Ensure the bulb is securely screwed into the E26 base.
- Do not exceed the maximum wattage rating of your fixture. This bulb is an 8.5W LED equivalent to a 65W incandescent.
3. Product Overview
The Energetic BR30 LED bulb features an E26 standard base, a BR30 shape, and provides 650 lumens of warm white light at 3000K. It is dimmable from 100% down to 5% and has a high Color Rendering Index (CRI) of 90+ for accurate color representation.
Image 3.1: Key features and dimensions of the BR30 LED bulb, including 110° beam angle, 65W equivalent, dimmable, damp location rating, and 15,000+ hour lifespan.
Image 3.2: Overview of product benefits: UL Listed for safety, flicker-free operation, dimmable functionality, and high brightness.
4. Setup and Installation
Follow these steps for safe installation:
- Turn off Power: Locate the circuit breaker controlling the light fixture and switch it to the OFF position. Verify that power is off by attempting to turn on the light switch.
- Remove Old Bulb: Carefully unscrew the existing bulb from the recessed fixture. Allow it to cool if it was recently on.
- Install New LED Bulb: Screw the Energetic BR30 LED bulb into the E26 base of the recessed fixture. Ensure it is snug but do not overtighten.
- Restore Power: Return to the circuit breaker and switch the power back ON.
- Test: Turn on the light switch to confirm the bulb is working.
Image 4.1: Illustration of easy installation into a 5/6-inch recessed can fixture.
5. Operating Instructions
These BR30 LED bulbs are designed for simple operation with standard light switches and compatible dimmers.
- On/Off: Use your existing wall switch to turn the lights on or off.
- Dimming: If connected to a compatible dimmer switch, adjust the dimmer control to achieve the desired brightness level. The bulbs support smooth dimming from 100% down to 5%.
Image 5.1: Visual representation of the seamless dimming feature, adjusting light intensity in a room.
Dimmer Compatibility
For optimal dimming performance, use with compatible dimmer switches. A partial list of adaptable dimmers is provided below. For a comprehensive list or if you experience issues, please contact customer support.
Image 5.2: Example list of compatible dimmer models from various brands.
6. Maintenance
Energetic BR30 LED bulbs require minimal maintenance due to their long lifespan and durable design.
- Cleaning: Ensure the power is off before cleaning. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Replacement: When the bulb reaches the end of its operational life, replace it following the installation steps in Section 4.
- Disposal: Dispose of LED bulbs according to local regulations for electronic waste.
Image 6.1: The bulbs are designed for a long lifespan of over 15,000 hours, reducing the need for frequent replacement.
7. Troubleshooting
If you encounter issues with your Energetic BR30 LED bulbs, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up. | No power, loose connection, faulty bulb. | Check circuit breaker. Ensure bulb is screwed in tightly. Test bulb in a known working fixture. |
| Bulb flickers or buzzes. | Incompatible dimmer, loose connection, electrical interference. | Ensure dimmer is compatible (refer to Section 5). Tighten bulb. Consult an electrician if problem persists. |
| Dimming range is poor or inconsistent. | Incompatible dimmer. | Replace with a recommended compatible LED dimmer switch. |
| Light output is too low. | Dimmer setting too low, incorrect bulb for application. | Adjust dimmer to maximum brightness. Verify the bulb's lumen output meets your needs. |
8. Specifications
| Brand | E ENERGETIC LIGHTING |
| Model | BR30 |
| Light Type | LED |
| Wattage (LED) | 8.5 Watts |
| Incandescent Equivalent | 65 Watts |
| Brightness | 650 Lumens |
| Color Temperature | 3000 Kelvin (Warm White) |
| Bulb Base | E26 |
| Bulb Shape Size | BR30 |
| Dimmable | Yes (100-5%) |
| CRI (Color Rendering Index) | 90+ |
| Beam Angle | 110 Degrees |
| Voltage | AC 120V |
| Lifespan | 15,000 Hours (approx. 13.7 years at 3 hrs/day) |
| Indoor/Outdoor Usage | Indoor (Damp Location Rated) |
| Special Features | Dimmable, Energy Efficient, Eye-Friendly, Flicker-Free, High Efficiency |
Image 8.1: Comparison highlighting the energy efficiency and longer lifespan of Energetic LED bulbs versus standard incandescent bulbs.

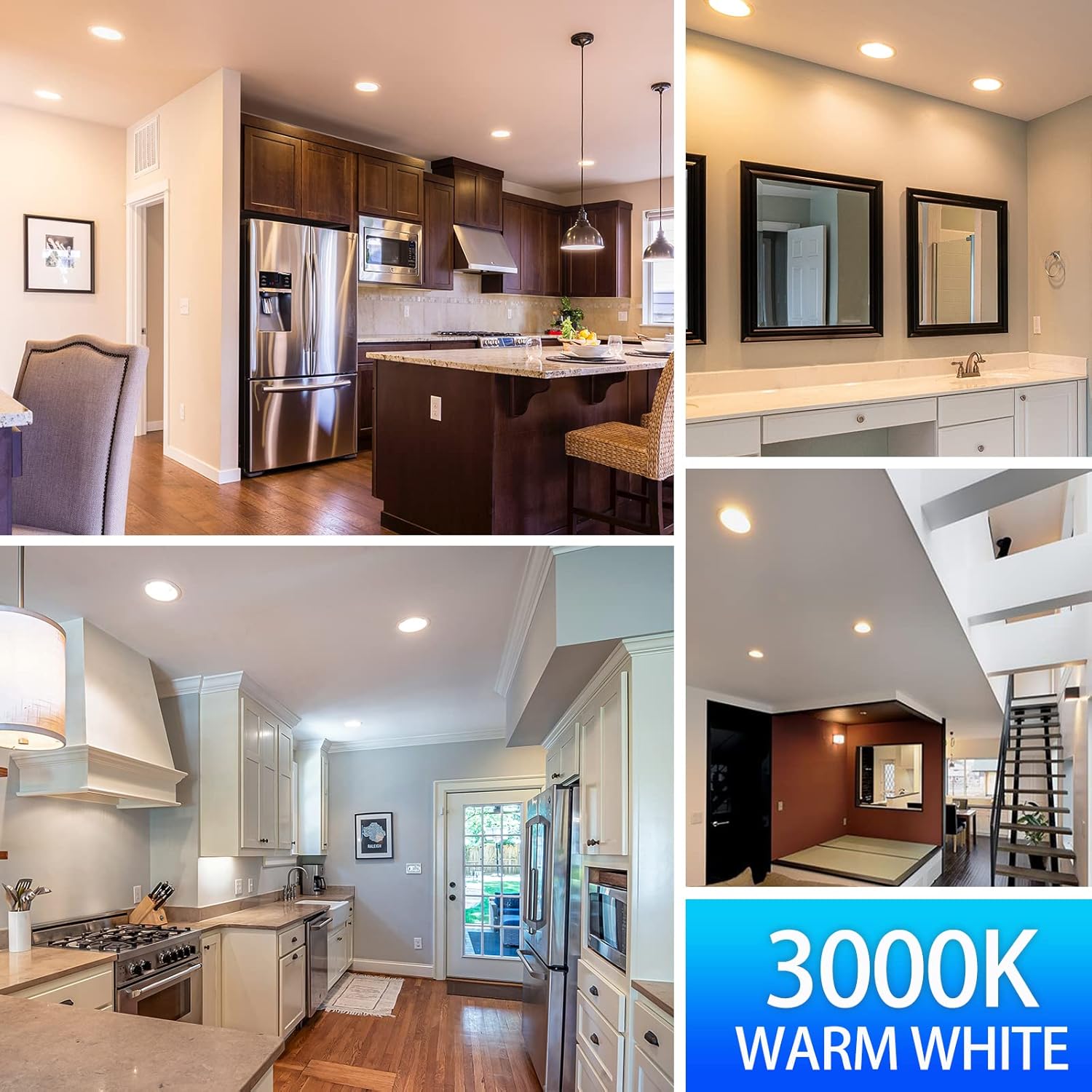

Image 8.2: Examples of 3000K Warm White light in different indoor settings, showcasing its application.
9. Warranty and Support
Energetic BR30 LED bulbs come with a 5-year warranty. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact E ENERGETIC LIGHTING customer service. Refer to your purchase documentation for specific contact details or visit the official E ENERGETIC LIGHTING website.
Customer Service: Please refer to the contact information provided at the point of purchase or on the product packaging.
