Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of the MEJE MZE014P In-Wall Flush Tank and Support System with Dual Flush Plate. This system is designed to provide a concealed and efficient flushing solution for wall-hung toilets, specifically compatible with the MEJE #MJ-MZE014P smart wall-hung toilet.
The integrated in-wall tank and support system ensures a higher water level for powerful and clean flushing. It features a dual-flush mechanism, allowing for a full or half flush to conserve water.
Product Overview
The MEJE MZE014P system consists of a robust metal support frame, a concealed water tank (cistern), and a dual-flush actuation plate. All water connections and mounting parts are designed to be hidden within the wall structure, providing a clean and minimalist aesthetic.
Figure 1: MEJE MZE014P In-Wall Flush Tank and Support System, showing the metal frame, concealed cistern, and flush plate mechanism.
Figure 2: Illustration of the concealed water tank design, emphasizing space-saving and aesthetic benefits when paired with a wall-hung toilet. The simple and bright appearance frees up more space, offering practical good looks.
Key Features
- Concealed Design: Water tank, support system, water pipe fittings, and mounting parts are completely hidden within the wall for a seamless and elegant appearance.
- Dual Flush Mechanism: Offers both full and half flush options to optimize water usage and promote water conservation.
- Powerful Flushing: The in-wall tank design ensures a higher water level, contributing to a more powerful and effective flush.
- Easy Maintenance: The front panel with the flush actuation plate provides convenient access to the inner tank and valves for easy repair and maintenance without the need for specialized tools.
- Durable Construction: Features a robust metal support frame and high-resistance water tank for long-lasting performance.
- Compatibility: Specifically designed to be compatible with MEJE #MJ-MZE014P smart wall-hung toilets.
Figure 3: Key features highlighted: Dual flush button for water saving, durable metal construction, and large drainage capacity.
Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your MEJE MZE014P system. It is recommended that installation be performed by a qualified professional.
Component Identification
Figure 4: Labeled diagram of the in-wall flush tank system components, including the manual flush button, high-resistance water tank, anti-corrosion support, tank outlet pipe, and sewage connection.
Installation Considerations
- Ensure the wall structure can adequately support the weight of the system and the wall-hung toilet when filled with water.
- Verify all dimensions and clearances before commencing installation. Refer to the specifications section for detailed measurements.
- Confirm compatibility with your chosen wall-hung toilet, especially the MEJE #MJ-MZE014P smart wall-hung toilet.
Mounting Options
The system offers flexibility in mounting to suit various installation requirements.
Figure 5: Depicts two mounting options: integrated wall mounting (flush with the wall) and exterior wall mounting (slightly protruding or for specific wall constructions). Dimensions for both are provided.
Drainage Layout Options
The drainage system can be configured in several ways to adapt to existing plumbing layouts.
Figure 6: Illustrates various drainage configurations: direct sewage connection, T-connection to the main channel, 135-degree displacement from the pit corner, and original pit displacement towards the wall.
Post-Installation Appearance

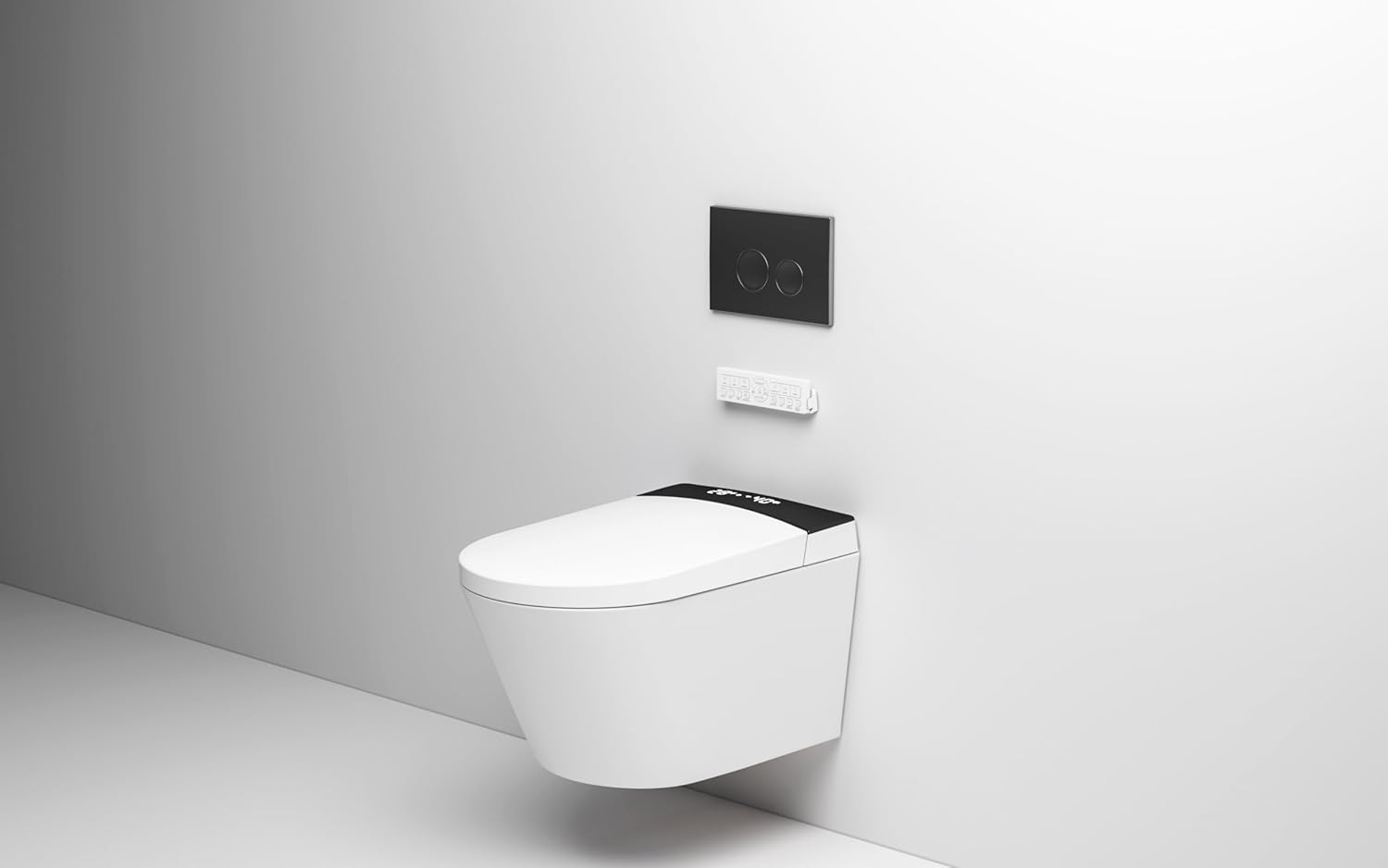

Figure 7: A visual representation of the MEJE MZE014P system fully installed with a compatible wall-hung toilet and flush plate, showcasing the clean, minimalist aesthetic.
Operating Instructions
The MEJE MZE014P system features a dual-flush plate for efficient water usage.
- Full Flush: Press the larger button on the flush plate for a complete flush, suitable for solid waste.
- Half Flush: Press the smaller button on the flush plate for a reduced flush, suitable for liquid waste, thereby conserving water.
Maintenance
The MEJE MZE014P system is designed for easy maintenance. The flush actuation plate on the front panel can be removed to access the internal components of the water tank and valves.
Figure 8: Illustrates the removable wall panels and the flush plate, providing easy access to the water tank for maintenance and repairs. It also shows the secure mounting of the wall-hung toilet and the hidden sewage pipe for a clean finish.
- To access the internal tank components, carefully remove the flush actuation plate. No special tools are required for this process.
- Regularly inspect for leaks or unusual operation.
- Clean the flush plate and visible components with a mild, non-abrasive cleaner.
Troubleshooting
This section addresses common issues you might encounter with your MEJE MZE014P system.
| Problem | Possible Cause | Solution |
|---|---|---|
| Weak Flush | Insufficient water level in the tank; partial blockage in the drainage system. | Check water supply to the tank. Inspect the flush valve and drainage for obstructions. |
| Continuous Water Flow | Faulty fill valve or flush valve seal. | Access the tank via the flush plate. Inspect and adjust or replace the fill valve or flush valve seal. |
| System Does Not Fit Wall/Piping | Incorrect measurements or non-standard plumbing. | Verify all dimensions against the product specifications and local plumbing standards before installation. Consult a professional plumber for assessment and modification if necessary. |
Specifications
Detailed technical specifications for the MEJE MZE014P In-Wall Flush Tank and Support System.
| Attribute | Detail |
|---|---|
| Brand | MEJE |
| Model Number | MZE014P |
| Product Dimensions (L x W x H) | 9.65 x 57.99 x 110.54 cm (3.8 x 22.8 x 43.5 inches) |
| Item Weight | 17.58 kg (38.76 lbs) |
| Color | White (MZE014P Flush Tank) |
| Material | Ceramic (for tank components), Metal (for frame) |
| Installation Method | Wall Mount |
| Shape | Rectangular |
| Included Components | Waterway connections, Water tank, Support system |
| UPC | 602397190076 |
Figure 9: Technical drawing showing detailed dimensions of the MEJE MZE014P in-wall flush tank and support frame in millimeters and inches.
Warranty and Support
Specific warranty information for the MEJE MZE014P In-Wall Flush Tank and Support System is not provided in the product details. For warranty claims, technical support, or replacement parts, please contact MEJE customer service directly or refer to the documentation included with your purchase.
It is recommended to retain your proof of purchase for any warranty-related inquiries.
