PLASMARGON CT418 3-in-1 Welder & Plasma Cutter Instruction Manual

1. Introduction

Thank you for choosing the PLASMARGON CT418 3-in-1 Welder and Plasma Cutter. This versatile machine combines TIG Pulse welding, MMA (Stick) welding, and Plasma Cutting functionalities into a single, compact unit. Designed for efficiency and performance, the CT418 is suitable for a wide range of metal fabrication and repair tasks. Please read this manual thoroughly before operation to ensure safe and effective use of the equipment.

2. Safety Instructions

Always prioritize safety when operating welding and cutting equipment. Failure to follow these instructions can result in serious injury or death.

• Electrical Safety: Ensure the machine is properly grounded. Do not operate in wet conditions. Always disconnect power before performing maintenance or changing accessories.
• Eye and Face Protection: Always wear a welding helmet with appropriate shade lenses to protect against intense light, UV/IR radiation, and sparks.
• Body Protection: Wear flame-resistant clothing, heavy-duty gloves, and safety shoes. Avoid loose clothing.
• Fume Ventilation: Welding and cutting produce fumes and gases that can be hazardous to your health. Work in a well-ventilated area or use local exhaust ventilation.
• Fire Hazards: Sparks, hot metal, and slag can cause fires. Keep flammable materials away from the work area. Have a fire extinguisher readily available.
• Burn Prevention: Hot metal and equipment can cause severe burns. Allow materials to cool before handling.
• Gas Cylinder Safety (if applicable): Secure gas cylinders properly. Use correct regulators and hoses.

3. Product Overview

The PLASMARGON CT418 is a multi-functional machine designed for various welding and cutting applications. Its robust construction and intuitive controls make it suitable for both professional and hobbyist use.

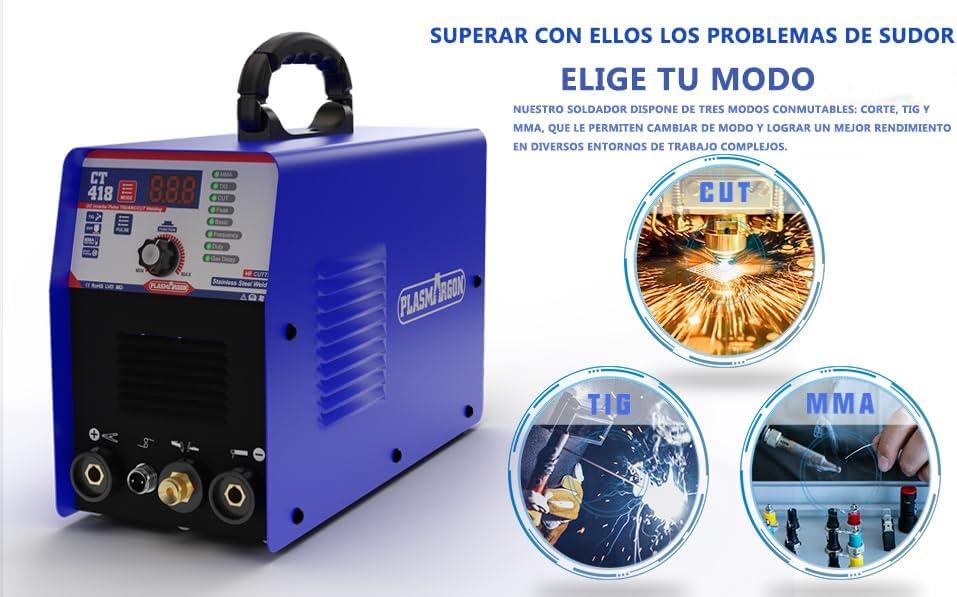

This image displays the PLASMARGON CT418 multi-function machine, highlighting its three primary operational modes: Plasma Cutting (CUT), TIG welding, and MMA (Stick) welding. The machine features a robust blue casing with a digital display and control knobs.

This visual comparison demonstrates how the PLASMARGON CT418 integrates the functions of a separate welding machine and a separate cutting machine into a single, compact 3-in-1 unit, offering versatility and space-saving benefits.

3.1 Key Components

This image provides a close-up of the CT418's front panel, clearly labeling key components such as the digital display for settings, the current adjustment knob, the portable handle for easy transport, and the connection points for the plasma torch and ground clamp.

• Portable Handle: For easy transportation of the unit.
• Digital Display: Shows current settings and parameters.
• Current Knob: Adjusts the output current for welding or cutting.
• Mode Selector: Allows switching between CUT, TIG, and MMA modes.
• Plasma Torch Connection: For connecting the plasma cutting torch.
• Ground Clamp Connection: For connecting the workpiece ground clamp.
• TIG Torch Connection: For connecting the TIG welding torch.
• MMA Electrode Holder Connection: For connecting the MMA electrode holder.

3.2 Internal Components & Features

This image illustrates the internal quality components of the CT418, including high-quality capacitors and an amorphous copper transformer, which contribute to its performance. It also demonstrates the plasma cutting capability, showing an effective cut of 8mm and a maximum cut of 11.5mm.

• High-Quality Capacitors: Ensure stable and reliable power delivery.
• Amorphous Copper Transformer: Contributes to efficient power conversion and durability.
• Efficient Cooling Fan: Maintains optimal operating temperature, as shown in the energy efficiency image.

4. Setup

Proper setup is crucial for safe and effective operation.

1. Unpacking: Carefully remove the machine and all accessories from the packaging. Inspect for any shipping damage.
2. Placement: Place the machine on a stable, level surface in a well-ventilated area, away from moisture and flammable materials. Ensure adequate space around the unit for airflow.
3. Power Connection: Connect the power cord to a suitable power outlet. Ensure the power supply matches the machine's requirements (voltage and amperage).
4. Ground Clamp Connection: Connect the ground clamp cable to the designated terminal on the machine. Securely attach the ground clamp to the workpiece, ensuring good electrical contact.
5. Accessory Connections:
   • For Plasma Cutting (CUT): Connect the plasma torch to the plasma torch connection point. Connect the air compressor to the machine's air inlet (if applicable and not integrated).
   • For TIG Welding: Connect the TIG torch to its designated connection. Connect the gas hose from the argon cylinder to the machine's gas inlet (if applicable).
   • For MMA Welding: Connect the electrode holder to its designated connection.
6. Gas Supply (for TIG/CUT): If using TIG welding or plasma cutting, ensure the appropriate gas cylinder (e.g., Argon for TIG, compressed air for Plasma) is connected, secured, and the regulator is set to the correct pressure.

5. Operating Modes

The PLASMARGON CT418 offers three distinct operating modes: Plasma Cutting (CUT), TIG Welding, and MMA (Stick) Welding. Select the desired mode using the mode selector on the front panel.

5.1 Plasma Cutting (CUT)

Plasma cutting is ideal for quickly and efficiently cutting various conductive metals.

• Mode Selection: Set the machine to 'CUT' mode.
• Air Supply: Ensure compressed air is connected and flowing at the recommended pressure.
• Current Adjustment: Adjust the cutting current using the current knob based on the material thickness.
• Operation: Position the plasma torch nozzle close to the workpiece. Initiate the arc (often High-Frequency start). Move the torch steadily along the cutting line.

This image highlights the energy-saving features of the CT418, indicating a nominal utilization of 60%, and showcases its efficient cooling fan. It also demonstrates the machine's capability to perform 12mm plasma cuts, along with various plasma cutting consumables.

The CT418 is capable of an effective cut of 8mm and a maximum cut of 11.5mm, with demonstrated capability for 12mm plasma cuts.

5.2 TIG Welding (TIG Pulse)

TIG welding provides precise, high-quality welds, especially on thinner materials and exotic metals.

• Mode Selection: Set the machine to 'TIG' mode.
• Gas Supply: Ensure an inert shielding gas (typically Argon) is connected and flowing.
• Tungsten Electrode: Select and prepare the appropriate tungsten electrode for your material and current.
• Current Adjustment: Adjust the welding current using the current knob. Consider pulse settings if available for enhanced control.
• Operation: Maintain a short arc length and consistent torch angle. Use filler rod as needed.

5.3 MMA Welding (Stick)

MMA welding is a versatile process suitable for a variety of metals and outdoor conditions.

• Mode Selection: Set the machine to 'MMA' mode.
• Electrode Selection: Choose the appropriate electrode type and diameter for your material and application.
• Current Adjustment: Adjust the welding current based on the electrode type and diameter, and material thickness.
• Operation: Strike an arc by lightly touching and then lifting the electrode from the workpiece. Maintain a consistent arc length and travel speed.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your PLASMARGON CT418.

• Cleaning: Regularly clean the machine's exterior with a dry, soft cloth. Use compressed air to blow out dust and debris from inside the machine (ensure power is disconnected).
• Cable Inspection: Periodically inspect all cables (power, ground, torch) for cuts, fraying, or damaged insulation. Replace damaged cables immediately.
• Consumables: Regularly check and replace consumables such as plasma torch tips, electrodes, nozzles, and TIG tungsten electrodes as they wear out.
• Air Filter (for Plasma): If your unit has an air filter for plasma cutting, clean or replace it as recommended to ensure proper airflow.
• Storage: Store the machine in a clean, dry environment when not in use.

7. Troubleshooting

This section provides solutions to common issues you might encounter.

8. Specifications

Key technical specifications for the PLASMARGON CT418.

9. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the seller directly. Keep your proof of purchase for warranty claims.

Manufacturer: PLASMARGON
