1. Introduction
Thank you for choosing the FAMSINGO Big and Tall Office Chair. This executive desk chair is designed for comfort and durability, featuring a robust construction suitable for heavy people up to 400 lbs. It includes ergonomic support, adjustable features, and a breathable PU leather finish. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new chair.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury or damage to the product.
- Maximum Weight Capacity: This chair is designed to support a maximum weight of 400 lbs (181 kg). Do not exceed this limit.
- Assemble the chair carefully, following all instructions provided. Ensure all screws and bolts are tightened securely before use.
- Keep small parts and packaging materials away from children and pets to prevent choking hazards.
- Do not stand on the chair or use it as a step stool.
- Avoid exposing the chair to direct sunlight or extreme temperatures, which can damage the PU leather and foam.
- Regularly inspect all components for wear and tear. Replace damaged parts immediately.
3. Package Contents
Before assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, please contact FAMSINGO customer service.
- Backrest
- Seat Cushion
- Armrests (2)
- Gas Lift Cylinder
- Star Base
- Casters (5)
- Mechanism Plate
- Hardware Kit (screws, washers, Allen wrench)
- User Manual (this document)
4. Assembly Instructions
Estimated assembly time: 20-30 minutes. All necessary tools are included.
- Attach Casters to Base: Insert the five casters into the holes at the end of each leg of the star base. Push firmly until they click into place.
- Insert Gas Lift: Place the gas lift cylinder into the center hole of the star base.
- Attach Mechanism Plate to Seat: Align the mechanism plate with the pre-drilled holes on the underside of the seat cushion. Ensure the front of the mechanism (with the lever) faces the front of the seat. Secure with screws using the provided Allen wrench.
- Attach Armrests to Seat: Attach the armrests to the sides of the seat cushion using the designated screws. Do not fully tighten yet.
- Attach Backrest to Seat and Armrests: Align the backrest with the mounting points on the seat cushion and the armrests. Secure the backrest to the seat and armrests with screws. Once all screws are in place, fully tighten all armrest and backrest screws.
- Connect Seat Assembly to Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the center hole of the mechanism plate aligns with the top of the gas lift. Press down firmly to secure.
Image: Fully assembled FAMSINGO Big and Tall Office Chair, showcasing its robust design and flip-up armrests.
Image: The FAMSINGO office chair positioned in a contemporary office environment, demonstrating its aesthetic appeal and fit.
5. Operating Instructions
Your FAMSINGO office chair offers several adjustable features for personalized comfort.
- Seat Height Adjustment:
Locate the lever on the right side, under the seat. To raise the seat, lift the lever while taking your weight off the chair. To lower the seat, lift the lever while seated. Release the lever at the desired height.
- Tilt and Lock Function:
The chair features a tilt-tension mechanism and a recline lock. The backrest can recline up to 120°. Pull the lever outwards to enable rocking/tilting. Push the lever inwards to lock the backrest in an upright position (90°). You can also adjust the tilt tension by rotating the round knob located under the seat, allowing you to control the resistance of the recline.
Image: Diagram illustrating the chair's tilt and lock functions, showing recline angles from 90° to 120° and the tilt tension knob.
- Flip-Up Armrests:
The armrests can be flipped up to allow the chair to be pushed closer to a desk or for space-saving storage. Simply lift the armrests upwards until they lock into the vertical position. To return them, pull them down.
- Lumbar Support:
The chair's ergonomic design includes a thickened headrest and segmented padded high backrest that conforms to the curve of the human spine, providing strong support and helping to relieve back and lumbar pressure.
- Smooth Rolling Casters:
The 360° swivel casters are designed for smooth movement across various floor surfaces without scratching. Ensure the floor is clear of obstructions for optimal mobility.
Image: Visual representation of key chair features including comfortable lumbar support, BIFMA Class 4 gas lift, and smooth rolling casters.
6. Maintenance
Proper care will extend the life and appearance of your FAMSINGO office chair.
- Cleaning the PU Leather:
The PU leather is waterproof and resistant to stains. For general cleaning, wipe with a soft, damp cloth. For tougher stains, use a mild soap solution and wipe dry immediately. Avoid harsh chemicals or abrasive cleaners.

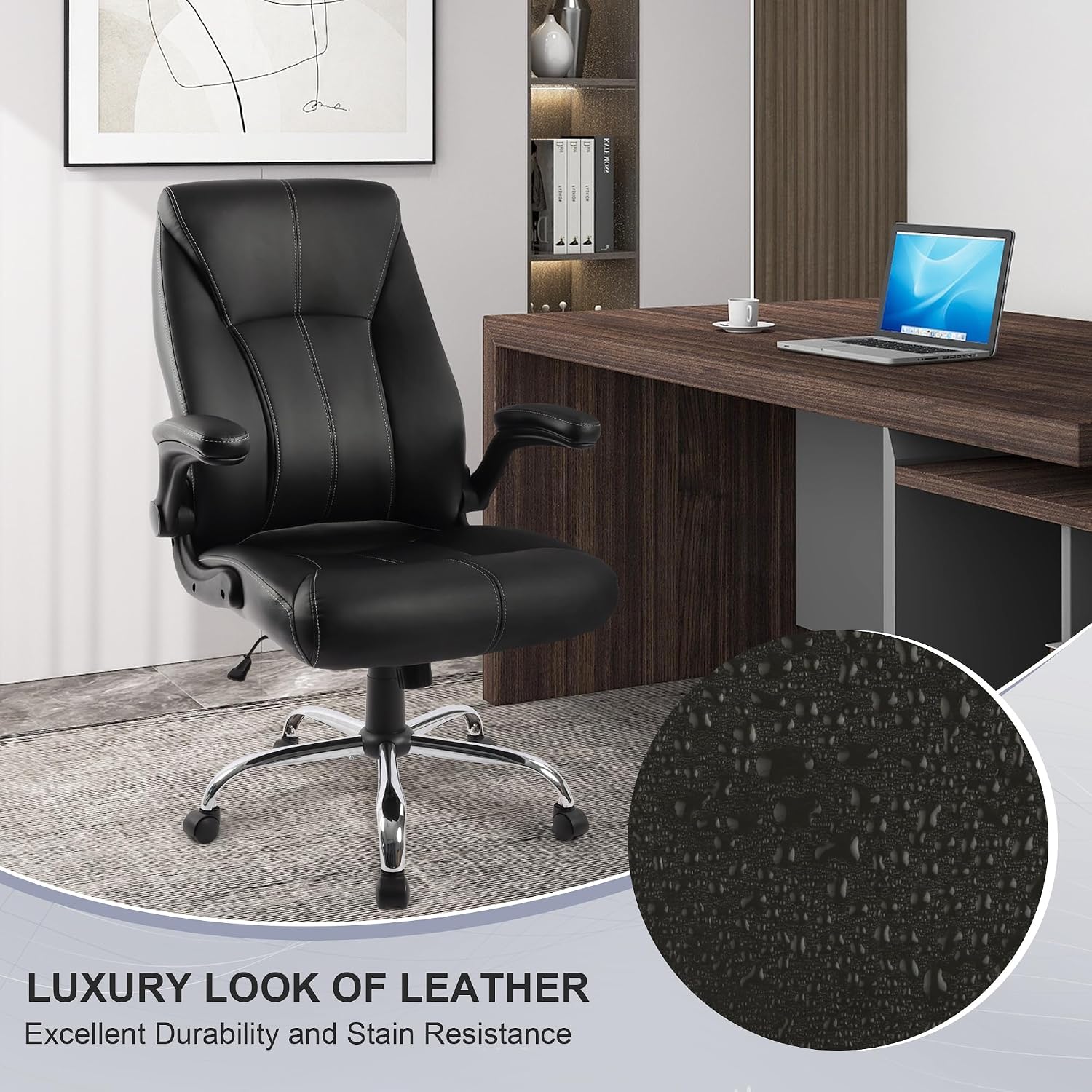

Image: Close-up of the PU leather material, highlighting its waterproof and stain-resistant properties.
- Caster Maintenance:
Periodically check the casters for accumulated hair or debris and clean as necessary to ensure smooth rolling.
- Hardware Check:
Every few months, check all screws and bolts to ensure they are still tight. Retighten if necessary to maintain stability and safety.
- Cushion Care:
The chair features a soft and comfortable thick sponge cushion designed not to collapse or deform over time. Avoid placing sharp objects on the cushion.
Image: Cross-section view of the chair's thick sponge cushion, emphasizing its high density and comfort.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not raise or lower. | Gas lift cylinder malfunction or lever not engaged. | Ensure the lever is fully engaged. If the issue persists, the gas lift may need replacement. Contact customer service. |
| Chair is wobbly or unstable. | Loose screws or improper assembly. | Check and tighten all assembly screws, especially those connecting the seat, backrest, and armrests to the mechanism plate. Ensure the gas lift is fully seated in the base. |
| Casters do not roll smoothly. | Debris (hair, lint) caught in casters. | Turn the chair over and carefully remove any debris from the caster wheels. |
| Chair squeaks when moving. | Loose connections or friction between parts. | Tighten all screws. Apply a small amount of silicone lubricant to moving parts or connection points if necessary. |
| Backrest does not recline or lock. | Tilt mechanism issue or recline lock not engaged. | Ensure the tilt lever is correctly positioned (pulled out for recline, pushed in for lock). Check the tilt tension knob for proper adjustment. |
8. Specifications
Image: Detailed diagram showing the dimensions of the FAMSINGO Big and Tall Office Chair, including seat width, depth, and overall height.
| Feature | Detail |
|---|---|
| Brand | FAMSINGO |
| Model Number | Charles |
| Color | Dark Black |
| Product Dimensions (D x W x H) | 22.5"D x 27.2"W x 45.5"H |
| Seat Depth | 22.5 inches |
| Chair Backrest Width | 28.3 Inches |
| Maximum Weight Recommendation | 400 Pounds |
| Material | PU Leather, High-Density Foam |
| Gas Lift | BIFMA Certified Class 4 |
| Reclining Position Count | 3 (90°, 105°, 120°) |
| Arm Style | Flip-up arms |
| Item Weight | 41.9 pounds |
| UPC | 798394304988 |
Image: Visual comparison highlighting the wider seat dimensions of the FAMSINGO "Big & Tall" chair (21.7 inches) compared to a "Normal" chair (19 inches).
9. Warranty and Support
FAMSINGO is committed to providing high-quality products and excellent customer service.
- Warranty: Your FAMSINGO Big and Tall Office Chair is backed by a 2-year warranty. This warranty covers manufacturing defects and significant malfunctions under normal use.
- Customer Service: For any product issues, missing parts, or warranty claims, please contact the FAMSINGO customer service team. They aim to provide a satisfactory solution within 24 hours.
- Contact Information: Please refer to your purchase documentation or the FAMSINGO brand store on Amazon for the most current contact details.
