INXNI Wet Dry Vacuum Cleaner and Mop User Manual

1. Product Overview

The INXNI Wet Dry Vacuum Cleaner and Mop is designed for efficient cleaning of hard floors, capable of handling both wet and dry messes, including pet hair. It features powerful suction, a long-lasting battery, and a convenient self-cleaning function.

Key Features:

• Powerful Cleaning: 16000Pa suction and 600 times per minute brush frequency for effective removal of wet and dry debris.
• Long-lasting Battery: High-capacity 4000mAh battery provides extended cleaning sessions, covering over 2000 square feet.
• Effortless Operation: Lightweight 4kg design with built-in traction and assistance wheels for ease of use.
• Thorough Cleaning Design: Unique 6mm dual-edge brush reaches walls and corners for comprehensive cleaning.
• Convenient Self-Cleaning: One-touch automatic cleaning function with electrolyzed water disinfection and centrifugal drying.

Figure 1.1: The INXNI Wet Dry Vacuum Cleaner and Mop, showcasing its sleek design and upright stance on a wooden floor.

2. Setup and Assembly

2.1 Unpacking

Carefully remove all components from the packaging. Ensure all included items are present: main unit, handle, clean water tank, dirty water tank, charging dock, power adapter, cleaning brush, HEPA filter, and roller brush.

2.2 Assembly

1. Insert the handle into the main unit until it clicks securely into place.
2. Ensure the clean water tank and dirty water tank are correctly seated in their respective compartments.
3. Place the assembled unit onto the charging dock.

2.3 Initial Charging

Before first use, fully charge the vacuum cleaner. Connect the power adapter to the charging dock and plug it into a power outlet. The indicator lights on the unit will show charging status. A full charge typically takes approximately 4 hours.

3. Operating Instructions

3.1 Filling the Clean Water Tank

Remove the clean water tank (750ml capacity) from the unit. Fill it with clean tap water. For enhanced cleaning, a small amount of non-foaming, hard floor cleaning solution specifically designed for wet vacuums can be added. Do not exceed the MAX fill line.

3.2 Powering On and Selecting Modes

Press the power button to turn on the unit. The vacuum cleaner offers multiple cleaning modes (e.g., Standard, Max, Suction Only). Select the appropriate mode based on the cleaning task. The display screen will indicate the current mode and battery level.

Figure 3.1: The INXNI Wet Dry Vacuum Cleaner is versatile, suitable for various cleaning situations including pet areas, bathrooms with stagnant water, kitchen spills like broken eggs or ketchup, and living room dust and debris.

3.3 Cleaning Operation

Tilt the unit back to engage the brush roll and begin cleaning. The self-propelled design assists in moving the unit across the floor. For best results, move the vacuum cleaner in slow, overlapping passes. The 6mm dual-edge brush design allows for cleaning close to walls and into corners.

Figure 3.2: Illustrates the 16000PA high suction power of the INXNI Wet Dry Vacuum Cleaner, designed to leave floors dry and streak-free within 5 seconds.

Figure 3.3: Depicts the high-capacity 4000mAh battery, capable of covering 2153 square feet on a single charge, illustrating its suitability for multi-level homes.

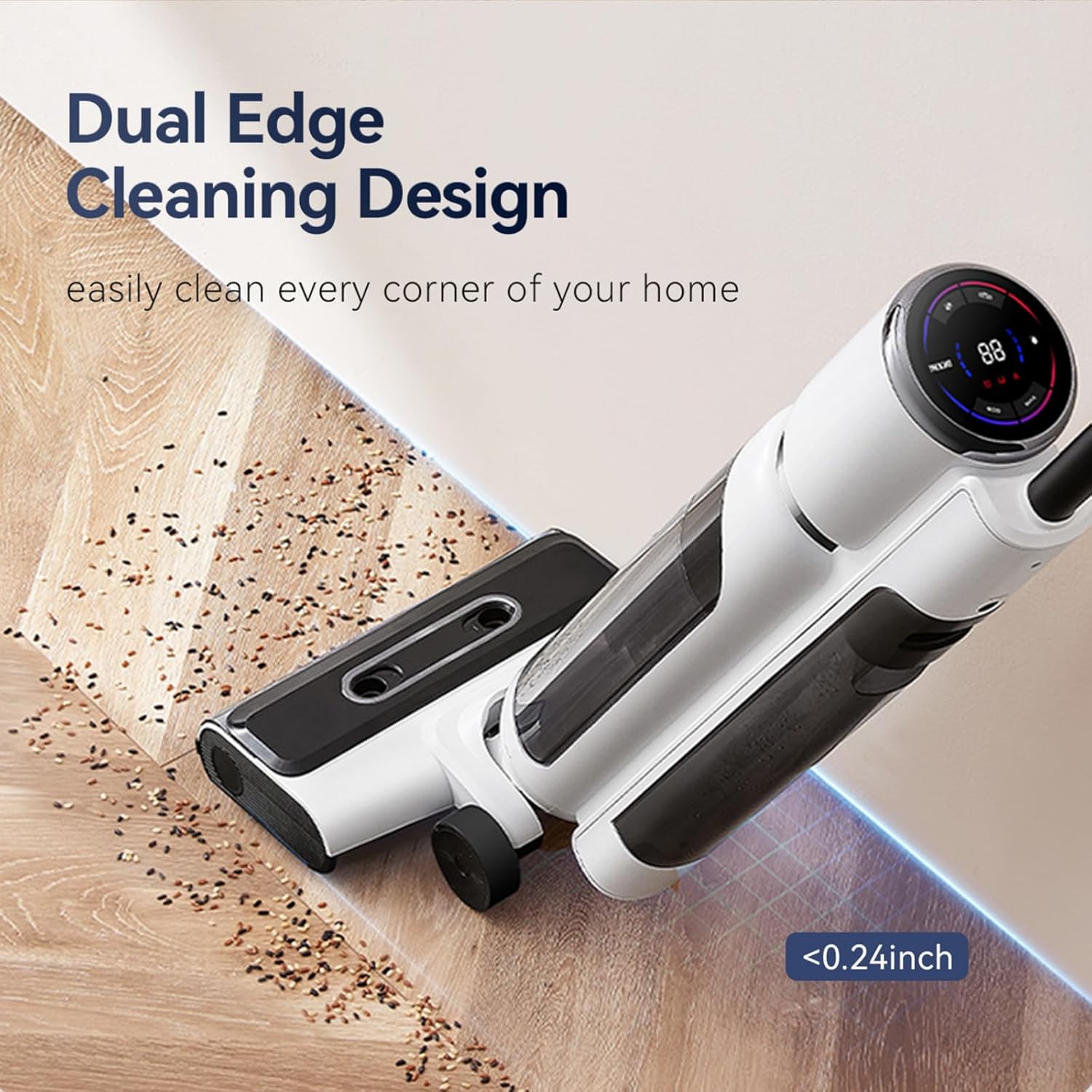

Figure 3.4: Shows the dual-edge cleaning design, highlighting its ability to clean within 0.24 inches of edges, ensuring thorough cleaning of every corner of your home.

Figure 3.5: Illustrates the self-propelled design of the INXNI Wet Dry Vacuum Cleaner, which makes floor cleaning easier by assisting movement.

4. Maintenance

4.1 One-Touch Self-Cleaning

After each use, place the unit on the charging dock. Press the self-cleaning button (usually indicated by a water droplet icon). The unit will automatically clean the brush roll and internal pathways using electrolyzed water, followed by centrifugal drying to prevent odors and air pollution. This process ensures the brush is clean and ready for the next use.

Figure 4.1: Demonstrates the one-touch brush self-cleaning feature, which provides fast, odor-free air drying after cleaning, ensuring hygiene.

4.2 Emptying the Dirty Water Tank

The dirty water tank (720ml capacity) should be emptied after each cleaning session. Remove the tank, open the lid, and pour out the dirty water. Rinse the tank thoroughly with clean water to remove any residue. Allow it to air dry before reinserting.

4.3 Cleaning the Roller Brush and Filter

Periodically, inspect the roller brush for tangled hair or debris. Remove the brush cover and detach the roller brush for manual cleaning. Use the provided cleaning brush to remove any stubborn dirt. The HEPA filter should also be rinsed under running water and allowed to air dry completely before reinstallation. Replace the HEPA filter every 3-6 months, depending on usage.

5. Troubleshooting

6. Specifications

• Brand: INXNI
• Model Number: Z3RPO
• Colour: White
• Product Dimensions: 27.51 x 26.01 x 110.01 cm
• Item Weight: 4 kg
• Clean Water Tank Capacity: 750 ml
• Dirty Water Tank Capacity: 720 ml
• Power/Wattage: 200 watts
• Voltage: 120 Volts
• Noise Level: 66 dB
• Runtime: 40 minutes
• Special Features: Cordless, One-Touch Self-Cleaning, Dual-Edge Cleaning, Self-Propelled Design
• Suction Power: 16000Pa
• Included Components: Adapter, Charging Dock, Cleaning Brush, HEPA Filter, Roller Brush
• Surface Recommendation: Hard Floor

7. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your product or contact INXNI customer service. Specific warranty terms and contact details may vary by region.

For further assistance, please visit the official INXNI website or contact their customer support channels.
