LUKALIAM Istambul Home TV Stand Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and proper use, setup, and maintenance of your LUKALIAM Istambul Home TV Stand. Designed to accommodate televisions up to 70 inches, this unit combines functionality with a modern aesthetic. Please read this manual thoroughly before using the product and retain it for future reference.

Figure 1: Front view of the LUKALIAM Istambul Home TV Stand, showcasing its design with a television and various decorative elements. The unit features an off-white pearlescent finish with freijo wood accents, including a slatted lower cabinet and floating shelves.

2. Safety Information

To ensure safe operation and prevent damage, please observe the following safety guidelines:

• Weight Capacity: Do not exceed the recommended weight capacity for shelves and the TV platform. Overloading can cause instability and damage.
• Stability: Ensure the unit is placed on a flat, level, and stable surface. Uneven surfaces can lead to tipping.
• Children and Pets: Keep children and pets away from the unit during setup. Do not allow children to climb on or play with the furniture.
• Ventilation: Ensure adequate ventilation around electronic devices placed on the stand to prevent overheating.
• Liquid Exposure: Avoid placing liquids directly on the unit. Spills can damage the finish and material.
• Moving the Unit: If the unit needs to be moved, empty all contents first. Utilize the built-in casters for easier movement, but exercise caution on uneven surfaces.

3. Product Overview and Dimensions

The LUKALIAM Istambul Home TV Stand is designed for modern living spaces, featuring a robust construction and elegant finish. It includes a main panel for TV mounting, a lower cabinet with two hinged doors, and integrated shelving.

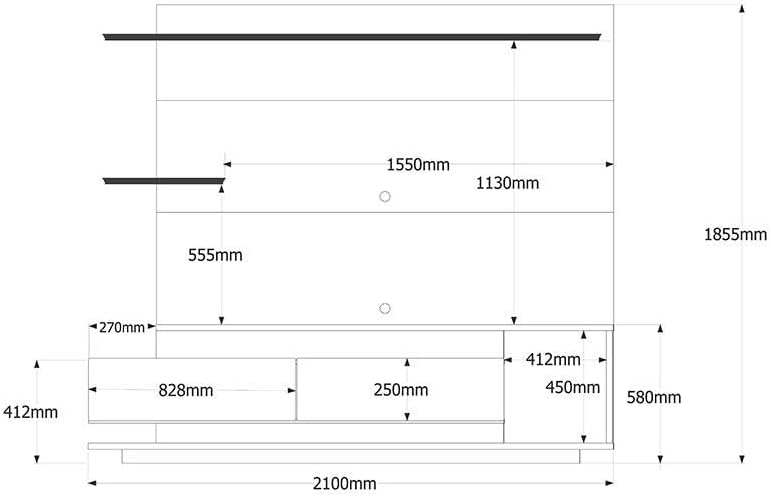

Figure 2: Detailed technical diagram illustrating the dimensions of the LUKALIAM Istambul Home TV Stand. Key measurements include a total height of 1855mm (185.5 cm), a width of 2100mm (210 cm), and a depth of 450mm (45 cm). The diagram also shows specific measurements for the TV area, shelves, and lower cabinet compartments.

Key Dimensions:

• Overall Height: 185.5 cm
• Overall Width: 210 cm
• Overall Depth: 45 cm
• TV Compatibility: Up to 70 inches

Please refer to Figure 2 for detailed internal and component dimensions to plan your setup effectively.

4. Setup and Placement

While the LUKALIAM Istambul Home TV Stand is largely pre-assembled, careful consideration of its placement and initial setup is crucial for optimal use and safety.

1. Unpacking: Carefully remove all packaging materials. Inspect the unit for any signs of damage during transit.
2. Location Selection: Choose a suitable location in your living space. Ensure the floor is level and capable of supporting the weight of the unit and your television. Consider proximity to power outlets and cable management.
3. Positioning: Utilize the built-in casters (rodízios embutidos) to carefully roll the unit into its desired position. Once in place, ensure the casters are locked, if applicable, or that the unit is stable and does not wobble.
4. TV Installation: Mount your television onto the designated area of the stand. Follow your TV manufacturer's instructions for mounting. Ensure the TV is securely fastened and centered.
5. Cable Management: Route all cables (power, HDMI, audio) neatly to prevent tripping hazards and maintain a clean appearance.

5. Operating Features

The Istambul Home TV Stand includes several functional elements designed for convenience and storage.

5.1. Hinged Doors with Gas Pistons

The lower cabinet features two hinged doors equipped with gas pistons for smooth and controlled opening and closing. These doors provide concealed storage for media devices, accessories, or other items.

Figure 3: A close-up view of one of the lower cabinet doors on the LUKALIAM Istambul Home TV Stand. The image highlights the gas piston mechanism that assists in the smooth opening and closing of the door, revealing the interior storage space suitable for books or media accessories.

• To open: Gently pull the door downwards. The gas piston will assist in a controlled descent.
• To close: Gently push the door upwards until it latches securely.
• Avoid forcing the doors open or closed, as this can damage the mechanism.

5.2. Shelving

The unit includes a main shelf and additional floating shelves for displaying decorative items, books, or smaller media components.

Figure 4: A detailed view of one of the floating shelves on the LUKALIAM Istambul Home TV Stand. The shelf, made of 25mm MDF with a freijo finish, is shown holding several books, demonstrating its capacity for decorative or functional storage.

• Distribute weight evenly on shelves to maintain balance and prevent warping.
• Do not overload shelves beyond their structural capacity.

6. Maintenance and Care

Proper care will help maintain the appearance and longevity of your LUKALIAM Istambul Home TV Stand.

• Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner specifically designed for wood or furniture finishes. Dry immediately with a clean, soft cloth.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or polishes containing silicone, as these can damage the pearlescent finish and wood.
• Sunlight Exposure: Avoid prolonged direct sunlight exposure, which can cause fading or discoloration of the finish.
• Heat and Moisture: Protect the surface from excessive heat and moisture. Use coasters under drinks and avoid placing hot items directly on the unit.
• Caster Maintenance: Periodically check the casters for debris and ensure they roll smoothly. Clean as needed.

7. Troubleshooting

If you encounter any issues with your TV stand, refer to the following common solutions:

• Unit is Unstable/Wobbles:
  • Ensure the unit is on a completely flat and level surface.
  • Check if any casters are unlocked or unevenly adjusted.
  • Verify that the TV and other items are evenly distributed.
• Doors Not Closing Smoothly:
  • Check for any obstructions inside the cabinet or along the door's path.
  • Ensure the gas piston mechanism is free of debris and operating correctly.
  • Avoid forcing the door; if resistance is significant, contact support.
• Scratches or Dents:
  • For minor scratches, furniture repair kits or touch-up pens matching the finish may be used. Consult a professional for significant damage.

8. Specifications

9. Warranty and Support

For information regarding warranty coverage, parts replacement, or technical support, please contact the LUKALIAM customer service department or refer to your purchase documentation. Keep your proof of purchase for warranty claims.

Customer Support: Refer to your retailer's contact information or the LUKALIAM official website for support details.
