6-in-1 PH Meter for Water Hydroponics User Manual

Introduction

The Gain Express 6-in-1 PH Meter is a comprehensive water quality monitoring device designed for various applications including hydroponics, aquariums, fish ponds, and drinking water analysis. This device provides real-time measurements for pH, Electrical Conductivity (EC), Total Dissolved Solids (TDS), Salt, Specific Gravity (SG), and Temperature. With its wireless Wi-Fi connectivity and mobile application support, users can conveniently monitor water parameters from anywhere, ensuring optimal conditions for their specific needs.

Image: The 6-in-1 PH Meter unit, showing the main display, connected probes, power adapter, and included pH buffer calibration powders.

Key Features

• Multi-parameter Testing: Measures pH, EC, TDS, Salt, SG, and Temperature.
• Wireless Wi-Fi Monitoring: Real-time data access via a convenient mobile application.
• Easy 3-Point Calibration: Ensures accurate and reliable measurements.
• Versatile Applications: Suitable for fish ponds, aquariums, hydroponics, mariculture, and drinking water.
• Convenient Wall-Mounted Design: Effortless installation and space-saving.

Set Includes

The product package includes the following items:

• 1 x 6-in-1 Multi-parameter Tester Unit
• 1 x Replaceable pH Electrode
• 1 x EC/TDS/Salt/SG/Temperature Electrode
• 1 x Temperature Electrode
• 3 x pH Buffer Powder (pH 4.0, pH 6.86, pH 9.18)
• 2 x Suction Cups
• 1 x Wall Mount Bracket
• 1 x USB Power Supply
• 1 x Carrying Case

Image: All components included in the 6-in-1 PH Meter kit, neatly arranged.

Setup

1. Unpack: Carefully remove all components from the carrying case.
2. Connect Probes: Connect the pH electrode, EC/TDS/Salt/SG/Temperature electrode, and the separate temperature electrode to their respective ports on the main meter unit. Ensure connections are secure.
3. Power On: Connect the USB power supply to the DC Output port on the meter and plug it into a power outlet. The device will power on automatically.
4. Mounting (Optional): Use the provided wall mount bracket and suction cups to secure the meter to a desired surface, such as the side of an aquarium or a wall.

Image: The meter unit conveniently mounted on a wall, showcasing its space-saving design.

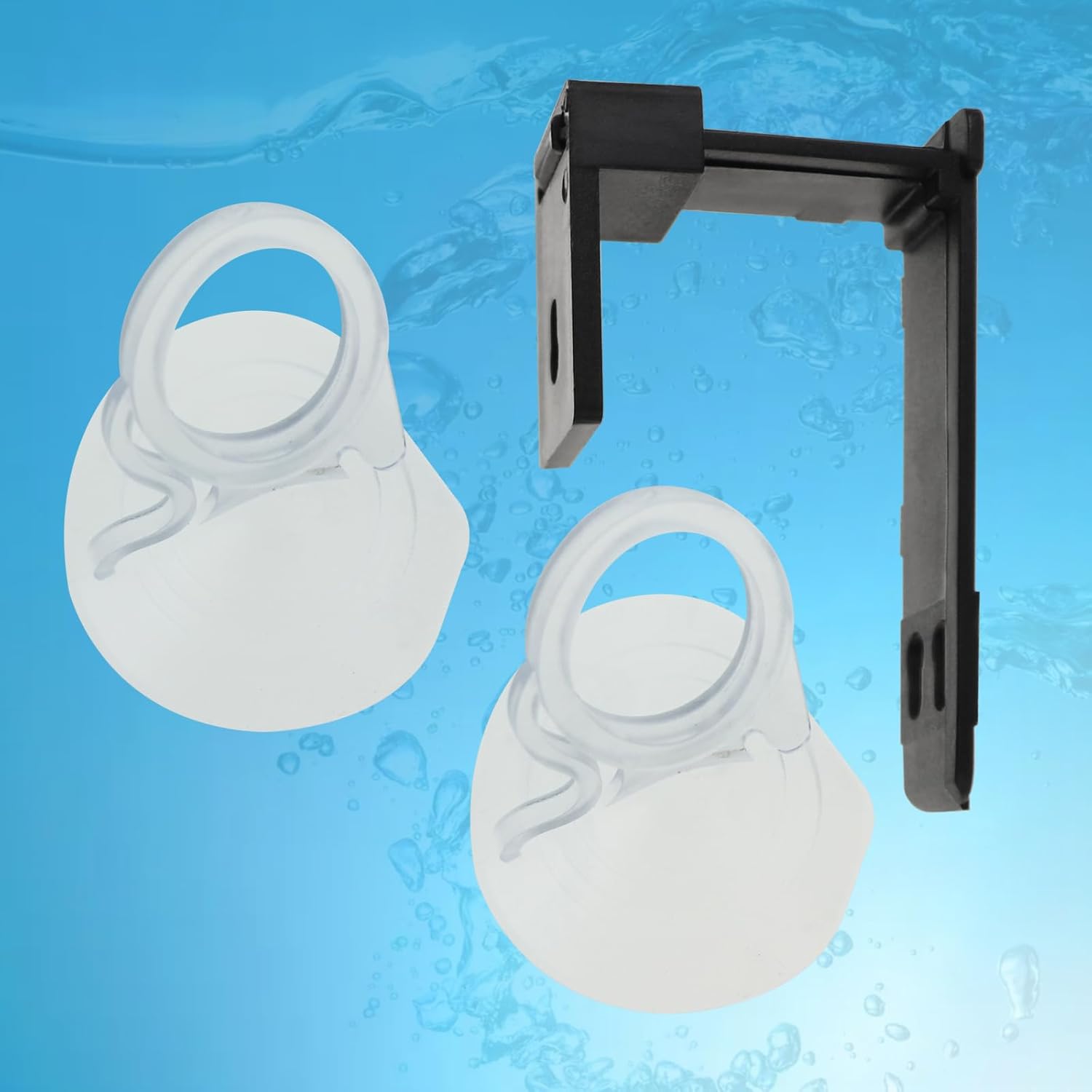

Image: The suction cups and wall mount bracket, used for securing the meter.

Operating Instructions

Understanding the Display and Buttons

Image: Labeled diagram of the meter's buttons and connection points.

• MODE Button: Cycles through different measurement parameters (EC, TDS, Salt, SG). Also functions as a decrease button during settings.
• TEMP CAL/+ Button: Used for temperature calibration and as an increase button during settings.
• Wi-Fi Button: Activates or deactivates Wi-Fi connectivity for app monitoring.
• CAL Button: Initiates the calibration process for pH.

Parameter Calibration

The meter supports a 3-point calibration for pH to ensure accuracy. EC/TDS/Salt/SG calibration may also be required depending on usage.

1. pH Calibration: Prepare the pH buffer solutions (pH 4.00, 6.86, 9.18). Submerge the pH electrode into the first buffer solution. Press the 'CAL' button and follow the on-screen prompts. Repeat for the other two buffer solutions.
2. EC/TDS/Salt/SG Calibration: Refer to the detailed instructions in the mobile application or the full user manual for specific steps on calibrating these parameters. Note that EC solution is not included.

Image: A hand pressing the 'CAL' button on the meter to initiate calibration.

Mobile Application Monitoring

The meter connects to a mobile application via Wi-Fi for 24-hour online monitoring and data logging.

1. Download App: Scan the QR code in the product packaging or search for the compatible app (e.g., Tuya Smart) on your smartphone's app store (iOS or Android).
2. Connect to Wi-Fi: Ensure the meter's Wi-Fi function is enabled. Follow the app's instructions to connect the meter to your home Wi-Fi network.
3. Monitor Data: Once connected, you can view real-time data, set alarms, and review historical data directly from your smartphone.

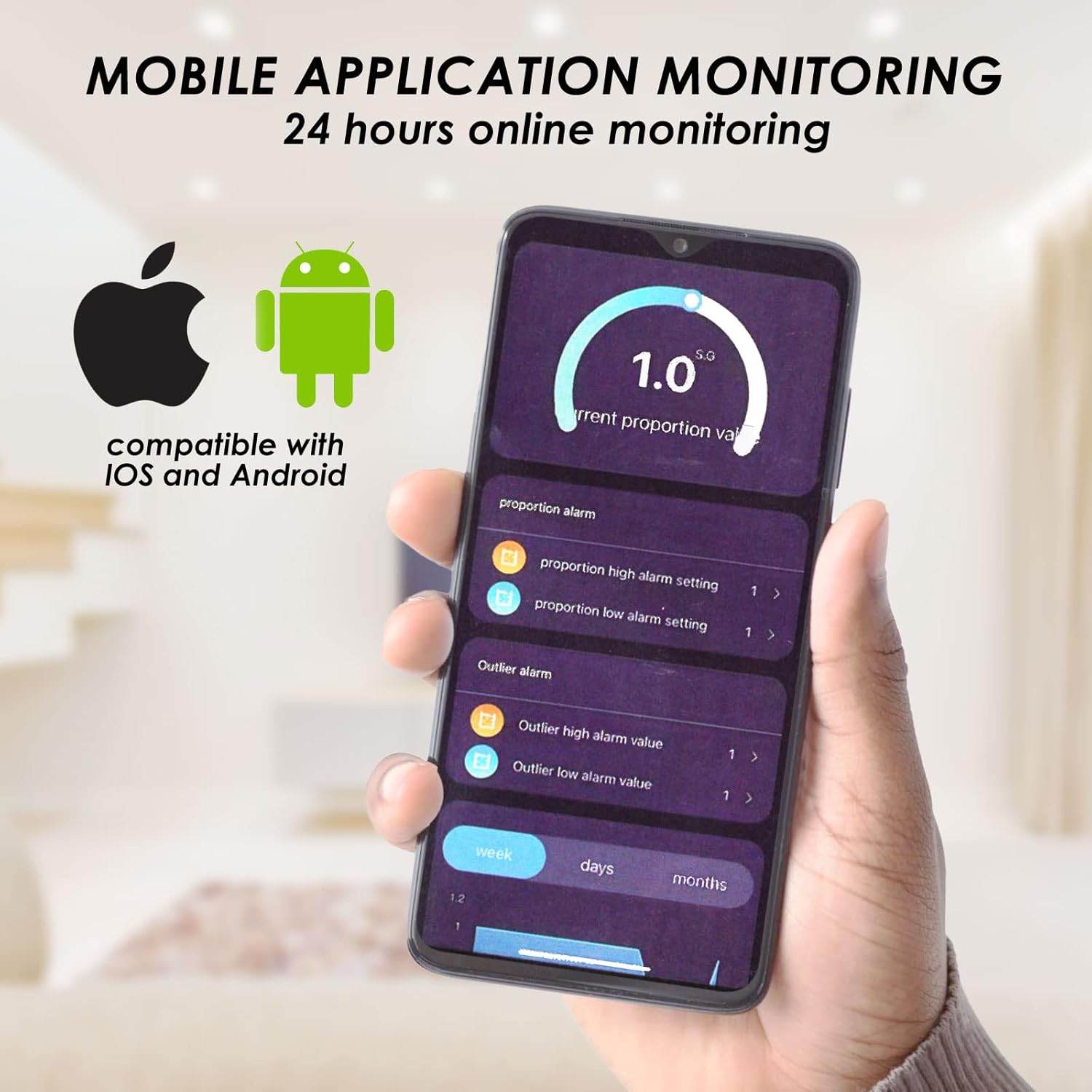

Image: The mobile application interface showing real-time monitoring data.

Temperature Unit Selection

You can switch between Celsius (°C) and Fahrenheit (°F) temperature units on the display.

• Switching Units: Press the 'TEMP CAL/+' button to toggle between Celsius and Fahrenheit display modes.

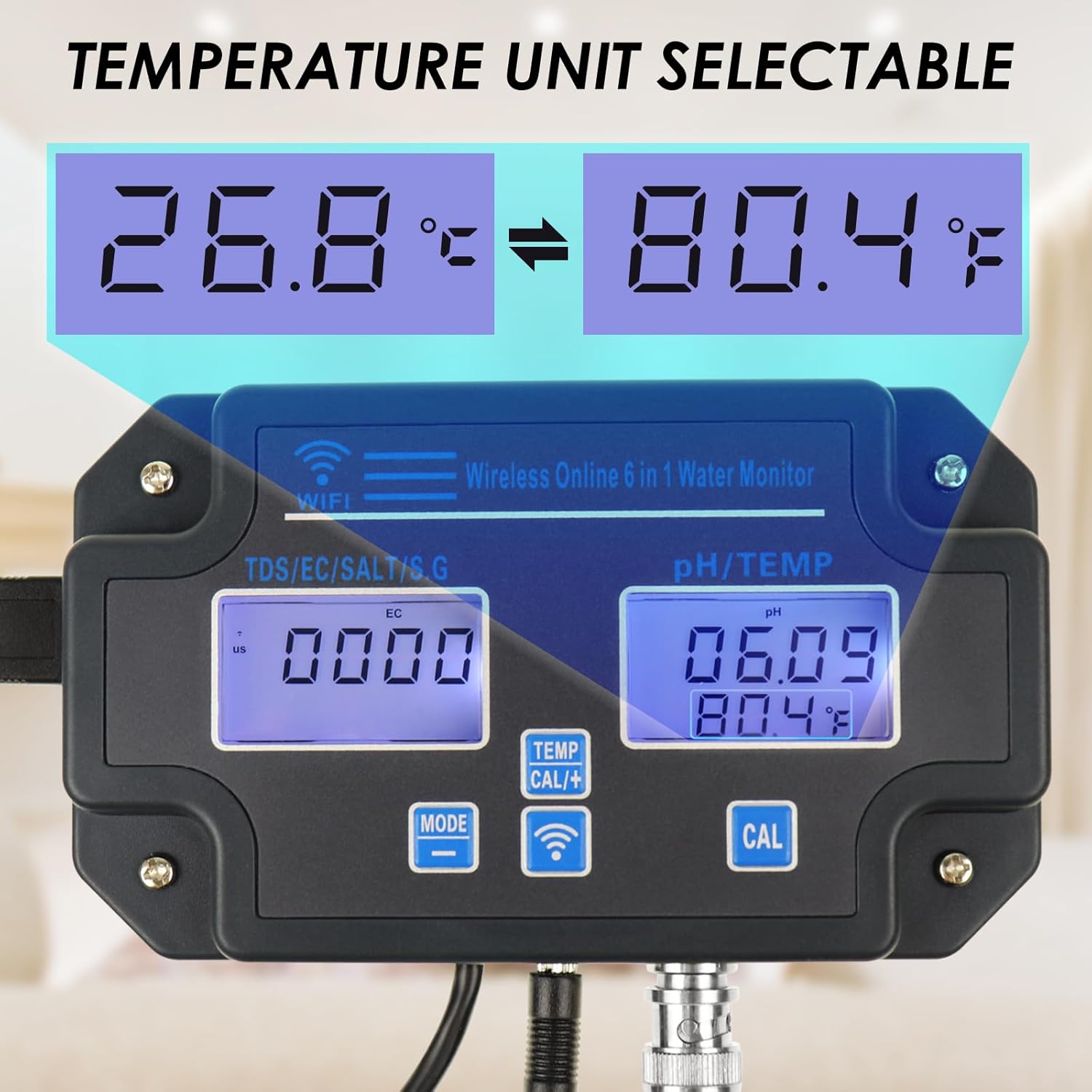

Image: The meter's display showing the temperature unit being switched between Celsius and Fahrenheit.

Maintenance

• Electrode Cleaning: Regularly clean the electrodes with distilled water to prevent buildup and ensure accurate readings. For stubborn deposits, use a soft brush or a mild cleaning solution recommended for pH/EC probes.
• Electrode Storage: When not in use, store the pH electrode in a suitable storage solution (e.g., KCL solution) or distilled water to prevent it from drying out.
• Recalibration: Calibrate the meter regularly, especially if readings appear inconsistent or after prolonged periods of non-use.
• Unit Cleaning: Wipe the main unit with a soft, dry cloth. Do not immerse the main unit in water.

Troubleshooting

Specifications

Temperature Compensation: 0-50°C

Operating Temperature: 0-50°C

Image: The meter actively monitoring water parameters in an aquarium setup.

Versatile Applications

This multi-parameter tester is designed for a wide range of water quality monitoring needs:

• Swimming Pools
• Drinking Water
• Aquariums
• Hydroponics Systems
• Mariculture Operations
• Laboratories

Image: Visual representation of the diverse applications for the 6-in-1 PH Meter.

Warranty and Support

Gain Express products are manufactured to high standards. For any issues or technical support, please refer to the contact information provided with your purchase or visit the official Gain Express website. Protection plans may be available for extended coverage, offering peace of mind for your investment.
