RAF R.5329 Air Fryer Instruction Manual

1. Introduction

Thank you for choosing the RAF R.5329 Air Fryer. This appliance is designed to cook your favorite foods with little to no oil, offering a healthier alternative to traditional frying. Please read this instruction manual carefully before using the appliance to ensure safe and optimal performance. Keep this manual for future reference.

2. Important Safety Instructions

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse the cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to "off," then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface with adequate ventilation around it.
• Do not block any ventilation openings.

3. Product Overview

The RAF R.5329 Air Fryer features a sleek design with intuitive controls for easy operation.

Components

• Main Unit
• Removable Frying Basket
• Non-stick Pan
• Control Panel (Timer and Temperature Dials)
• Air Inlet and Outlet Vents

Control Panel

The air fryer is equipped with two manual rotary dials for precise control over cooking time and temperature.

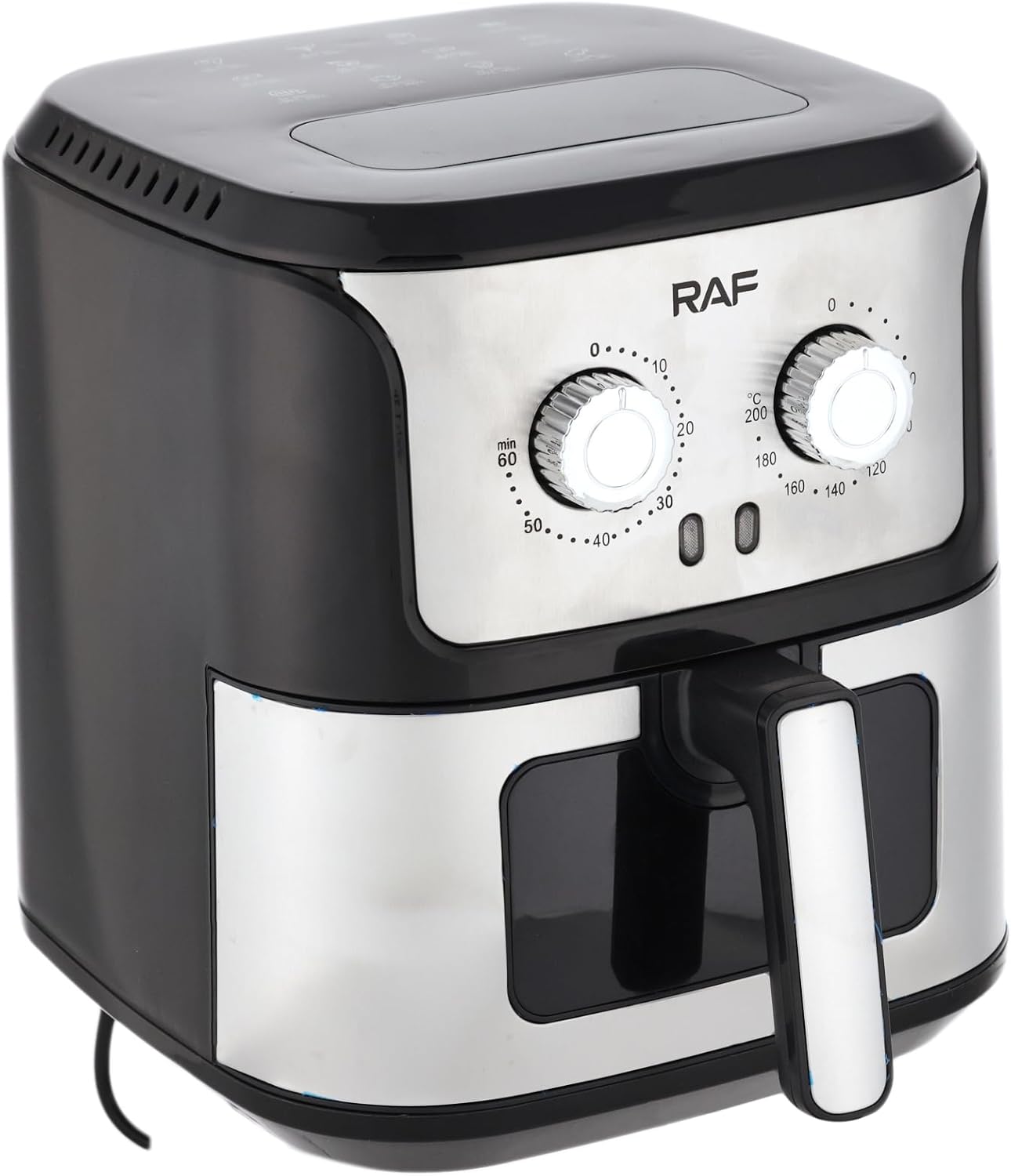

Image: Front view of the RAF R.5329 Air Fryer, showing the timer dial (left) and temperature dial (right) on the control panel.

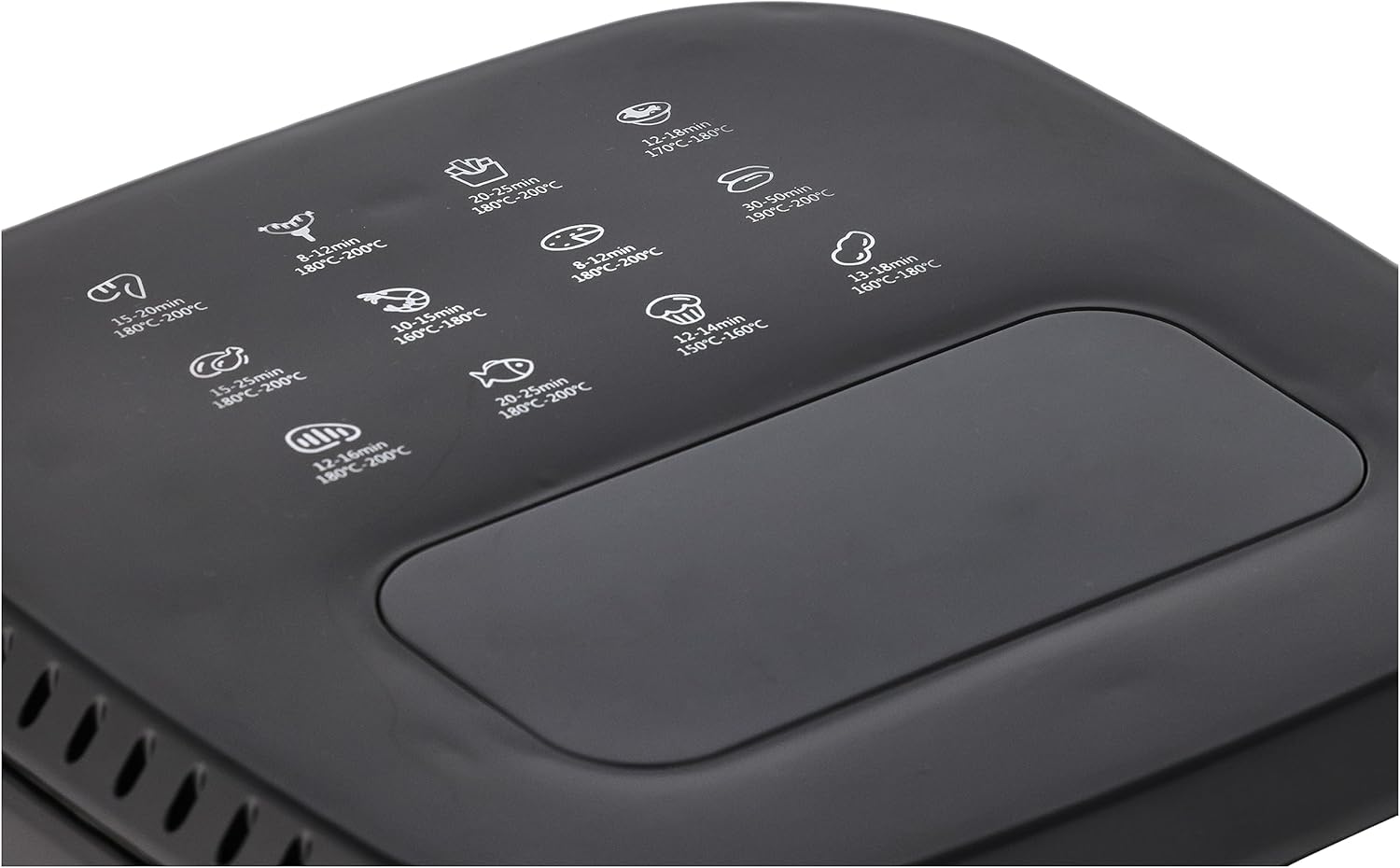

Image: Top view of the RAF R.5329 Air Fryer, displaying a guide for various food presets with recommended cooking times and temperatures.

• Timer Dial: Set cooking time up to 60 minutes.
• Temperature Dial: Adjust cooking temperature from 80°C to 200°C.
• Indicator Lights: Power and heating indicators.

4. Setup

Unpacking

1. Remove all packaging materials from the air fryer.
2. Check that all parts are present and undamaged.

Initial Cleaning

1. Wipe the exterior of the appliance with a damp cloth.
2. Wash the frying basket and pan with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely.
3. Do not immerse the main unit in water or any other liquid.

Placement

1. Place the air fryer on a stable, level, and heat-resistant surface.
2. Ensure there is at least 10 cm of free space on the back and sides of the appliance, and 10 cm above it, to allow for proper air circulation.
3. Do not place the appliance against a wall or other appliances.

Power Connection

Plug the power cord into a grounded wall outlet. Ensure the voltage matches the specifications of your appliance (220V).

5. Operating Instructions

General Operation

1. Prepare Food: Place the ingredients into the frying basket. Do not overfill the basket.
2. Insert Basket: Slide the frying basket back into the air fryer. Ensure it is fully closed.
3. Set Temperature: Turn the temperature control dial to your desired temperature (80°C - 200°C).
4. Set Timer: Turn the timer control dial to the desired cooking time (up to 60 minutes). The air fryer will start operating.
5. Monitor Cooking: For some recipes, you may need to shake the basket halfway through the cooking time to ensure even cooking. To do this, pull out the basket by the handle, shake it, and then slide it back in. The air fryer will resume cooking.
6. Cooking Completion: When the timer reaches zero, the air fryer will automatically turn off. Carefully pull out the basket and remove the cooked food.

Image: The RAF R.5329 Air Fryer with its frying basket partially pulled out, demonstrating how to access food during cooking.

Preset Programs

The top panel of the air fryer provides a convenient guide for various food types with recommended cooking times and temperatures. These are general guidelines and may need adjustment based on food quantity and desired crispiness.

• Fries
• Nuggets
• Grilled Chicken
• Pizza
• Meat
• Fish
• Vegetables
• Sweets

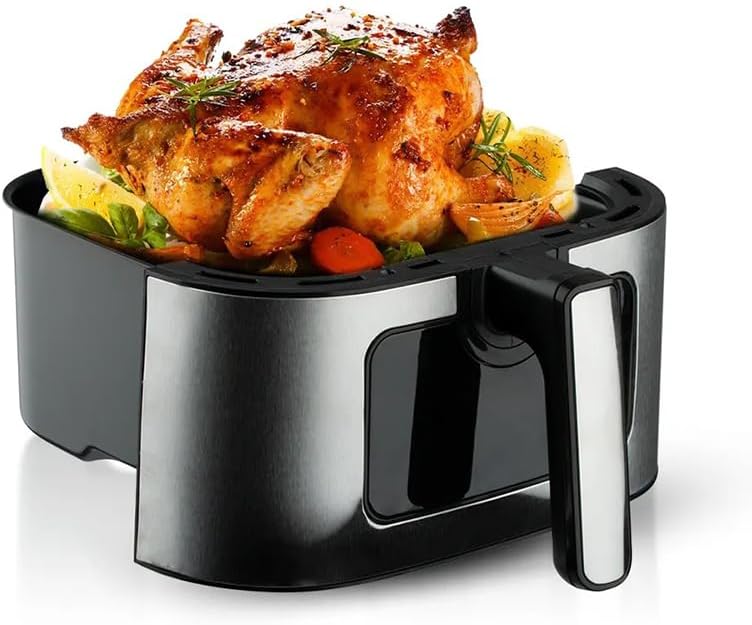

Image: The RAF R.5329 Air Fryer with a whole roasted chicken visible through the viewing window, demonstrating its capacity for larger items.

6. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your air fryer.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Clean Basket and Pan: The frying basket and pan have a non-stick coating. Wash them with hot water, dish soap, and a non-abrasive sponge. Do not use metal scouring pads or abrasive cleaning materials, as this can damage the non-stick coating.
3. Dishwasher Safety: The frying basket and pan are not dishwasher safe.
4. Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
5. Clean Interior: If necessary, clean the interior of the appliance with a damp cloth.
6. Storage: Store the cleaned and dried air fryer in a cool, dry place.

7. Troubleshooting

If you encounter any issues with your RAF R.5329 Air Fryer, please refer to the following common problems and solutions:

8. Specifications

Detailed technical specifications for the RAF R.5329 Air Fryer:

Image: Diagram illustrating the dimensions of the RAF R.5329 Air Fryer, showing a height of 15 inches (37 cm).

9. Warranty and Support

Warranty Information

This RAF R.5329 Air Fryer comes with an International Warranty. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects under normal use conditions.

Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your retailer or the authorized RAF service center in your region. Refer to the product packaging or the retailer's website for contact details.
