1. Product Overview
This manual provides essential information for the proper installation, use, and maintenance of your 14x2.125 inner tube, designed for 14-inch electric unicycles such as the Kingsong KS 14D. This inner tube is a critical component for ensuring the smooth and safe operation of your self-balancing scooter.

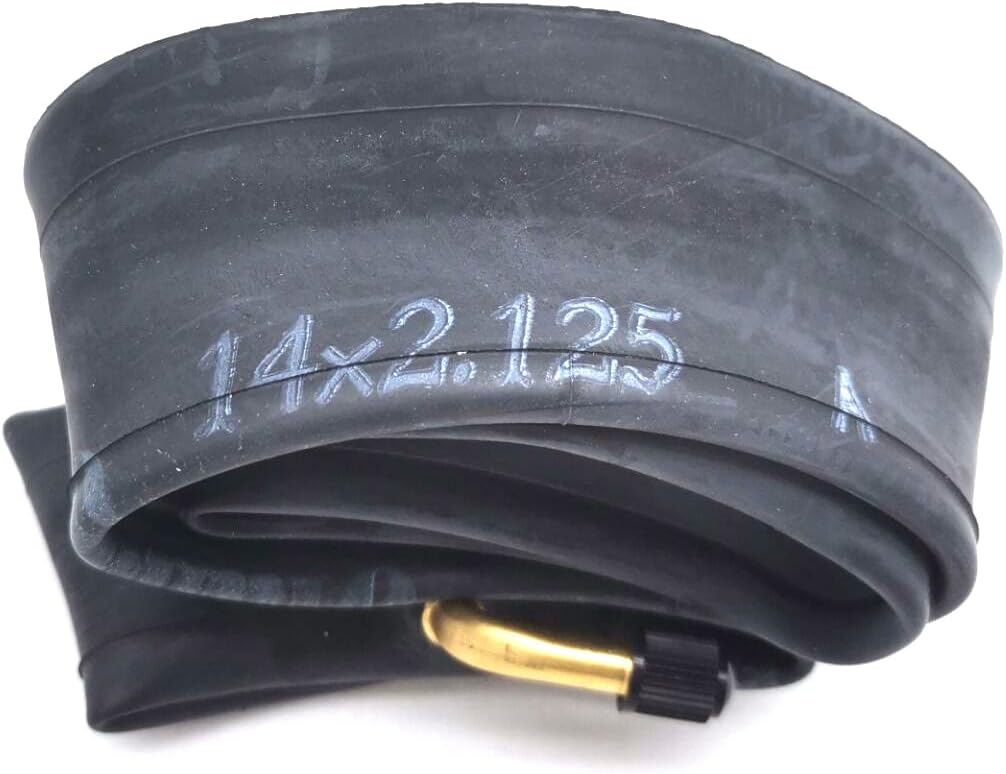

Figure 1.1: The 14x2.125 inner tube, folded, showing the size marking and valve stem.
Key Features:
- Size: 14x2.125 inches, compatible with most 14-inch electric unicycle tires.
- Construction: Tube Type, designed for reliable air retention.
- Valve Type: Angled valve stem for easier inflation access.
2. Setup and Installation
Proper installation of the inner tube is crucial for safety and performance. If you are unsure, seek professional assistance.
Required Tools:
- Tire levers
- Air pump with pressure gauge
- Soapy water (optional, for bead seating)
Installation Steps:
- Deflate and Remove Old Tube: Completely deflate the existing tire. Use tire levers to carefully pry one bead of the tire off the rim. Remove the old inner tube.
- Inspect Tire and Rim: Thoroughly inspect the inside of the outer tire for any sharp objects (glass, thorns, etc.) that may have caused the previous puncture. Check the rim strip for proper seating and ensure there are no sharp edges on the rim.
- Slightly Inflate New Tube: Inflate the new inner tube with a small amount of air, just enough for it to hold its shape. This prevents it from twisting or pinching during installation.
- Insert Valve Stem: Insert the valve stem of the inner tube through the valve hole in the rim. Ensure the valve is straight and securely seated.
- Tuck in Inner Tube: Carefully tuck the rest of the inner tube inside the outer tire, working your way around the rim. Ensure the tube is not twisted or pinched between the tire bead and the rim.
- Seat Tire Bead: Starting opposite the valve stem, begin to work the second tire bead back onto the rim using your hands. For the last section, you may need to use tire levers, being careful not to pinch the inner tube.
- Inflate Tire: Slowly inflate the tire to the recommended pressure (usually found on the sidewall of the outer tire). As you inflate, check that the tire beads are seating evenly on both sides of the rim. A popping sound indicates the bead is seating. If necessary, deflate slightly, apply soapy water to the bead, and re-inflate.
- Check for Leaks: Once inflated, listen for any hissing sounds indicating a leak. You can also apply soapy water around the valve stem and tire beads to check for bubbles.
Figure 2.1: The inner tube slightly inflated, ready for insertion into the tire.
Figure 2.2: Proper positioning of the valve stem through the rim hole.
3. Operating and Usage
The inner tube's primary function is to hold air pressure within the tire. Proper inflation is key to safe and efficient operation of your electric unicycle.
Tire Pressure:
- Always refer to the recommended tire pressure (PSI or Bar) printed on the sidewall of your outer tire.
- Under-inflation can lead to poor handling, increased rolling resistance, and a higher risk of pinch flats.
- Over-inflation can result in a harsh ride, reduced traction, and increased risk of blowouts.
Riding Conditions:
- Avoid riding over sharp objects, potholes, or curbs that could damage the tire and inner tube.
- Regularly inspect your tire for embedded debris before and after rides.
4. Maintenance
Regular maintenance extends the life of your inner tube and ensures riding safety.
Pressure Checks:
- Check tire pressure before each ride or at least weekly. Inner tubes naturally lose air over time.
- Use a reliable pressure gauge for accurate readings.
Inspection:
- Periodically remove the tire and inner tube to inspect the inner tube for signs of wear, cracks, or small punctures that might not yet be causing significant air loss.
- Check the valve stem for any damage or looseness.
Figure 4.1: Inspect the inner tube surface for any signs of wear or damage.
Storage:
- Store spare inner tubes in a cool, dry place away from direct sunlight, extreme temperatures, and ozone-producing devices (e.g., electric motors).
- Avoid folding tubes tightly for long periods, which can cause creases and weaken the rubber.
5. Troubleshooting
Common issues and their solutions related to your inner tube.
| Problem | Possible Cause | Solution |
|---|---|---|
| Frequent Punctures | Sharp object in tire, pinch flat (under-inflation), worn tire, sharp rim edge/spoke. | Inspect outer tire thoroughly, maintain correct pressure, replace worn tire, check rim strip. |
| Slow Air Leak | Small puncture, faulty valve core, porous rubber. | Locate puncture (submerge in water), patch or replace tube, tighten/replace valve core. |
| Tire Won't Seat Evenly | Tube pinched, dry tire bead, uneven inflation. | Deflate, ensure tube is not pinched, apply soapy water to bead, re-inflate slowly. |
| Valve Stem Leak | Loose valve core, damaged valve stem, tube pulled at valve base. | Tighten valve core, replace tube if stem is damaged, ensure tube is not twisted during installation. |
6. Specifications
- Product Name: 14 inch electric unicycle inner tube
- Model Number: 1 (Internal Manufacturer Part Number)
- Size: 14x2.125 inches
- Construction Type: Tube Type
- Item Weight: Approximately 0.17 Kilograms (6 ounces)
- UPC: 744612233349
- Manufacturer: SPEDWHEL
7. Warranty and Support
For any questions regarding this product, including warranty claims or technical support, please contact the seller or manufacturer directly through your purchase platform. Keep your proof of purchase for any warranty-related inquiries.
This product is intended for its specified use in electric unicycles. Any modification or improper use may void the warranty and pose safety risks.
