1. Introduction
Thank you for choosing the Philips 3000 Series Cordless Vacuum Cleaner. This appliance is designed to provide efficient and convenient cleaning for your home. Its lightweight design, powerful suction, and versatile accessories make it ideal for various cleaning tasks. Please read this manual carefully before first use to ensure proper operation and maintenance of your vacuum cleaner.
Image: The Philips 3000 Series Cordless Vacuum Cleaner in action, demonstrating its ease of use and cleaning power.
2. Safety Information
Always observe the following basic safety precautions when using electrical appliances:
- Do not use the appliance outdoors or on wet surfaces.
- Do not allow the appliance to be used as a toy. Close attention is necessary when used by or near children.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without dust bin and/or filters in place.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
3. Package Contents
Your Philips 3000 Series Cordless Vacuum Cleaner package includes the following components:
- Main Vacuum Unit
- Extension Tube
- LED Nozzle for Hard Floors
- Crevice Tool
- Combination Tool (brush and narrow nozzle)
- Wall-mount Dock
- Power Adapter/Charger
- Rechargeable Lithium-ion Battery
Image: Overview of all included components for the Philips 3000 Series Cordless Vacuum Cleaner.
4. Setup
4.1 Assembly
- Attach the Extension Tube: Insert the extension tube into the main vacuum unit until it clicks into place.
- Attach the Nozzle: Connect the desired nozzle (e.g., LED nozzle for hard floors) to the other end of the extension tube, ensuring it clicks securely.
- Insert the Battery: Slide the rechargeable battery into the battery slot on the main unit until it locks.
4.2 Charging the Battery
Before first use, fully charge the battery. The battery can be charged while attached to the vacuum cleaner or separately.
- Using the Wall-mount Dock: Mount the wall-mount dock in a convenient location near a power outlet. Place the vacuum cleaner onto the dock. Connect the power adapter to the dock and plug it into a wall outlet.
- Direct Charging: Connect the power adapter directly to the charging port on the main vacuum unit or the battery itself, then plug into a wall outlet.
The charging indicator lights on the vacuum cleaner will show the charging status. A full charge typically takes approximately 4-5 hours.
Image: The vacuum cleaner conveniently stored and charging on its wall-mount dock.
5. Operating the Vacuum Cleaner
5.1 Power On/Off and Mode Selection
Press the power button to turn the vacuum cleaner on. The appliance typically starts in Eco mode. Press the mode selection button to switch between Eco and Turbo modes. Turbo mode provides maximum suction for tougher cleaning tasks, while Eco mode offers extended runtime.
- Eco Mode: Up to 60 minutes runtime (handheld) or 43 minutes (full stick) for general cleaning.
- Turbo Mode: Up to 15 minutes runtime (handheld) or 13 minutes (full stick) for deep cleaning.
Image: Detailed breakdown of battery runtime in different modes and configurations.
5.2 Using the LED Nozzle
The LED nozzle features integrated lights that illuminate fine dust particles on hard floors, making hidden dirt visible and ensuring thorough cleaning. This nozzle is designed to glide close to walls and edges for comprehensive coverage.
Image: The LED nozzle revealing dust on a hard floor during operation.
5.3 Handheld Mode and Accessories
The main vacuum unit can be detached from the extension tube to function as a handheld vacuum, offering increased portability and versatility. Use the included accessories for specialized cleaning:
- Crevice Tool: Ideal for reaching narrow spaces, corners, and between cushions.
- Combination Tool: Features a brush for delicate surfaces and a narrow nozzle for general spot cleaning.
Image: The handheld unit with an accessory cleaning a sofa, demonstrating versatility.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
6.1 Emptying the Dust Bin
Empty the dust bin regularly, especially when the MAX indicator is reached. To empty, detach the dust bin from the main unit, open the lid, and dispose of the contents into a waste bin. Close the lid securely and reattach the dust bin.
6.2 Cleaning the Filters
The Philips 3000 Series features a 3-stage filtration system that captures 99.7% of fine dust. For best performance, clean the filters periodically.
- Remove Filters: Twist and pull to remove the filter assembly from the dust bin.
- Clean: Tap the filters gently over a waste bin to remove loose dust. For a more thorough clean, rinse the filters under running water.
- Dry: Allow the filters to air dry completely for at least 24 hours before reassembling. Do not use a dryer or direct heat.
- Reassemble: Once dry, reassemble the filters and place them back into the dust bin.
Image: Illustration of the effective 3-stage filtration system.
Image: The replaceable filter, ensuring continued air quality and performance.
6.3 Cleaning the Nozzle and Accessories
Periodically check the nozzle and accessories for blockages or tangled hair. Use scissors to cut away any tangled hair from the brush roll. Wipe down the exterior of the vacuum cleaner with a soft, damp cloth.
7. Troubleshooting
If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not turn on. | Battery is not charged or not inserted correctly. | Charge the battery fully. Ensure the battery is securely inserted. |
| Reduced suction power. | Dust bin is full. Filters are clogged. Nozzle or tube is blocked. | Empty the dust bin. Clean or replace the filters. Check nozzle and tube for blockages and remove them. |
| Battery not charging. | Power adapter not connected properly. Wall outlet has no power. | Ensure power adapter is securely plugged into the vacuum/dock and wall outlet. Check the wall outlet with another appliance. |
| LED lights on nozzle not working. | Nozzle connection is loose. | Ensure the nozzle is securely attached to the extension tube or main unit. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | XC3032/01 |
| Color | Dark Grey & Dark Royal Blue |
| Dimensions (L x W x H) | 13.4 x 37.9 x 73.2 cm (product); 1.5 kilograms (weight) |
| Voltage | 25.2 V |
| Number of Speeds | 2 (Eco, Turbo) |
| Noise Level | 80 dB |
| Runtime | Up to 60 minutes (Eco mode, handheld) |
| Special Feature | Cordless |
| Filter Type | Cartridge (3-stage filtration) |
| Recommended Surface | All floors |
| Power Source | Battery Powered (1 Lithium-ion battery included) |
| Manufacturer | Philips |

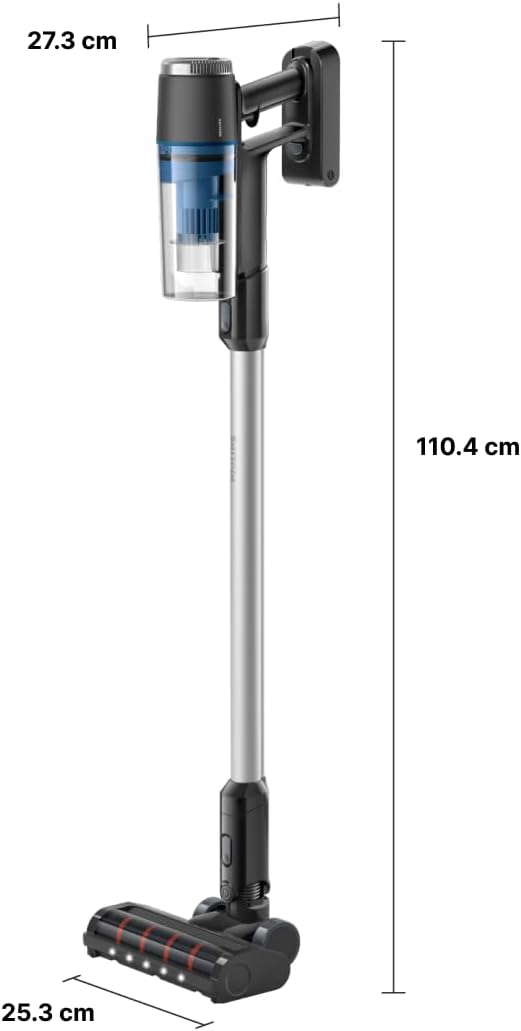

Image: Product dimensions for the Philips 3000 Series Cordless Vacuum Cleaner.
9. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Philips Domestic Appliances website. Keep your purchase receipt as proof of purchase for any warranty claims.
Replacement parts, such as filters (XV1631/01) and batteries (XV1633/01), are available to ensure the continued performance and longevity of your vacuum cleaner.
Image: The replaceable battery, allowing for extended cleaning sessions.
