1. Product Overview
The Misolant Ergonomic Office Chair Model MMMI100-7 is designed to provide comfort and support for extended periods of sitting. It features adjustable components including a headrest, lumbar support, and flip-up armrests, catering to various ergonomic needs.
Image 1.1: Front view of the Misolant Ergonomic Office Chair.
Image 1.2: Dimensions of the Misolant Ergonomic Office Chair: 19.3"D x 18.4"W x 50.4"H.
2. Components List
Before beginning assembly, ensure all components are present and undamaged. Refer to the following list:
- Headrest: 1 pc
- Armrest: 2 pcs
- Backrest: 1 pc
- Seat Cushion: 1 pc
- Chair Base (Nylon 5-star base): 1 pc
- Gas Lift (Industrial-grade class-3): 1 pc
- Casters (PU): 5 pcs
- Hardware Kit (screws, washers, Allen wrench): 1 set
Image 2.1: Key chair accessories including the Nylon 5-star base for stability, the industrial-grade class-3 gas lift, and wear-resistant PU casters.
3. Assembly Instructions
Follow these steps carefully to assemble your Misolant Ergonomic Office Chair. It is recommended to assemble on a soft, clean surface to prevent damage.
- Attach Casters to Base: Insert each of the five casters into the holes at the end of each leg of the chair base until they click securely into place.
- Insert Gas Lift: Place the gas lift cylinder into the center hole of the assembled chair base. Ensure it is seated firmly.
- Attach Armrests to Seat Cushion: Align the armrests with the pre-drilled holes on the underside of the seat cushion. Secure them using the provided screws and Allen wrench. Do not overtighten initially.
- Attach Backrest to Seat Cushion: Connect the backrest to the seat cushion assembly, aligning the mounting points. Secure with screws.
- Attach Headrest: Slide the headrest into the designated slots at the top of the backrest.
- Place Assembled Top onto Gas Lift: Carefully place the assembled seat, backrest, and armrest unit onto the gas lift cylinder, ensuring the center mechanism hole aligns with the top of the gas lift.
- Final Tightening: Once the chair is fully assembled, gently sit on it to settle the components, then tighten all screws securely.
4. Operating Instructions
Your Misolant Ergonomic Office Chair offers several adjustment features to customize your seating experience.
4.1. Adjusting Chair Height
To adjust the chair's height, locate the lever on the right side, beneath the seat cushion. Pull the lever upwards while seated to lower the chair, or pull the lever upwards while standing to raise the chair. Release the lever at your desired height.
4.2. Lumbar Support Adjustment
The chair features an adjustable lumbar support to provide optimal lower back comfort. Adjust the lumbar support by rotating the knobs on the backrest to move the support pad up or down, and in or out, to fit the curve of your spine.

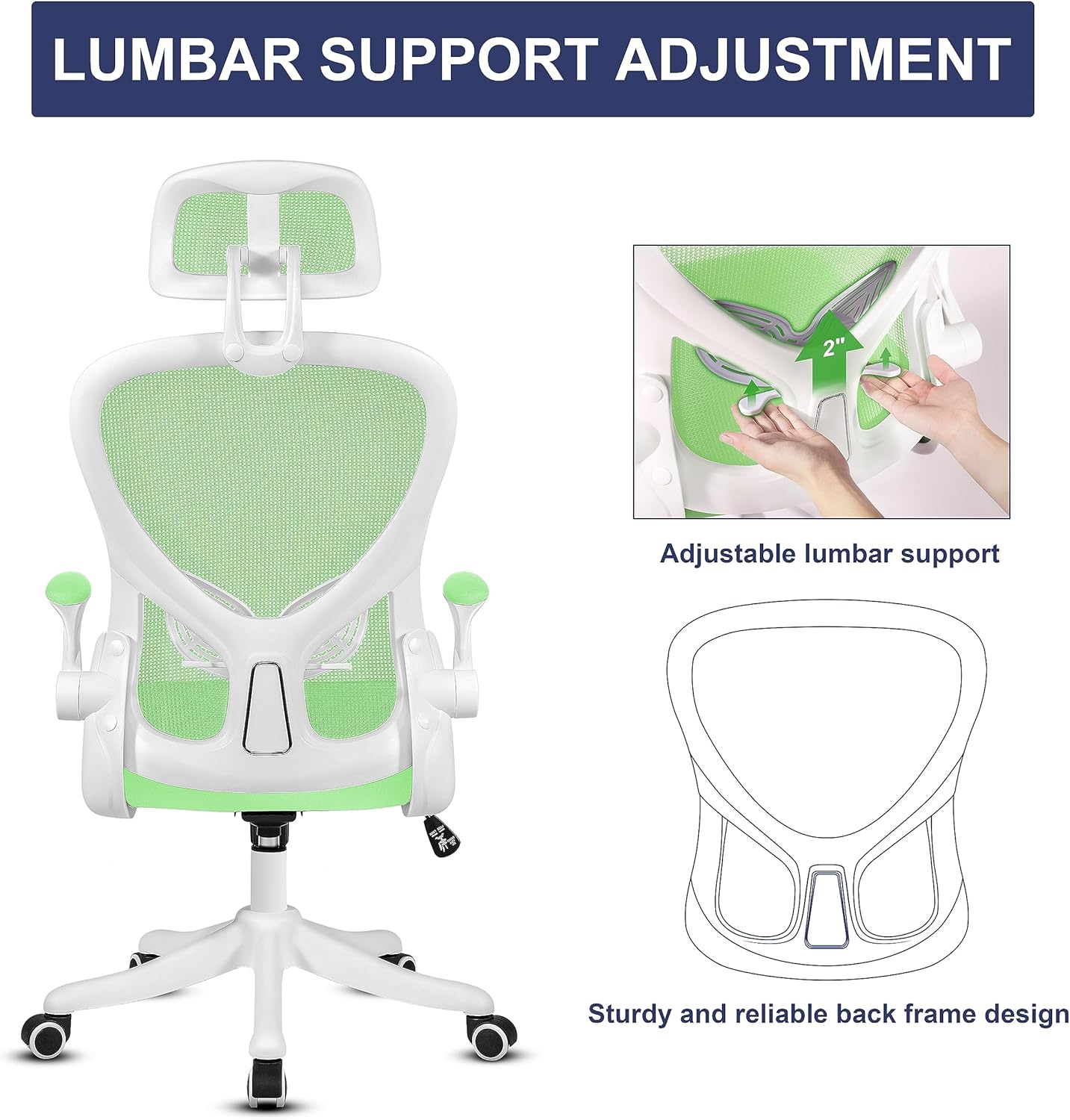

Image 4.1: Detail of the adjustable lumbar support mechanism, allowing for personalized comfort.
4.3. Headrest Adjustment
The headrest offers dual functionality for neck support. It can be adjusted vertically (up and down) and also flipped to change its angle. Adjust the headrest to support your neck and head comfortably.
Image 4.2: Illustration of ergonomic design, highlighting headrest height adjustment (2.4" range) and angle adjustment (45 degrees).
4.4. Armrest Functionality
The chair is equipped with unique flip-up armrests. These armrests can be rotated upwards by 90 degrees, allowing the chair to be pushed closer to a desk or stored more compactly when not in use.
Image 4.3: Demonstration of the 90-degree flip-up armrest feature, designed to save space.
Image 4.4: Detail of the soft, thickly wrapped armrests and the thick natural sponge cushion for enhanced comfort.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Misolant Ergonomic Office Chair.
- Cleaning: Wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the mesh fabric or frame.
- Regular Inspection: Periodically check all screws and bolts to ensure they are tight. Retighten if necessary to maintain stability.
- Caster Care: Keep casters free of hair and debris to ensure smooth movement.
- Gas Lift: Do not attempt to disassemble the gas lift cylinder. If it malfunctions, contact customer support.
6. Troubleshooting
If you encounter any issues with your chair, refer to the following common problems and solutions:
- Chair does not adjust height:
- Ensure the gas lift lever is fully engaged. If the issue persists, the gas lift may need replacement. Contact customer support. - Chair is wobbly or unstable:
- Check all assembly screws and bolts. Tighten any loose connections. Ensure the chair base is fully seated on the gas lift. - Casters do not roll smoothly:
- Inspect casters for trapped debris (hair, lint). Clean them thoroughly. Ensure they are properly inserted into the base. - Squeaking noises:
- Identify the source of the squeak. Often, tightening loose screws or applying a small amount of silicone lubricant to moving parts (avoiding the gas lift) can resolve this.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Misolant |
| Model Number | MMMI100-7 |
| Color | White Frame & Green |
| Product Dimensions | 19.3"D x 18.4"W x 50.4"H |
| Maximum Weight Recommendation | 250 Pounds |
| Material | Metal (Frame), Foam (Fill), Mesh (Backrest/Seat) |
| Special Features | Adjustable Headrest, Adjustable Lumbar Support, Flip-up Armrests |
| Furniture Base Movement | Swivel |
| Product Weight | 31.3 pounds |
| Care Instructions | Wipe Clean |
8. Warranty and Support
Misolant provides a one-year quality guarantee for this ergonomic office chair. This warranty covers manufacturing defects and material flaws under normal use.
For any questions, concerns, or warranty claims, please contact our professional service team. We are committed to providing you with the most satisfactory solution.
Contact Information:
Please refer to the contact details provided at the point of purchase or visit the official Misolant website for support options.
